APW Wyott (Middleby) EG-36S Workline Electric Griddles
Description

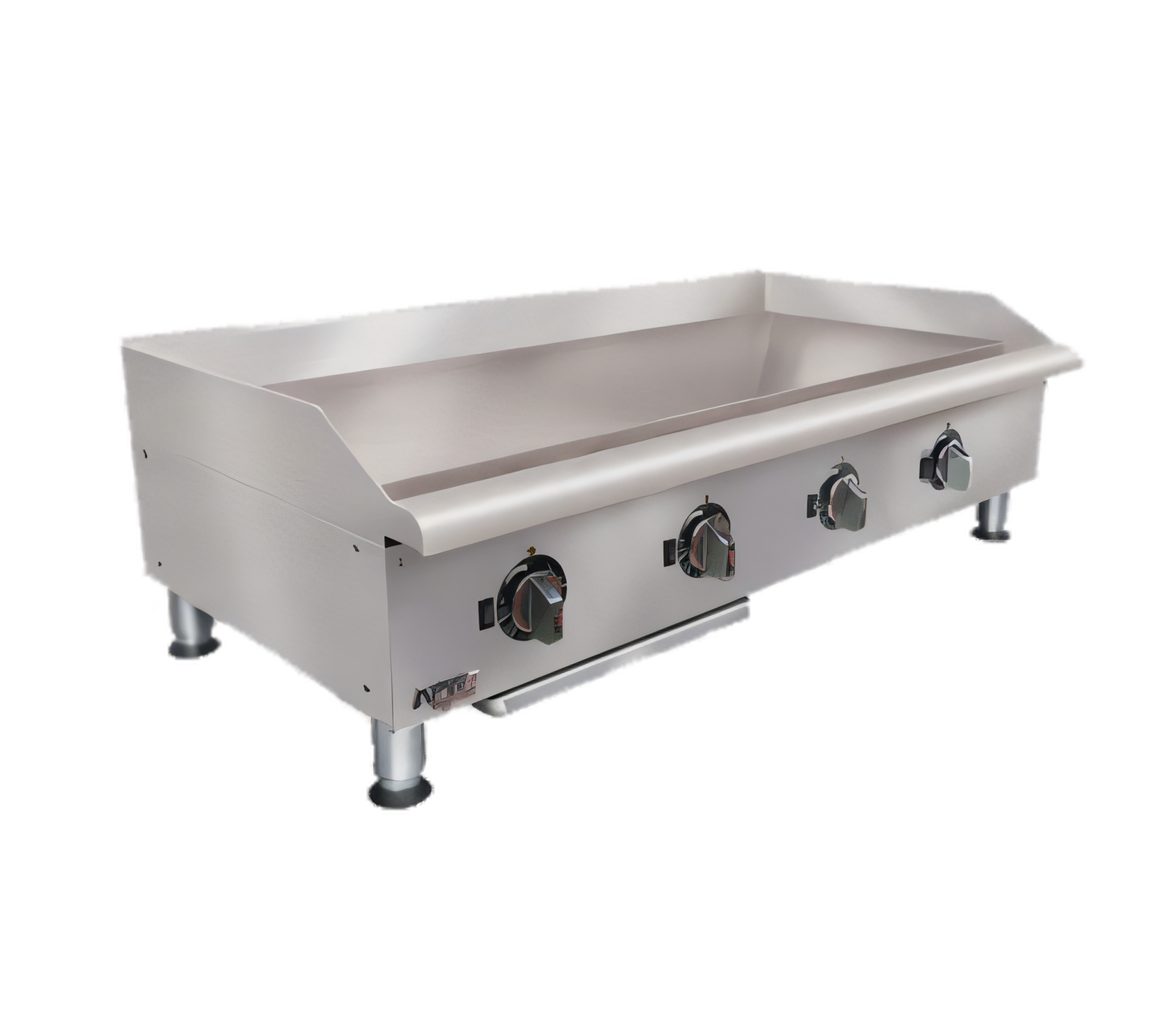

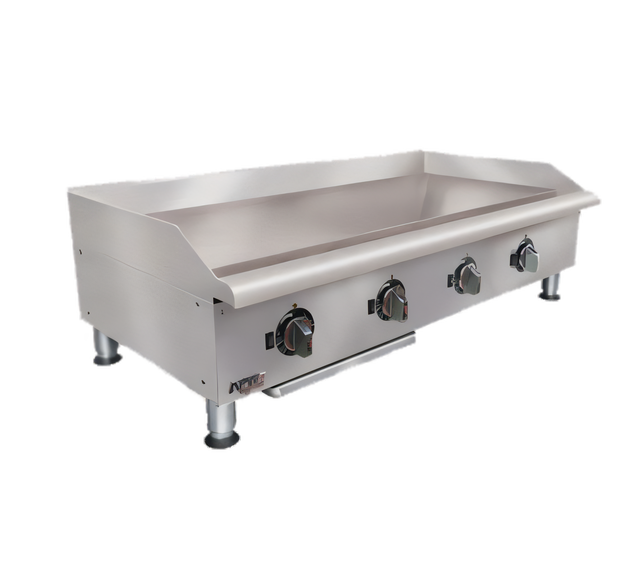

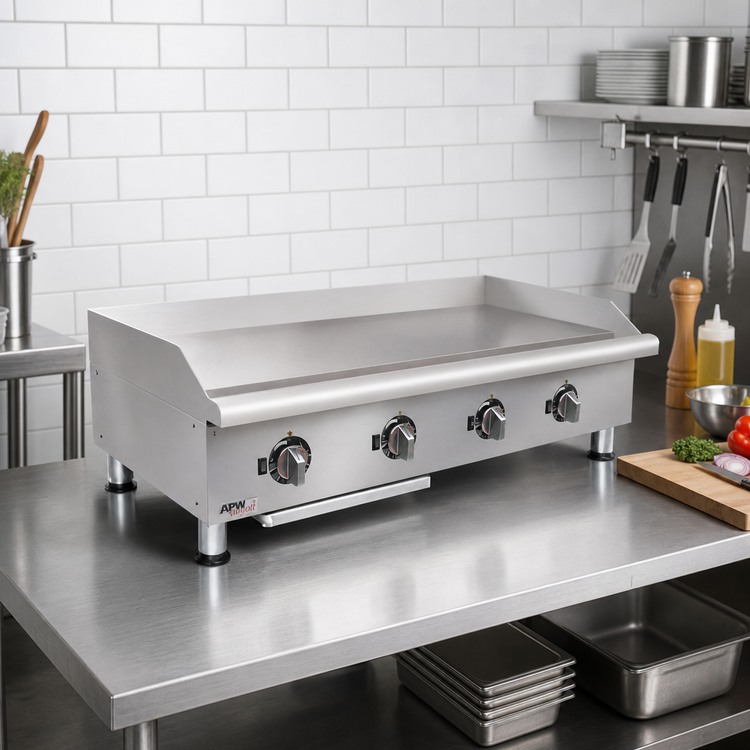

APW Wyott Workline 36" Electric Countertop Griddle
Model: EG-36S | Smooth Steel Plate | Thermostatic ControlEngineered for demanding kitchens, the Workline 36" electric griddle pairs a heavy ¾" polished steel plate with precise, independent thermostat zones, giving you the speed, consistency, and durability you need for an all-day breakfast rush or a late-night burger push. Built in the U.S.A. with a stainless front and aluminized steel body, it’s the reliable workhorse your cookline has been waiting for.
Why You’ll Love It

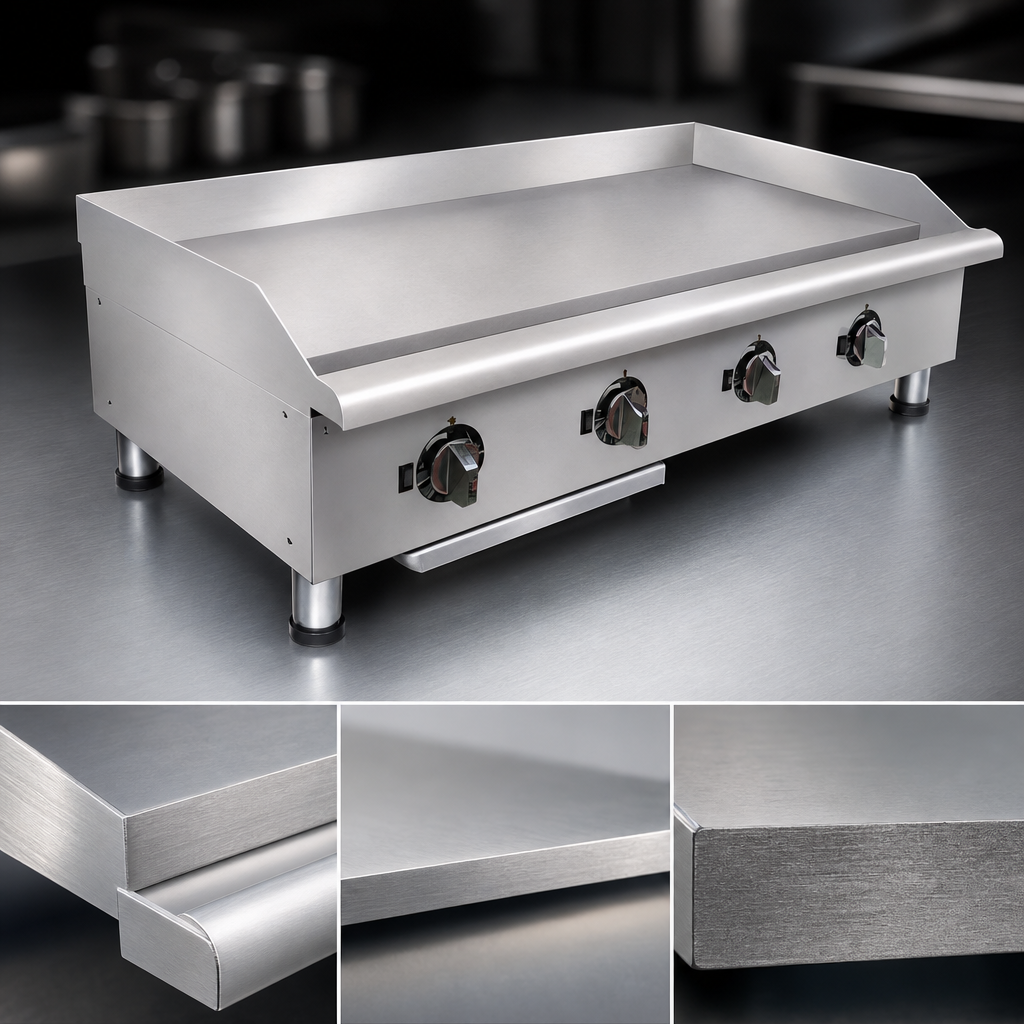

- Even Heat & Fast Recovery – ¾" (19 mm) steel plate stores heat and bounces back quickly after each load.

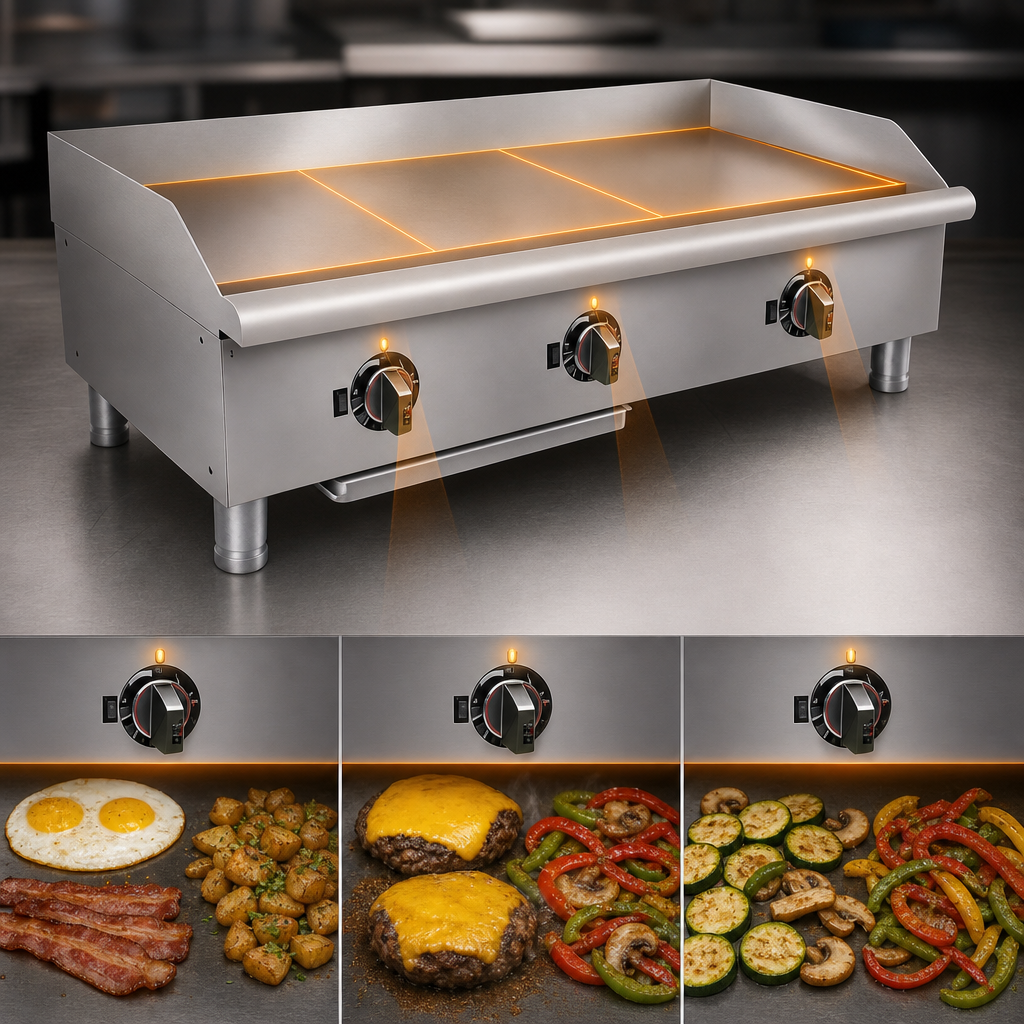

- 3 Independent Zones – Snap-action thermostats (150 °F – 450 °F / 66 °C – 232 °C) let you cook eggs, pancakes, and smash-burgers at once.
- Power to Perform – 3–4 kW per 12" section (9 kW @ 208 V / 12 kW @ 240 V total) keeps up with peak periods.
- Simple Cleanup – 3.25"-wide front trough funnels grease into a large removable drawer.
- Rugged Construction – Stainless steel bull-nose & top skirt; aluminized sides & back resist corrosion.
- Adjustable 4" Legs – Elevate the unit for easy sanitation; 1.375" height adjustment included.
- Certified Safe – cULus & CE listed for electric countertop equipment.
Perfect For
- Diners, cafés, and family restaurants
- Food trucks & concessions needing a hard-working griddle with a compact footprint
- Hotels, cafeterias, and QSRs adding high-volume breakfast or burger programs
Technical Specifications
| Cooking surface | 36" W × 19.5" D (914 × 495 mm) |
|---|---|
| Plate thickness / material | ¾" (19 mm) smooth, polished steel |
| Temperature range | 150 °F – 450 °F (66 °C – 232 °C) |
| Heat zones / controls | 3 independent 12" sections, snap-action thermostats with positive OFF |
| Total power | 9 kW @ 208 V | 12 kW @ 240 V |
| Electrical connection | Hard-wired, field convertible 1-φ or 3-φ • 208 V 1-φ 43.3 A | 240 V 1-φ 50 A • 208 V 3-φ 25 A/leg | 240 V 3-φ 28.9 A/leg |
| Overall dimensions (W×D×H) | 36" × 28.5" × 15.5" (914 × 724 × 394 mm) |
| Installed weight | 247 lb (112 kg) |
| Grease management | 3.25" front trough, slide-out drawer |
| Legs | 4" (102 mm) stainless, height-adjustable ±1.375" |
| Certifications | cULus, CE — meets NSF/ANSI sanitation when installed per instructions |
| Warranty | 1-year limited parts & labor (USA/Canada) |
This unit ships ready to hard-wire. Installation must be performed by a qualified electrician in accordance with all local and national codes to maintain safety listings and warranty coverage.
