American Range MSDE-2 Convection Ovens
Description

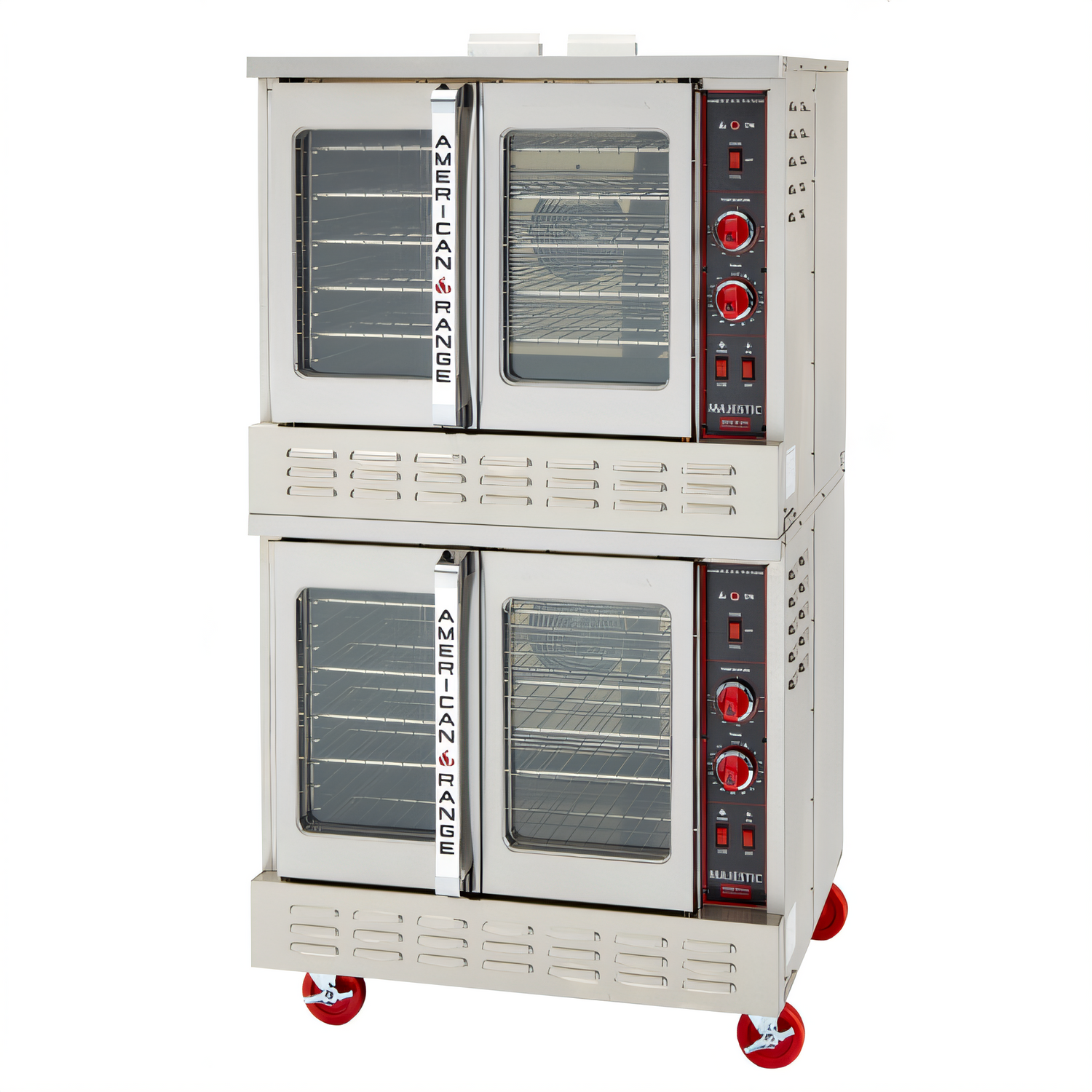

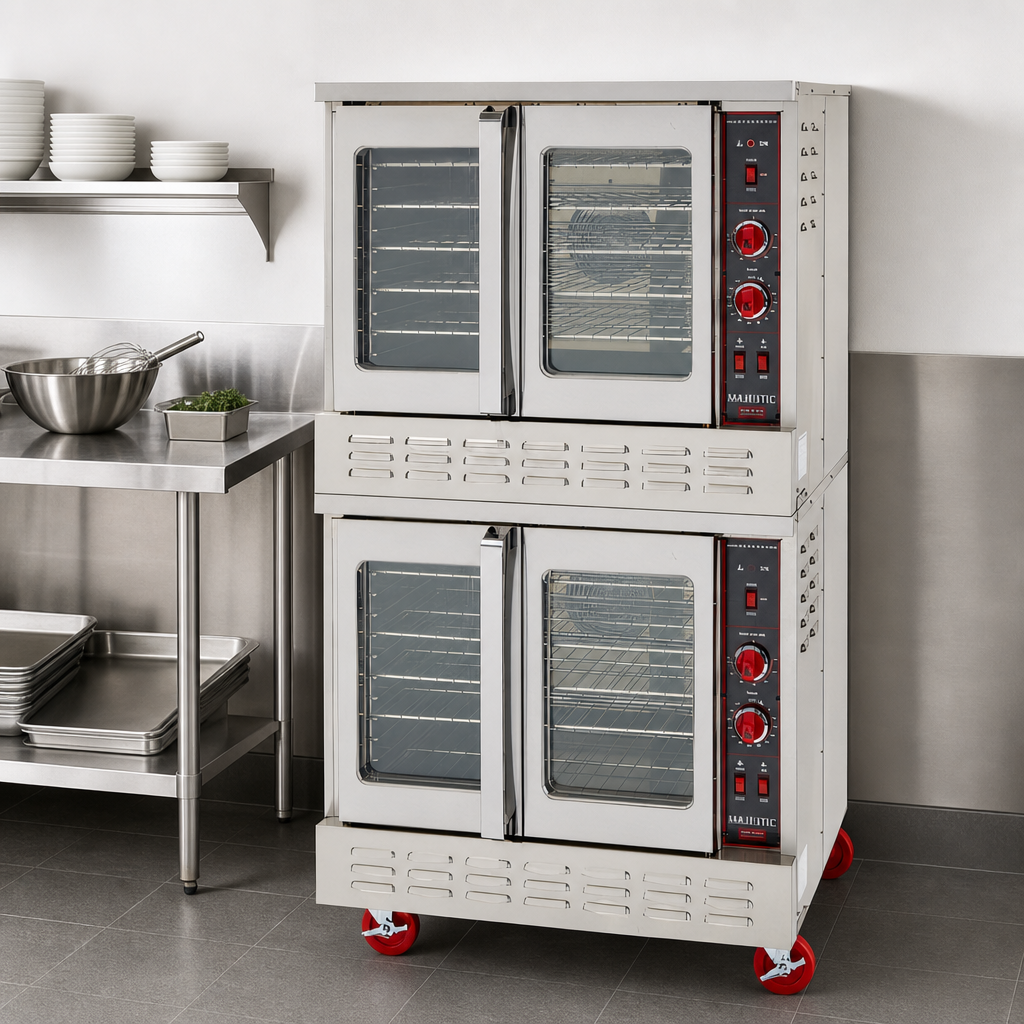

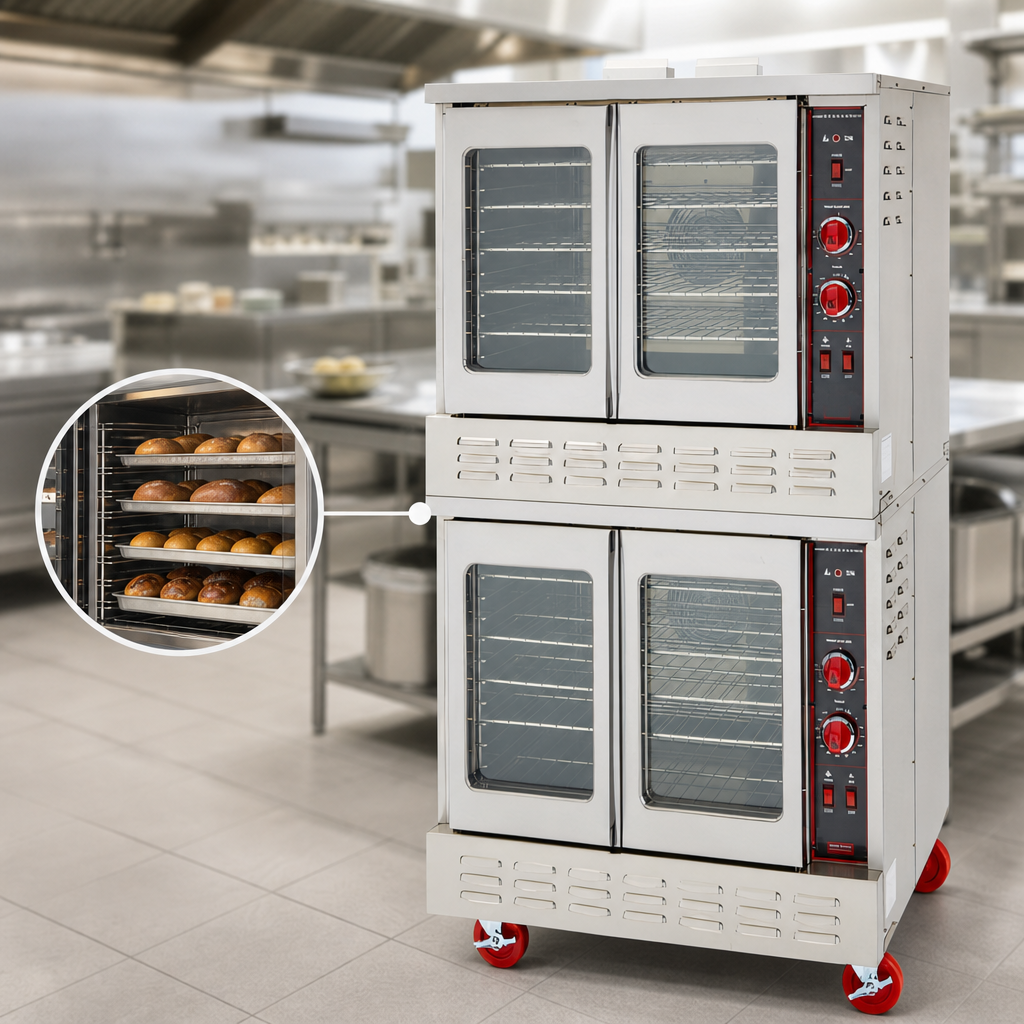

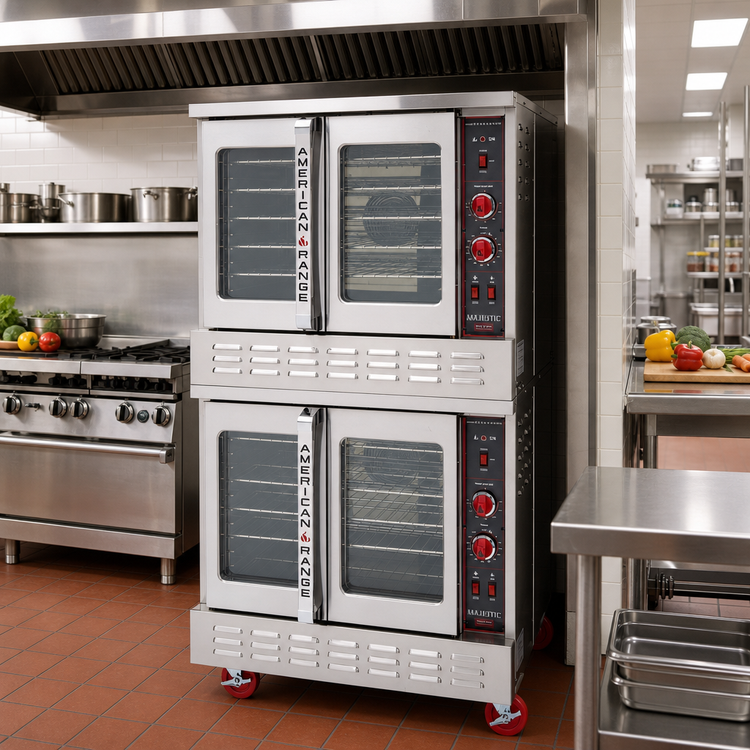

Majestic Double-Deck Electric Convection Oven
Model MSDE-2-SS | American Range • Made in USABuilt for bakeries, restaurants and high-volume kitchens that refuse to compromise, the American Range Majestic MSDE-2-SS delivers uniform, high-capacity baking power in a space-saving stacked design. Two independently controlled ovens give you twice the throughput while heavy-duty components, all-stainless construction and ETL certification ensure years of dependable service.
Performance & Convenience
- Two full-size standard-depth cavities – each accepts five 18" × 26" sheet pans side-to-side
- Powerful (2) × 24 kW incoloy-sheathed element sets for fast heat-up & rapid recovery
- Thermostatic controls with broad 150 – 500 °F range for delicate baking to high-heat roasting
- ½ HP two-speed fan in each deck ensures even air circulation; oven-cool switch speeds cooldown between cycles
- 60-minute timer with continuous-bake override keeps you on schedule without babysitting
Durability You Can Trust
- Rugged stainless steel front, sides & top resist dents and corrosion
- Porcelainized steel interiors wipe clean and won’t flake or rust under daily use

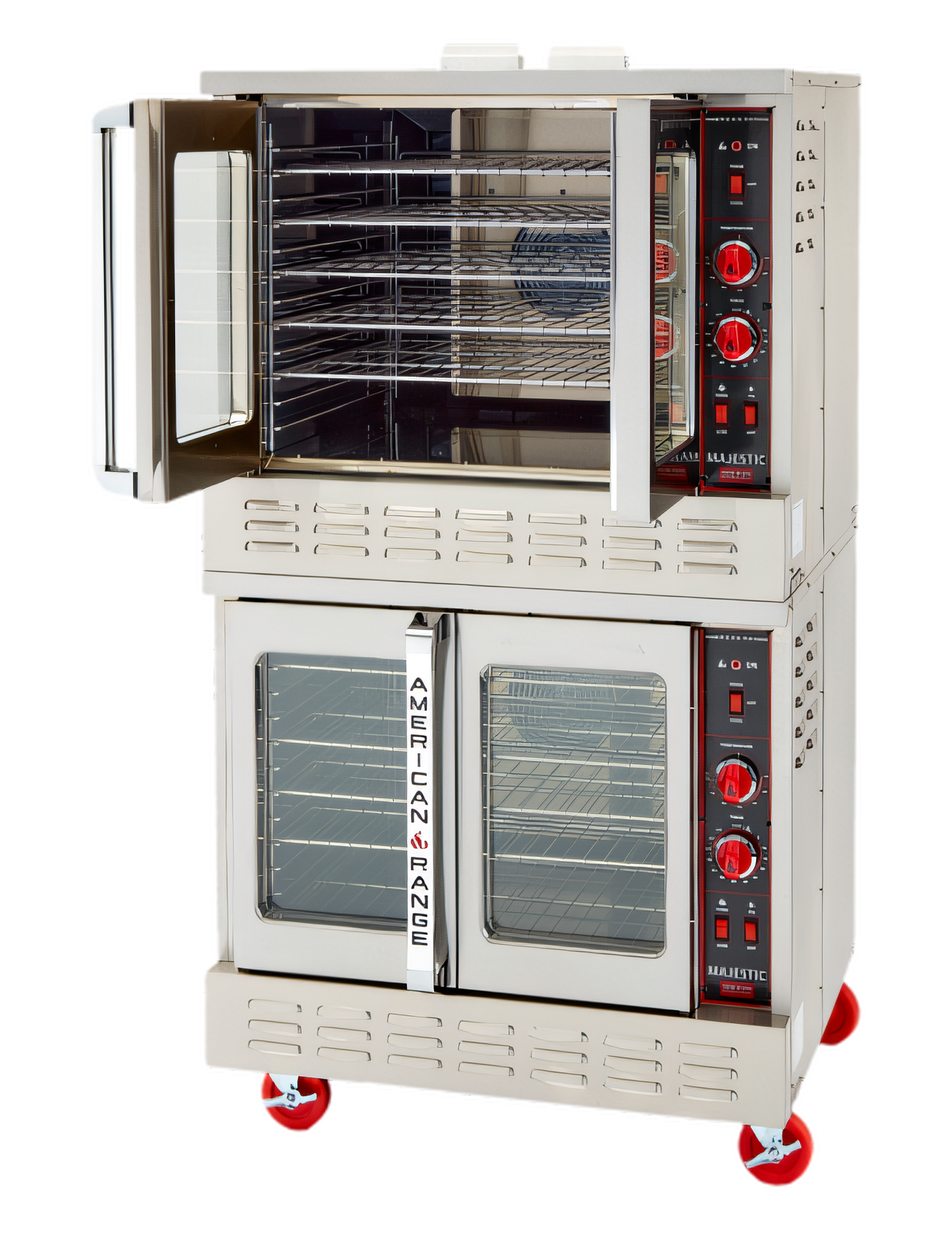

- 50/50 dependent solid doors swing 135°; single chrome handle opens both simultaneously
- Chrome rack guides with 12 positions per cavity & (10) chrome racks included (5 per oven)
- Designed, engineered & manufactured in the USA; backed by a 2-year limited parts & labor warranty
What’s in the Box
- Factory stacking kit (pre-configured double deck)
- Set of four heavy-duty swivel casters – two locking for rock-solid stability
- (10) chrome racks & (2) removable rack supports
- Owner’s manual & warranty registration card
Technical Specifications
| Overall dimensions (W × D × H) | 40" × 37 ¼" × 76 ¼" (1,016 × 946 × 1,931 mm) – with casters |
|---|---|
| Decks / Cavities | 2 independent ovens (standard depth) |
| Power per deck | 24 kW, incoloy elements (total 48 kW) |
| Electrical requirement | 208 / 240 VAC, 3-Phase (field-wire; cord & plug not included) |
| Temperature range | 150 – 500 °F (65 – 260 °C) |
| Fan motor | ½ HP, 2-speed with cool-down mode |
| Rack capacity | 5 full-size sheet pans per deck (10 total) |
| Door style | 50/50 solid stainless, dependent (single-hand operation) |
| Certifications | ETL Listed & ETL Sanitation |
| Warranty | 2-year limited parts & labor • 90-day replacement parts |
| Country of origin | USA |
Register your oven within 90 days to activate extended coverage. Full warranty terms available at AmericanRange.com or on request.
