American Range MSD-2HE Convection Ovens
Description
Majestic HE Double-Deck Gas Convection Oven | Model MSD-2HE
108,000 BTU • Standard Depth • ENERGY STAR® Certified • Made in USABuilt for high-volume kitchens that refuse to compromise on efficiency or bake quality, the American Range Majestic HE MSD-2HE delivers the power of two full-size convection ovens in a space-saving footprint. Precision thermostatic control, a rugged porcelainized interior and a hard-working ½ HP two-speed fan give you the consistency you need—batch after perfectly browned batch.
Why You’ll Love It
- Wide 150 – 500 °F (65 – 260 °C) temperature range tackles delicate pastries to high-heat roasts
- Two independent ovens provide 108,000 BTU total output (54,000 BTU each)
- 1-hour mechanical timer plus cool-down mode for precise, worry-free results
- ½ HP, 2-speed fan motor optimizes airflow for quick recovery & even baking
- (5) chrome racks per deck with (10) positions keep production flexible
- 50/50 double-pane glass doors swing 135° and open/close together for safe, one-handed access
- ENERGY STAR® certification helps cut utility costs without sacrificing performance
Construction Highlights
- Stainless steel front, sides & top resist dents and scratches
- Durable porcelainized interior wipes clean fast
- Stacking kit, heavy-duty casters (two locking) and 6" adjustable chrome-plated legs included
- Four in-shot burners (two per cavity) for dependable, even heat
- Electronic spark ignition with burner “ON” light
Specifications
| Model | MSD-2HE (Majestic HE Series) |
|---|---|

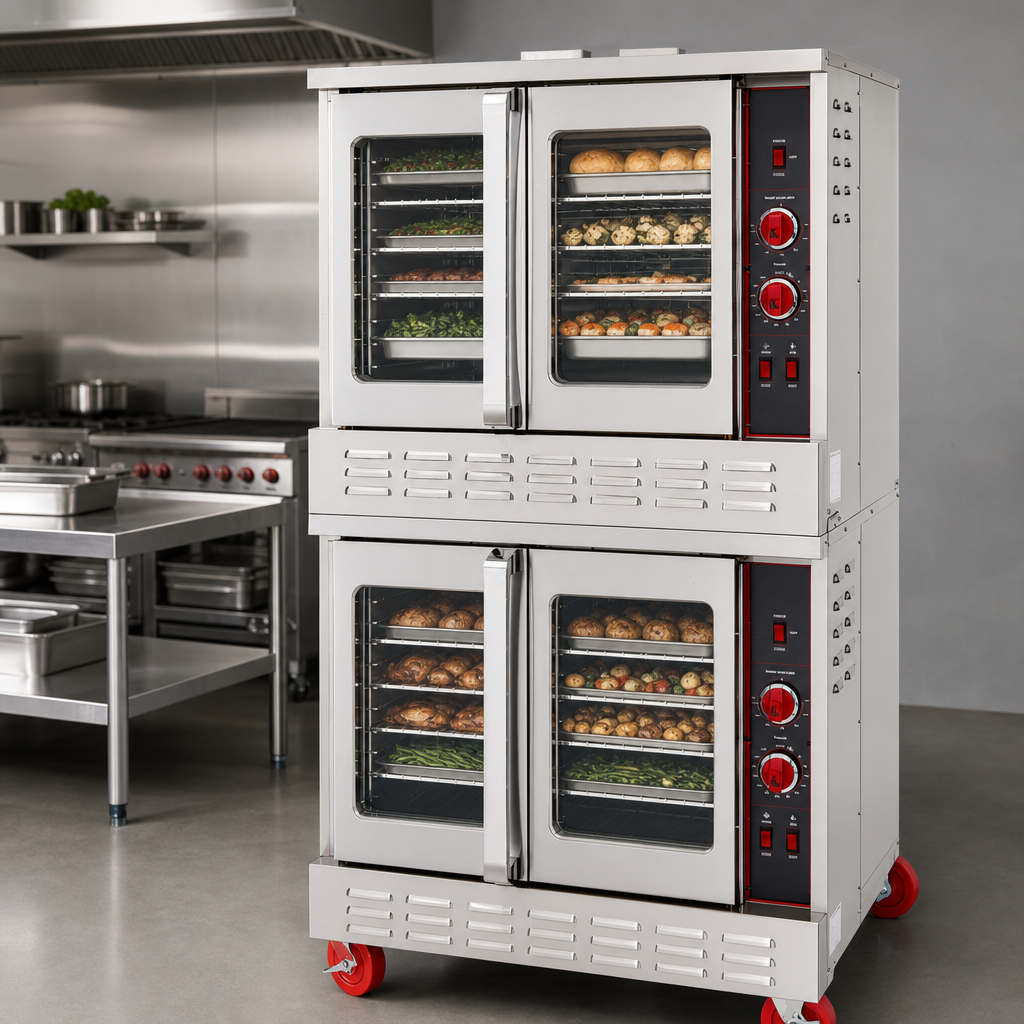

| Capacity | (2) full-size ovens – fits 18" × 26" sheet pans or 12" × 20" hotel pans, 5 per deck |
| Heat Output | 108,000 BTU/hr (35 kW) |
| Temperature Range | 150 °F – 500 °F (65 °C – 260 °C) |
| Fan Motor | ½ HP, 2-speed, 9 A draw |

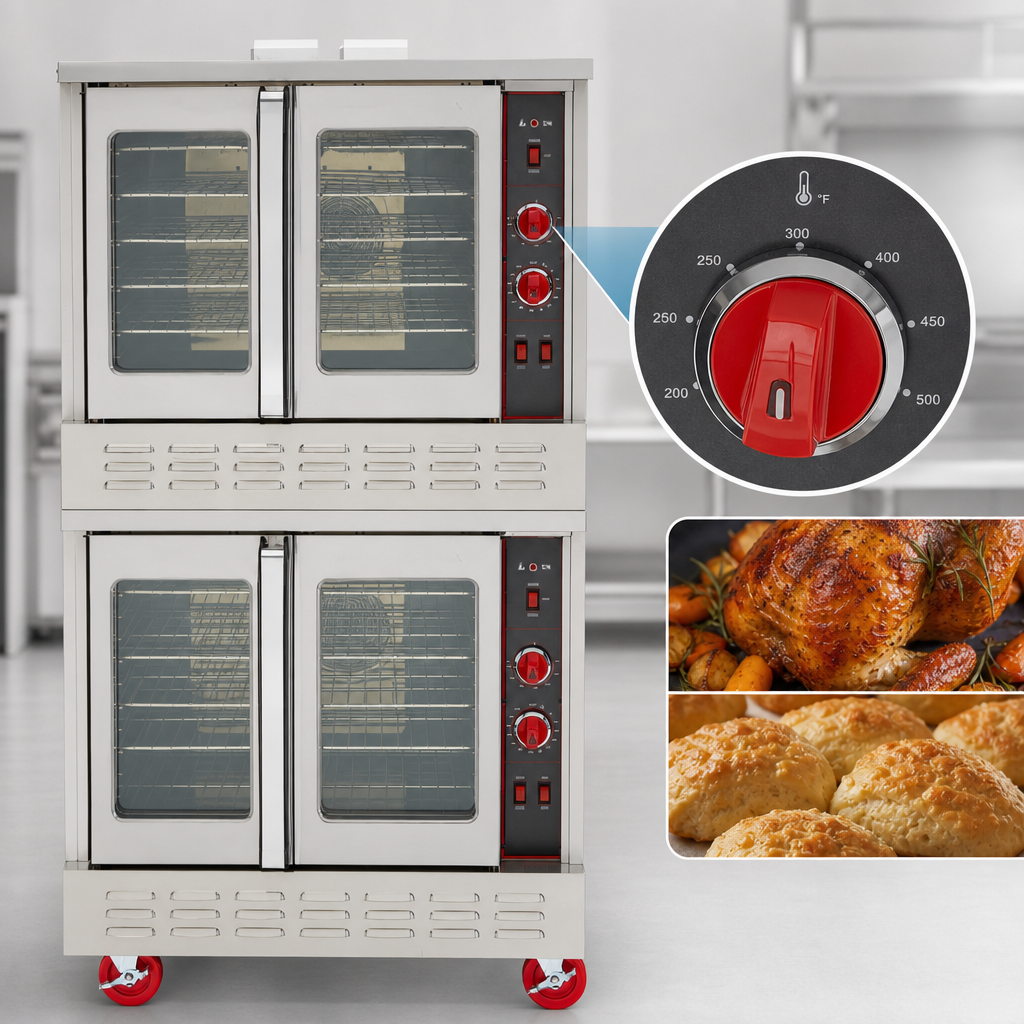

| Controls | Thermostatic dial, 60-minute timer, cool-down switch |
| Exterior Dimensions | 40" W × 38" D × 75" H (1016 × 965 × 1905 mm) |
| Gas Connection | 3/4" NPT (rear) • Natural 5.0" W.C. • LP 10.0" W.C. |
| Electrical | 120 V, 1 ph, 4 A, 15-amp cord & plug included (controls & fan) |
| Certifications | cETLus, ETL-Sanitation, ENERGY STAR® |
| Shipping Weight | ≈ 1,100 lb (500 kg) |
| Origin | Designed & built in the USA |
Peace-of-Mind Warranty
Includes a 2-year limited parts & labor warranty backed by American Range’s nationwide service network. See full Terms of Sale for details.
