American Range MSD-2 Convection Ovens
Description

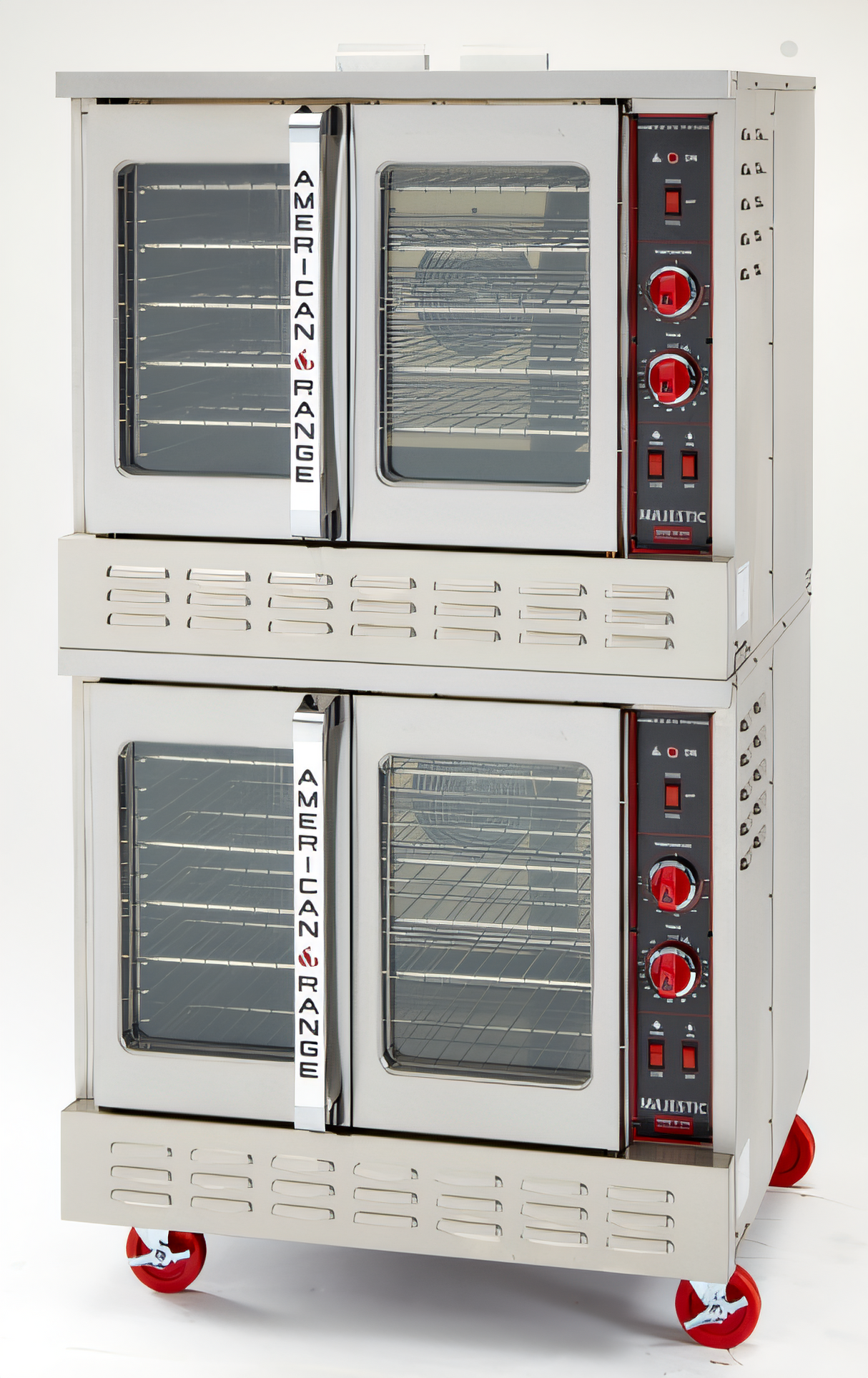

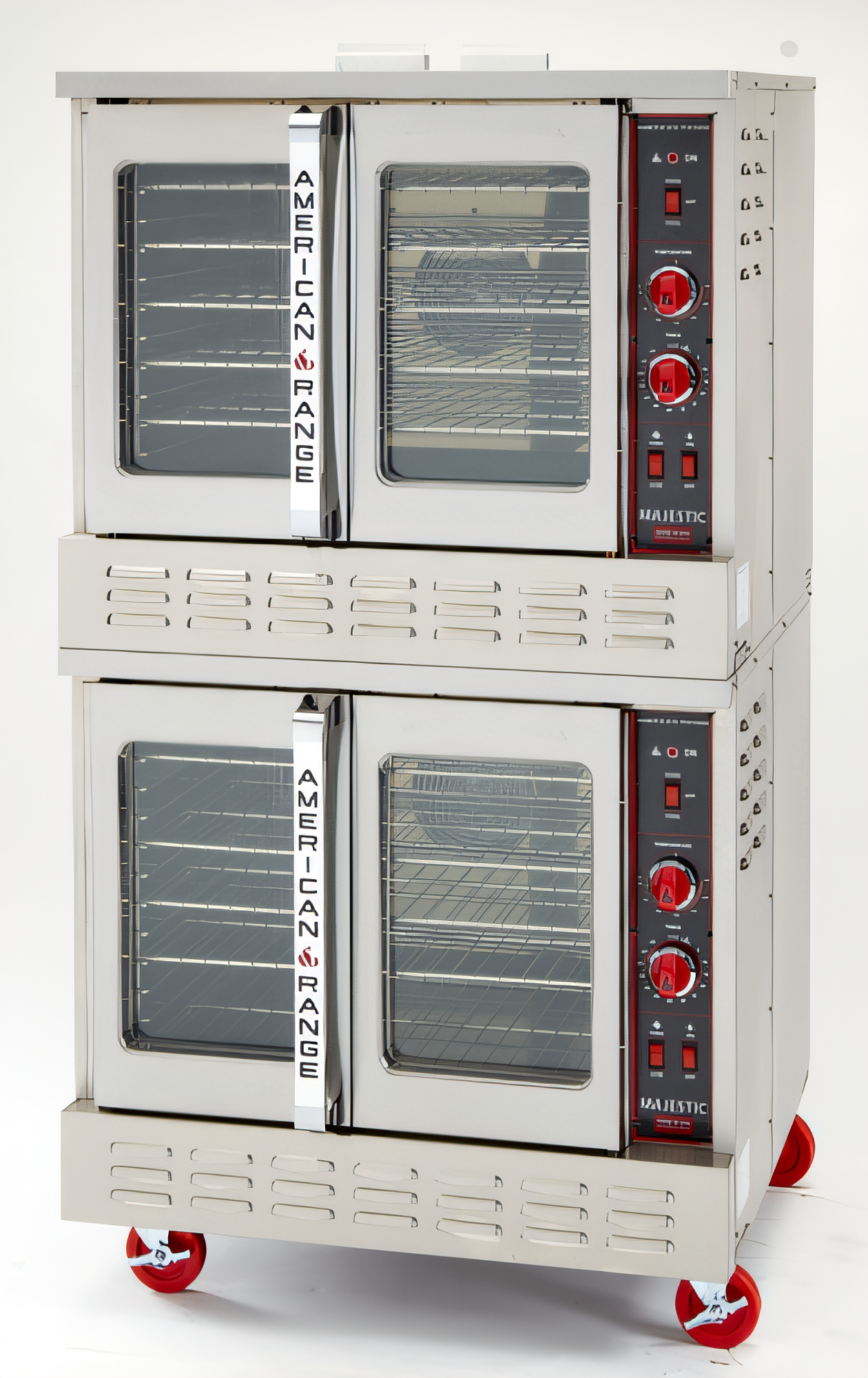

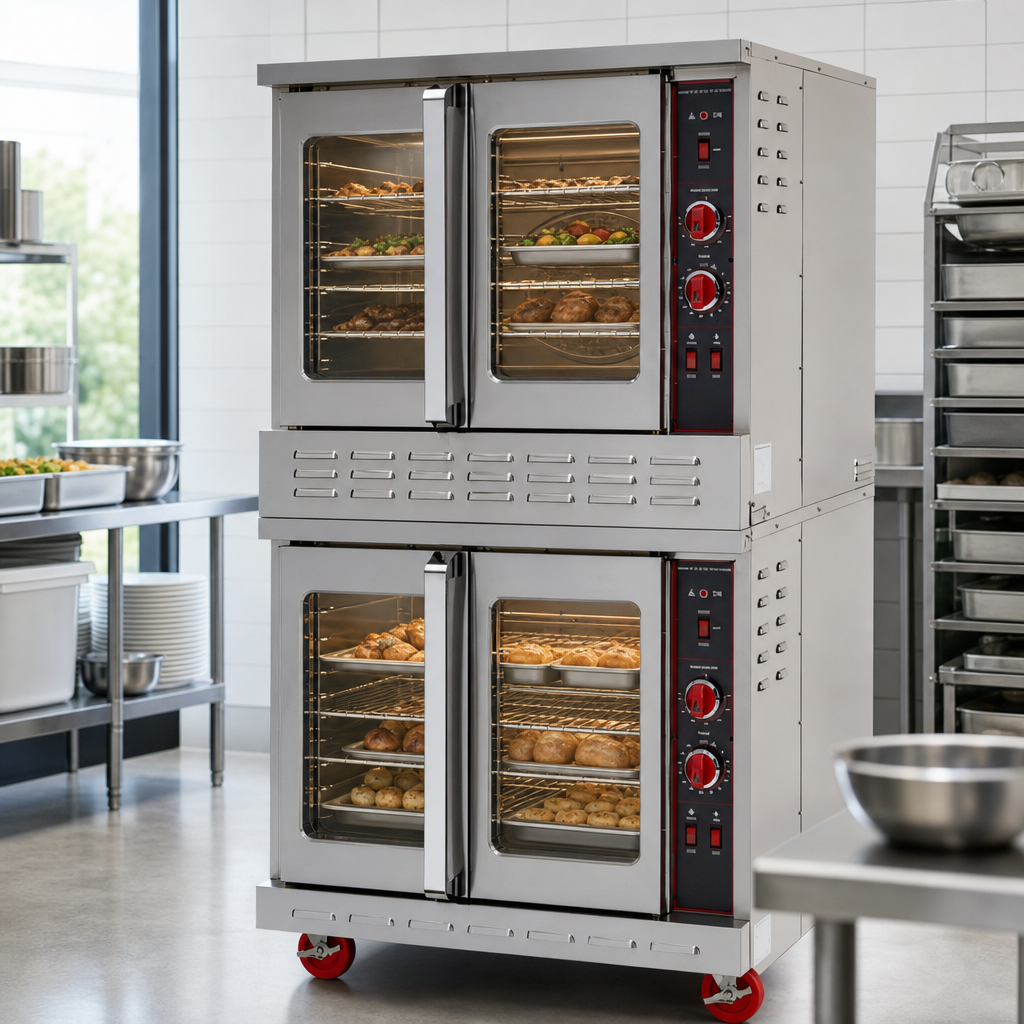

Majestic™ Gas Convection Oven – Double Deck
Model MSD-2GG | 140,000 BTU total | Made in USABuilt for bustling commercial kitchens, the American Range Majestic double-deck convection oven delivers the throughput, precision and durability professionals demand—all in a compact 40 inch footprint. Two independent 50/50 glass-panel doors invite chefs to monitor product at a glance, while twin 2-speed blower motors blanket every rack with consistent, even heat.
Key Benefits
- 140,000 BTU total output (70,000 BTU per cavity) for rapid recovery and high-volume production.

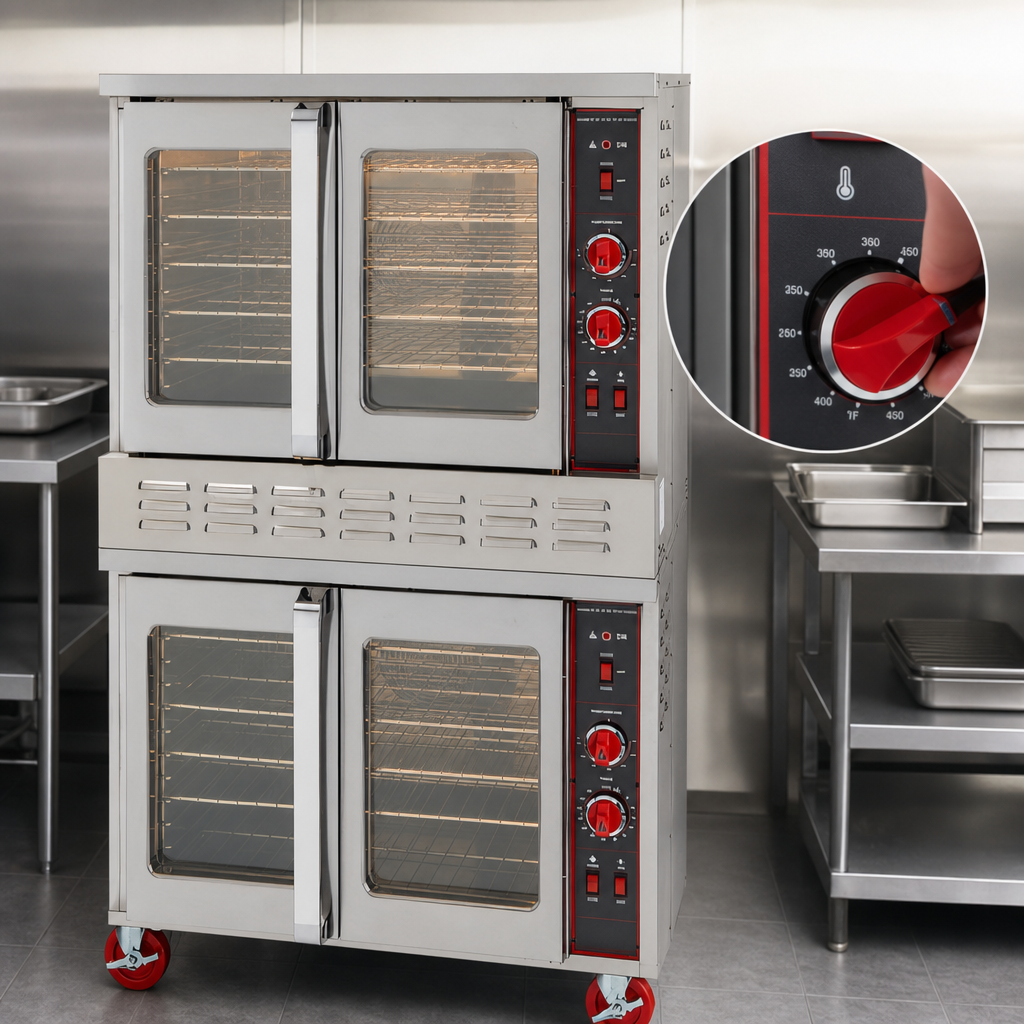

- Thermostatic controls from 150 °F – 500 °F plus a 60-minute timer and cool-down switch.
- 1⁄2 H.P., 2-speed fan in each cavity—choose gentle bake or high-speed roast at the flick of a switch.
- Porcelainized oven interiors resist corrosion and wipe clean in seconds.
- Five chrome racks & 12-position guides per oven (holds 18" × 26" sheet pans side-to-side or two 12" × 20" hotel pans per rack).

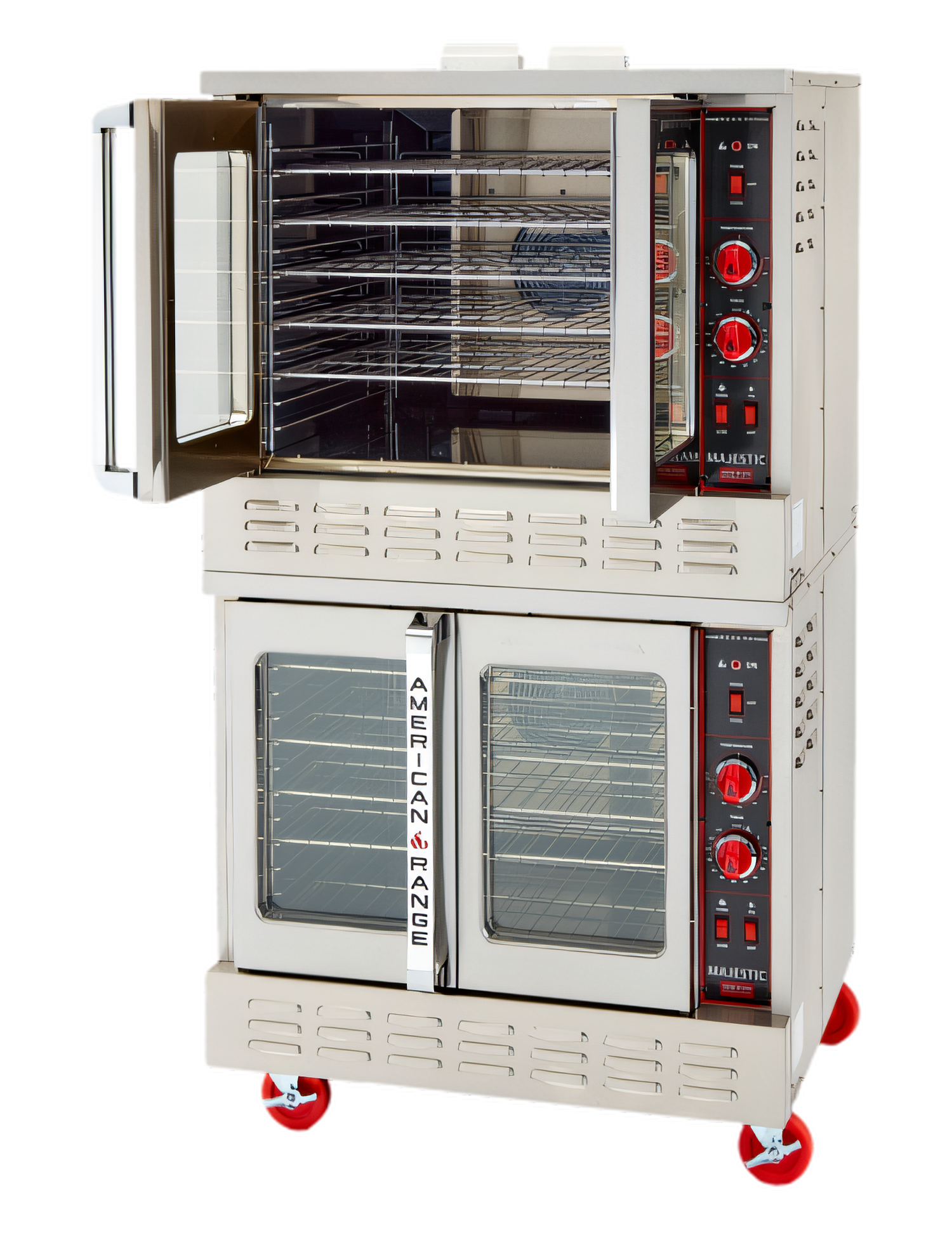

- 50/50 independent doors open a full 135°; single-handed latch opens & closes both simultaneously.
- Stainless-steel front, sides and top stand up to busy line abuse and daily wash-downs.
- Factory stacking kit with heavy-duty swivel casters (2 locking) ships installed for easy placement.
- Electronic spark ignition, burner “ON” indicator light and removable crumb trays simplify operation & maintenance.
- Field-convertible for Natural or LP gas & supplied with a 6 ft. cord and 3-prong plug (120 V).
- Backed by a 2-year parts & labor warranty and ETL/ETL-Sanitation certification.
Technical Specifications
| Configuration | Double-deck, standard depth |
|---|---|
| Total Heat Input | 140,000 BTU/hr (≈ 41 kW) |
| Temperature Range | 150 °F – 500 °F (65 °C – 260 °C) |
| Controls | Snap-action thermostat, 60-min timer, cool-down mode |
| Fan System | (2) ½ H.P. 2-speed blower motors |
| Door Style | 50/50 glass doors (GG), opens 135° |
| Interior Finish | Porcelainized steel |
| Racks / Guides | 5 chrome racks | 12 positions per cavity |
| Pan Capacity | (5) 18" × 26" full-size sheet pans per cavity (side-to-side) |
| Gas Connection | 3⁄4" NPT (rear), Nat 5.0" W.C. | LP 10.0" W.C. |
| Electrical | 120 V, 1-phase, 4 A, cord & plug included |
| External Dimensions | 40" W × 38" D × 76" H (1016 × 966 × 1931 mm) |
| Shipping Weight | Approx. 1,100 lb (500 kg) |
| Certifications | ETL Listed & ETL Sanitation |
| Warranty | 2-year parts & labor, limited (see warranty sheet for details) |
Install on non-combustible floors only. When located next to combustible surfaces, maintain clearances of 12" (30 cm) at the sides and 4" (10 cm) at the rear.
