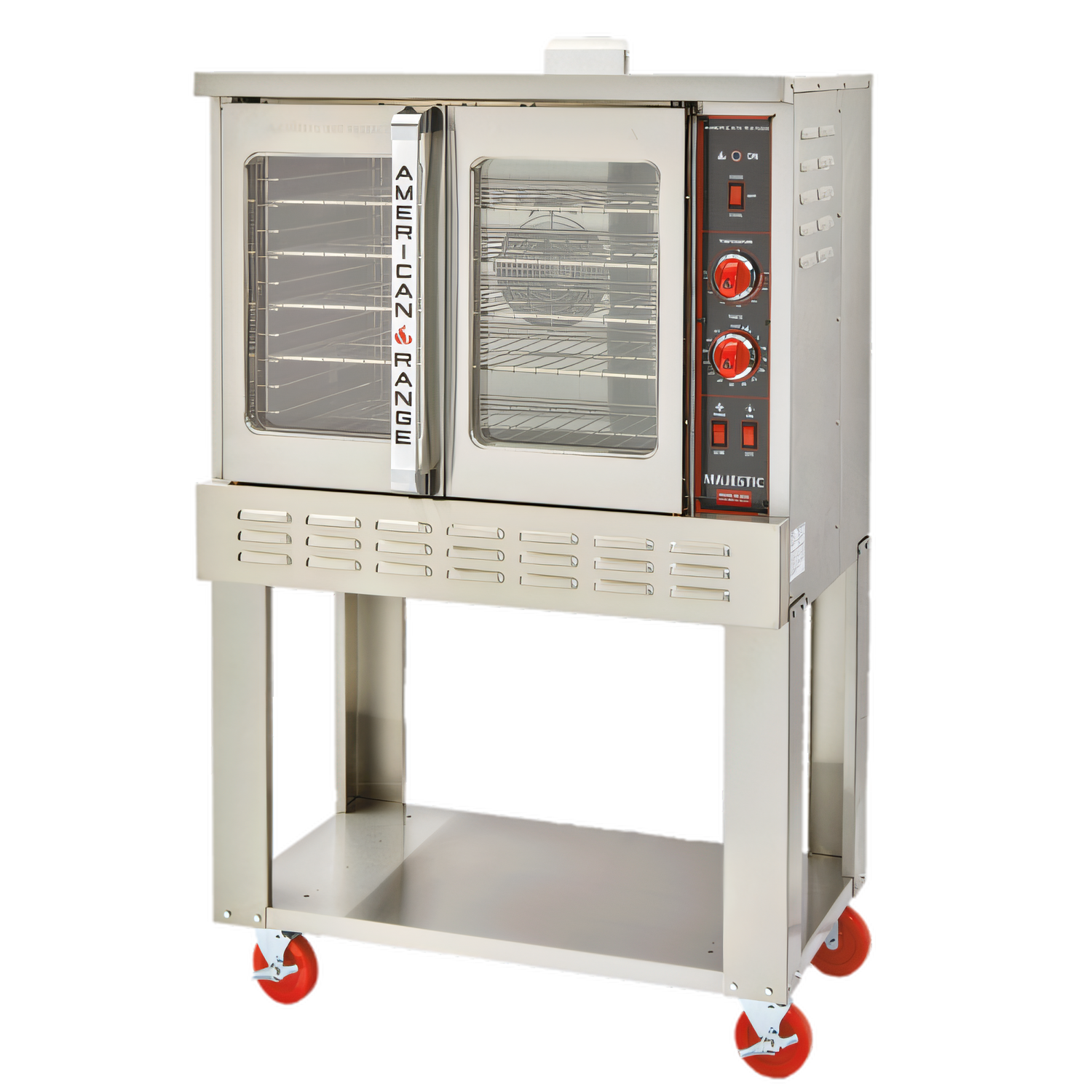

Majestic Series MSD-1HE Gas Convection Oven

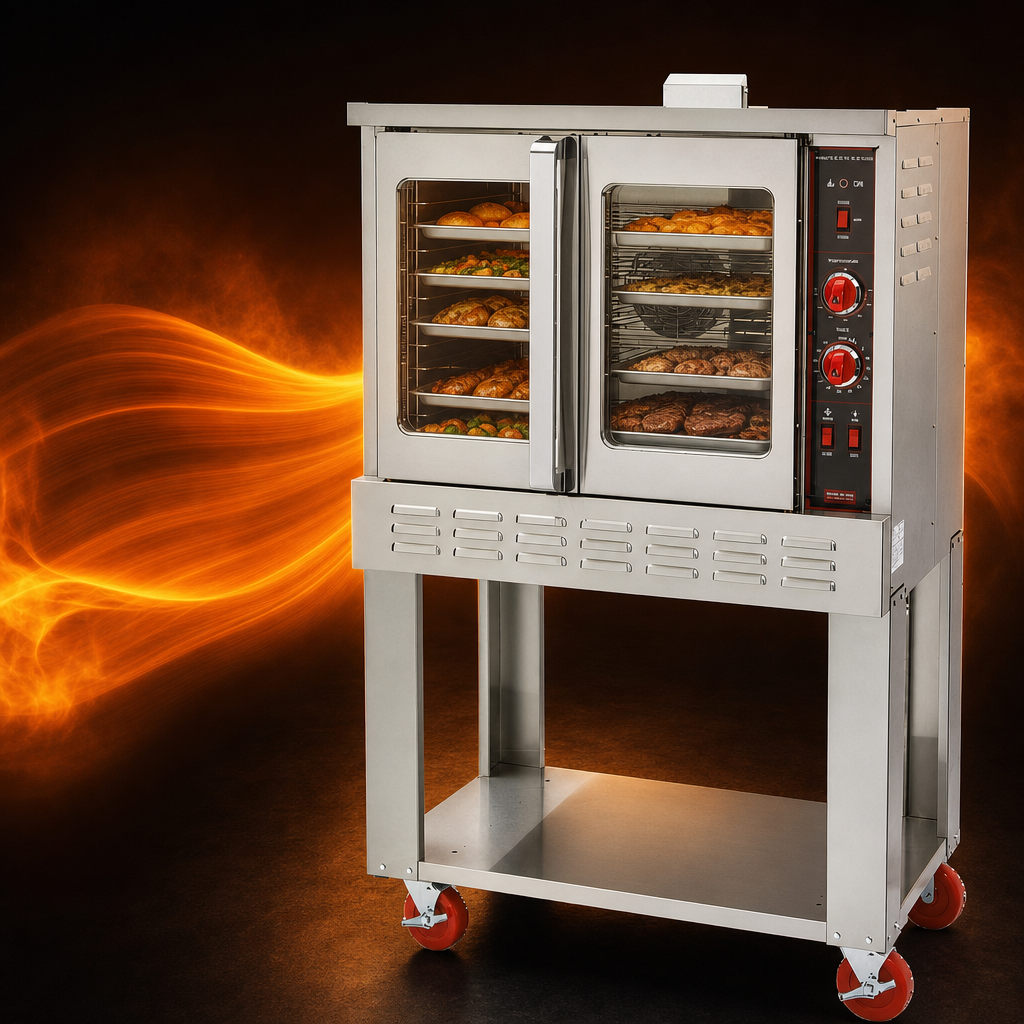

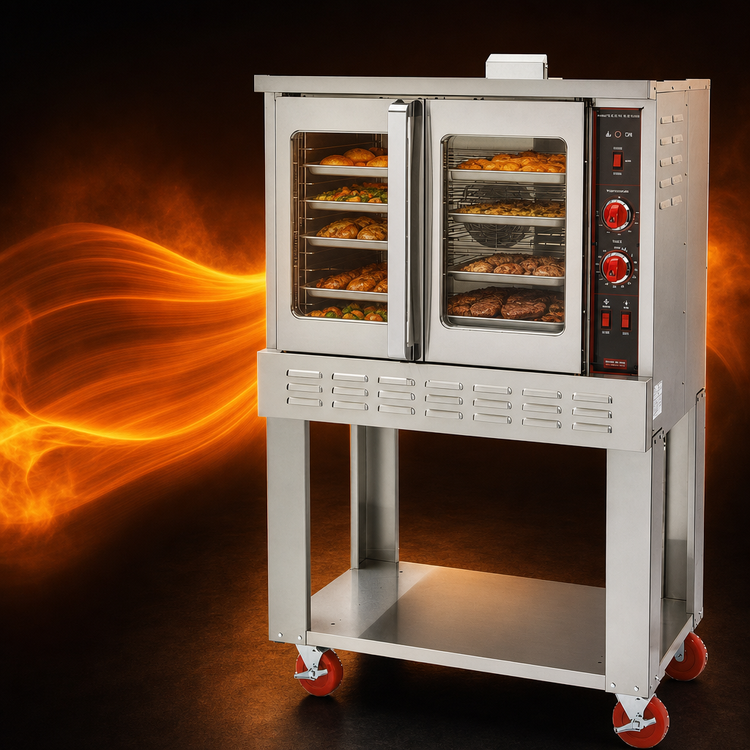

Single-Deck • Standard Depth • Made in the USABuilt for demanding commercial kitchens, the ENERGY STAR® certified American Range MSD-1HE delivers even, high-volume baking in a compact 40-inch footprint. A powerful 54,000 BTU heat system, 2-speed ½ HP fan and fast-recovering porcelainized cavity keep pans moving and profits growing—all day, every day.
Key benefits
- Wide 150 °- 500 °F thermostatic range handles delicate pastries, hearty roasts and everything between.
- Five chrome racks with 10 positions accept full-size 18" × 26" sheet pans for maximum capacity.

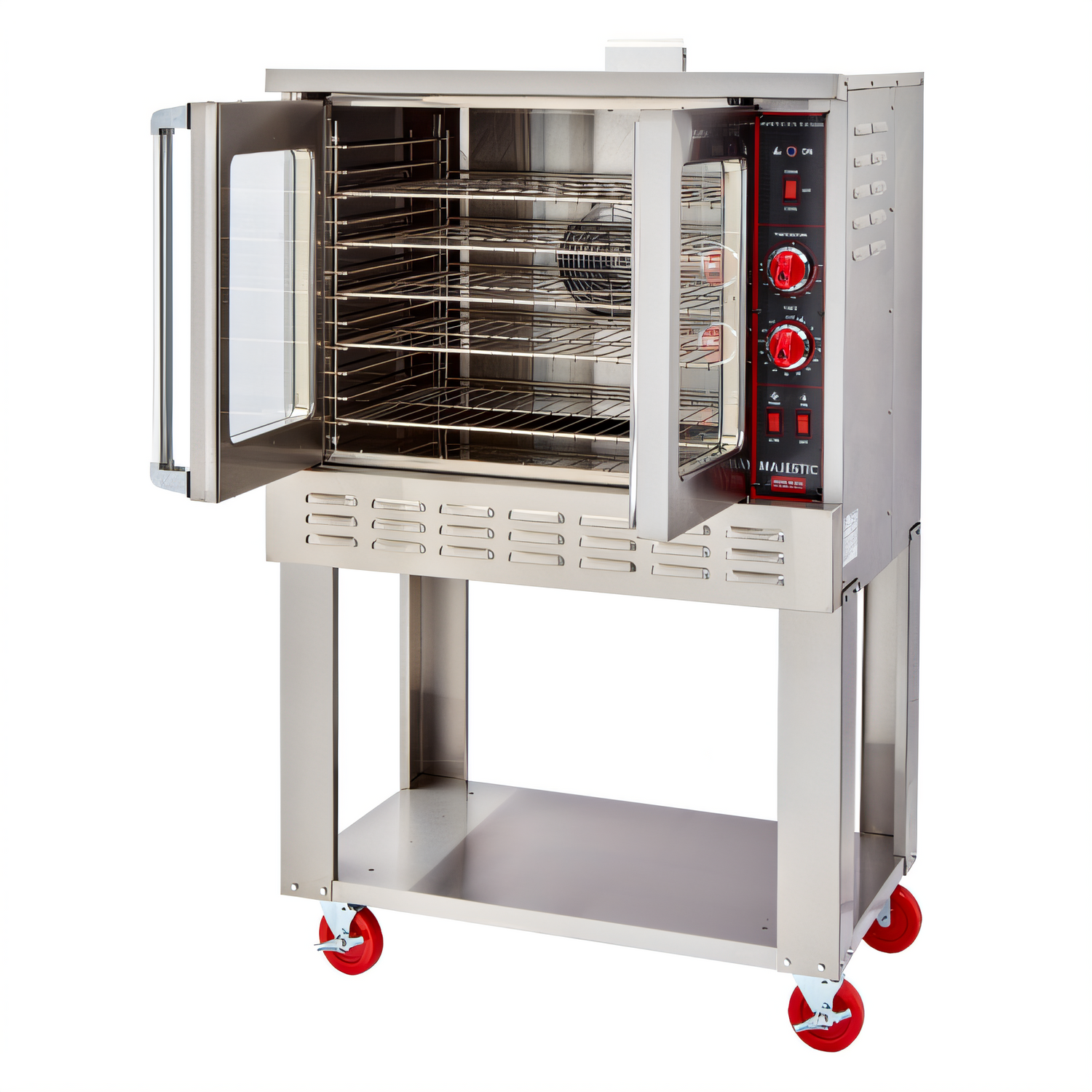

- 50/50 glass doors swing 135° and open/close together—check bakes at a glance without dropping the temperature.
- Rugged all-stainless exterior and porcelainized interior wipe clean fast and resist corrosion.
- Made & serviced in the USA and backed by a 2-year parts & labor warranty.
Chef-friendly extras
- One-hour timer with continuous buzzer
- Burner “ON” indicator light & cool-down mode
- Electronic spark ignition—no standing pilot to waste gas
- 6" chrome-plated, adjustable legs for easy leveling
Technical specifications
| Model | MSD-1HE (single-deck, standard depth) |
|---|---|
| Heat input | 54,000 BTU/hr (18.0 kW) |
| Temperature range | 150 °- 500 °F (66 °- 260 °C) |
| Fan motor | ½ HP, 2-speed, 120 V, 1 Ø, 9 A (6-ft cord & plug supplied) |
| Interior capacity | 5 full-size sheet pans on 10 rack guides |
| Interior finish | High-gloss porcelain enamel |
| Exterior construction | Stainless steel front, sides & top; 6" chrome legs |
| Doors | 50/50 double-pane glass, simultaneous operation |
| Overall dimensions (W × D × H) | 40" × 38" × 59 ⅝" (1016 × 966 × 1514 mm) |
| Gas connection | ¾" NPT, rear; 5" W.C. NG / 10" W.C. LP manifold pressure |
| Shipping weight | Approx. 585 lb (265 kg) |
| Certifications | cETLus, ETL-Sanitation, ENERGY STAR® qualified |
| Warranty | 2 years parts & labor (90 days on replacement parts & select components) |
Optional upgrades
- Cooling/storage rack set (five racks with support guides)
- Direct vent adapter
- Swivel casters (two locking)
Installation notice: This unit is intended for commercial use only. A ¾" gas regulator, adequate ventilation and a 120 V electrical connection are required. Consult your local code authority before ordering.
ENERGY STAR and the ENERGY STAR mark are registered trademarks owned by the U.S. Environmental Protection Agency.
$6,753.55
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
American Range MSD-1HE gas convection oven: heavy-duty stainless, 150–500°F, 2-speed fan, 5 racks, 50/50 glass doors, ENERGY STAR, Made in USA.
Manufacturer
American Range
Height
59.75in
Width
40.0in
Depth
38.0in
Shipping Weight
545.0lbs
Control Type

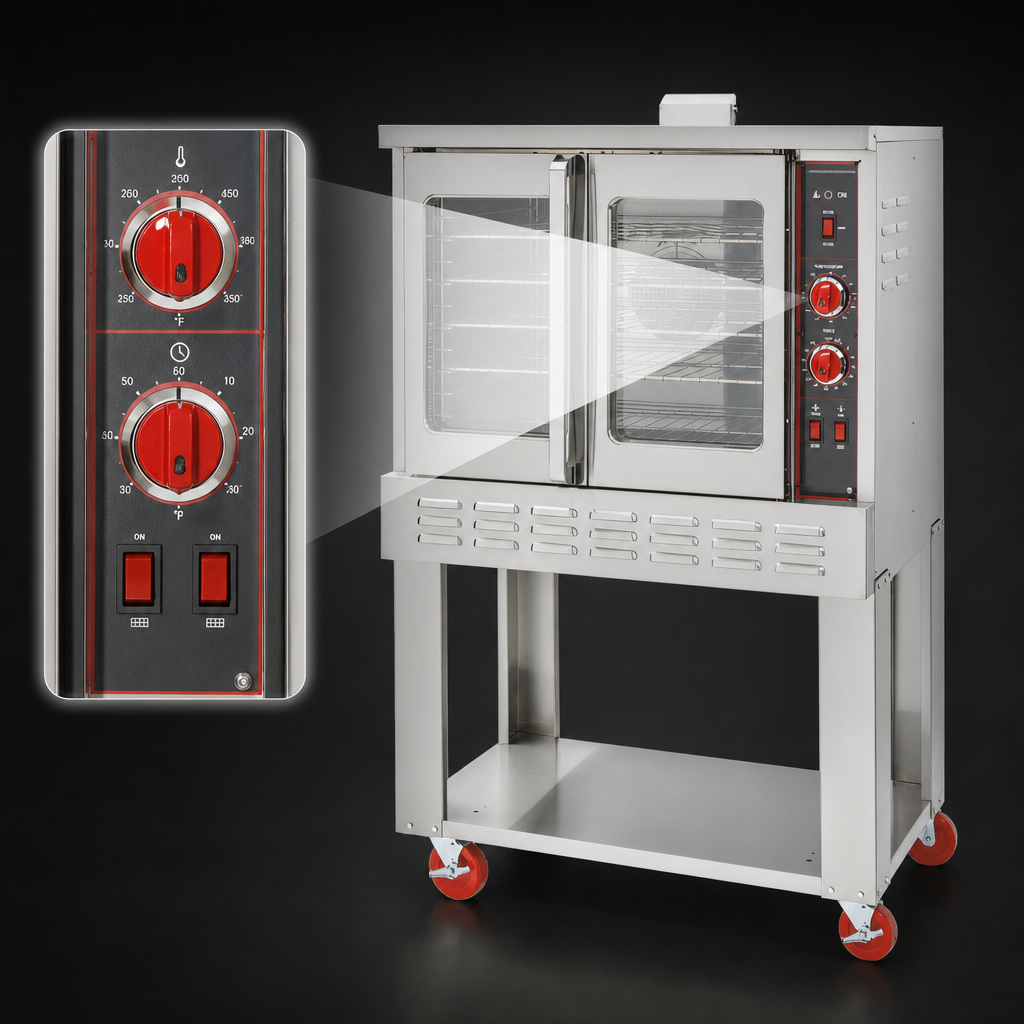

thermostatic controls
Base
legs
Size
full/standard size
Interior Finish
porcelain interior
Deck Qty
1 deck
Exterior Finish
stainless steel front, top & sides
Type
standard
Capacity per Compartment
5 pan capacity, per compartment
Energy Efficiency
ENERGY STAR®
Specifications
Majestic Convection Oven HE, gas, single-deck, standard depth, thermostatic controls, temperature range 150°-500° F, one hour timer, 2-speed fan, (5) chrome racks with (10) rack positions per deck, porcelainized oven interior, 50/50 glass doors, stainless steel front, sides, top, 6" adjustable chrome plated legs, 18.0kW, 54,000 BTU, cETLus, ETL-Sanitation, ENERGY STAR®, Made in USA
Contact Us
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
