American Range | SKU:
MSD-1
American Range MSD-1 Convection Ovens
$5,893.33
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
American Range MSD-1 Convection Ovens is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
American Range MSD-1 Convection Ovens
$5,893.33
Unit price
/
Unavailable
Description

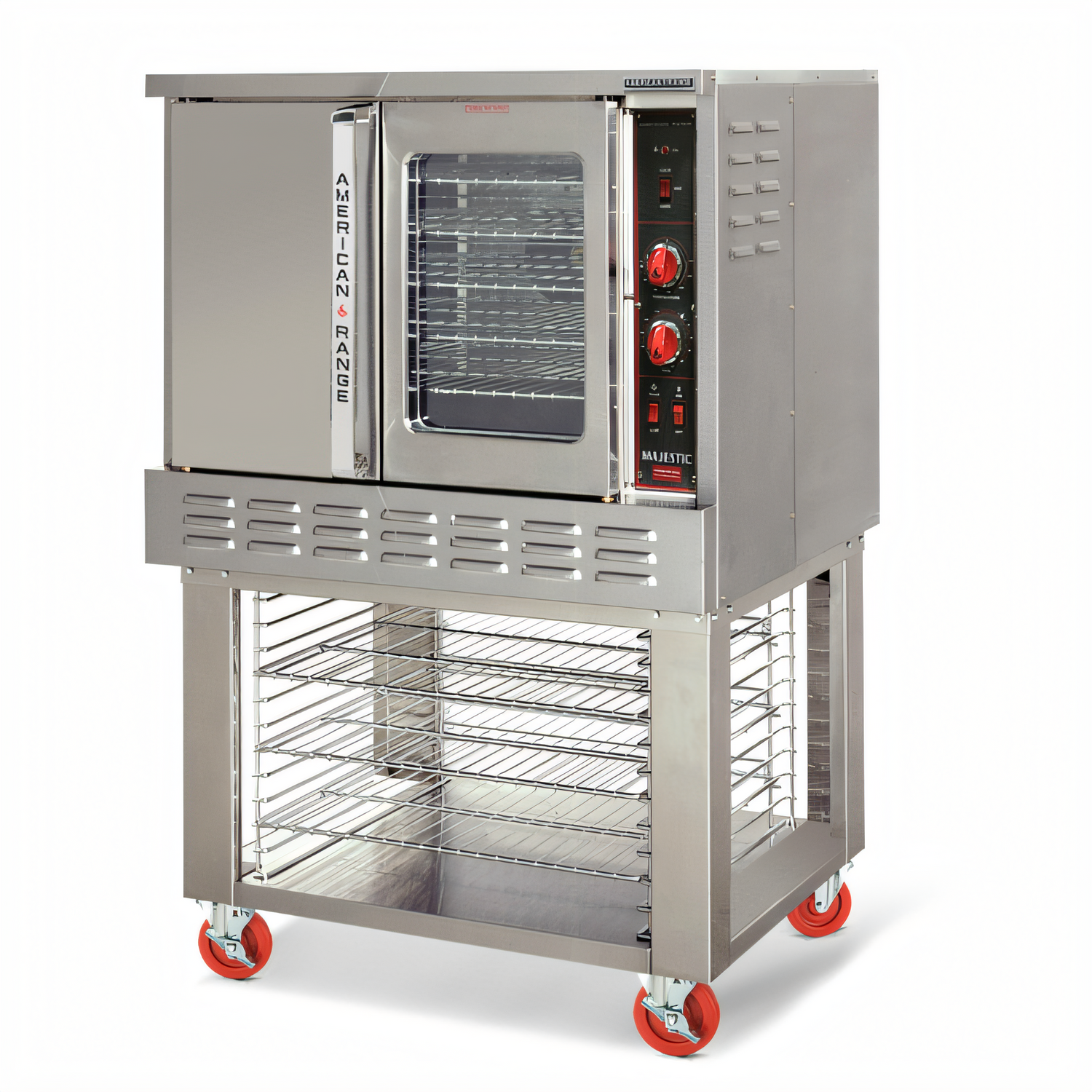

Majestic Single-Deck Gas Convection Oven
Model MSD-1GG · 70,000 BTU / 21 kW · Standard DepthHarness the even heat and rugged reliability chefs trust every day. Built in the USA by American Range, the Majestic MSD-1 delivers powerful, two-speed convection in a compact single-deck footprint—perfect for bakeries, QSRs and high-volume kitchens alike.
Key features at a glance
- 70,000 BTU/hr burner system with electronic spark ignition
- Thermostatic temperature control from 150 °F – 500 °F (65 °C – 260 °C)
- ½ HP two-speed fan—choose low for delicate baking or high for rapid roasting

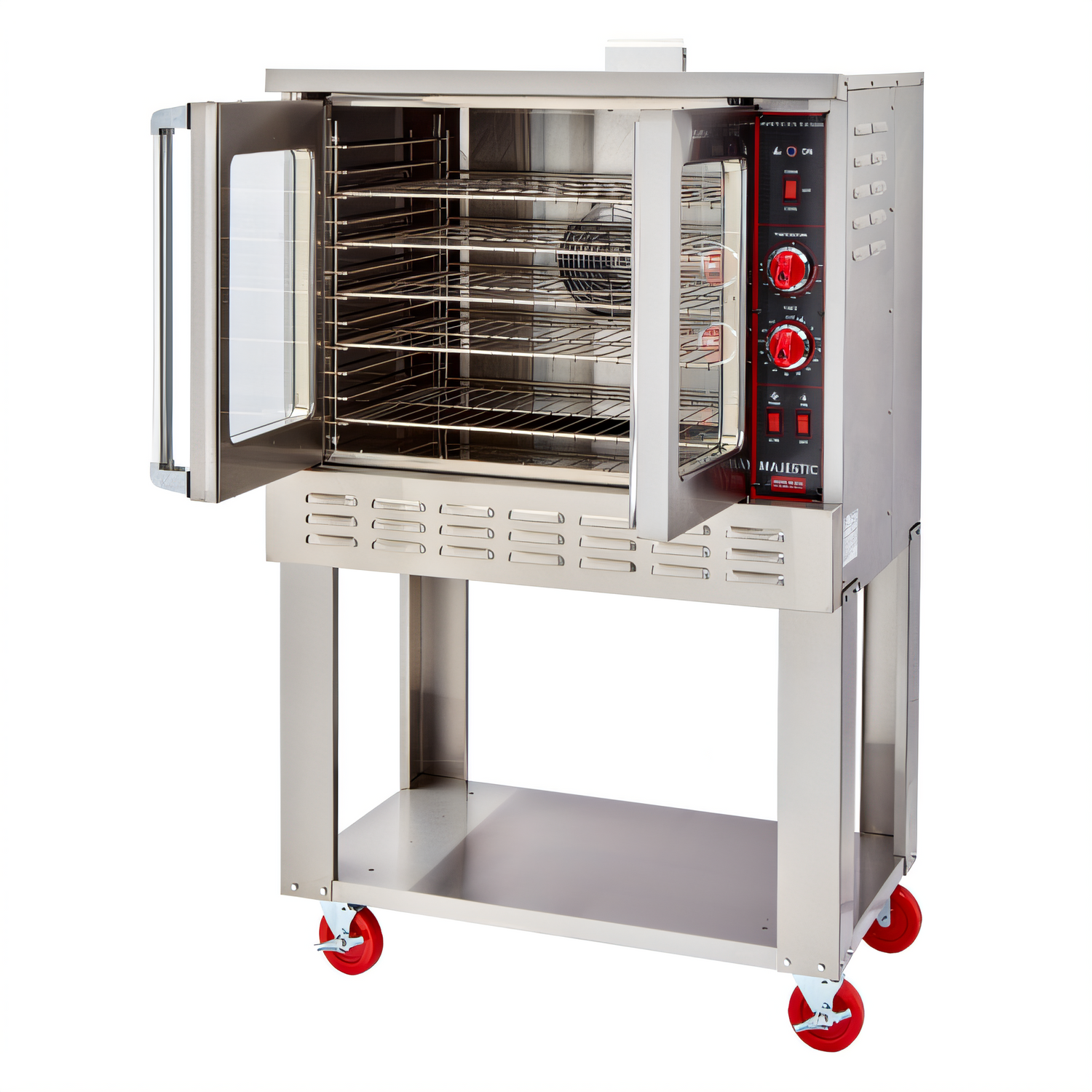

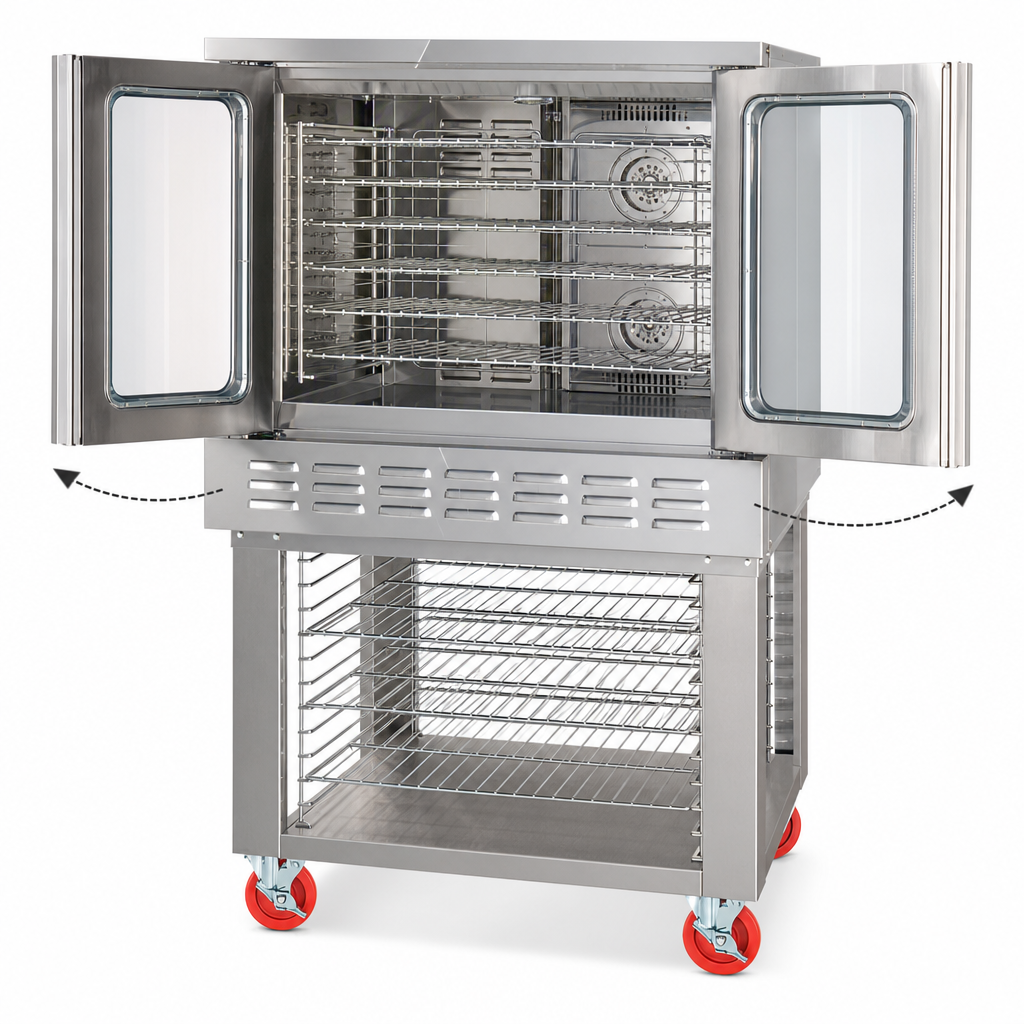

- 50/50 independent glass doors swing 135°; one-hand handle opens both
- Porcelainized oven interior wipes clean and resists corrosion
- (5) chrome racks with (12) rack positions hold full-size 18" × 26" pans side-to-side
- One-hour timer and “cool-down” fan switch simplify production cycles
- All-stainless front, sides & top for long-life durability
- cETLus & ETL-Sanitation listed for commercial kitchens
- Made in North Las Vegas, NV and backed by a 2-year parts & labor warranty
Technical specifications
| Model | MSD-1GG (single deck, glass doors) |
|---|---|
| Heat output | 70,000 BTU/hr · 21 kW |
| Temperature range | 150 °F – 500 °F |
| Fan motor | ½ HP, 2-speed, 9 A draw |
| Rack capacity | (5) chrome racks / (12) positions |
| Pan capacity | (5) full-size 18" × 26" sheet pans |
| Interior dimensions | 29" W × 20" D × 24" H |
| Exterior dimensions | 40" W × 38 ⅝" D × 59 ⅝" H |
| Gas connection | ¾" NPT (natural or LP – specify) |
| Electrical | 120 V, 1 ph, 1.5 A (6-ft cord supplied) |
| Shipping weight | 585 lb |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | 2-year limited, parts & labor |
What’s included
- (5) adjustable chrome racks
- ¾" gas pressure regulator (field installed)
- 6-ft power cord with NEMA 5-15P plug
- Owner’s & installation manual
Popular factory options
- Heavy-duty swivel casters
- Cooling / storage rack kit (adds two supports)
- Direct vent adapter
- 208/240 V two-speed motor & transformer
Installation notice:
This appliance is intended for commercial use only. Must be installed on a non-combustible floor beneath an approved ventilation hood. A qualified technician is required to connect the ¾" gas inlet and verify proper manifold pressure.
Photos may show a double-deck configuration for reference. This listing is for one (1) single-deck oven.
Features & Specs
Features & Specs
Manufacturer
American Range
Certifications
cETLus, ETL-Sanitation, Made in USA
Height
64.0in
Width
40.0in
Depth
42.0in
Shipping Weight
550.0lbs
Interior Finish
porcelain interior
Control Type
thermostatic controls
Base
legs
Deck Qty
1 deck
Exterior Finish
stainless steel front & sides
Type
standard
Capacity per Compartment
5 pan capacity, per compartment
Size
full/standard size
Specifications
Majestic Convection Oven, gas, single-deck, standard depth, thermostatic controls, temperature range 150°-500° F, one hour timer, 2-speed fan, (5) chrome racks with (12) rack positions per deck, porcelainized oven interior, 50/50 glass doors, stainless steel front, sides, top, 21.0kW, 70,000 BTU, cETLus, ETL-Sanitation, Made in USA
