American Range ME-2 Convection Ovens
American Range ME-2 Convection Ovens is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
American Range ME-2 Convection Ovens
Description

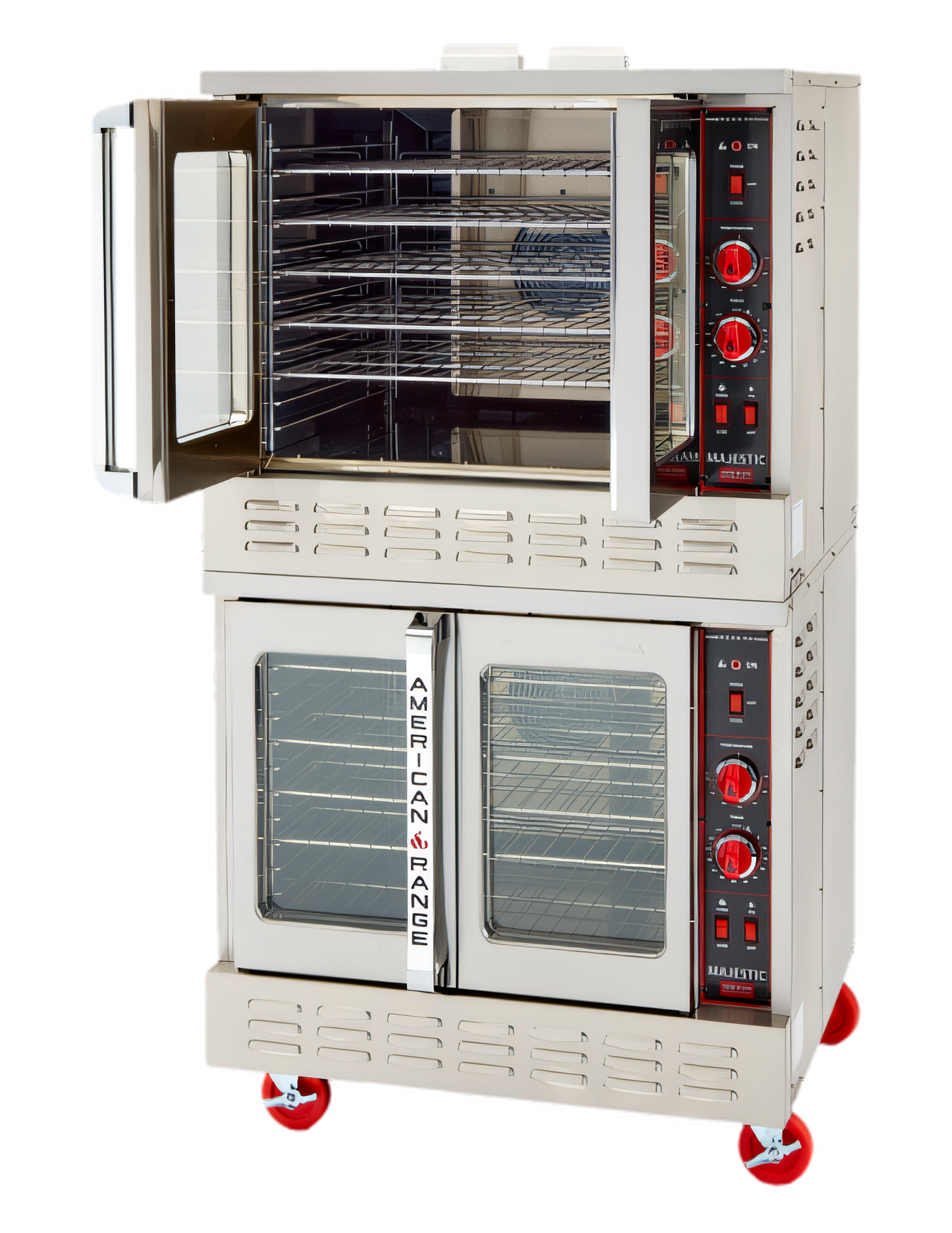

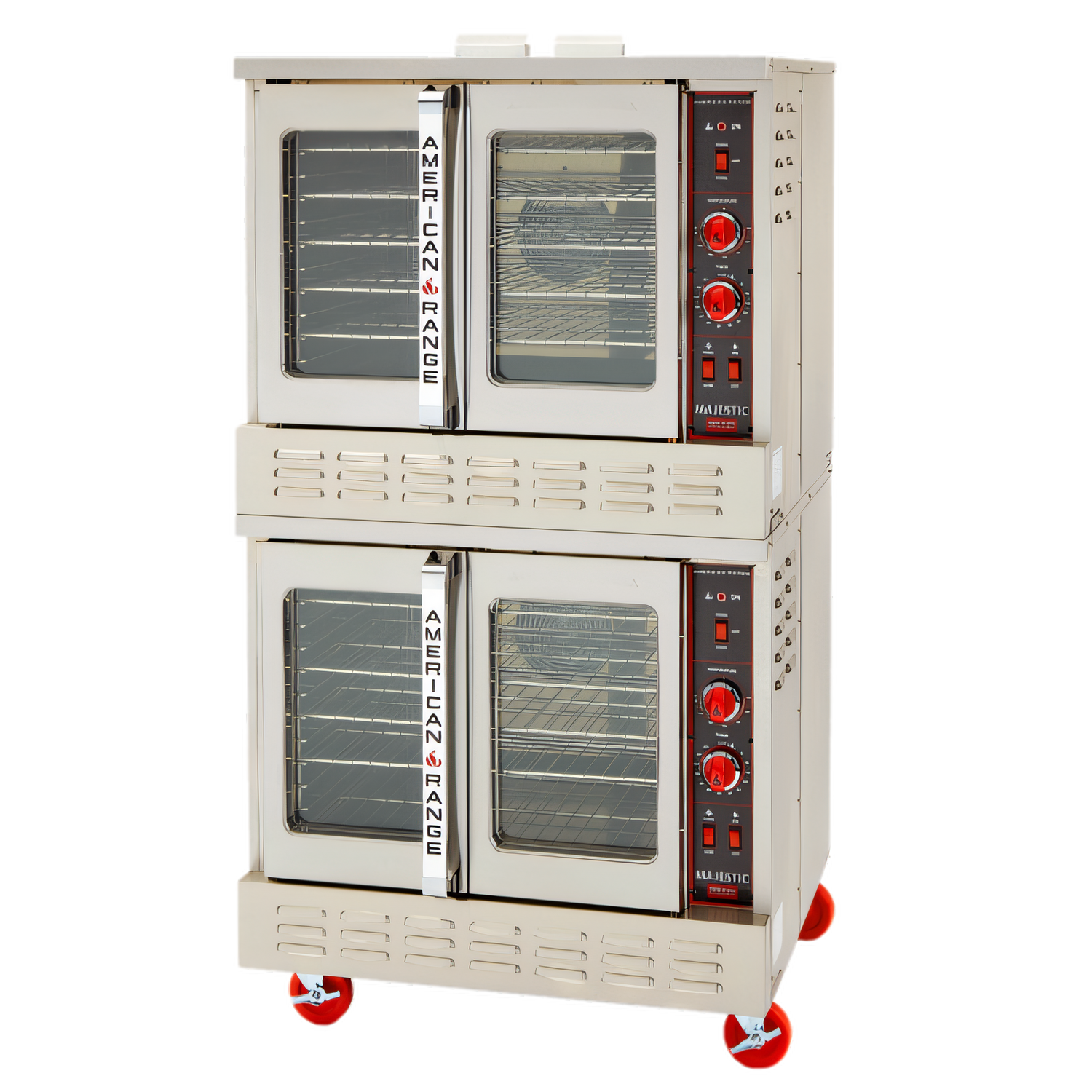

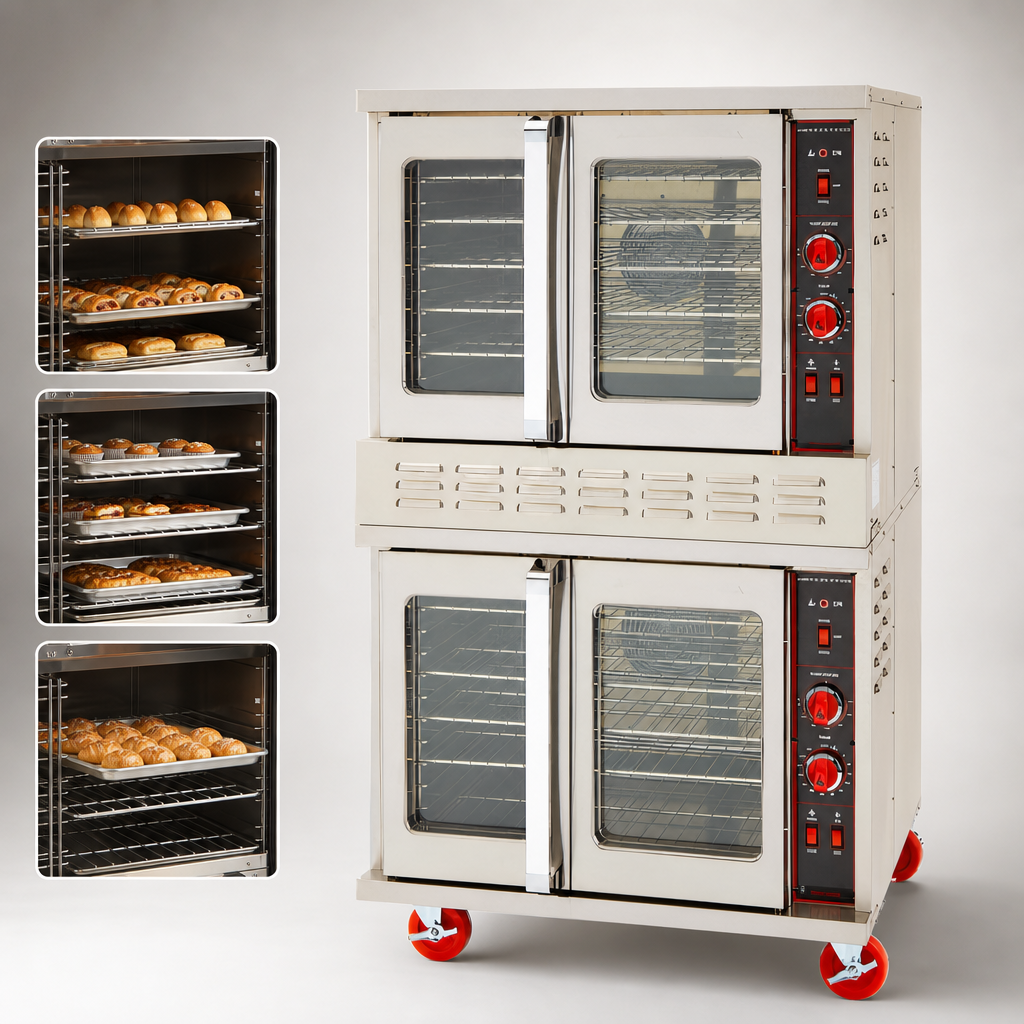

Majestic ME-2 Double-Deck Electric Convection Oven

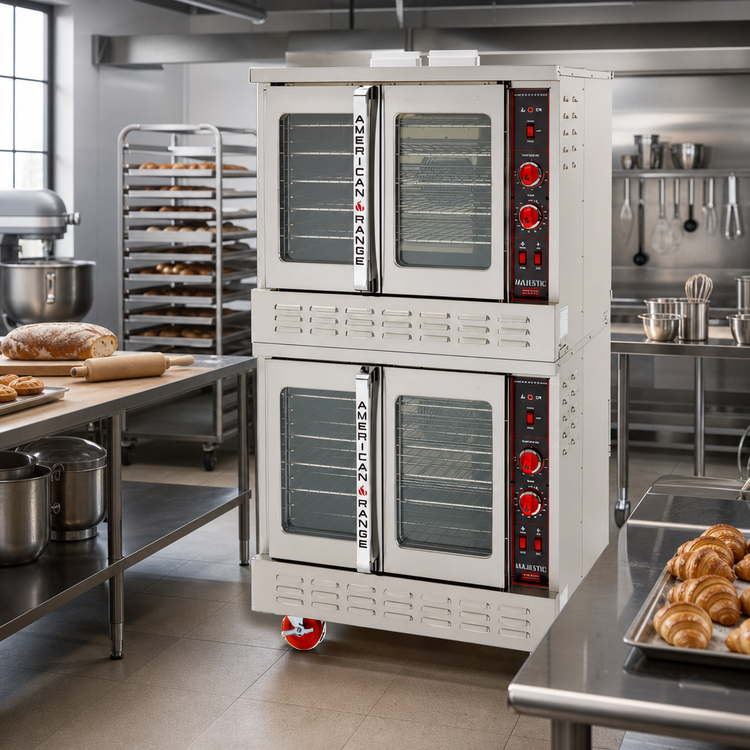

Bakery-Depth | 50/50 Glass Doors | Made in the USABuilt for high-volume bakeries, cafeterias, and institutional kitchens, the American Range Majestic ME-2 delivers the even bake, rock-solid durability, and operator-friendly controls you need to keep production moving all day long. Two full-size, bakery-depth cavities are stacked on a heavy-duty caster base, giving you twice the capacity without sacrificing valuable floor space.
Why You’ll Love It

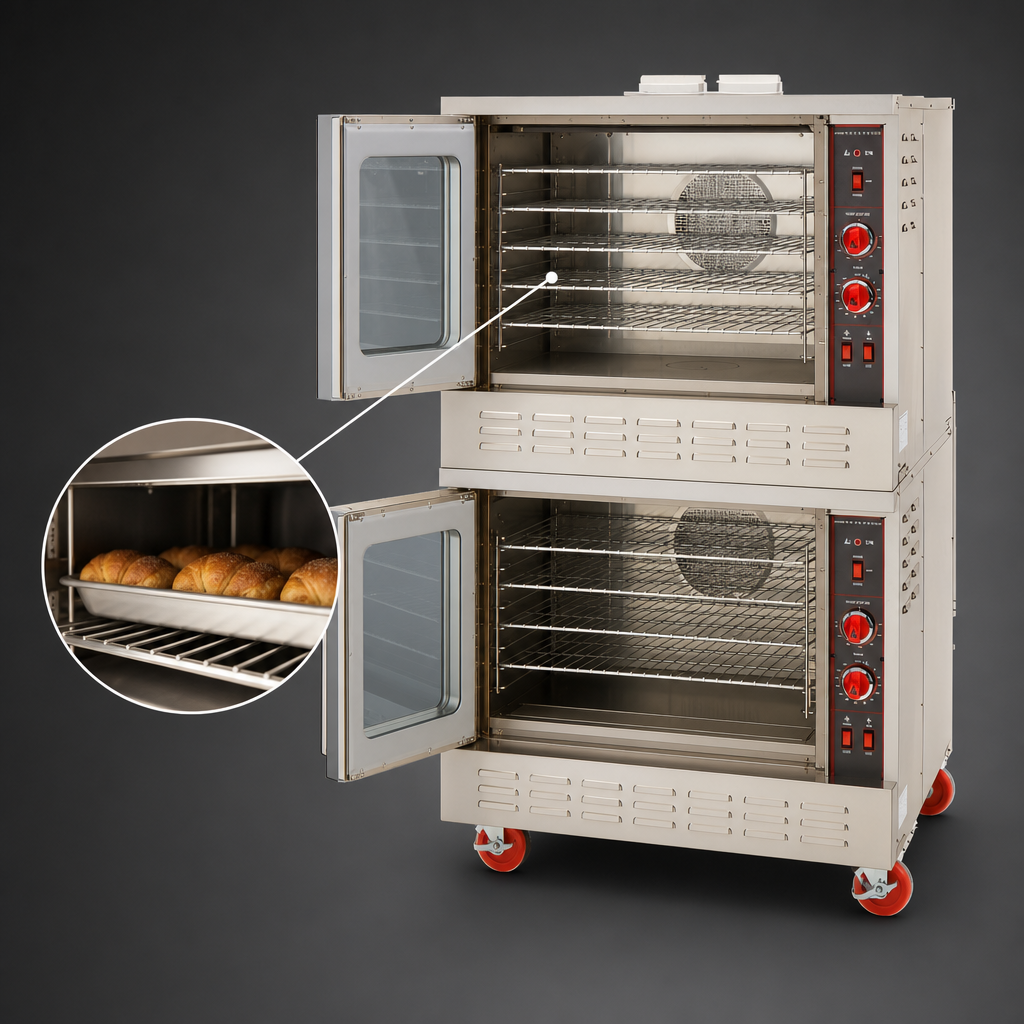

- True bakery depth—load 18" × 26" sheet pans side-to-side (5 racks per cavity included).
- Wide temperature range 150-500 °F (66-260 °C) with precise thermostatic control.
- Two-speed, ½ HP fan in each oven cavity for perfect air circulation when baking or roasting.
- 50/50 dependent glass doors swing 135° and open/close together for quick, one-handed loading.
- Porcelainized interiors resist corrosion and wipe clean in seconds.
- Cool-down switch rapidly removes residual heat between batches.
- Stacking kit with 4 heavy-duty casters (2 locking) included for easy mobility and service access.
- cETLus & ETL-Sanitation listed; proudly designed & built in the USA.
Specifications
| Model | ME-2 (Double Deck) |
|---|---|
| Capacity | 10 full-size sheet pans (18" × 26") • 20 hotel pans (12" × 20") |
| Temperature Range | 150 °F – 500 °F (66 °C – 260 °C) |
| Controls | Mechanical thermostat, 1-hour timer with buzzer, “Heat On” indicator, fan hi/lo selector, cool-down switch |
| Heating Elements | (2) banks, 24 kW total (12 kW per cavity) electric |
| Electrical | 208 / 240 V, 3 Ph, 60 Hz hardwired (no cord/plug supplied) |
| Blower Motor | ½ HP, 2-speed, 9 A draw per cavity |
| Interior Finish | High-gloss porcelain enamel |
| Exterior Finish | Stainless steel front, top, and sides |
| Overall Dimensions | 40" W × 45 ½" D × 76" H (1016 × 1156 × 1931 mm) |
| Shipping Weight | Approx. 1280 lb (582 kg) |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | 2-year parts & labor, 90-day replacement parts (see warranty for details) |
What’s Included
- (10) chrome wire racks (5 per cavity) with 12-position rack guides
- Factory-installed stacking kit & 4 swivel casters (2 locking)
- Operator’s manual & warranty registration
Installation & Clearance
• For use on non-combustible floors.
• Minimum clearances to combustibles: 12" (305 mm) sides, 4" (102 mm) rear.
• A vent hood conforming to NFPA 96 is required. Always comply with local codes.
