American Range ME-1 Convection Ovens
Description

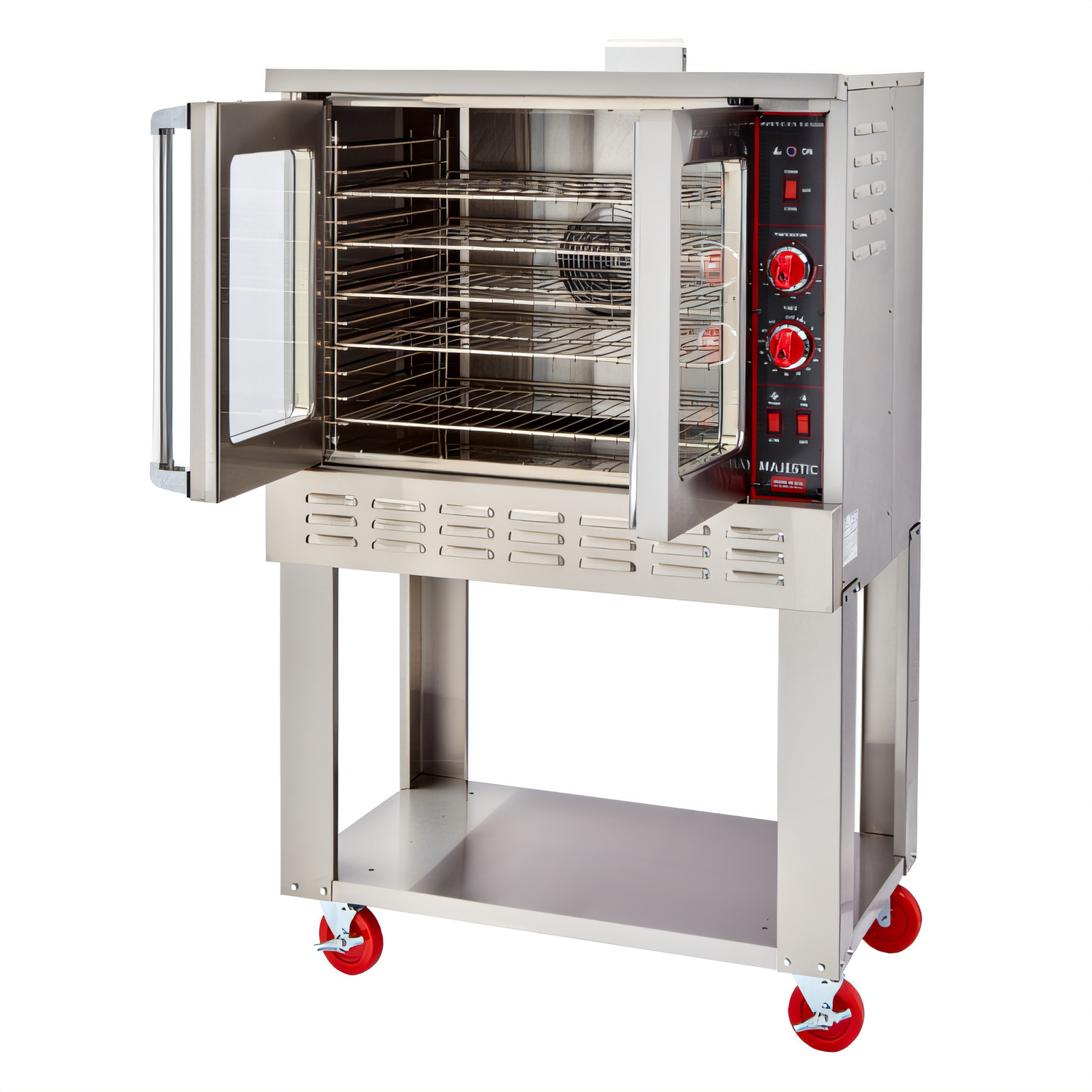

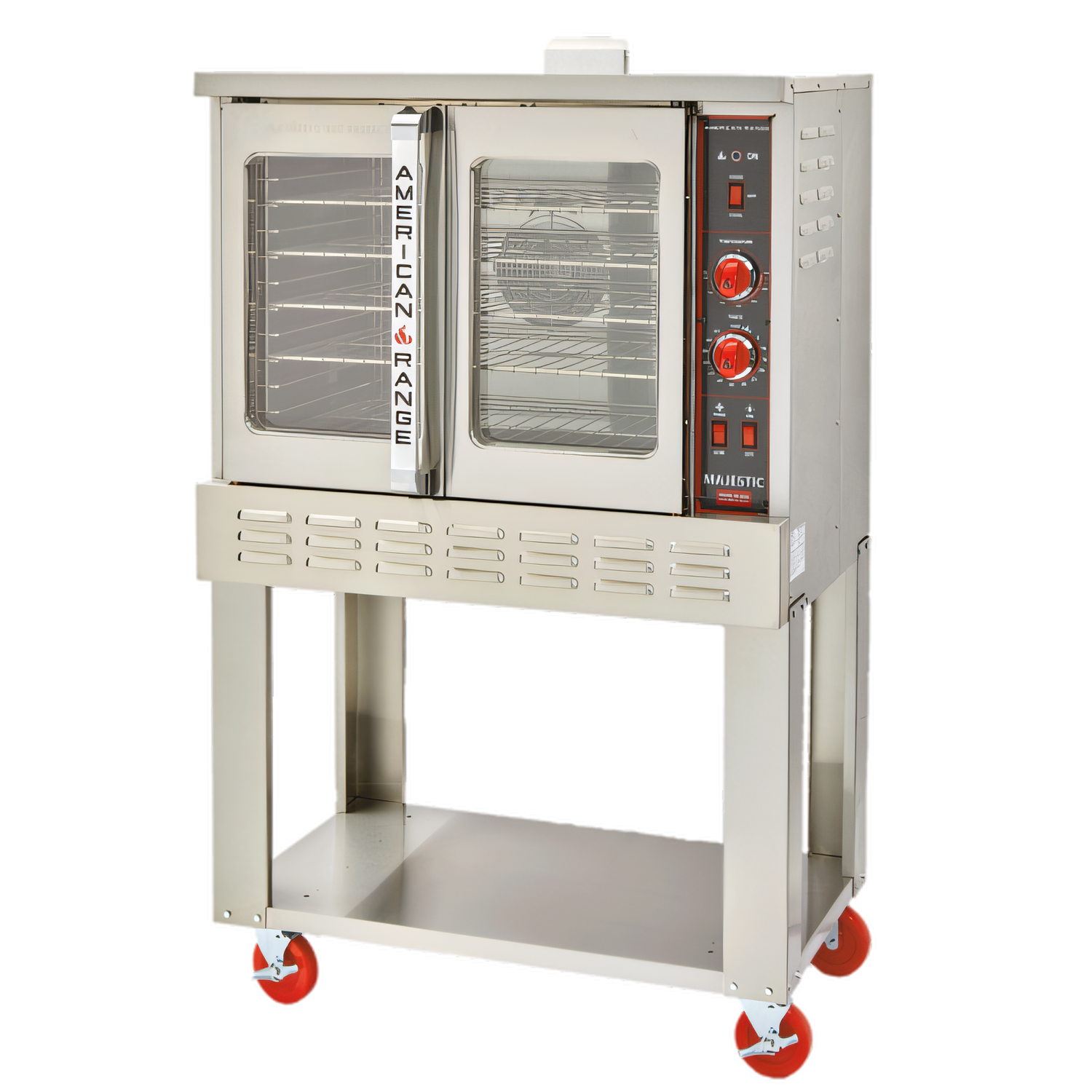

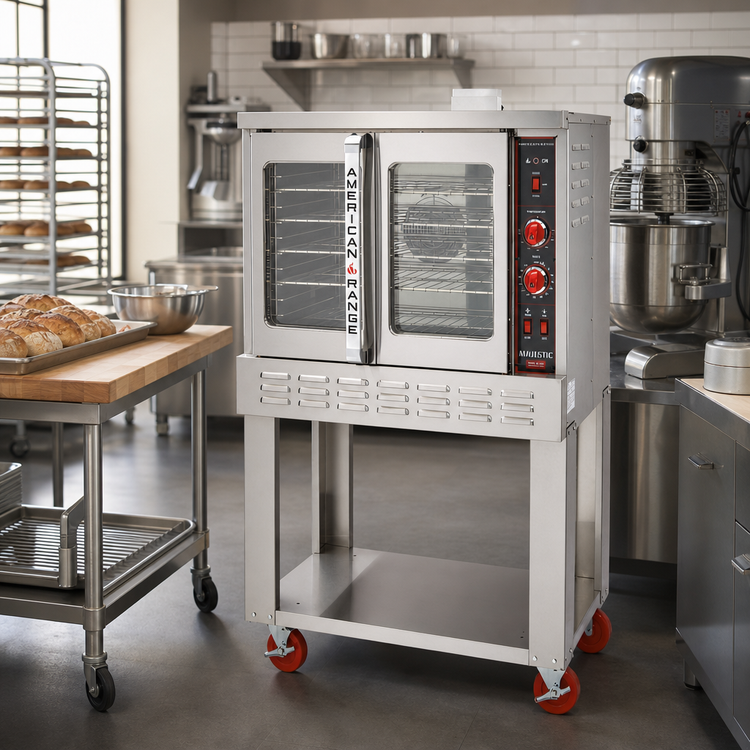

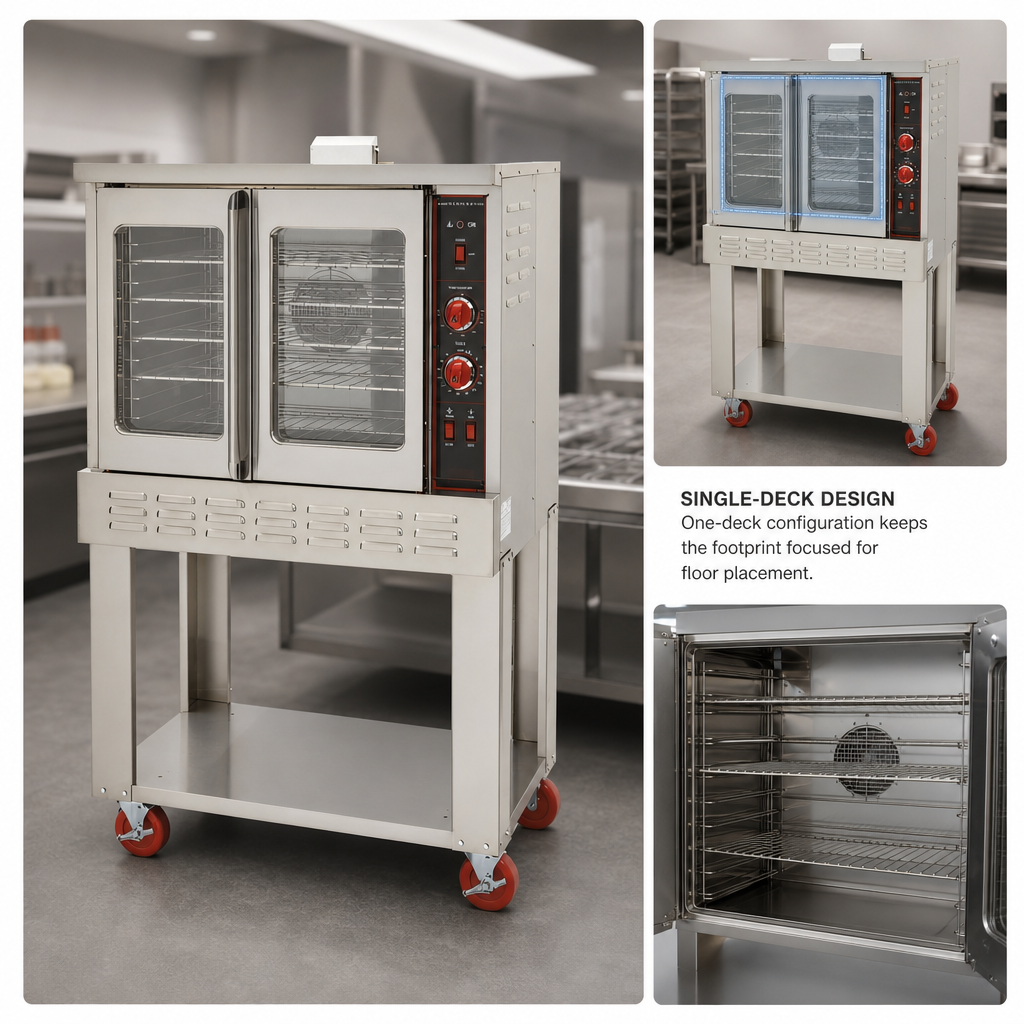

American Range ME-1 Majestic Electric Bakery-Depth Convection Oven
Single Deck | 50/50 Glass Doors | 12 kW, 208/240 V | Made in USABuilt for busy bakeries, restaurants and institutional kitchens, the American Range ME-1 pairs heavy-duty stainless-steel construction with a high-performance 12 kW heating system. The extra-deep cavity accepts full-size sheet pans side-to-side, while a two-speed fan and wide 150 – 500 °F thermostat give you the control you need for everything from delicate pastries to high-volume roasting.
Key Features

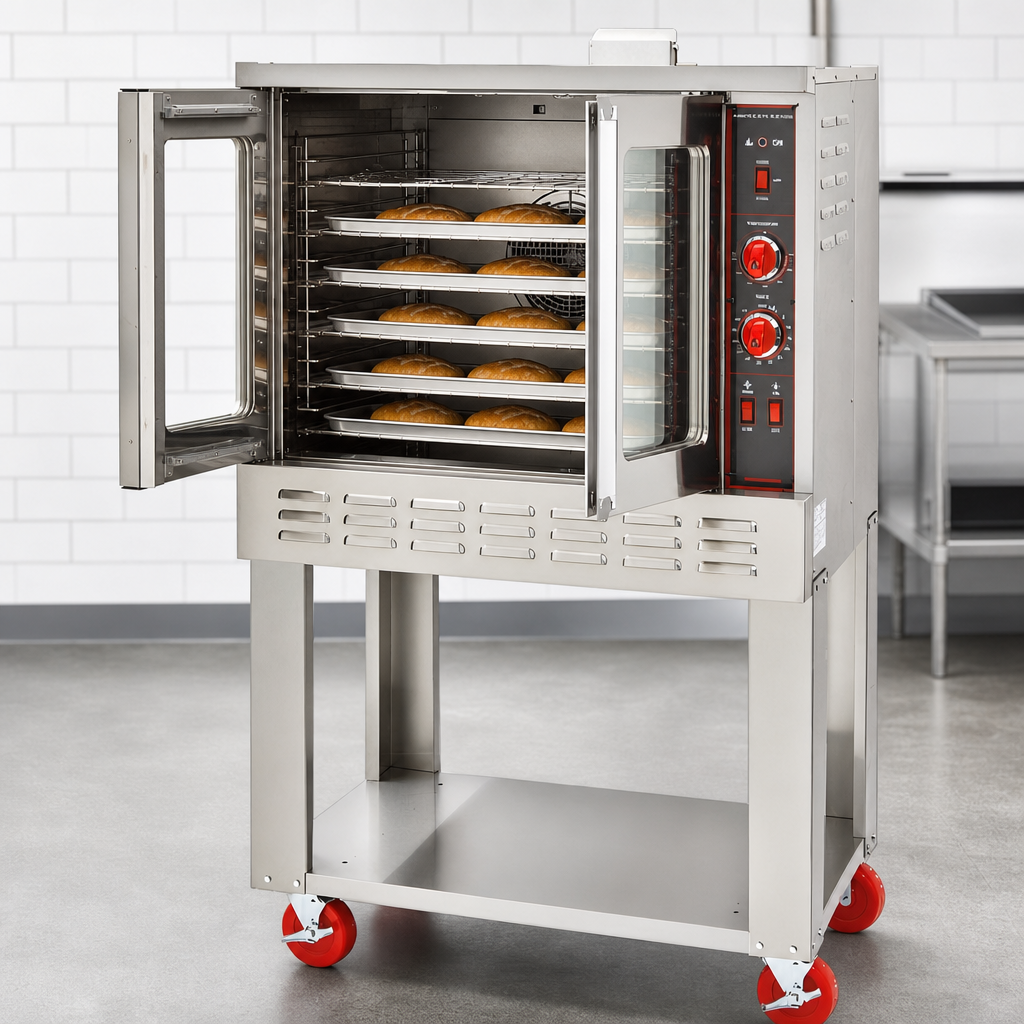

- Bakery-depth cavity holds five 18" × 26" sheet pans side-to-side; 12-position rack guides.
- Precise thermostatic control from 150 °F to 500 °F plus 1-hour mechanical timer.
- 1⁄2 HP two-speed blower motor (high & low) with cool-down switch for rapid chamber cooling.
- 50/50 dependent double doors with large tempered-glass windows; one-handed operation opens/closes both doors and swings 135° for easy loading.
- Porcelainized steel oven interior cleans quickly and resists corrosion.
- All-stainless exterior (front, sides, top) for long-lasting durability.
- Five chrome racks included; optional cooling/storage racks and heavy-duty swivel casters available.
- Burner “ON” indicator light for quick status checks.
- cETLus & ETL-Sanitation listed for electrical safety and sanitation compliance.
- Covered by a 2-year limited parts & labor warranty.
At-a-Glance Specifications
| Model | ME-1 (Single-Deck, Bakery Depth) |
|---|---|
| Heat Type | Electric, 12 kW |
| Temperature Range | 150 °F – 500 °F (66 °C – 260 °C) |
| Exterior Dimensions (W × D × H) | 40" × 45 ½" × 66" (1016 × 1156 × 1626 mm) |
| Interior Capacity | 5 full-size sheet pans (18" × 26") |
| Racks Supplied | 5 chrome racks |
| Fan Motor | 1⁄2 HP, two-speed, 9 A draw |
| Electrical (1 Ø) | 208 V 50 A / 240 V 44 A, 60 Hz |
| Electrical (3 Ø) | 208 V 30 A / 240 V 30 A, 60 Hz |
| Ship Weight | Approx. 640 lb (291 kg) |
| Certifications | cETLus, ETL-Sanitation |
Installation requires hard-wiring; cord and plug are not supplied. Maintain 12" (305 mm) clearance from combustible side walls and 4" (102 mm) at the rear. Refer to the installation manual for complete guidelines.
Why Choose the Majestic Series?
- Designed & manufactured in North America for superior reliability and serviceability.
- Heavy-gauge stainless cabinet resists dents, warping and corrosion.
- Simple mechanical controls—no complex electronics to fail in high-heat environments.
- Flexible voltage & phase configurations simplify drop-in replacement or new installations.
