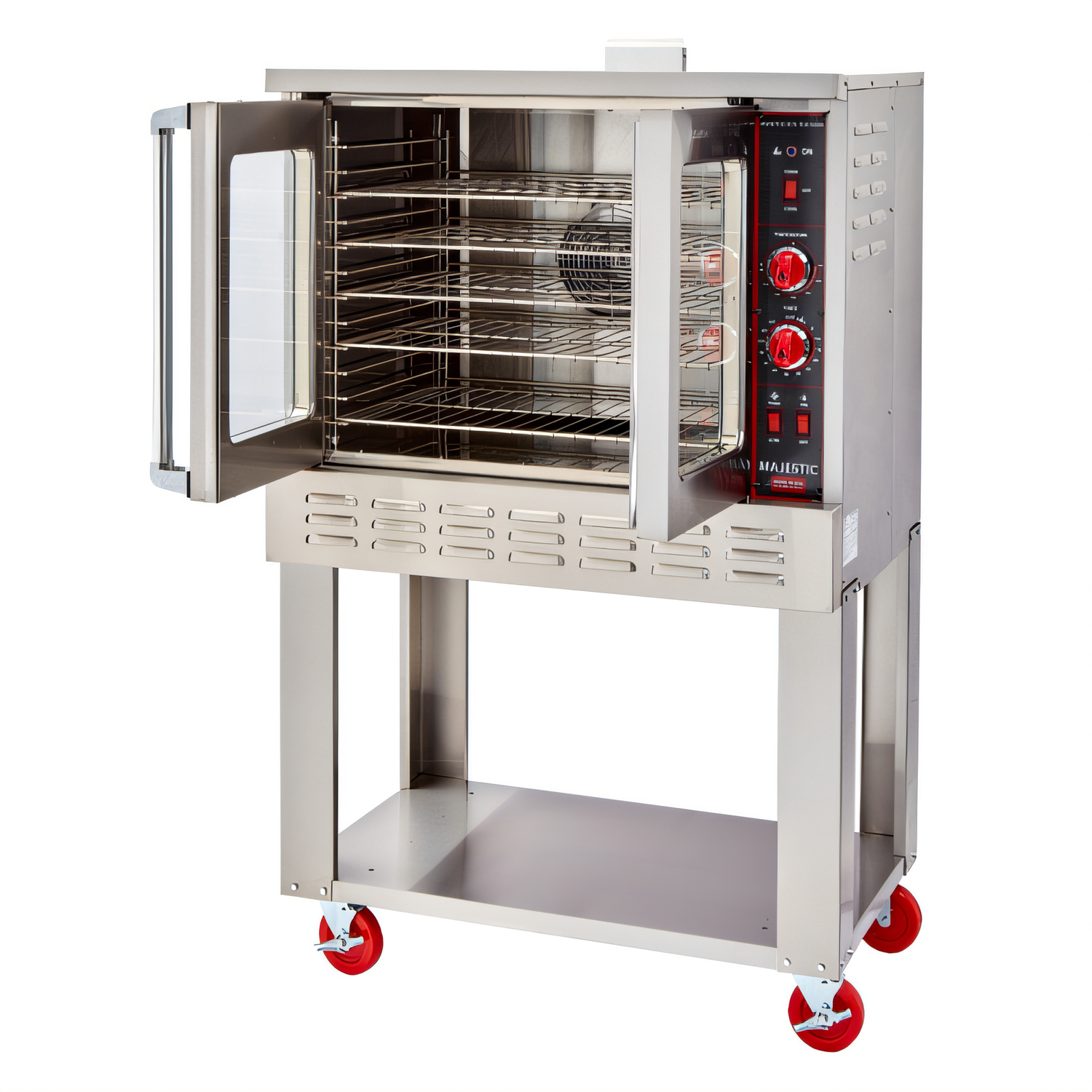

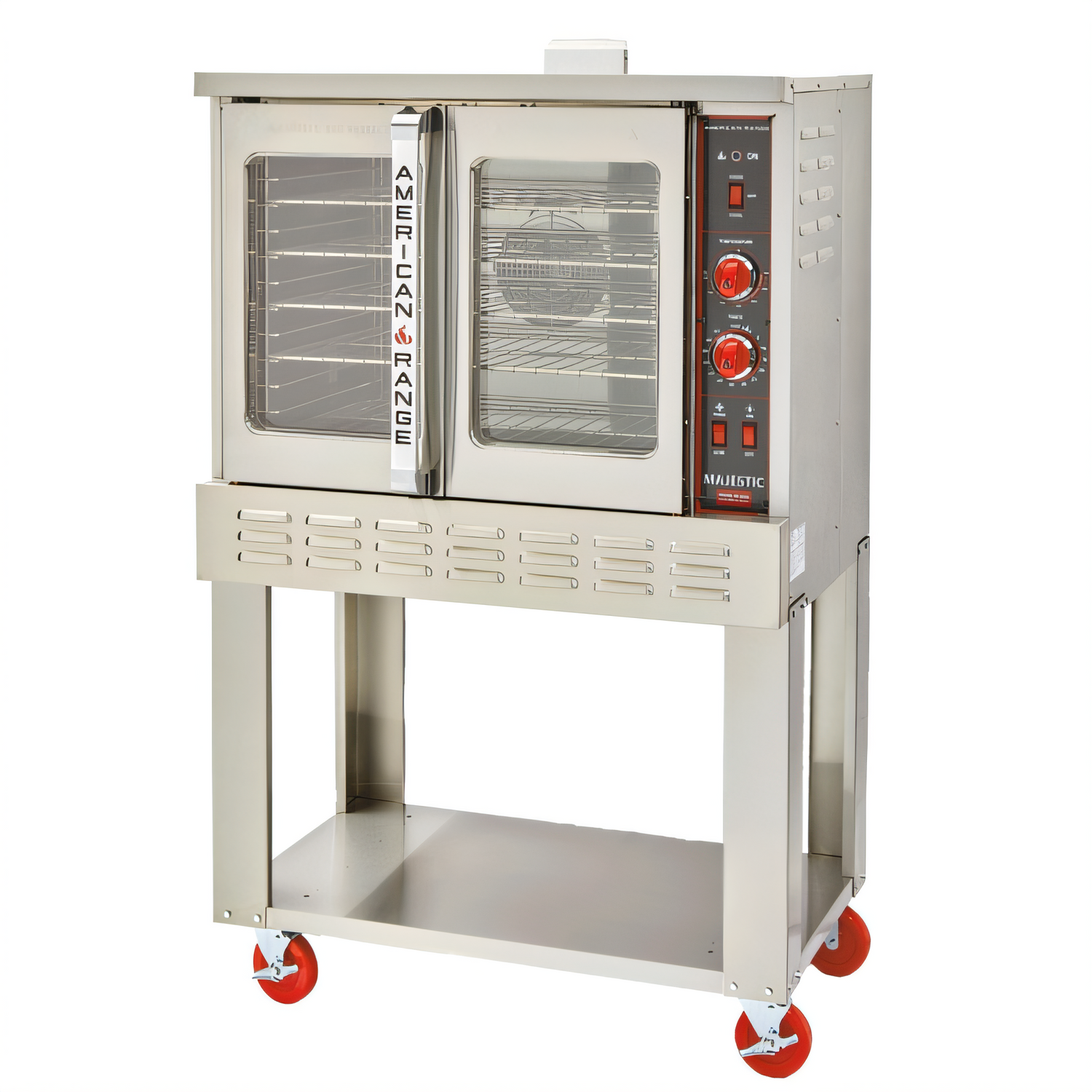

Majestic High-Efficiency Gas Convection Oven – Single Deck, Bakery Depth
American Range Model M-1HE | ENERGY STAR® Certified | Made in USAEngineered for busy bakeries, restaurants, and institutional kitchens, the American Range Majestic M-1HE delivers powerful 70,000 BTU performance while using less energy than traditional ovens. A spacious bakery-depth cavity, precision thermostat, and two-speed blower motor provide the even, consistent heat you need for perfect breads, pastries, and roasted entrées every time.
Key Features
- High-efficiency burner outputs 70,000 BTU/hr (21 kW) yet meets strict ENERGY STAR® standards.
- Wide 150 – 500 °F (65 – 260 °C) thermostat range handles delicate proofing to high-heat roasting.
- Bakery-depth interior holds five full-size 18" × 26" sheet pans left-to-right or front-to-back.
- Five chrome racks included; 12 rack positions for maximum flexibility.
- ½ HP two-speed fan (high / low) ensures fast heat-up and even baking.
- 1-hour electromechanical timer with continuous mode.
- 50/50 dependent double glass doors swing 135° and open/close simultaneously with one hand.
- Porcelainized steel oven cavity wipes clean in seconds.
- Stainless steel front, sides, and top for lasting durability in high-volume environments.
- Electronic spark ignition, burner “ON” light, and cool-down switch add convenience and safety.
Built-In Value
- Two-year limited parts & labor warranty backed by nationwide service network.
- cETLus & ETL-Sanitation listed for gas and sanitation compliance.
- Designed & built in North Las Vegas, NV.
Specifications
| Model | M-1HE (single deck, bakery depth) |
|---|---|
| Total heat input | 70,000 BTU/hr • 21 kW |
| Temperature range | 150 °F – 500 °F (65 °C – 260 °C) |
| Pan capacity | (5) 18" × 26" sheet pans • (10) 12" × 20" hotel pans |
| Rack positions | 12 per deck |
| Blower motor | ½ HP, 2-speed |
| Overall dimensions | 40" W × 46 5⁄8" D × 61 1⁄8" H (1016 × 1184 × 1553 mm) |
| Shipping weight | Approx. 640 lb (290 kg) |
| Gas connection | ¾" NPT • Natural 5.0" W.C • LP 10.0" W.C |
| Electrical (controls/fan) | 120 V, 1 Φ, 4 A, 15 A cord & plug included |
| Warranty | 2-year limited parts & labor |
Popular Options & Accessories
- Casters or seismic legs
- Direct vent adapter
- Cooling/storage racks (3-rack kit with support guides)
- 208/240 V motor/transformer upgrade
Need a double-deck oven or custom door configuration? Reach out to our sales team and we’ll build the perfect Majestic series oven for your kitchen.
$7,410.95
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
American Range M-1HE gas convection oven: high-efficiency, 150–500°F, 2-speed fan, 5 chrome racks, porcelain interior, ENERGY STAR, Made in USA.
Manufacturer
American Range
Certifications
cETLus, ETL-Sanitation, Made in USA, ENERGY STAR
Height
61.0in
Width
40.0in
Depth
46.0in
Shipping Weight
640.0lbs
Type
standard
Base
legs
Control Type
thermostatic controls
Capacity per Compartment
5 pan capacity, per compartment
Deck Qty
1 deck
Interior Finish
porcelain interior
Size
deep/bakery size
Exterior Finish
stainless steel front & sides
Energy Efficiency
ENERGY STAR®
Specifications
Majestic Convection Oven High Efficiency, gas, single-deck, bakery depth, thermostatic controls, temperature range 150°-500° F, one hour timer, 2-speed fan, (5) chrome racks with (12) rack positions per deck, porcelainized interior, 50/50 glass doors, stainless steel front, sides, top, 21.0kW, 70,000 BTU, cETLus, ETL-Sanitation, ENERGY STAR®, Made in USA
