American Range | SKU:
M-1
American Range M-1 Convection Ovens
$6,652.38
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
American Range M-1 Convection Ovens is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
American Range M-1 Convection Ovens
$6,652.38
Unit price
/
Unavailable
Description
American Range Majestic M-1 Gas Convection Oven – Bakery Depth, Single Deck
90,000 BTU | 26 kW | cETLus & ETL-Sanitation | Made in USABuilt for high-volume bakeries, cafés, and commercial kitchens, the Majestic M-1 couples a robust 90,000 BTU burner with a two-speed fan to deliver fast, even heat from 150 °F to 500 °F. Its bakery-depth cavity swallows full-size sheet pans while the sleek stainless exterior looks great on any cook line.
Key Features
- Bakery-depth (26") cavity fits (5) full-size 18"×26" sheet pans loaded either way
- Five chrome racks with 12 position guides for maximum flexibility
- Thermostatic controls 150 °F – 500 °F (65 °C – 260 °C) with burner “ON” indicator
- 60-minute timer plus manual mode for extended baking cycles
- ½ HP two-speed fan (low & high) for delicate pastries or rapid roasting
- Electronic spark ignition and cool-down switch accelerate turnarounds

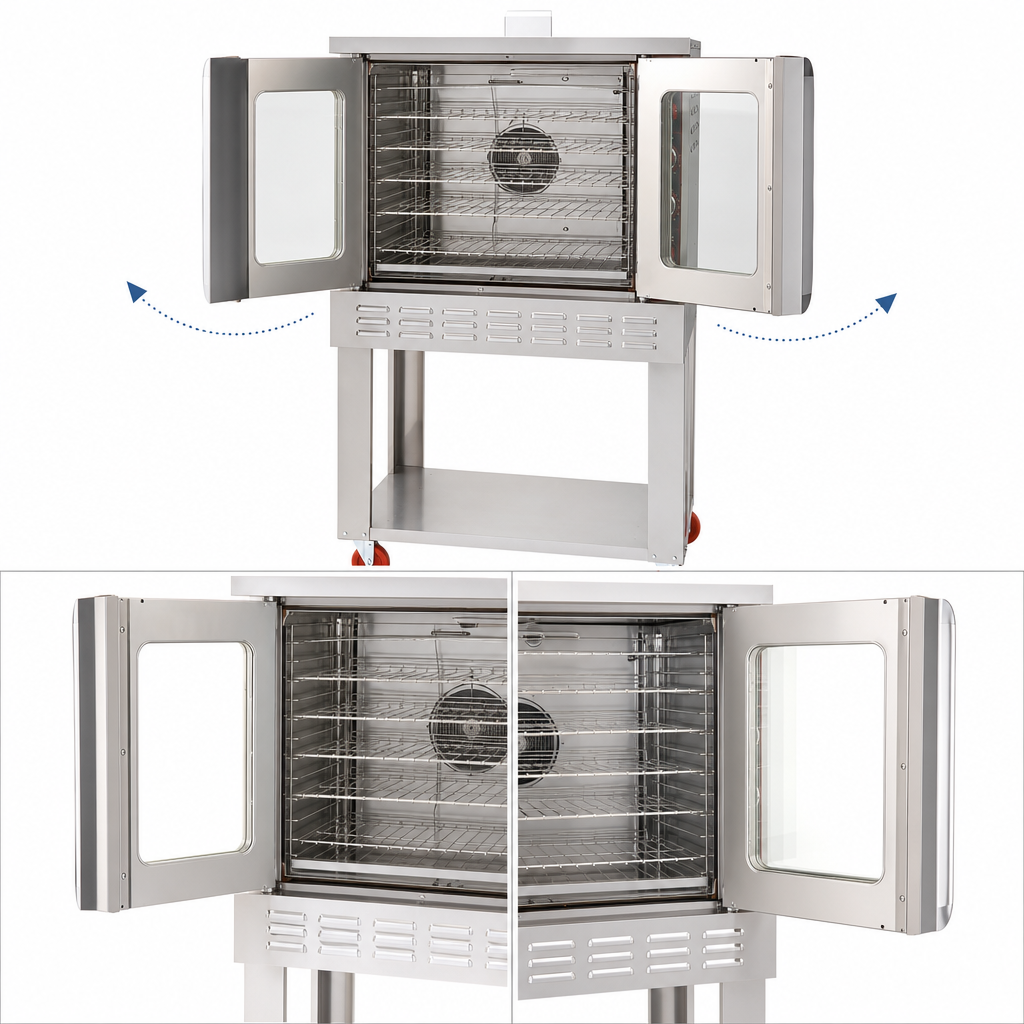

- 50/50 dependent double glass doors open 135° with one-handed operation
- Easy-clean porcelainized steel interior; all-stainless front, sides & top
- Field-convertible natural gas or LP with factory ¾" NPT regulator
- cETLus & ETL-Sanitation listed; proudly Designed & Built in the USA
Specifications
| Model | Majestic M-1 (Single Deck, Bakery Depth) |
|---|---|
| Heat Output | 90,000 BTU/hr (26 kW) |
| Temperature Range | 150 °F – 500 °F (65 °C – 260 °C) |
| Capacity | (5) 18"×26" sheet pans or (10) 12"×20" hotel pans |
| Racks / Guides | 5 chrome racks with 12 positions |
| Fan Motor | ½ HP, 2-speed, 9 A draw |
| Gas Connection | ¾" NPT rear (regulator included) |
| Electrical | 120 V, 1-phase, 4 A – 6 ft cord with NEMA 5-15 plug |
| Exterior Dimensions | 40" W × 46 ⅝" D × 61 ⅛" H (1016 × 1184 × 1553 mm) |
| Shipping Weight | Approx. 640 lb (291 kg) |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | 2-year limited parts & labor |
Perfect For
- Retail & wholesale bakeries
- Restaurants & cafés
- Hotel & resort kitchens
- School & institutional foodservice
Need more capacity? A double-deck Majestic M-2 model is also available.
Installation note: Commercial use only. Provide adequate ventilation and maintain minimum clearances of 12" from sides and 4" from rear when placed next to combustible walls.
Features & Specs
Features & Specs
Manufacturer
American Range
Certifications
cETLus, ETL-Sanitation, Made in USA
Height
68.0in
Width
40.0in
Depth
46.0in
Shipping Weight
640.0lbs
Interior Finish
porcelain interior
Control Type
thermostatic controls
Base
legs
Type
standard
Exterior Finish
stainless steel front & sides
Size
deep/bakery size
Capacity per Compartment
5 pan capacity, per compartment
Deck Qty
1 deck
Specifications
Majestic Convection Oven, gas, single-deck, bakery depth, thermostatic controls, temperature range 150°-500° F, one hour timer, 2-speed fan, (5) chrome racks with (12) rack positions per deck, porcelainized interior, 50/50 glass doors, stainless steel front, sides, top, 26.0kW, 90,000 BTU, cETLus, ETL-Sanitation, Made in USA
