American Range  |  SKU: ARTG-48-24

American Range ARTG-48-24 Gas Griddles

$5,311.69
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Warranty sheet
Related Searches
American Range Commercial Griddles Commercial Grills Gas Griddles Griddles & Flat Tops Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

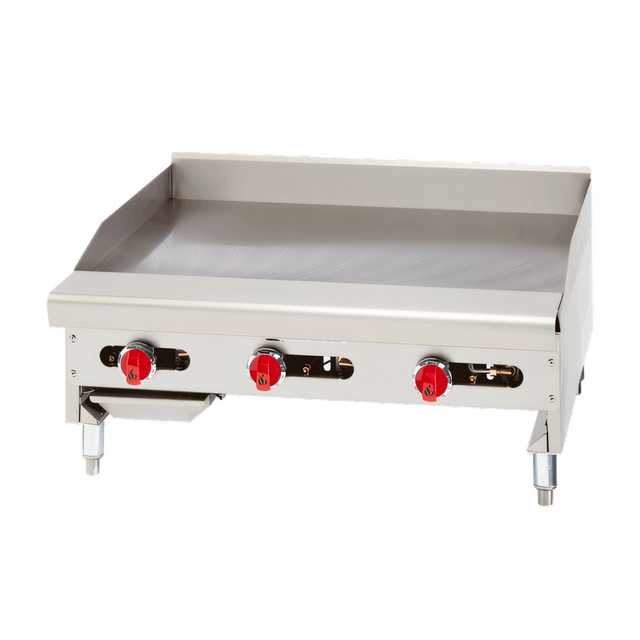

American Range ARTG-48-24 Thermostatic Gas Griddle – 48"

120,000 BTU | 1" Polished Steel Plate | Made in USA

Built for relentless commercial use, the American Range ARTG-48-24 combines a massive 48" x 24" cooking surface with precise thermostatic control and the rugged durability you expect from equipment that’s designed & manufactured in California.

Key Features
  • 1" (25 mm) thick smooth, polished steel plate for fast recovery and even heat.
  • Four U-shaped 30,000 BTU burners—one every 12"—delivering uniform edge-to-edge coverage.
  • Independent modulating thermostats (250 °F – 500 °F) with standing pilots for instant ignition.
  • Welded 3" rear & side splash guard keeps grease and debris where it belongs—on the griddle.
  • Full-width 3" stainless grease trough and large removable grease pan for quick, mess-free cleanup.
  • Stainless steel front, sides, and landing ledge withstand the toughest kitchen environments.
  • 4" adjustable stainless steel legs provide countertop stability and make sanitation easy.
  • ETL certified for gas & sanitation safety; proudly Made in the USA.
  • Backed by a 2-year limited parts & labor warranty.
Specifications
Model ARTG-48-24
Cooking Surface 48" W x 24" D (1,152 sq in / 7,432 cm²)
Overall Dimensions 48" W x 35" D x 17" H (+4" adjustable legs)
Plate Thickness 1" polished steel
Burners 4 U-shaped, 30,000 BTU each
Total Output 120,000 BTU/hr (35.0 kW)
Temperature Range 250 °F – 500 °F
Gas Connection 3/4" NPT (rear); NG 5.0" W.C. / LP 10.0" W.C.
Grease Management 3" trough & removable stainless pan
Certifications ETL Classified (conforms to UL/NSF)
Shipping Weight Approx. 490 lb (222 kg)
Warranty 2-year parts & labor
Installation Note: Unit must be installed on a non-combustible surface with the supplied legs (or curb mounted with a 2" overhang). Provide 12" clearance on both sides and 4" at the rear when adjacent to combustible walls. Adequate ventilation per NFPA 96 is required.

Order must specify gas type (Natural or LP) and altitude if over 2,000 ft. Shipping weight is approximate and includes packaging.

Features & Specs

Manufacturer

American Range

Certifications

ETL, Made in USA

Height

10.5in

Width

48.0in

Depth

30.0in

Shipping Weight

365.0lbs

Cooking Surface Width (side - side)

43" - 48"

Plate Thickness

3/4"

Griddle Plate Finish

smooth steel

Exterior Finish

stainless steel front & sides

Controls

thermostat / solid state controls

Specifications

Griddle, gas, 48" W x 24"D, countertop, 1" thick smooth polished steel griddle plate, (4) "U" shaped burners, modulating thermostatic controls with pilot, 3" splash guard, stainless steel grease trough & grease pan, stainless steel exterior, 4" legs, 35.0kW, 120,000 BTU, ETL, Made in USA
