American Range  |  SKU: ARTG-24-24

American Range ARTG-24-24 Gas Griddles

$3,035.25
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Warranty sheet
Related Searches
American Range Commercial Griddles Commercial Grills Gas Griddles Griddles & Flat Tops Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

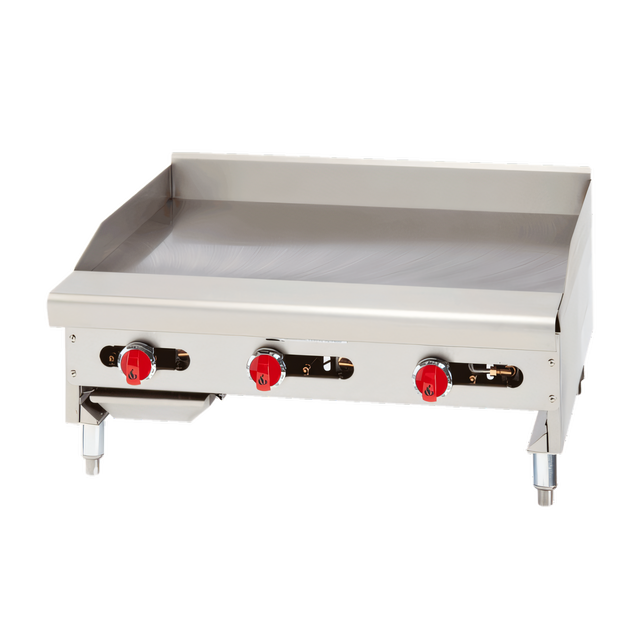

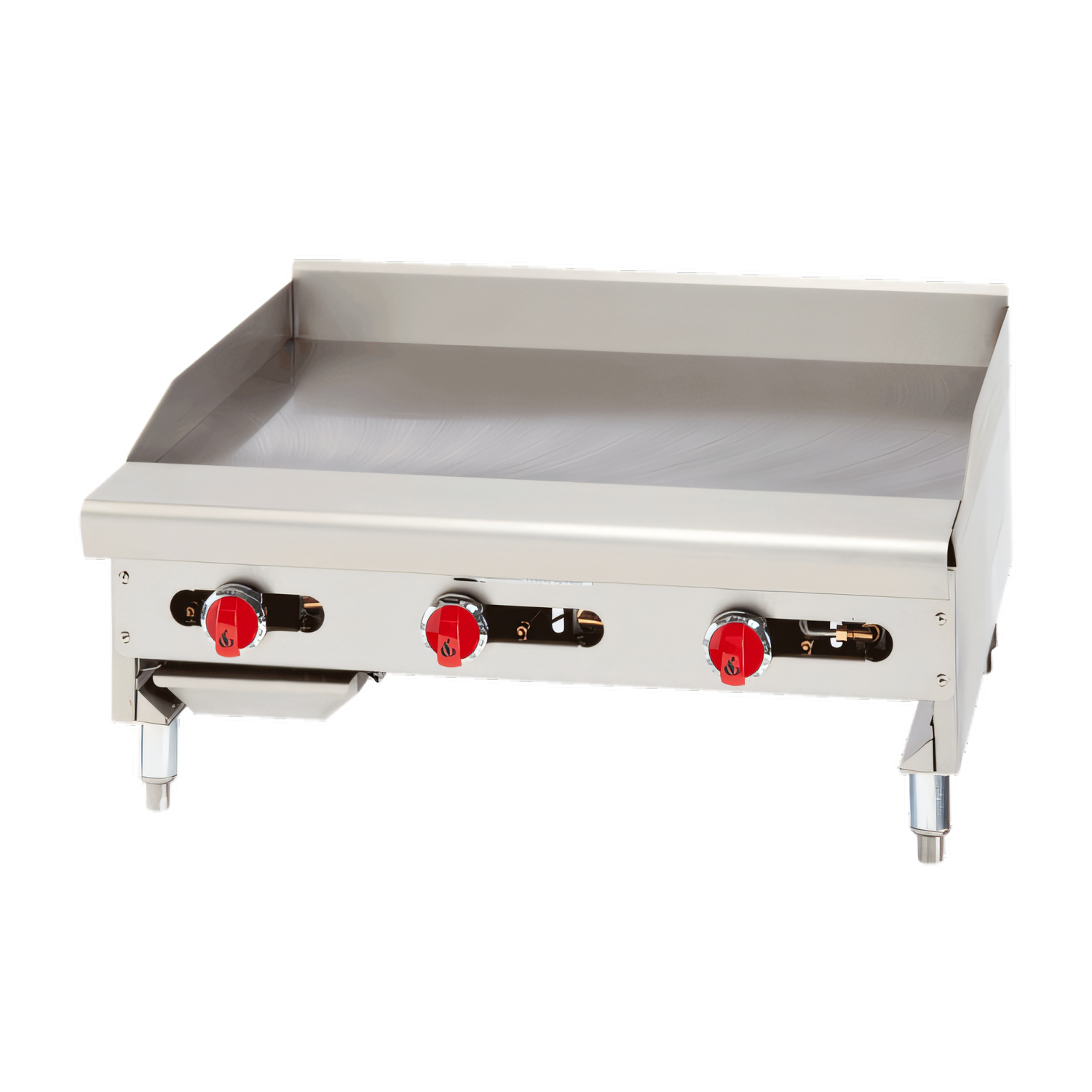

American Range ARTG-24-24 Countertop Thermostatic Gas Griddle — 24"

60,000 BTU | 18 kW | ETL Listed | Made in USA

Bring steak-house sear and breakfast-rush speed to any cookline with the American Range ARTG-24-24. This compact, 24-inch thermostatic griddle pairs a hefty 1-inch steel plate with precision heat control and a rugged stainless-steel body—engineered and built in California for the rigors of the busiest commercial kitchens.

Key Features

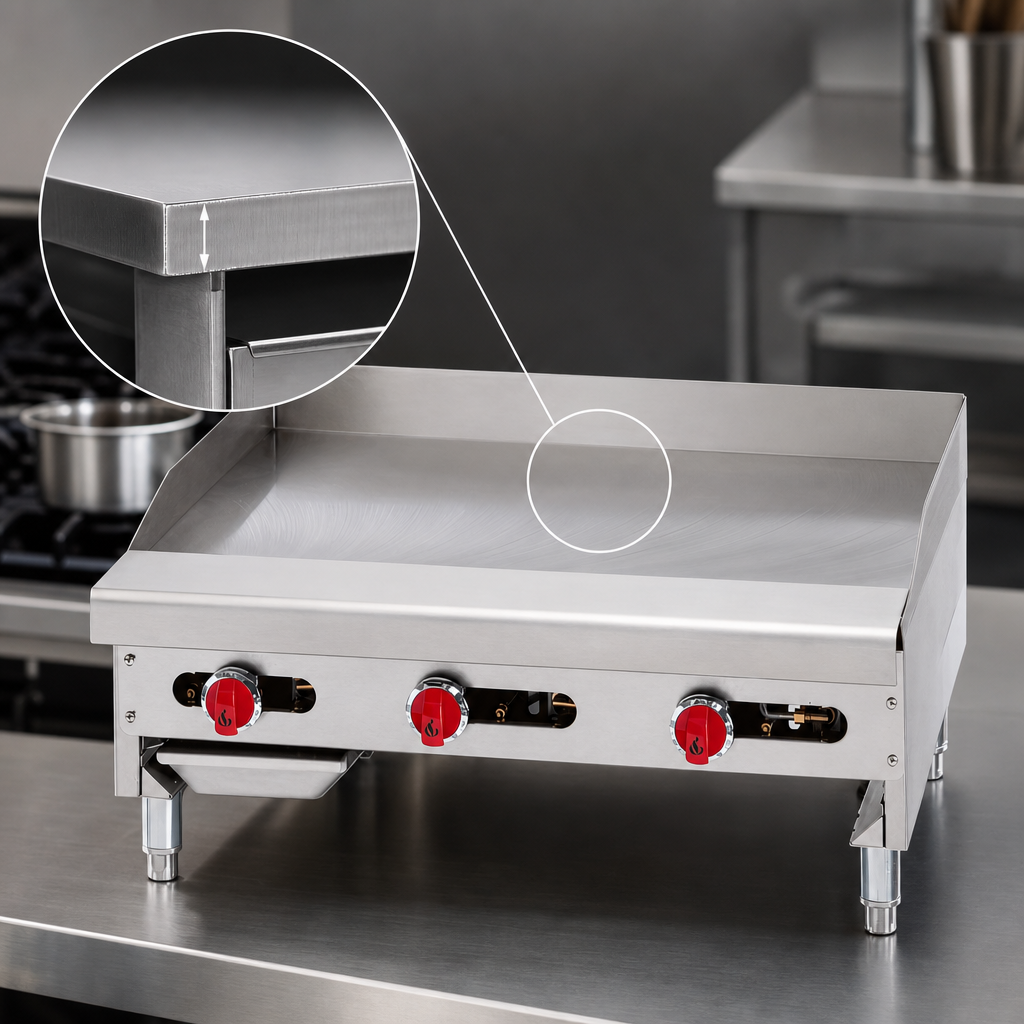

  • 1" thick, polished steel griddle plate for superior heat retention and recovery.
  • (2) 30,000 BTU U-shaped burners (one every 12") distribute heat evenly edge-to-edge.

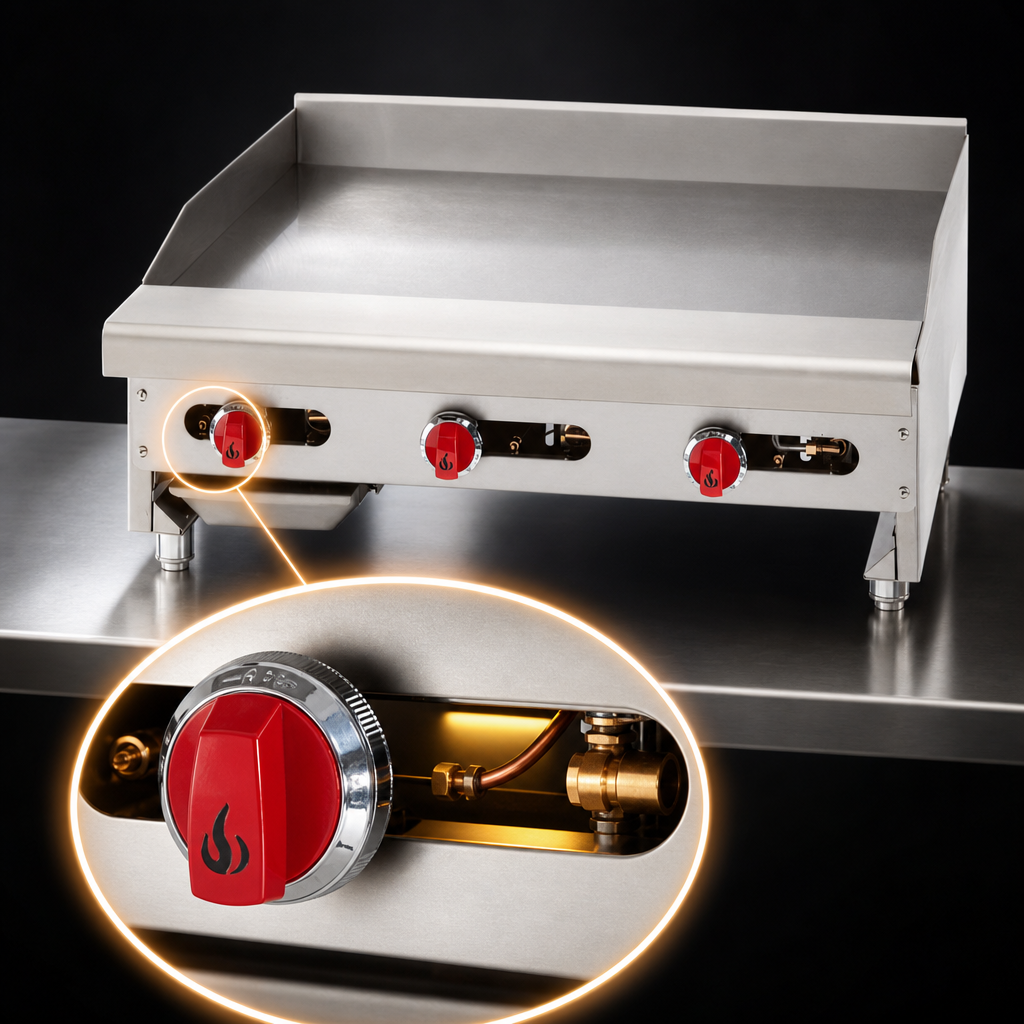

  • Modulating thermostatic controls with standing pilots maintain 250 °F – 500 °F (121 °C – 260 °C).
  • 24" cooking depth plus a 3" welded splash guard to contain grease and food debris.
  • Full stainless-steel exterior, 3" grease trough, and removable grease pan for quick cleanup.
  • 4" adjustable stainless legs keep the unit level and NSF-compliant for sanitation.
  • ¾" NPT rear gas connection; field convertible to Natural Gas or LP (specify at order).
  • Designed & built in the USA and backed by a 2-year parts & labor warranty.
Specifications
Model ARTG-24-24
Energy Type Natural Gas or Propane Gas
Total Input 60,000 BTU/hr (18.0 kW)
Cooking Surface 24" W × 24" D (610 mm × 610 mm)
Overall Dimensions 24" W × 35" D × 17" H (610 mm × 889 mm × 432 mm)
Plate Thickness 1" (25 mm) smooth polished steel
Burners 2 U-shaped, 30,000 BTU each
Temperature Range 250 °F – 500 °F (121 °C – 260 °C)
Gas Connection ¾" NPT rear; 5.0" W.C. Natural | 10.0" W.C. LP
Certifications ETL us/ETL-Sanitation, NSF
Shipping Weight ≈ 280 lb (127 kg)
Perfect For
  • Diners, cafés & breakfast houses
  • Food trucks and concession trailers
  • QSR & fast-casual line extensions
  • Catering and banquet production kitchens
Installation Note: Place on a non-combustible surface with legs installed, or provide a 2" curb overhang when curb-mounted. Maintain 12" side clearance and 4" rear clearance from combustible walls and install under an approved ventilation hood per NFPA 96.

Need a different width? American Range thermostatic griddles are also available in 12", 36", 48", 60" and 72" models.

Two-year limited warranty on parts & labor. Register within 90 days of shipment for full coverage. View complete warranty terms.

Features & Specs

Manufacturer

American Range

Certifications

ETL, Made in USA

Height

10.5in

Width

24.0in

Depth

30.0in

Shipping Weight

220.0lbs

Plate Thickness

3/4"

Cooking Surface Width (side - side)

19" - 24"

Griddle Plate Finish

smooth steel

Exterior Finish

stainless steel front & sides

Controls

thermostat / solid state controls

Specifications

Griddle, gas, 24" W x 24"D, countertop, 1" thick smooth polished steel griddle plate, (2) "U" shaped burners, modulating thermostatic controls with pilot, 3" splash guard, 4" legs, stainless steel grease trough & grease pan, stainless steel exterior, 18.0kW, 60,000 BTU, ETL, Made in USA
