American Range ARSTG-72 Gas Griddles
Description
American Range ARSTG-72 Thermostatic Countertop Griddle – 72"
180,000 BTU | Natural or LP Gas | Made in USABring high-volume breakfast, lunch, and dinner service to a rolling sizzle with the American Range ARSTG-72. Six independent “U” burners blanket a full 72 inch, 1 inch thick steel plate, giving you unrivaled heat consistency and zone control in a space-saving countertop design.
Key Features

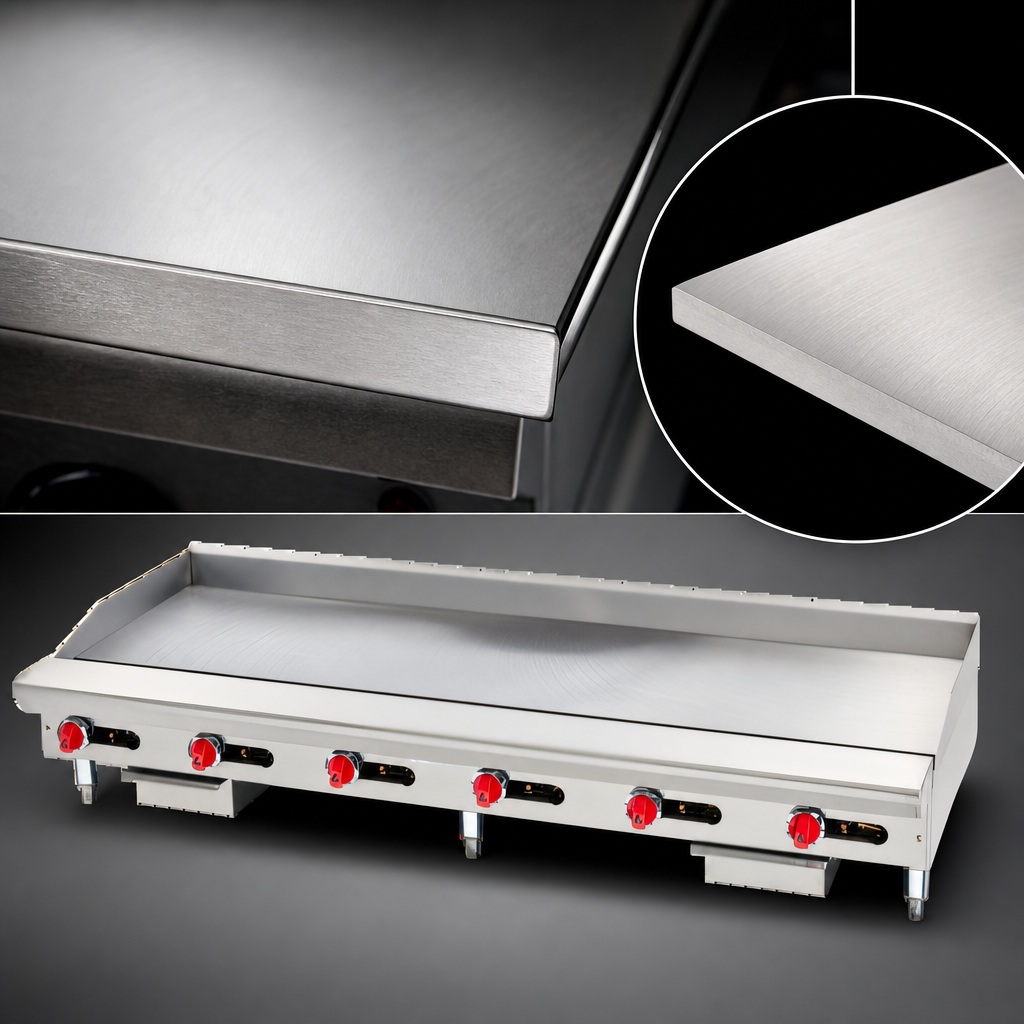

- 1 inch thick highly polished steel griddle plate for superior heat retention & quick recovery
- Expansive 21 inch cooking depth – 1,512 in² of usable surface

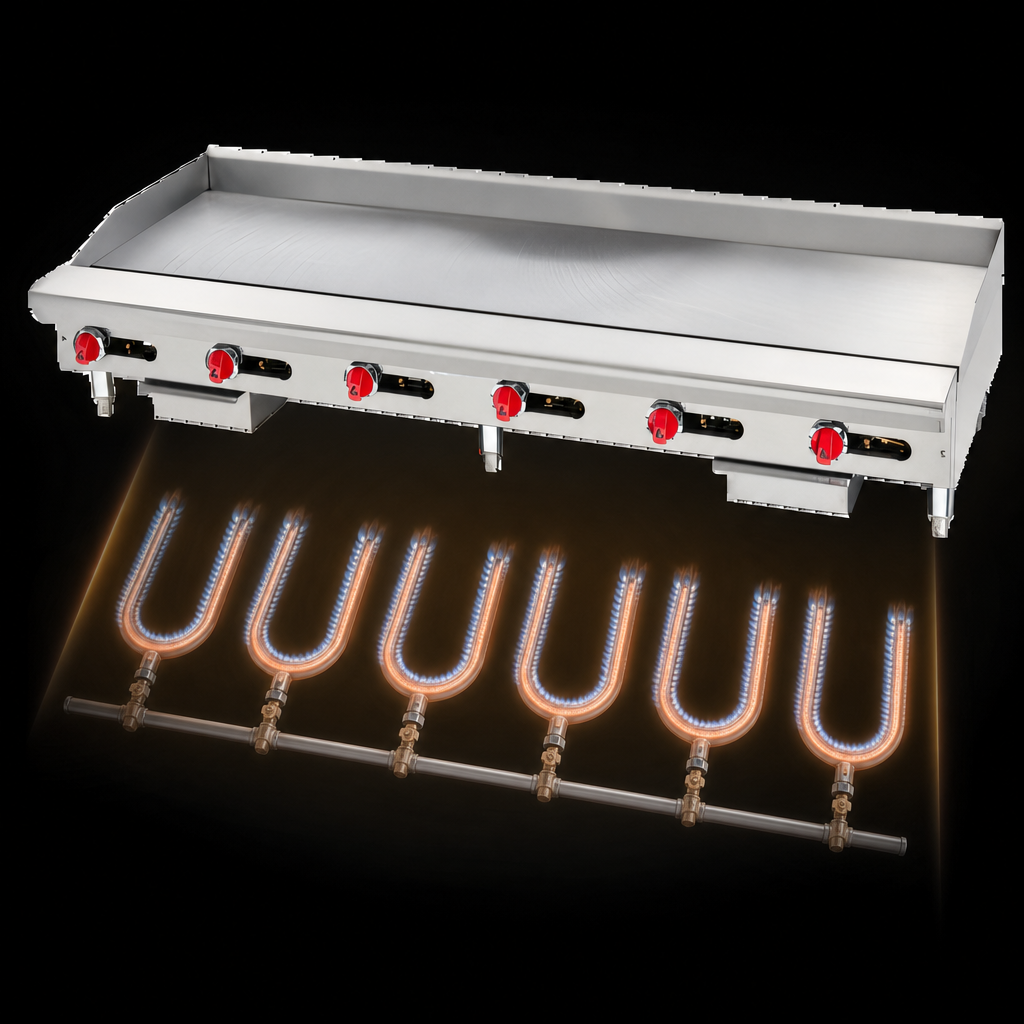

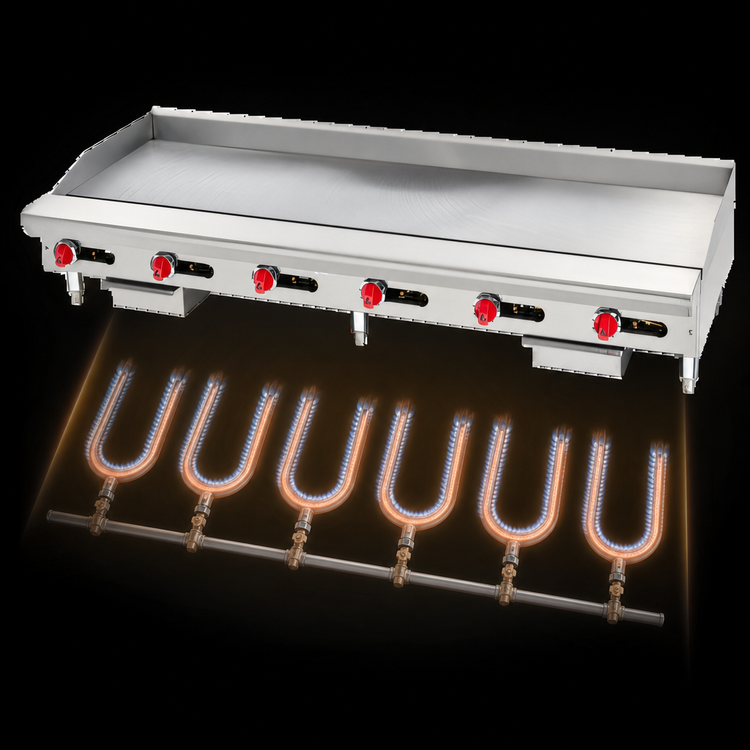

- Six 30,000 BTU aluminized steel “U” burners (total 180,000 BTU)
- Modulating thermostats with standing pilots supply precise 250 °F – 500 °F control in 12 inch zones
- Stainless steel front, 3 3/4 inch side splashes, and 4 inch rear splash guard help keep surrounding equipment clean
- 3 inch spatula-friendly grease trough channels runoff into two large-capacity stainless steel grease drawers
- 4 inch adjustable legs set the working height from 12 9/16 inch to 13 9/16 inch
- Rear 3/4 inch NPT gas connection with pressure regulator (Nat 4.0" WC / LP 10.0" WC) included
- ETL & ETL Sanitation listed – complies with ANSI Z83.11 / NSF standards
Specifications
| Model | ARSTG-72 |
|---|---|
| Gas Type | Natural Gas or Liquid Propane (field convertible) |
| Plate Size | 72" W × 21" D × 1" T polished steel |
| Overall Dimensions | 72" W × 32 9/16" D × 18 7/16" H* |
| Working Height | 12 9/16" (mid-range leg setting) |
| Burners | 6 × 30,000 BTU “U” burners |
| Total Input | 180,000 BTU/hr |
| Temperature Range | 250 °F – 500 °F |
| Grease Management | 3" trough with dual stainless steel drawers |
| Shipping Weight | Approx. 711 lb |
| Certifications | ETL, ETL Sanitation |
*Nominal dimensions; add up to 1" with legs fully extended.
Engineered for the Long Haul
- Heavy-gauge stainless steel chassis resists corrosion, dents, and daily cleaning chemicals
- Welded splash guards eliminate crevices that can harbor grease and bacteria
- Grease drawers slide out smoothly for quick emptying and are dishwasher-safe
- Designed, built, and supported in the USA for fast parts availability and knowledgeable service
Warranty & Support
Your ARSTG-72 ships with a 2-year limited parts & labor warranty. Register the unit within 90 days of shipment to activate extended coverage. For full terms, visit the American Range Warranty Page.
