Key specifications

BTU
150,000 BTU
Dimensions
60.0"W × 32.56"D × 15.44"H
Type
Griddle
Style
Thermostatic
Installation Type
Countertop
Material
Stainless Steel
Spec sheet
American Range SKU: ARSTG-60

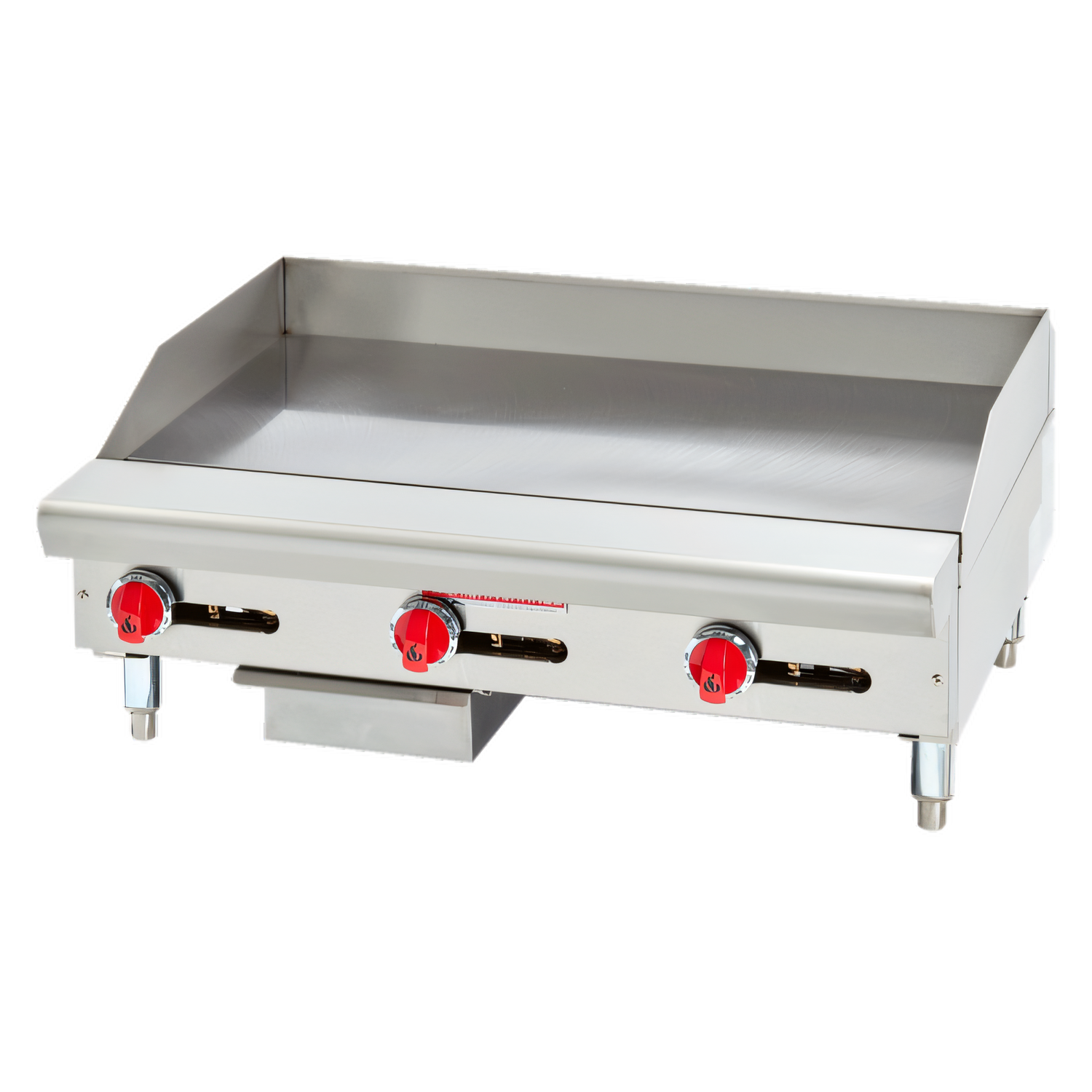

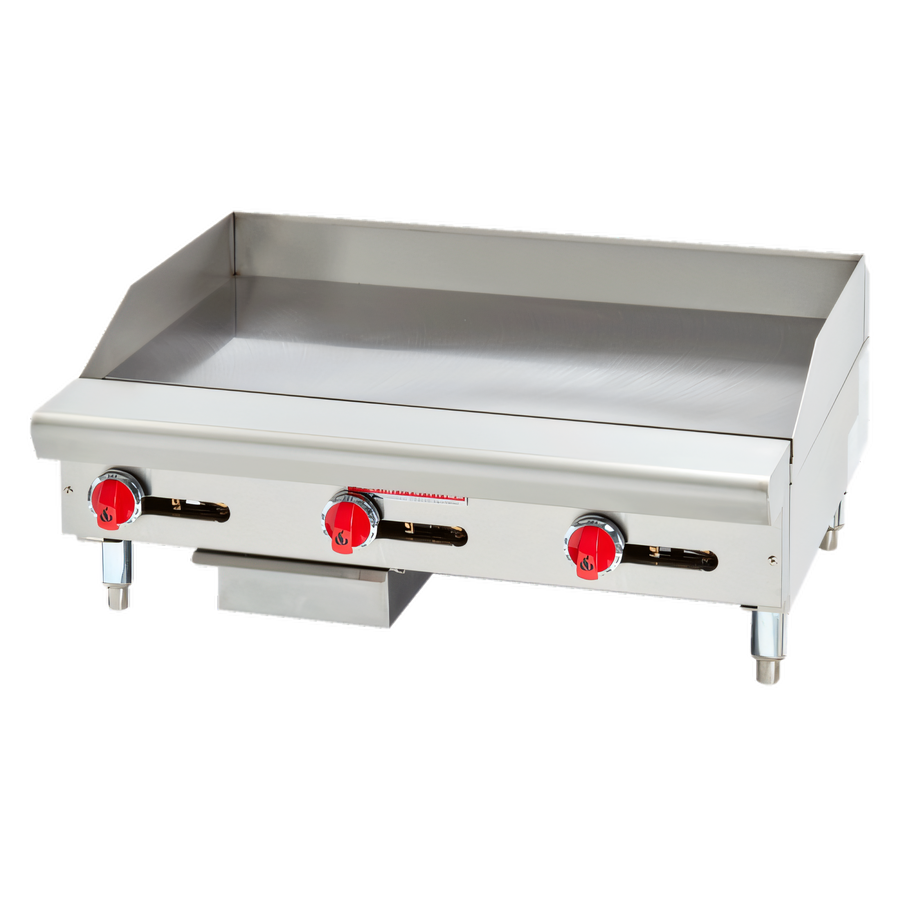

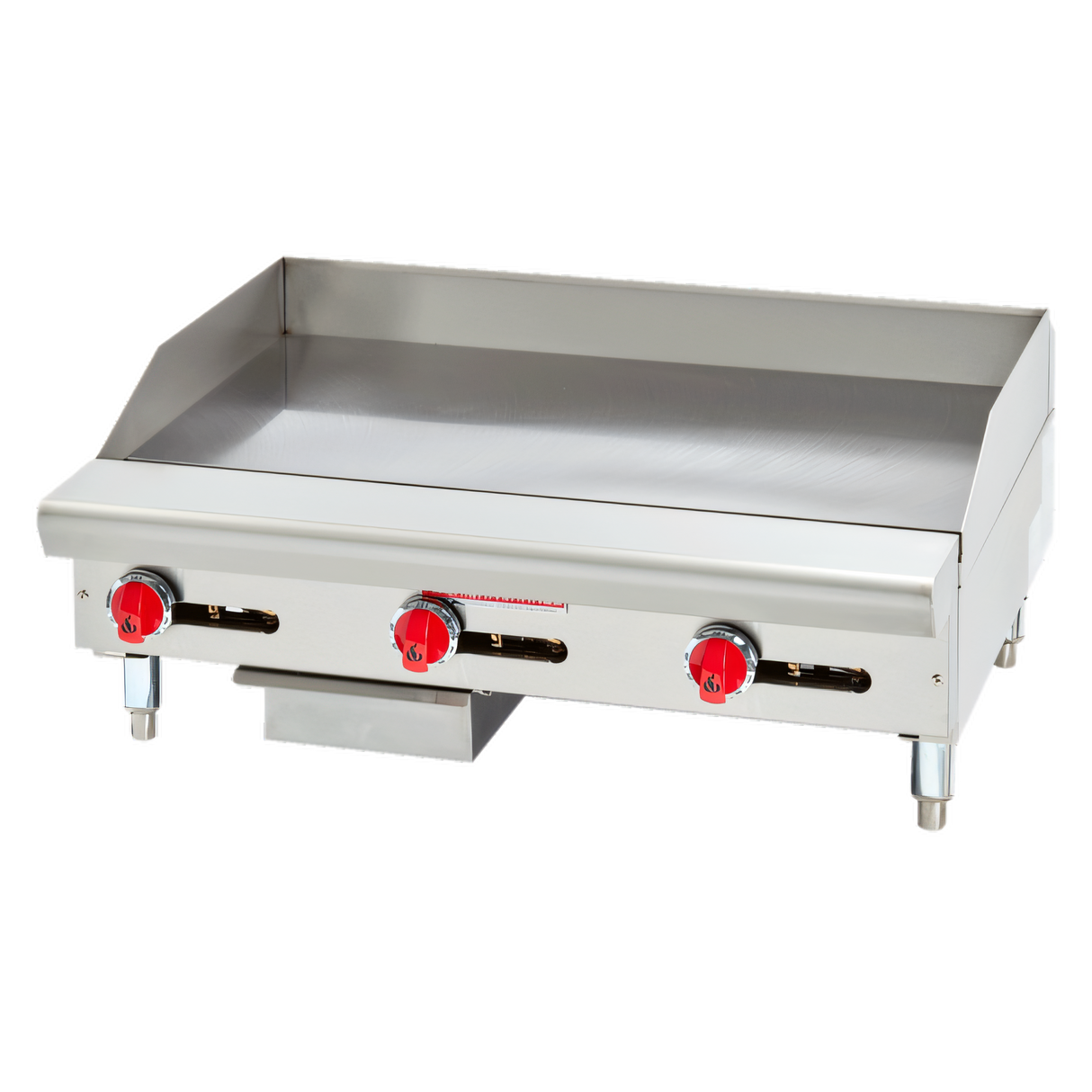

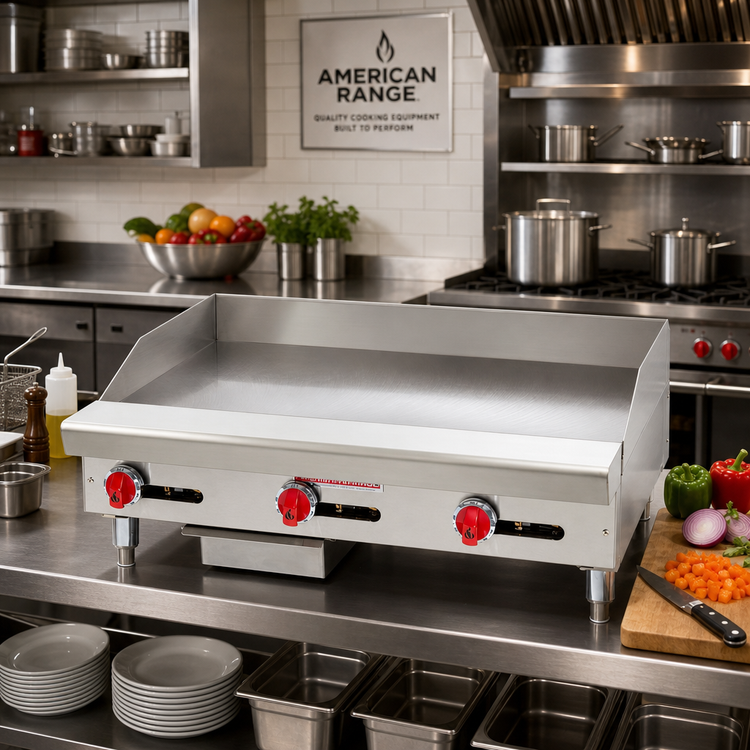

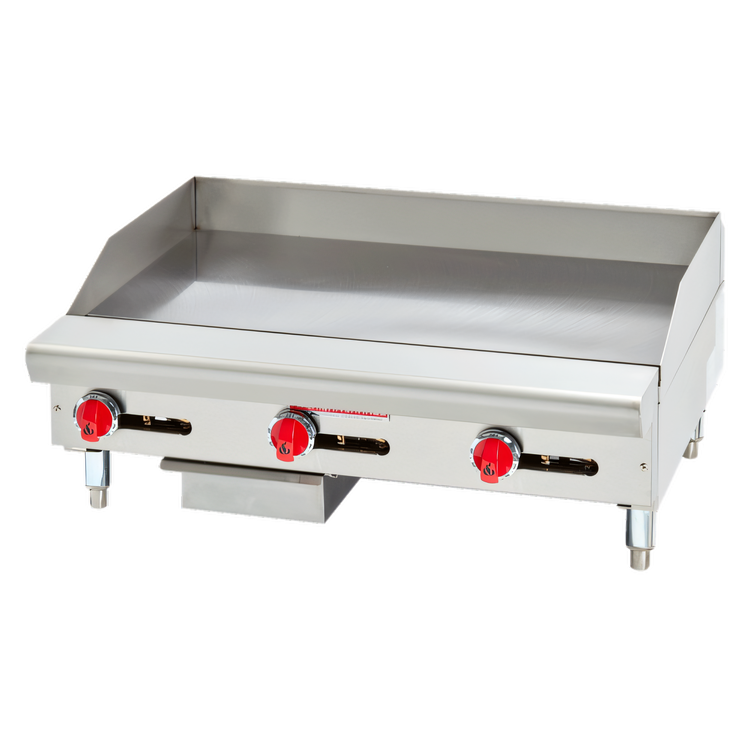

American Range ARSTG-60 60-Inch Thermostatic Gas Griddle

$6,905.19
/each
Estimated to ship in 11–14 business days Free Shipping
Width
Gas typeRequired
Gas Connector
Included: American Range warranty Two-year limited warranty for parts and labor

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $639/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Griddle
Style Thermostatic
Installation Type Countertop
Material Stainless Steel
Country of Origin USA
Width 60 in
Depth 32.56 in
Height 15.44 in
Weight 500 lb
Exterior Finish Stainless Steel
Griddle Plate Finish Smooth Polished Steel
Plate Thickness 1 in
Cooking Surface Depth 21 in
Burner Count 5
Burner Type U-Shaped
BTU 150,000 BTU
Controls Modulating Thermostat
Temperature Range 250°F to 500°F
Splash Guard Height 3 in
Leg Height 4 in Adjustable

Description

The American Range ARSTG-60 is a thermostatic countertop gas griddle with a 60-inch-wide, 1-inch-thick smooth polished steel plate and a 21-inch cooking depth.

Five U-shaped burners provide 150,000 BTU. A modulating thermostat with a standing pilot controls the griddle, while the stainless steel exterior, 3-inch splash guard, stainless steel grease trough, grease drawer, and 4-inch adjustable legs support commercial kitchen use.

The ARSTG-60 is made in the USA and ETL listed. A two-year limited warranty for parts and labor is specified.

Overall Dimensions:

60.0"W x 32.56"D x 15.44"H

Product Weight:

500.0 lb

Thermostatic Control

A modulating thermostat is specified for every 12 inches of griddle width, with a standing pilot.

Smooth Polished Steel Plate

The griddle uses a 1-inch-thick smooth polished steel plate.

U-Shaped Burners

Five U-shaped burners provide a total of 150,000 BTU.

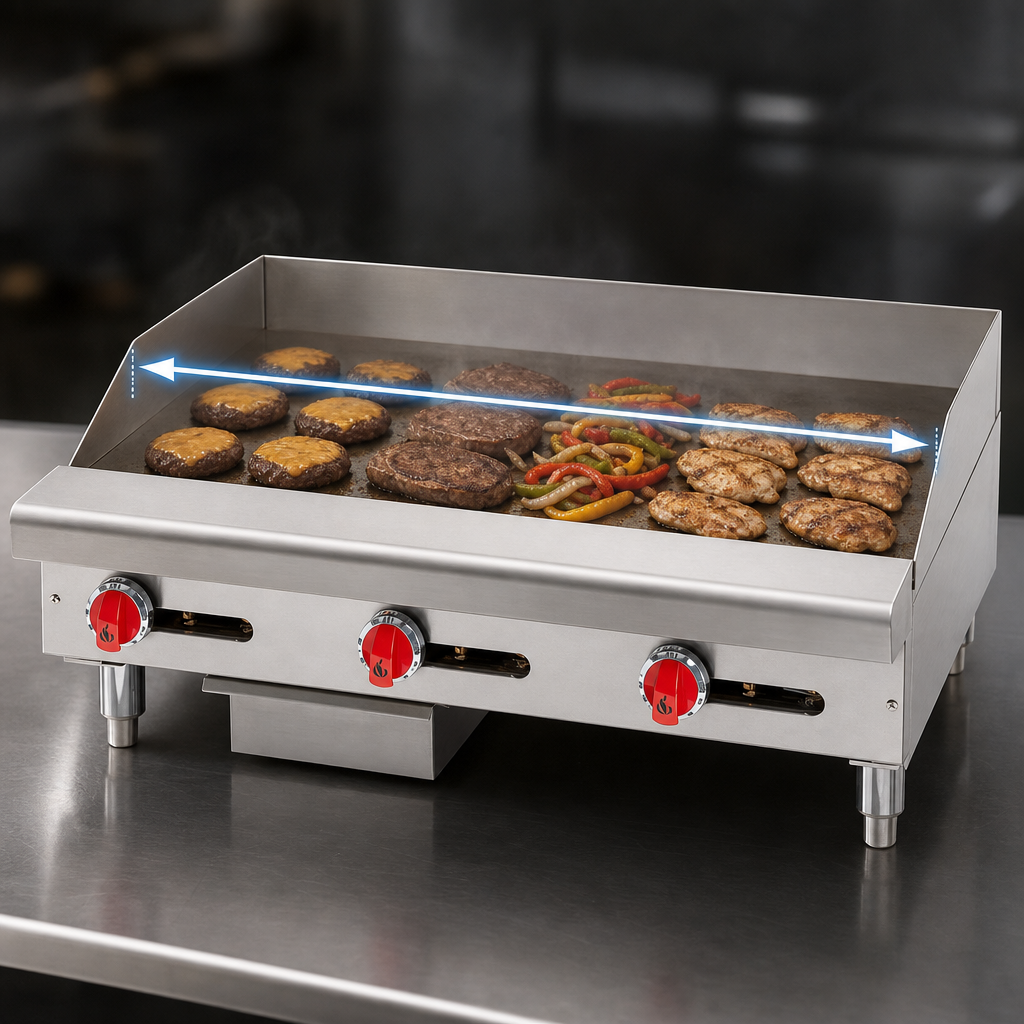

Cooking Surface

The cooking surface has a 21-inch front-to-back depth.

Stainless Steel Exterior

The exterior is specified as stainless steel.

Splash Guard

A 3-inch splash guard is specified.

Grease Management

Includes a stainless steel grease trough and grease drawer.

Adjustable Legs

The unit includes 4-inch adjustable legs.

Commercial Installation

The cut sheet states that the appliance is manufactured for commercial installation only and is not intended for home use.

Frequently Asked Questions

It is a thermostatic countertop gas griddle.
The smooth polished steel griddle plate is 1 inch thick.
The cooking surface is 21 inches deep.
The ARSTG-60 has five U-shaped burners with 150,000 BTU total output.
It uses a modulating thermostat with a standing pilot.
The listed dimensions are 60 inches wide, 32.56 inches deep, and 15.44 inches high.
Yes. The product is specified as made in the USA.
Yes. ETL listing is specified for the product.
The cut sheet specifies a two-year limited warranty for parts and labor.
