American Range ARSTG-48 Gas Griddles
American Range ARSTG-48 Gas Griddles is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
American Range ARSTG-48 Gas Griddles
Description

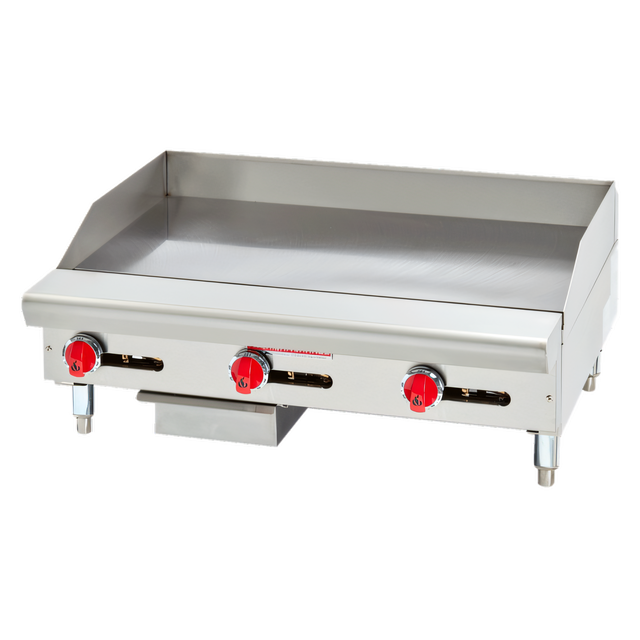

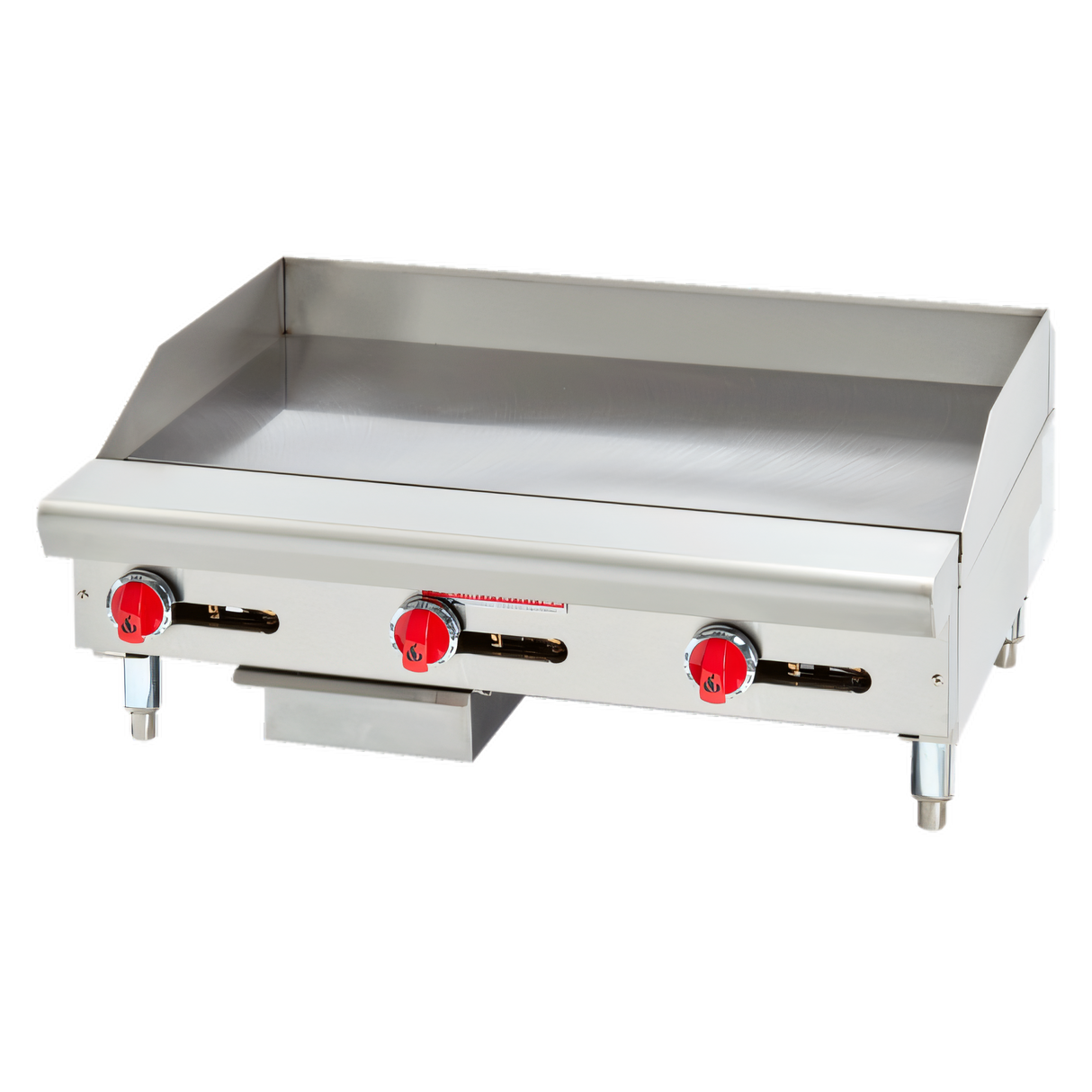

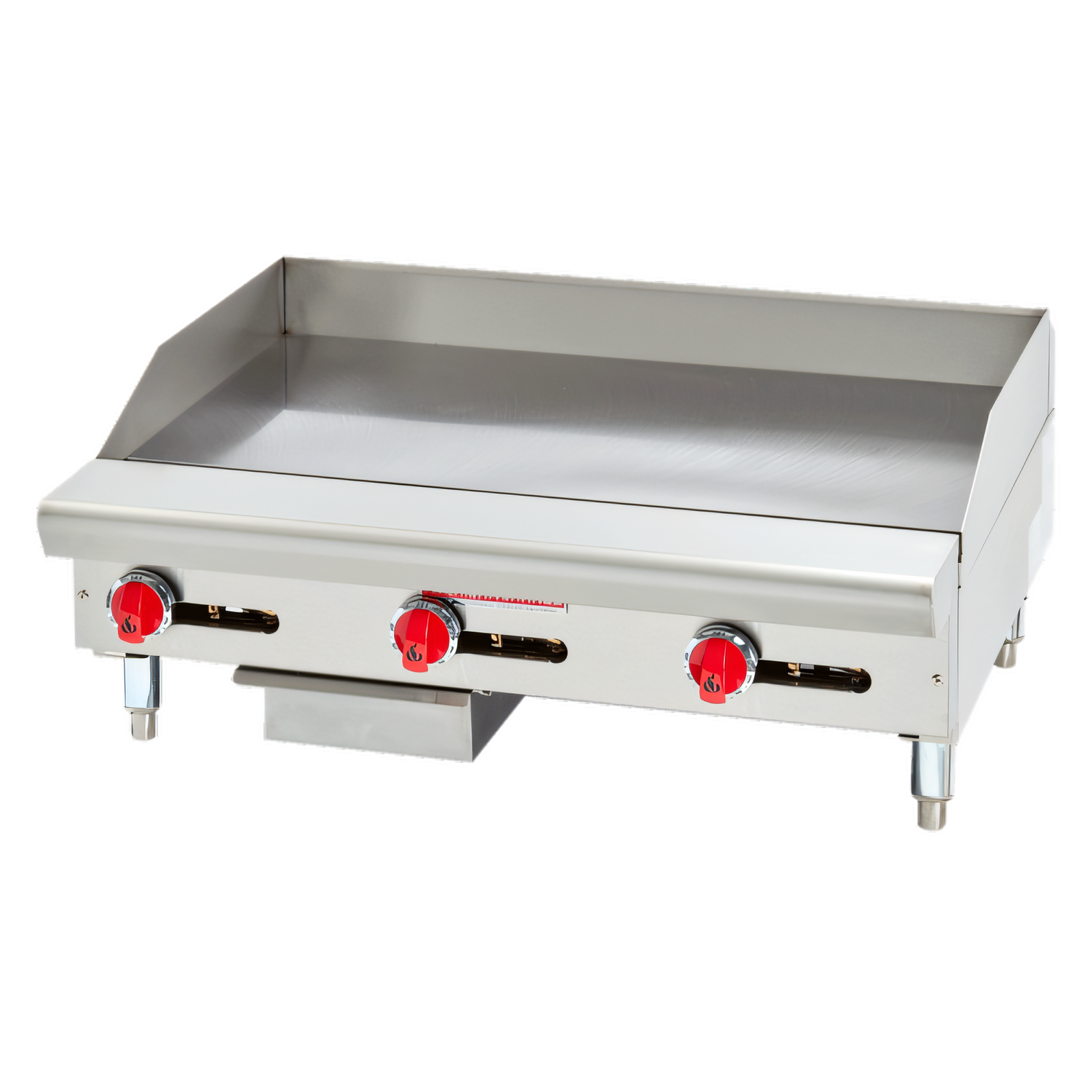

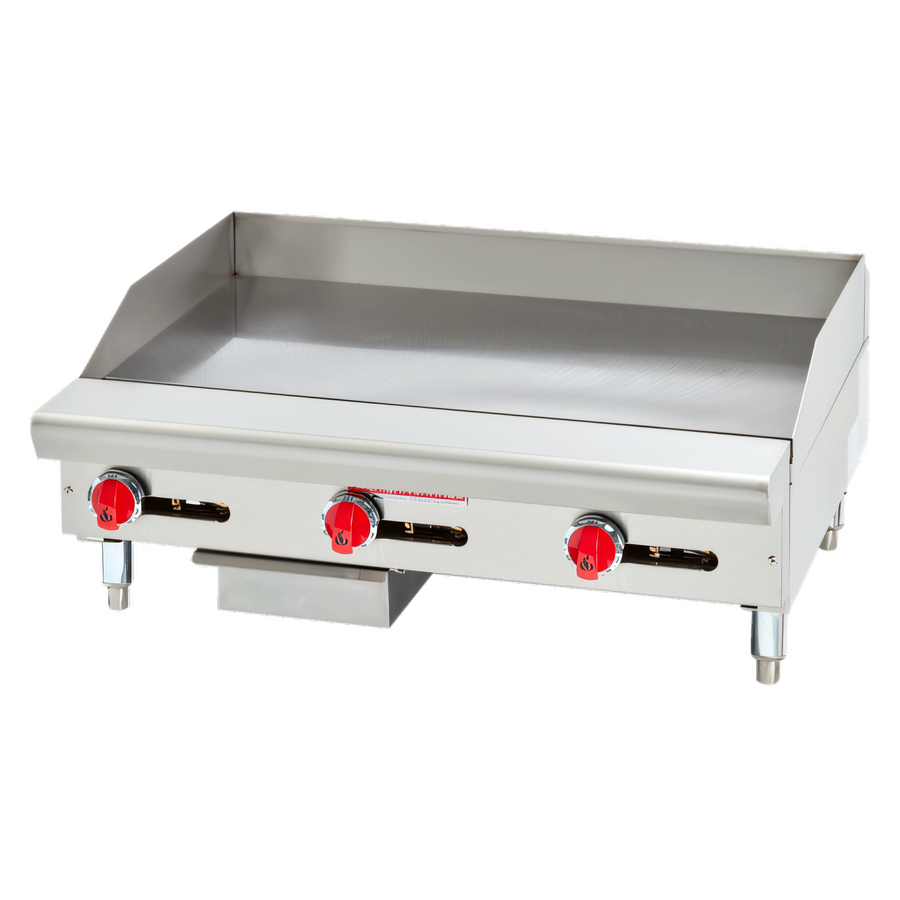

American Range ARSTG-48 48" Thermostatic Countertop Gas Griddle
1" Polished Steel Plate | 120,000 BTU | Made in USATackle the breakfast rush, lunch line, or late-night service with the power and precision of the American Range ARSTG-48. This 48" thermostatic griddle delivers even heat across a generous 21" deep cooking surface while its rugged stainless-steel body stands up to the demands of a busy commercial kitchen.
Key Features
- 48" W x 21" D cooking surface provides about 1,008 sq in of usable space
- Four (4) U-shaped 30,000 BTU burners—one every 12"—for a total of 120,000 BTU/hr
- Modulating thermostats with standing pilots hold 250 – 500 °F in each heating zone
- 1" thick, highly-polished steel plate stores and distributes heat evenly for consistent results
- 4" stainless-steel rear splash and 3 3/4" side splashes help keep surrounding surfaces clean
- 3" spatula-friendly grease trough channels runoff to two removable stainless-steel drawers (4.5 qt capacity each) for fast, mess-free cleanup
- Heavy-gauge stainless-steel front, sides, and landing ledge with 4" adjustable legs
- Factory-supplied 3/4" rear gas connection and pressure regulator — choose Natural Gas or LP
- ETL & ETL Sanitation listed; designed and built in North Las Vegas, NV & Pacoima, CA
- Backed by a 2-year limited parts & labor warranty
At-a-Glance Specifications
| Model | ARSTG-48 |
|---|---|
| Gas Type | Natural Gas or Liquid Propane (field convertible) |
| Total BTU | 120,000 BTU/hr |
| Burners | 4 U-shaped aluminized-steel burners (30,000 BTU each) |
| Control | Modulating thermostats, 250 °F – 500 °F |
| Plate Thickness | 1" polished steel |
| Cooking Surface | 48" W x 21" D |
| Overall Dimensions* | 48" W x 32 9/16" D x 18 7/16" H |
| Working Height* | 12 9/16" with 4" legs retracted |
| Gas Inlet | 3/4" NPT (rear), pressure regulator included |
| Shipping Weight | Approx. 468 lb |
| Certifications | ETL, ETL-Sanitation (NSF-equivalent) |
| Warranty | 2-year limited, parts & labor |
*Nominal dimensions; vary by ±¼" with adjustable legs.
Built to Perform Shift After Shift
A massive 1" plate, full-width welded splash guards, and heavy-duty components make the ARSTG-48 a long-term investment for diners, hotels, schools, and food-trucks alike. Because it’s engineered and manufactured in the USA, replacement parts and technical support are always close at hand.
What’s Included
- Factory-installed standing pilots & thermostats
- 3/4" gas pressure regulator (shipped loose)
- Two removable stainless-steel grease drawers
- Four 4" adjustable stainless-steel legs
- Owner’s manual & warranty registration card
Need a different size? The American Range ARSTG series is available in widths from 12" to 72".
