American Range ARSTG-36 Gas Griddles
American Range ARSTG-36 Gas Griddles is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
American Range ARSTG-36 Gas Griddles
Description

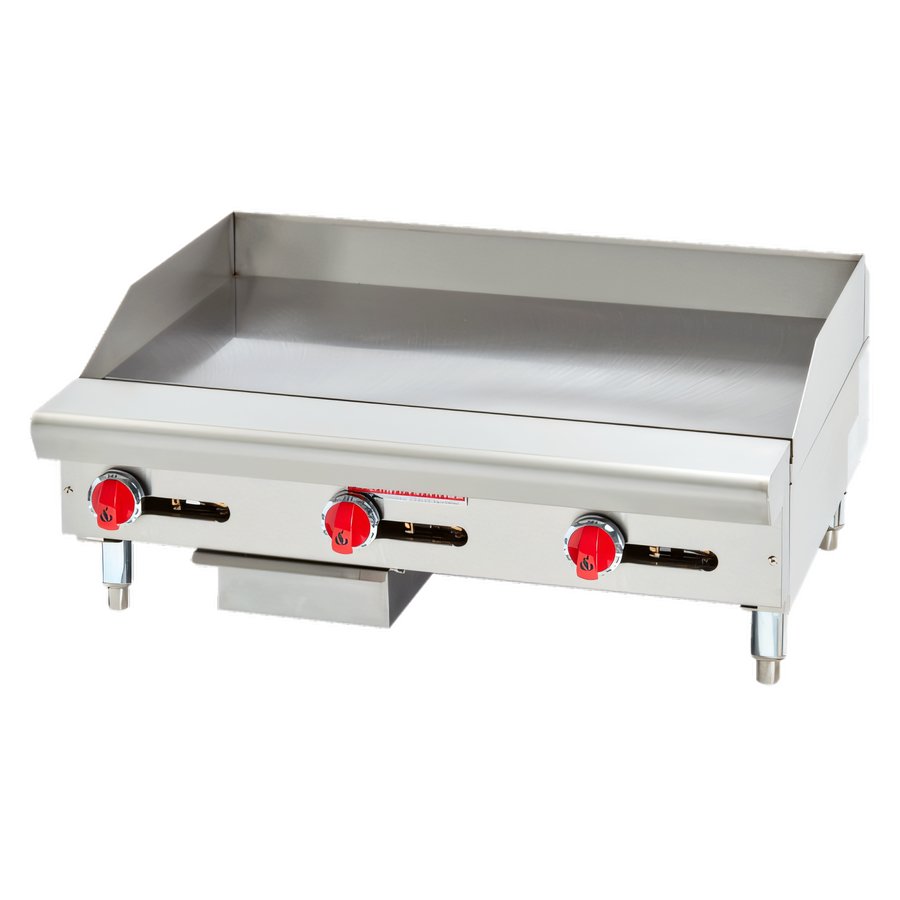

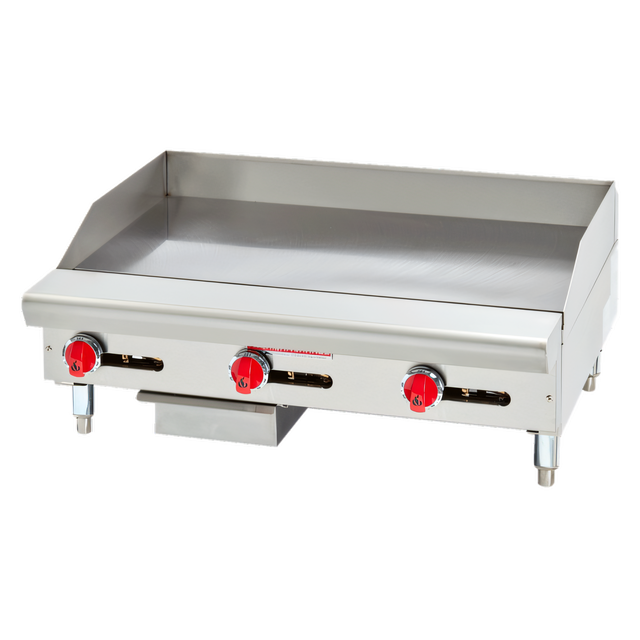

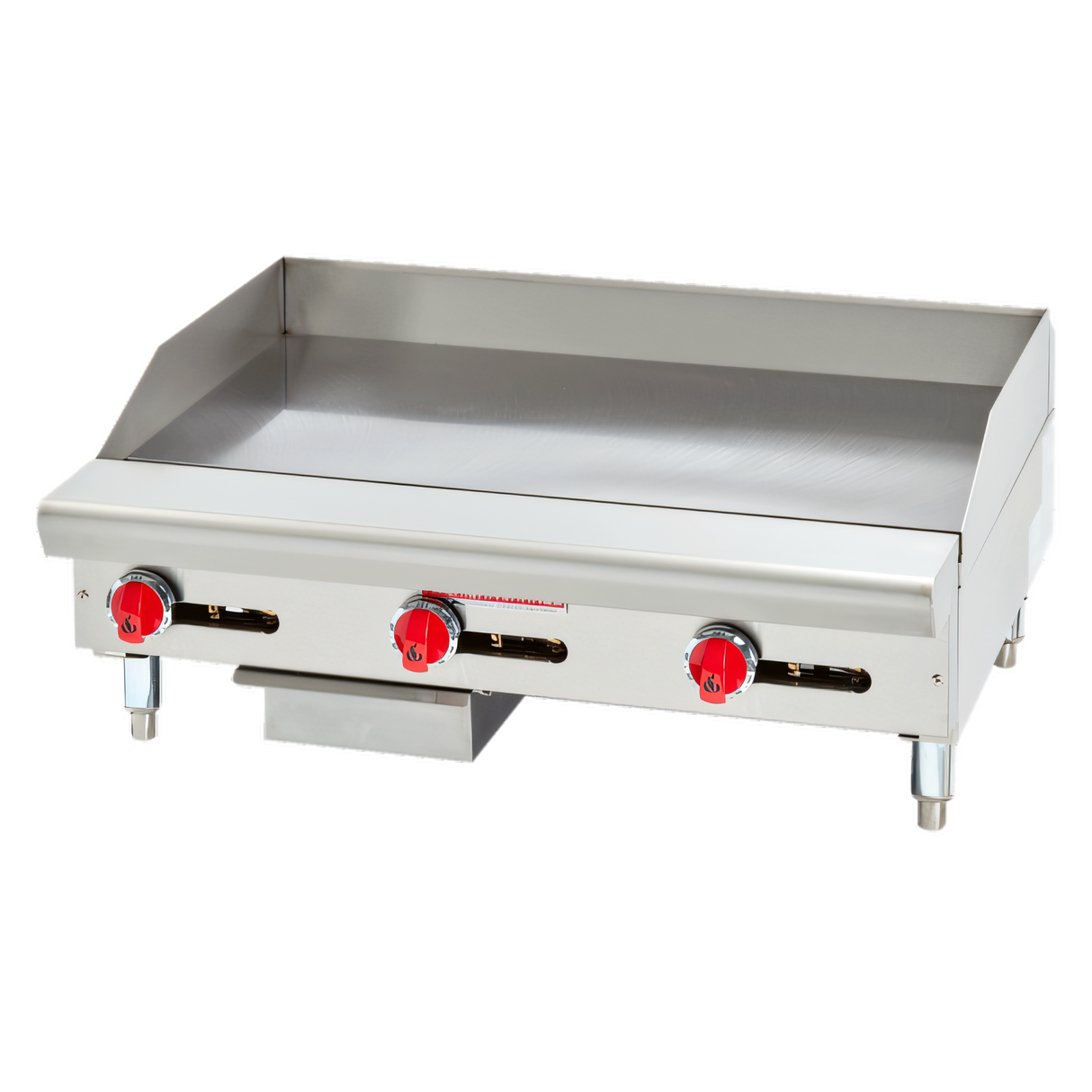

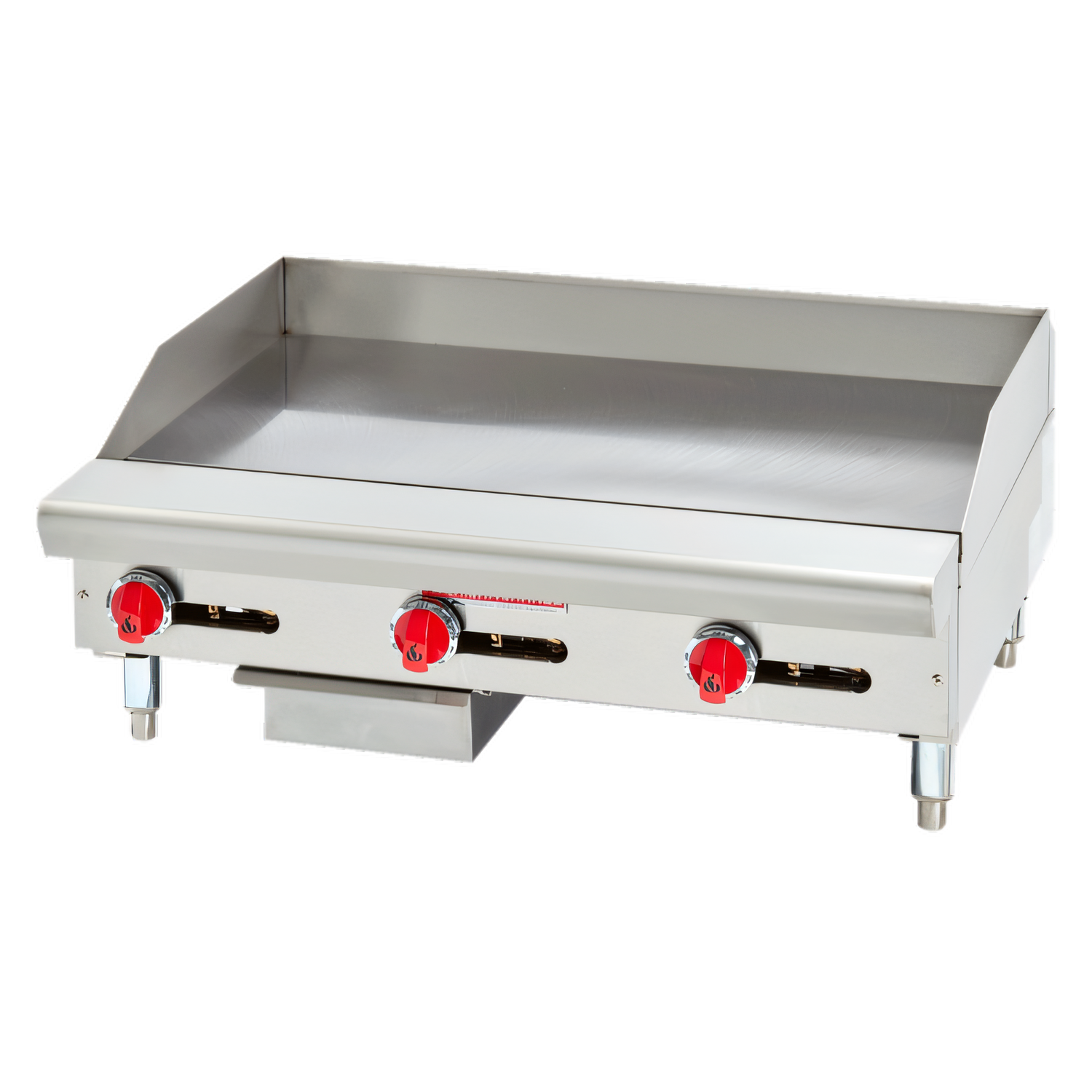

American Range ARSTG-36 Thermostatic Countertop Griddle – 36"
1" Thick Plate • 90,000 BTU • Made in USABuilt for high-volume kitchens that won’t compromise on precision, the ARSTG-36 delivers rock-solid temperature control, blazing fast recovery and the durability you expect from equipment designed and manufactured in the USA.
Key Features
- 36" W × 21" D cooking surface provides 756 sq in of usable griddle area.
- 1" thick, highly polished steel plate locks in heat for consistent searing and effortless cleanup.
- Three 30,000 BTU U-shaped aluminized steel burners (one every 12") — total 90,000 BTU.
- Modulating thermostats with standing pilots keep each zone between 250 °F and 500 °F.
- 4" rear backsplash and 3 ¾" tapered side splashes contain splatter and grease.
- 3" wide full-length grease trough drains into a 4 ½-qt stainless steel drawer.
- Rugged stainless steel front, sides and splash panels resist corrosion and daily wear.
- 4" adjustable legs level the unit on any countertop.
- Factory ¾" rear gas connection with regulator — order for Natural Gas or LP.
- ETL certified for gas and sanitation.
At-a-Glance Specs
| Model | ARSTG-36 |
|---|---|
| Cooking Surface (W × D) | 36" × 21" |
| Plate Thickness | 1" polished steel |
| Burners | 3 U-shaped (30,000 BTU each) |
| Total Heat Input | 90,000 BTU/hr |
| Temperature Range | 250 °F – 500 °F |
| Overall Dimensions (W × D × H) | 36" × 32 9⁄16" × 18 11⁄16" |
| Working Height* | 12 9⁄16" |
| Gas Connection | ¾" NPT rear (regulator included) |
| Grease Drawer | 4 ½-quart stainless steel |
| Ship Weight | ≈ 327 lb |
| Certifications | ETL (US & Canada) – Gas & Sanitation |
| Warranty | 2-year parts & labor (see warranty sheet for details) |
*Working height measured from countertop to cooking surface with 4" legs adjusted to nominal.
Perfect For
- Diners, cafés and breakfast houses
- Food trucks and concessions
- Bar-and-grill build-outs
- Hotels, schools & institutional batch cooking
Need another size? The American Range ARSTG Series is available in 12", 24", 48", 60" and 72" widths.
