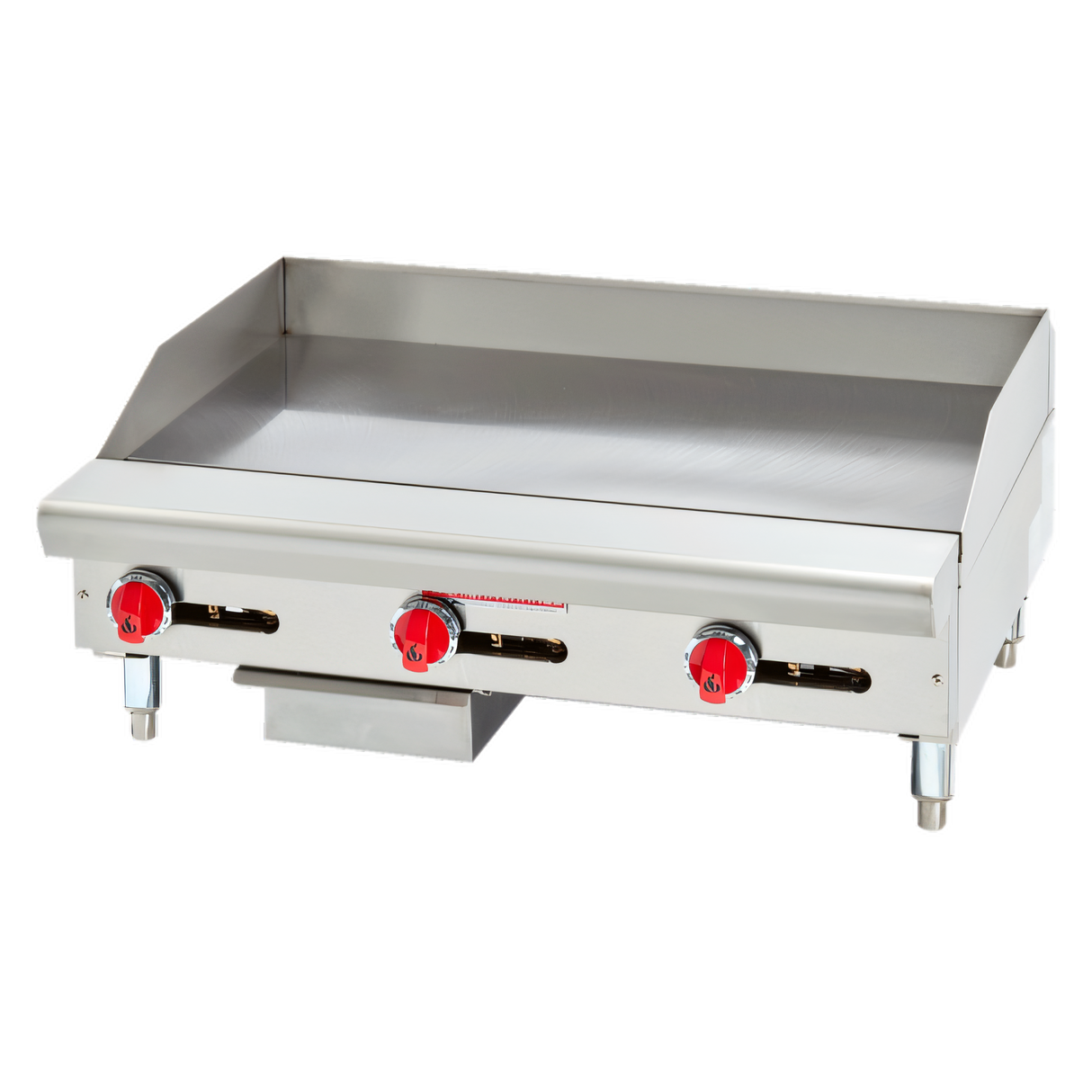

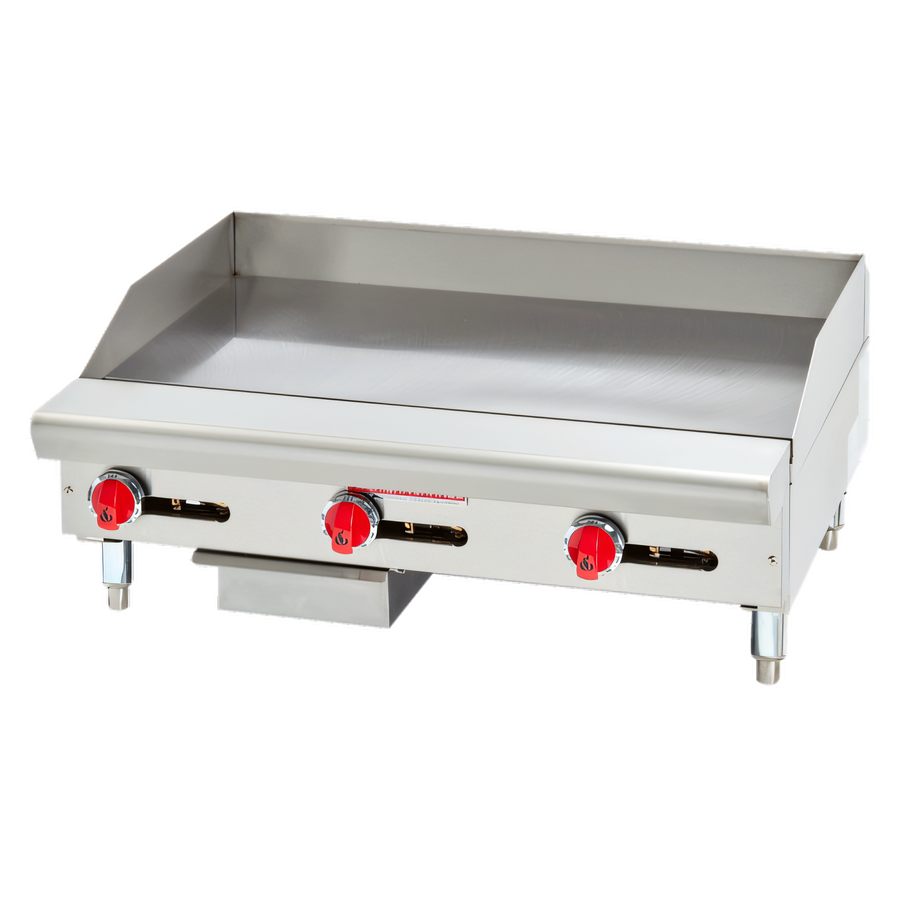

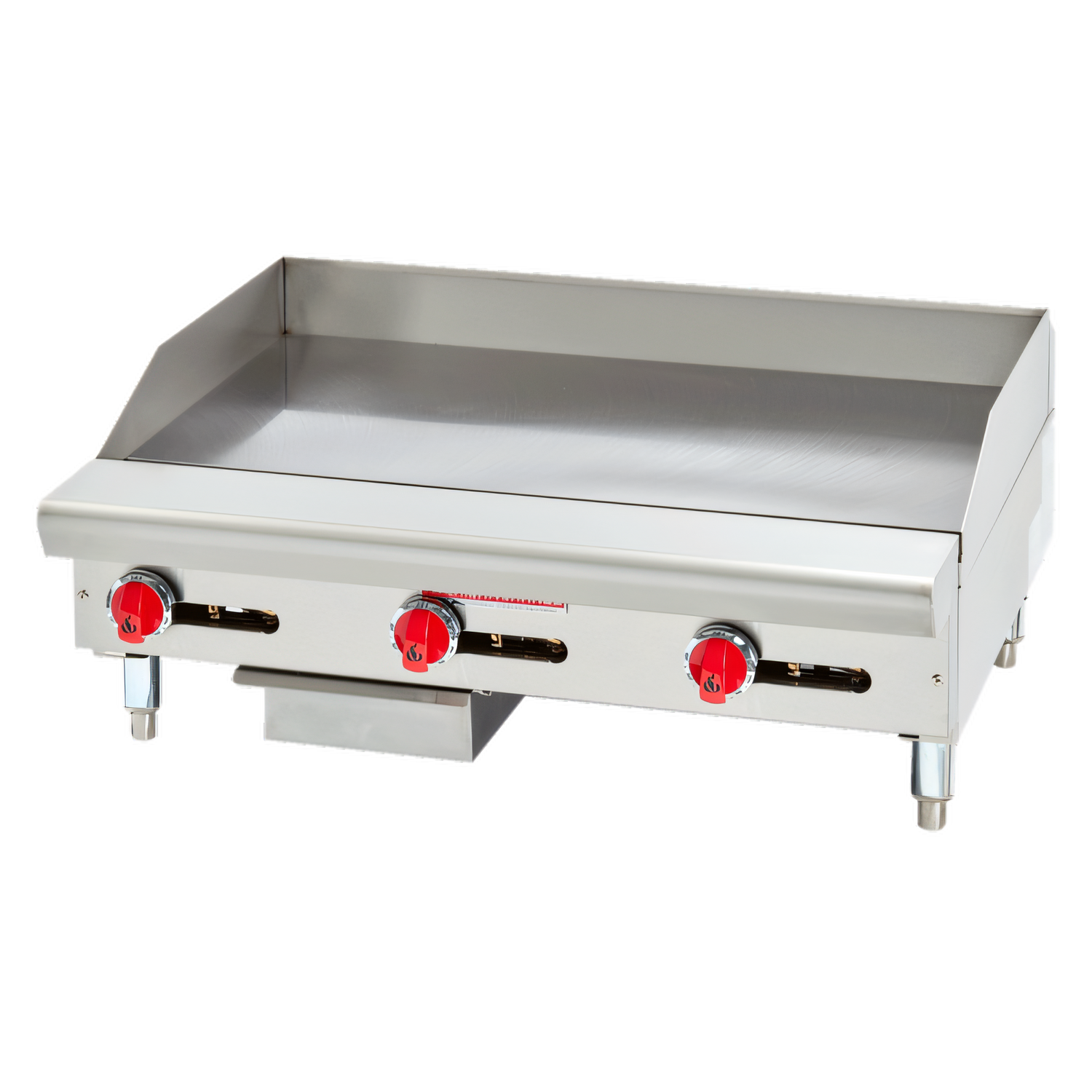

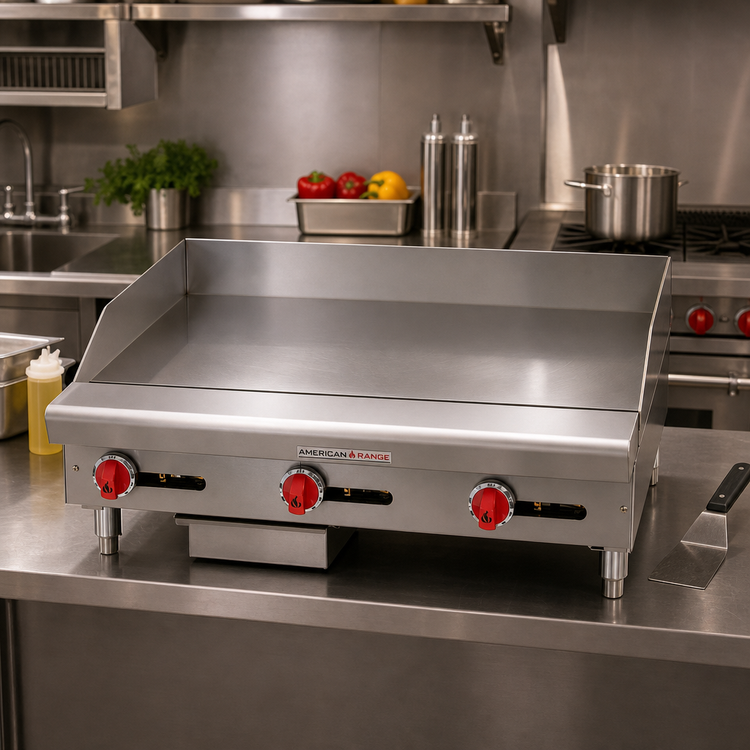

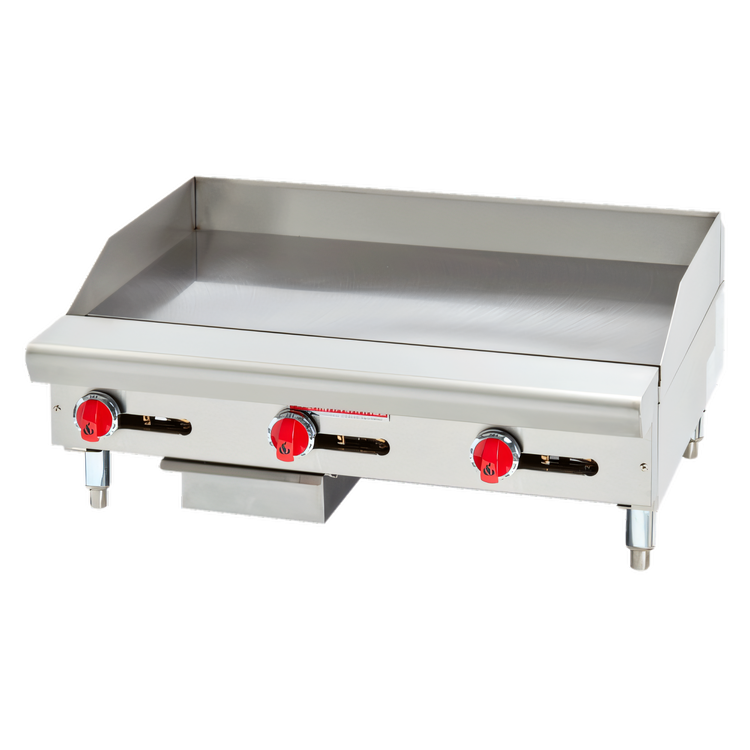

American Range ARSMG-48 Manual Countertop Gas Griddle – 48"
1" Polished Steel Plate | 120,000 BTU | Made in USABuilt for the pace of busy diners, hotels, and catering lines, the American Range ARSMG-48 pairs a heavy-duty 1" steel plate with four powerful “U” burners to deliver consistent, edge-to-edge heat. From pancakes at breakfast to steaks at dinner, this USA-made workhorse keeps your menu—and your profits—sizzling all day long.
Key Features
- Spacious 48" × 21" cooking surface (1,008 sq in) handles high-volume orders.

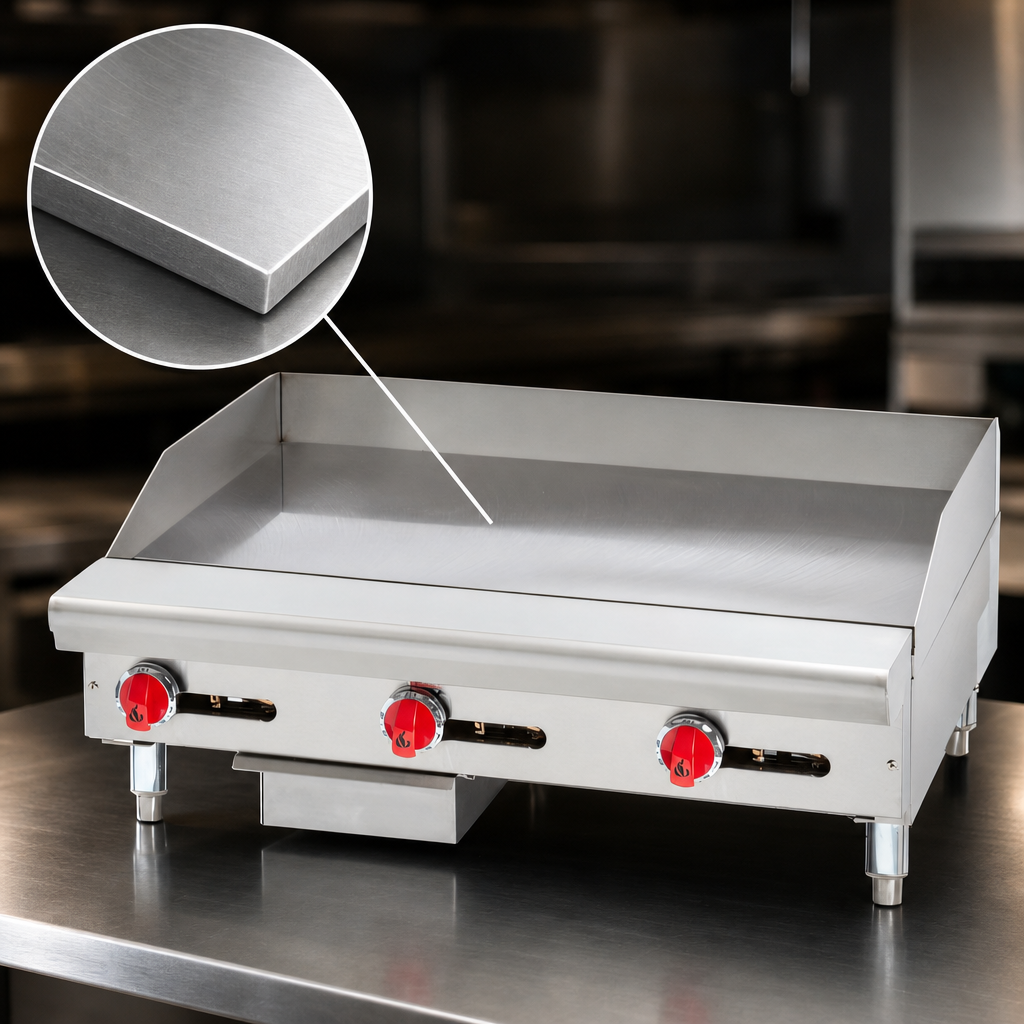

- 1" thick smooth, polished steel griddle plate offers superior heat retention and faster recovery.

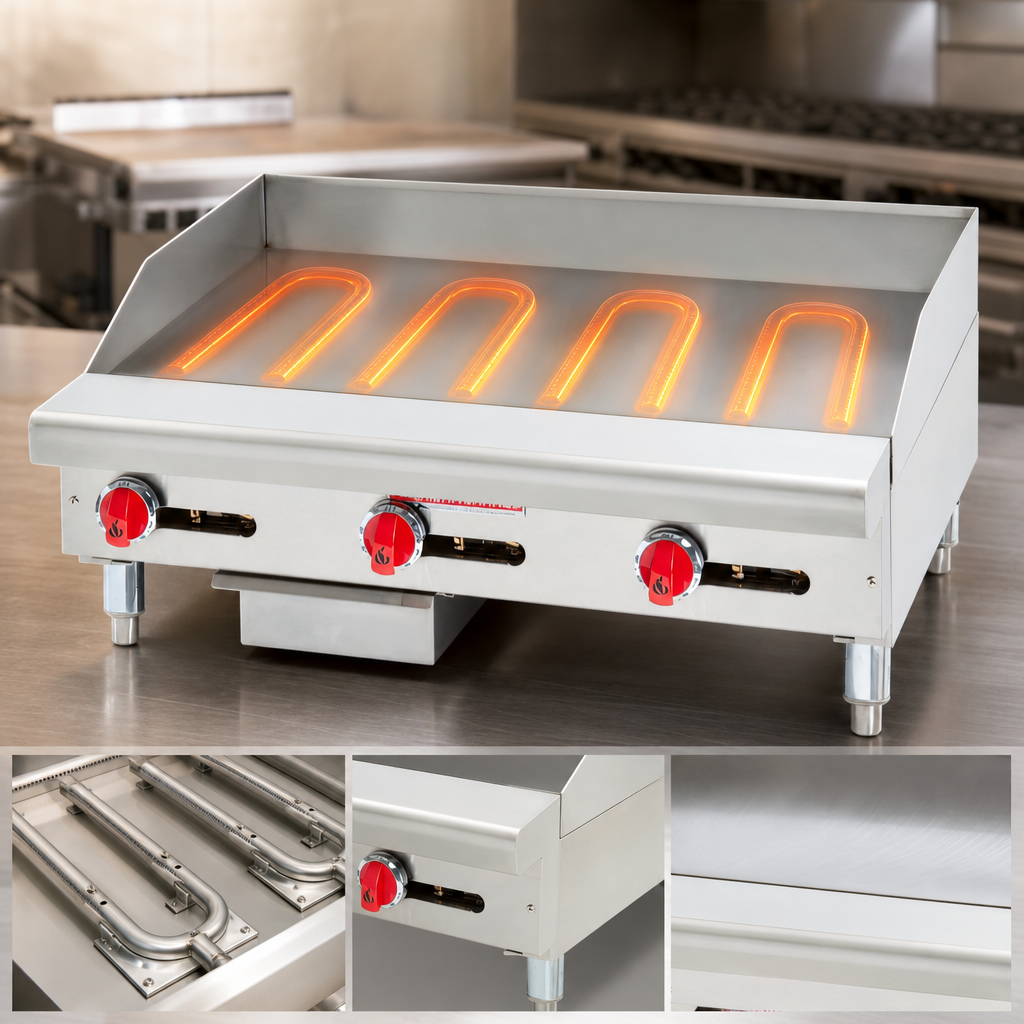

- Four independently controlled 30,000 BTU aluminized “U” burners (120,000 BTU total).
- Manual gas valves give chefs instant, intuitive flame control.
- 3-sided stainless splash guards (3 ¾" sides, 4" rear) keep grease contained.
- 3" deep grease trough funnels drippings into two pull-out stainless drawers for quick, mess-free cleanup.
- 4" stainless adjustable tapered legs level the unit and ease under-counter sanitation.
- All-stainless exterior front & sides stands up to daily commercial abuse.
- Field convertible for Natural Gas or LP; 3/4" rear gas connection and regulator included.
- ETL Listed for safety & sanitation and backed by a 2-year parts & labor warranty.
Specifications
| Model | ARSMG-48 |
|---|---|
| Gas Type | Natural Gas or LP (field convertible) |
| Total BTU Output | 120,000 BTU/hr (4 × 30,000 BTU) |
| Plate | 1" thick polished steel, 48" W × 21" D |
| Controls | 4 manual infinite valves (one per burner) |
| Approx. Temp Range | 250 °F – 500 °F |
| Grease Management | 3" trough + (2) stainless drawers (4½ qt capacity each) |
| Splash Guards | 3 ¾" sides / 4" rear, welded stainless steel |
| Legs | 4" adjustable stainless tapered legs |
| Gas Inlet | 3/4" NPT (rear) – regulator supplied |
| Overall Size (W × D × H) | 48" × 32 ⅞" × 18 7/16" |
| Working Height | 12 9/16" |
| Ship Weight | ≈ 448 lb |
| Certifications | ETL, ETL Sanitation |
| Warranty | 2-year limited parts & labor (90-day replacement parts) |
Installation Note: Provide a minimum 4" clearance at sides and rear when adjacent to combustible materials. This appliance is designed for commercial use only and must be installed by qualified professionals in accordance with local codes and NFPA 96.
Looking for other sizes? ARSMG griddles are also available in 12", 24", 36", 60", and 72" widths.
$4,148.18
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
American Range 48" gas countertop griddle: 1" polished steel plate, 120,000 BTU, 4 U-burners, stainless exterior, grease drawer, ETL, made in USA.
Manufacturer
American Range
Height
17.0in
Width
48.0in
Depth
32.0in
Shipping Weight
365.0lbs
Exterior Finish
all stainless steel exterior
Cooking Surface Width (side - side)
43" - 48"
Controls
manual controls
Plate Thickness
1"
Griddle Plate Finish
smooth steel
Specifications
Griddle, gas, 48" wide, countertop, 1" thick smooth polished steel griddle plate, 21"cooking depth, (4) "U" shaped burners, manual controls, 3" splash guard, 4" adjustable legs, stainless steel grease trough & grease drawer, stainless steel exterior, 120,000 BTU, ETL, Made in USA
Contact Us
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
