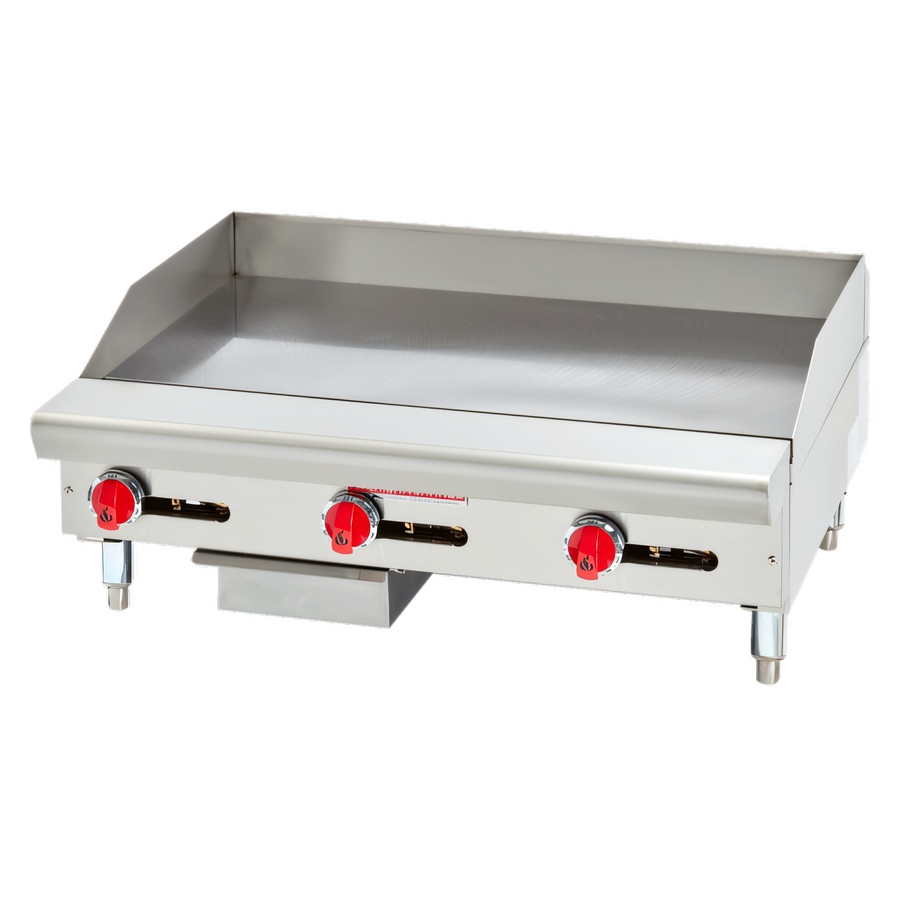

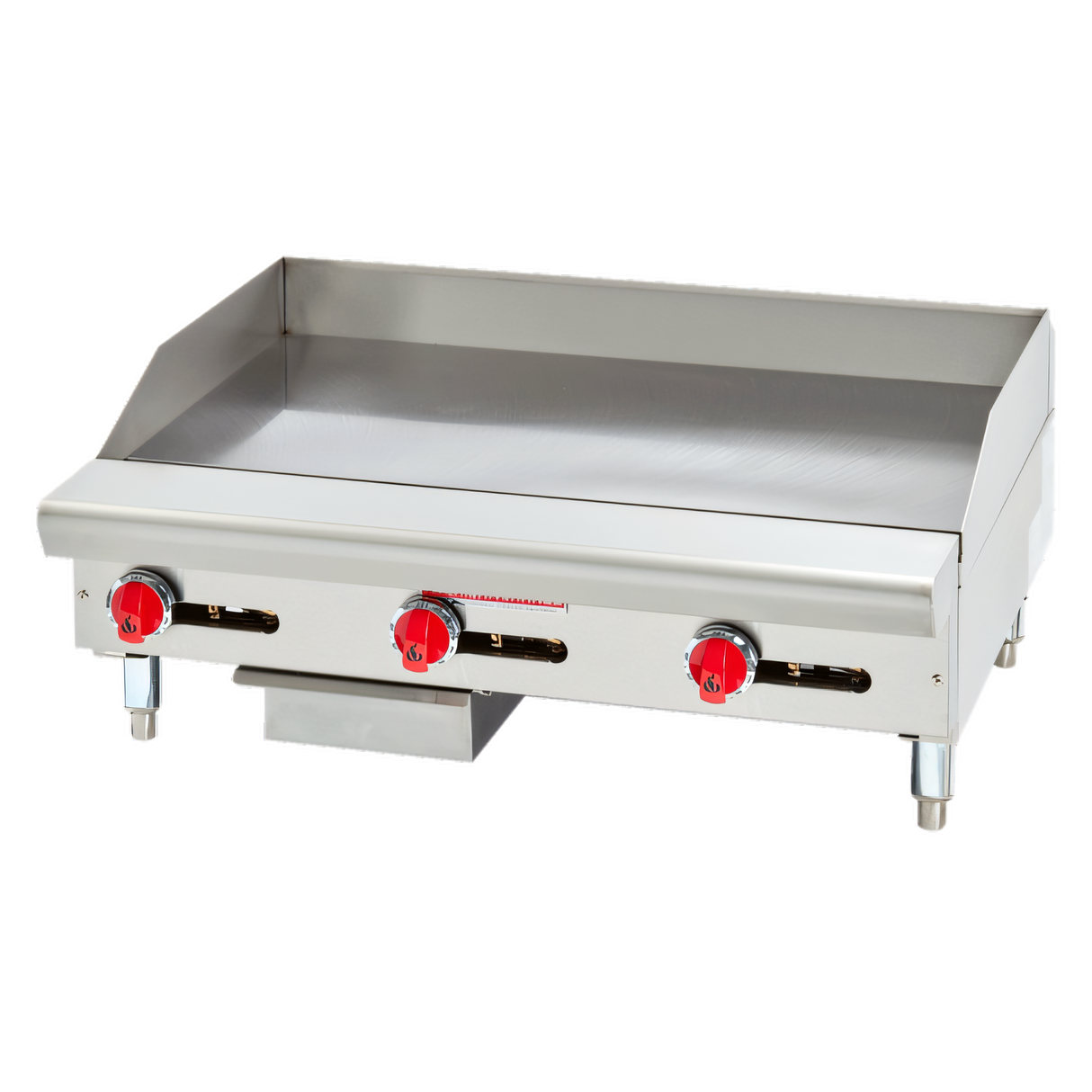

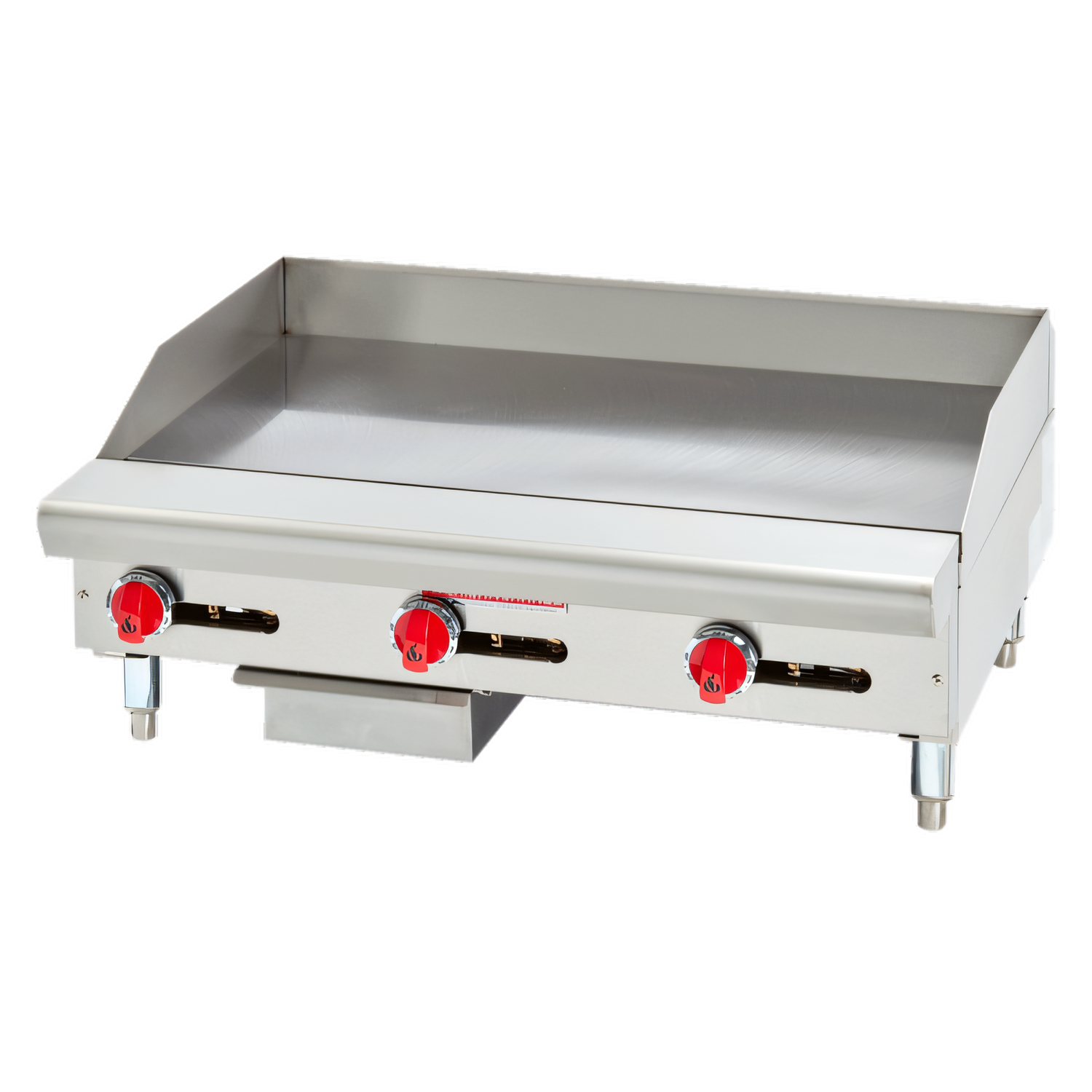

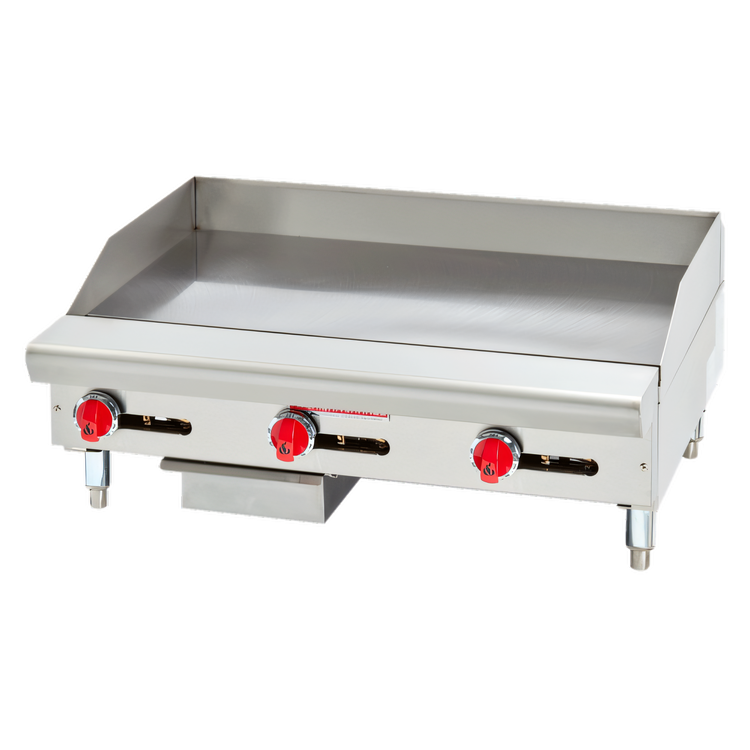

American Range ARSMG-36 Manual Countertop Gas Griddle – 36"
90,000 BTU • ETL Listed • Designed & Built in the USAEngineered for demanding commercial kitchens, the American Range ARSMG-36 pairs a hefty 1" thick polished steel plate with three powerful U-shaped burners for unbeatable heat consistency across a generous 36" x 21" cooking surface. From breakfast rush to late-night service, this countertop griddle delivers the durability, precision, and easy clean-up professionals expect.
Why You’ll Love It

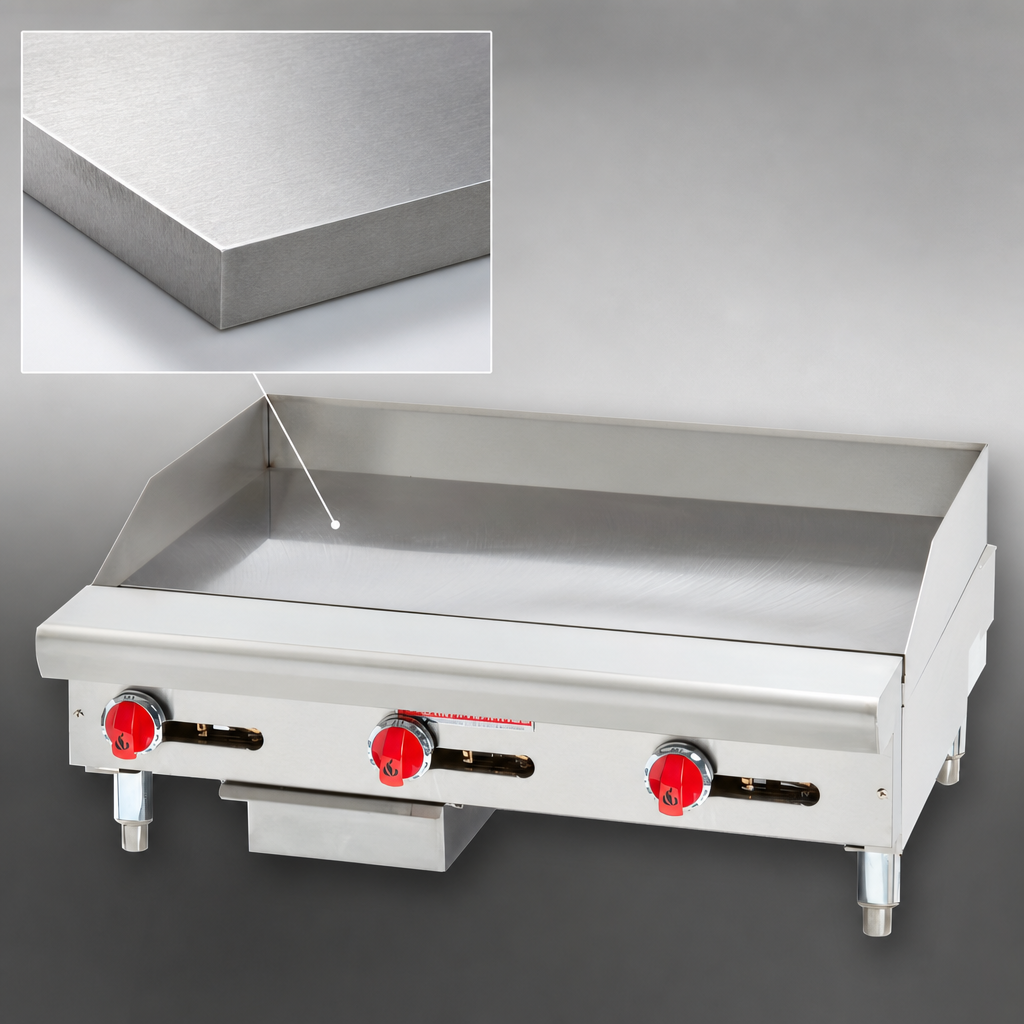

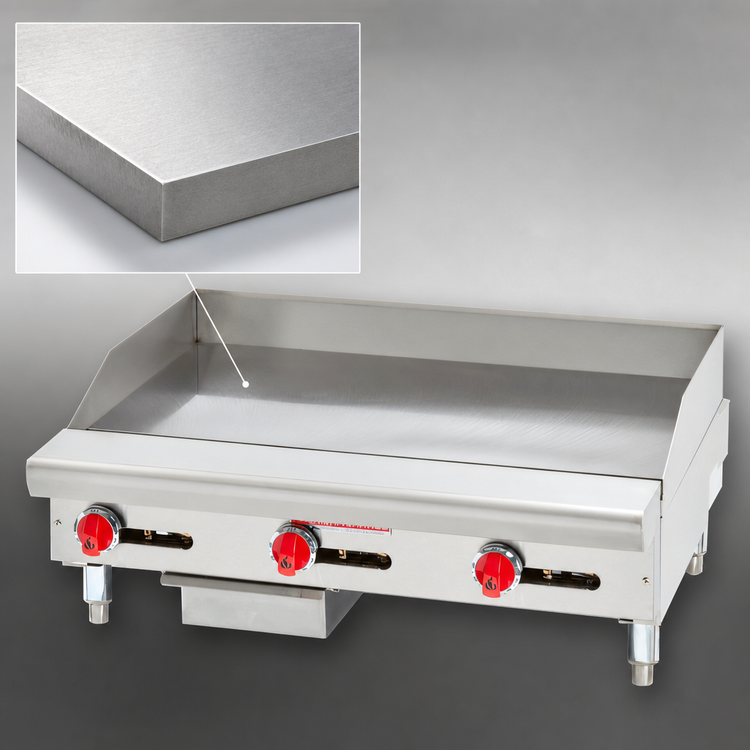

- 1" thick smooth steel plate retains heat and recovers fast after loading.
- 36" wide x 21" deep cooking area fits burgers, pancakes, veggies & more.
- (3) 30,000 BTU U-shaped aluminized steel burners for even edge-to-edge temps.
- Independent manual controls let you create up to three temperature zones (250 °F – 500 °F).
- 3" stainless steel splash guard keeps your line clean and safe.
- Full-width 3" spatula-depth grease trough funnels into a large, easy-pull stainless drawer.
- 4" chrome-plated adjustable legs set the perfect working height and provide clearance for wipe-downs.
- All-stainless exterior stands up to daily abuse and wipes down in seconds.
- Field convertible for Natural Gas or LP; rear ¾" NPT inlet with supplied regulator.
- ETL & ETL-Sanitation listed; meets NSF/ANSI standards for commercial use.
At-a-Glance Specs
| Model | ARSMG-36 |
|---|---|
| Cooking Surface (W × D) | 36" × 21" (914 mm × 533 mm) |
| Plate Thickness | 1" (25 mm) polished steel |
| Burners / Type | 3 × 30,000 BTU U-shaped aluminized steel |
| Total BTU Input | 90,000 BTU/hr |
| Temperature Range | 250 °F – 500 °F (121 °C – 260 °C) |
| Controls | Manual, infinite valves (one per burner) |
| Gas Connection | ¾" NPT (rear) – regulator included |
| Overall Dimensions (W × D × H) | 36" × 32 9/16" × 18 7/16" (914 × 828 × 469 mm) |
| Working Height | 12 9/16" (with legs) |
| Grease Drawer Capacity | 4 ½ qt (4.3 L) |
| Net Weight | Approx. 327 lb (148 kg) |
| Construction | Stainless steel front, sides, splash & trough |
| Certifications | ETL, ETL-Sanitation |
| Made In | USA |
| Warranty | 2-year limited parts & labor |
Register your griddle within 90 days of shipment to unlock full warranty coverage. See American Range terms for complete details.
Important: This appliance is intended for commercial installation only.
A licensed professional must connect the gas supply and verify proper ventilation, clearance, and gas pressure before first use.
$3,060.54
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
American Range ARSMG-36 36" gas countertop griddle, 90,000 BTU, 1" steel plate, stainless exterior, grease drawer, adjustable legs, ETL, Made in USA.
Manufacturer
American Range
Height
17.0in
Width
36.0in
Depth
32.0in
Shipping Weight
273.0lbs
Cooking Surface Width (side - side)
31" - 36"
Griddle Plate Finish
smooth steel
Exterior Finish
all stainless steel exterior
Controls
manual controls
Plate Thickness
1"
Specifications
Griddle, gas, 36" wide, countertop, 1" thick smooth polished steel griddle plate, 21"cooking depth, (3) "U" shaped burners, manual controls, 3" splash guard, 4" adjustable legs, stainless steel grease trough & grease drawer, stainless steel exterior, 90,000 BTU, ETL, Made in USA
