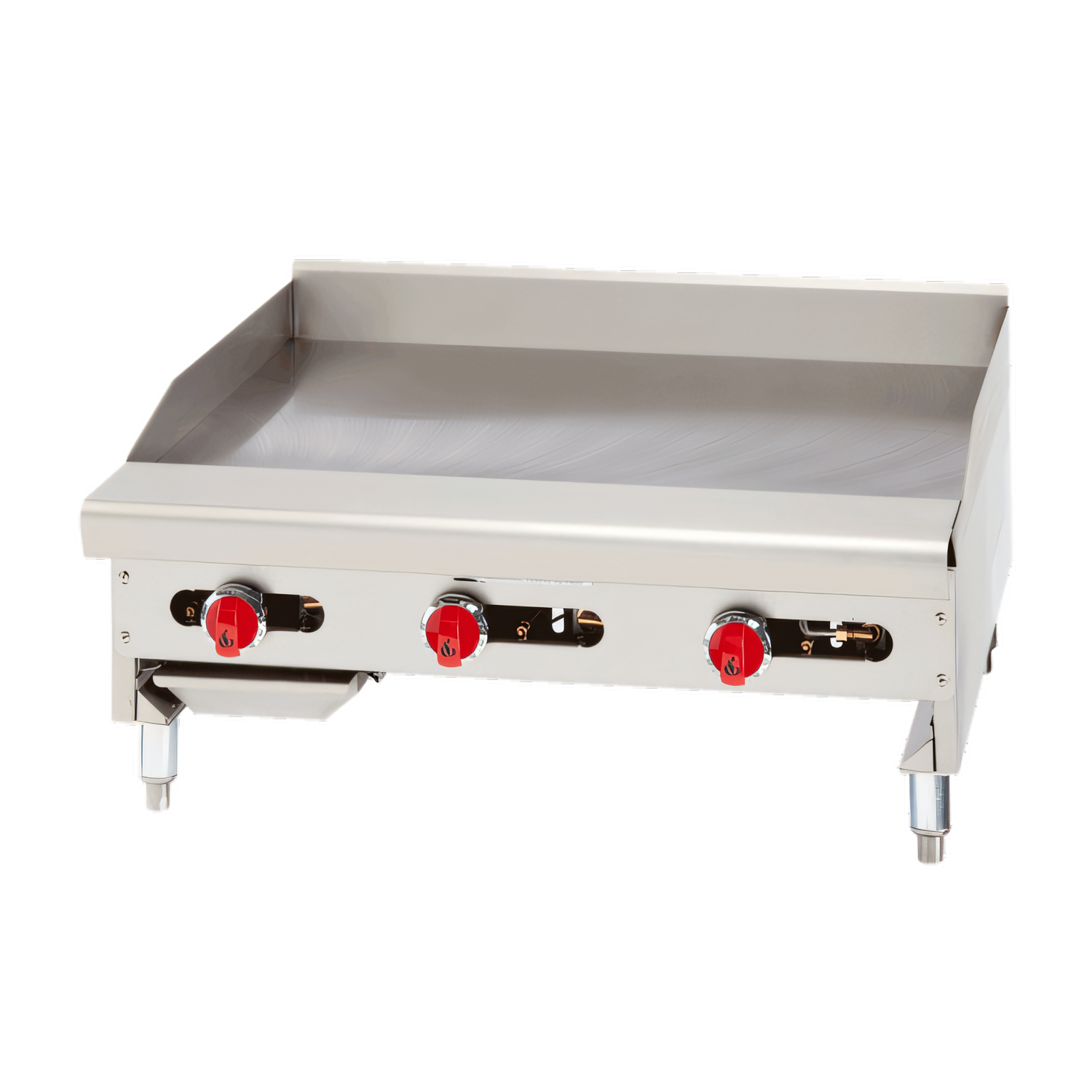

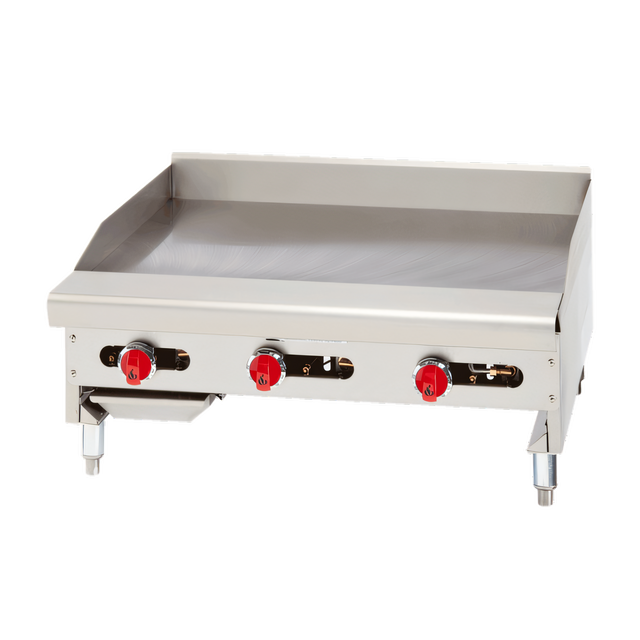

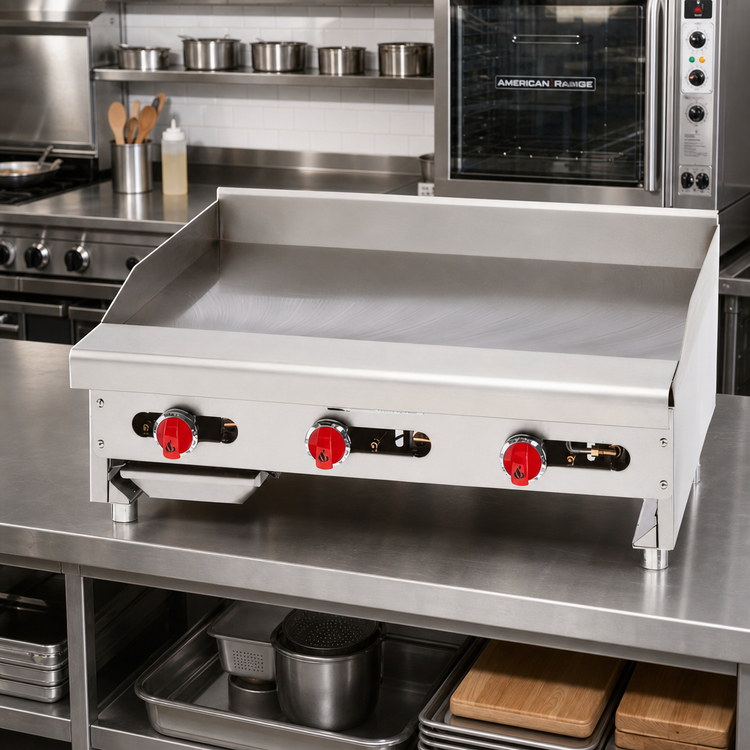

American Range ARMG-72-24 Manual Gas Griddle – 72" W x 24" D
Heavy-duty countertop griddle, proudly Made in the USAEngineered for the busiest kitchens, the American Range ARMG-72-24 delivers a generous 1,728 in² of perfectly heated griddle space. A 1" thick polished steel plate teams up with six powerful U-shaped burners to give you lightning-fast recovery, edge-to-edge consistency, and the durability you expect from equipment built in California.
Stand-out Features
- Massive 72" cooking width with 24" depth handles high-volume breakfast, lunch, and dinner menus.

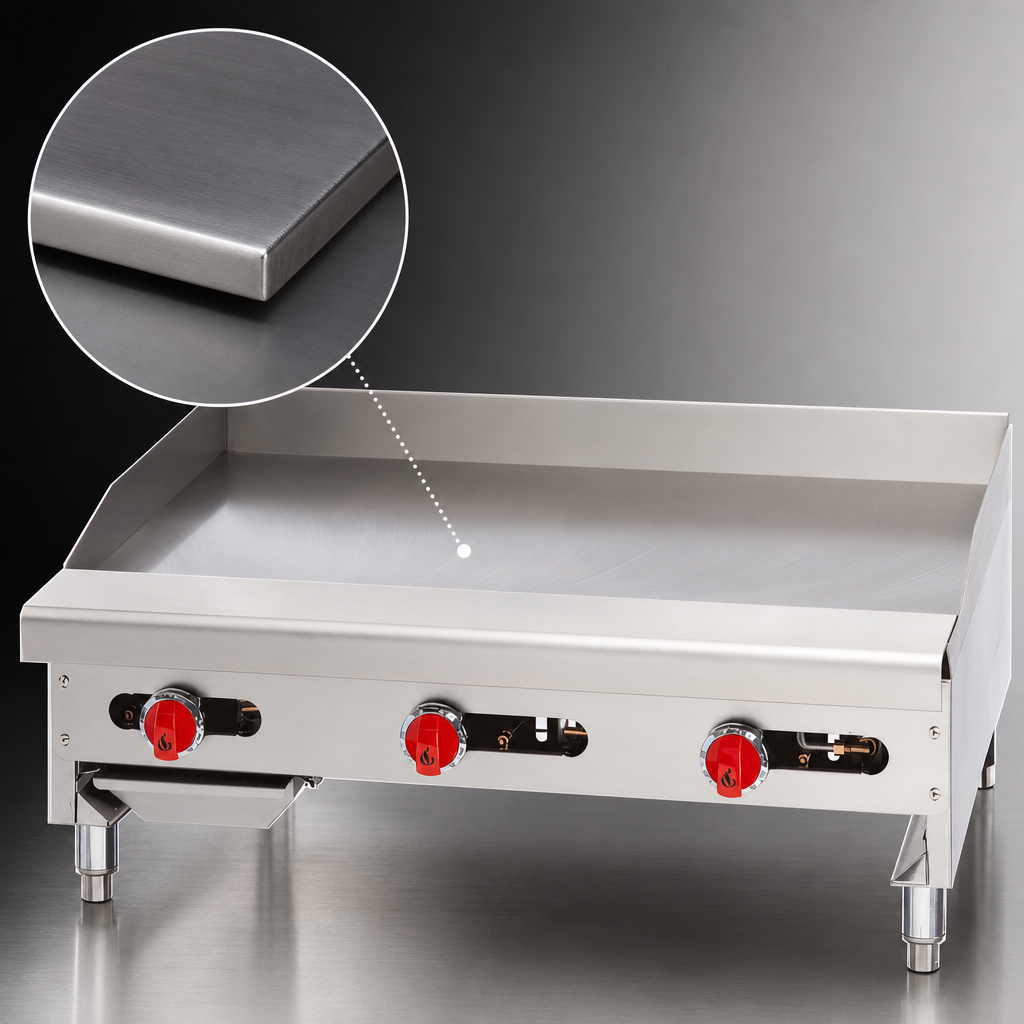

- 1" (25 mm) smooth polished steel plate delivers even heat distribution and exceptional heat retention.

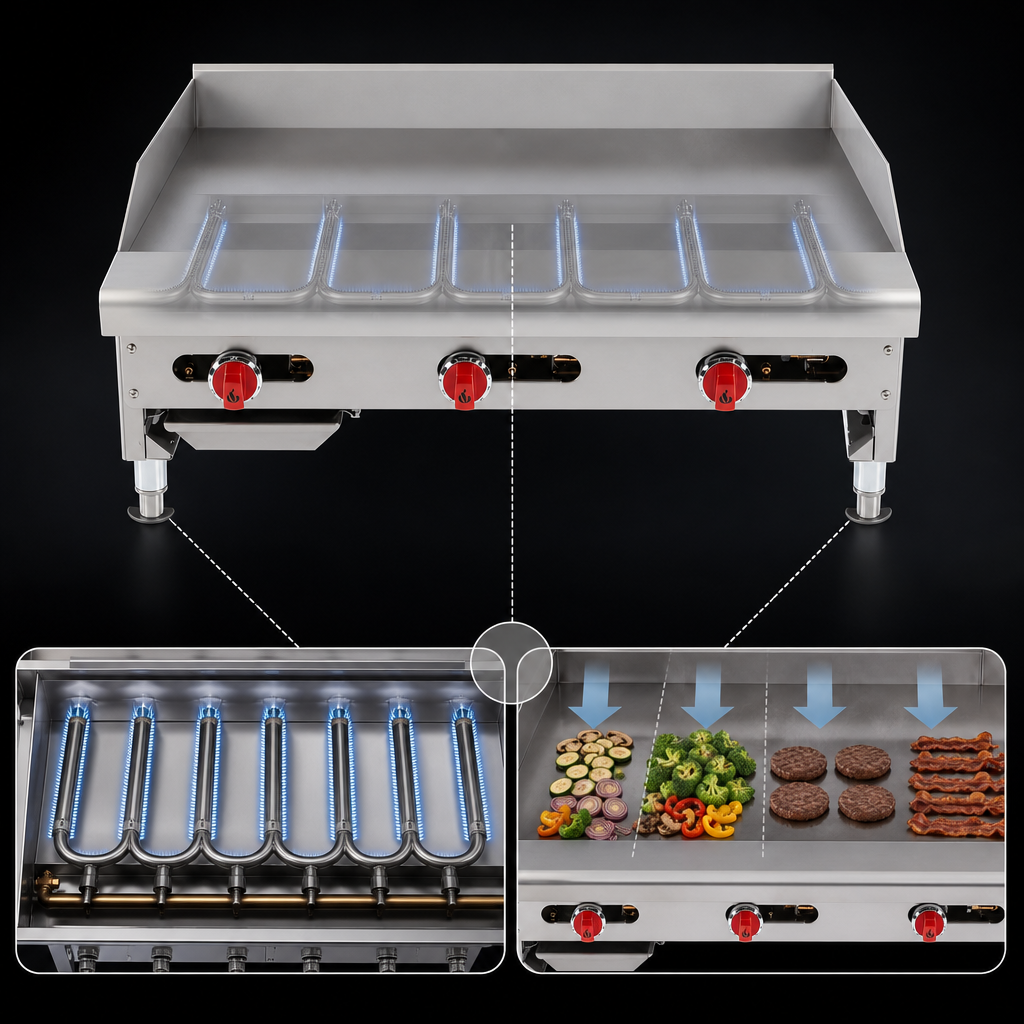

- Six 30,000 BTU U-shaped burners (one every 12") for a total of 180,000 BTU/hr (53 kW).
- Individual manual control valves let you create independent heat zones or shut down sections to save energy.
- 3" welded splash guards surround the plate to keep hot grease contained.
- Full-width 3" stainless steel trough and large removable grease pan simplify clean-up.
- Stainless steel front, sides, landing ledge, trough, and exterior for long-lasting, easy-clean durability.
- 4" adjustable stainless steel legs provide stability and leveling on any countertop.
- Field convertible for Natural or Propane gas; 3/4" NPT rear manifold connection.
- ETL certified for gas & sanitation and backed by a 2-year parts & labor warranty.
Why Choose American Range
- Made in the USA with strict quality control and readily available parts.
- Legendary performance trusted by diners, hotels, schools, resorts, and food trucks worldwide.
- Responsive nationwide service network keeps you cooking with minimal downtime.
Technical Specifications
| Model | ARMG-72-24 |
|---|---|
| Overall Dimensions (W × D × H) | 72" × 35" × 17" (1829 mm × 889 mm × 432 mm) |
| Cooking Surface | 72" × 24" (1829 mm × 610 mm) |
| Plate Thickness | 1" polished steel |
| Burners / Type | 6 U-shaped burners, 30,000 BTU each |
| Total Output | 180,000 BTU/hr (53 kW) |
| Controls | Manual hi-low valves (one per burner) |
| Gas Connection | 3/4" NPT (rear manifold) |
| Manifold Pressure | Natural Gas 5.0" W.C. | Propane Gas 10.0" W.C. |
| Splash Guard Height | 3" |
| Legs | 4" adjustable stainless steel |
| Shipping Weight | Approx. 770 lb (349 kg) |
| Certifications | ETL (US & Canada), ETL Sanitation |
| Warranty | 2-year parts & labor; 90-day replacement parts |
| Origin | Designed & built in Pacoima, California, USA |
Clearance to combustible surfaces: 12" from sides, 4" from rear. Unit must be installed on non-combustible flooring and
under an appropriate ventilation hood per NFPA 96.
$6,121.09
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Commercial 72" American Range gas griddle — 1" polished steel plate, 180,000 BTU, stainless exterior, grease trough, ETL certified, made in USA.
Manufacturer
American Range
Height
17.0in
Width
72.0in
Depth
32.0in
Shipping Weight
254.0lbs
Exterior Finish
all stainless steel exterior
Cooking Surface Width (side - side)
67" - 72"
Plate Thickness
1"
Controls
manual controls
Griddle Plate Finish
smooth steel
Specifications
Griddle, gas, 72" W x 24"D, countertop, 1" thick smooth polished steel griddle plate, (2) "U" shaped burners, manual controls, 3" splash guard, 4" legs, stainless steel grease trough & grease pan, stainless steel exterior, 53.0kW, 180,000 BTU, ETL, Made in USA
Contact Us
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
