American Range

American Range ARLB-36 Specialty Ovens

SKU: ARLB-36
$3,541.13
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

American Range Best Sellers Commercial Gas Ranges Commercial Ranges New Arrivals Ovens Restaurant Equipment Specialty Ovens

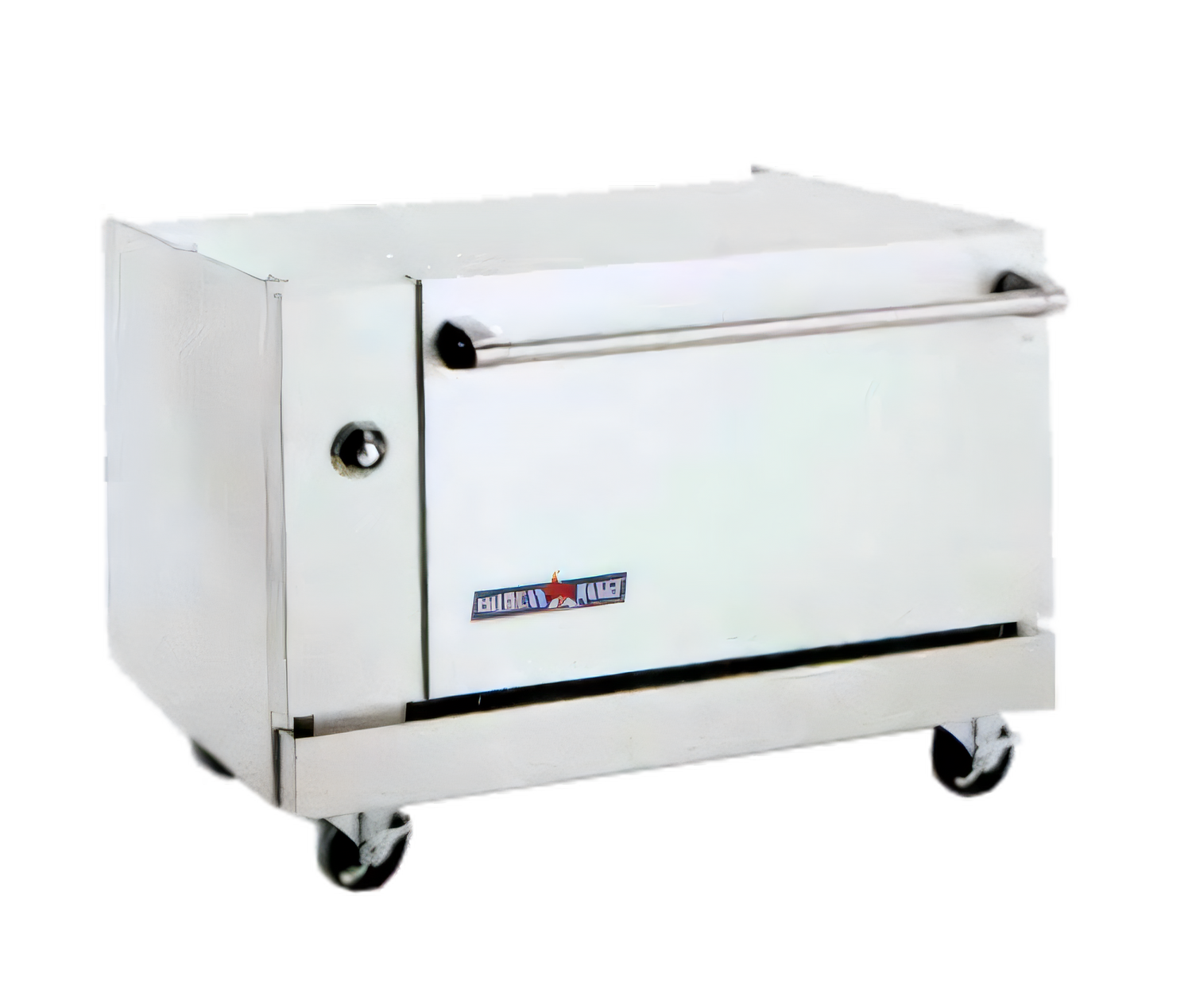

Culinary Series Low-Boy Restaurant Range Oven – 26-1/2" Standard (Model ARLB-36)

35,000 BTU | Natural or LP Gas | Made in the USA

Purpose-built for tight cook lines and under-counter installs, the American Range ARLB-36 Low-Boy Oven delivers full-size baking power in a space-saving 26-1/2" wide cavity. With rugged stainless construction, Power-Plus twin burners and a simple match-less ignition system, this workhorse is trusted by chefs who need rock-solid reliability shift after shift.

Key Features

  • Power-Plus standard oven, 35,000 BTU (10 kW) output
  • Twin burner design for even, consistent heat
  • Thermostat range 150 °F – 500 °F (66 °C – 260 °C)
  • Matchless push-button (Piezo) ignition lights the standing pilot instantly
  • 100 % safety gas shut-off valve for peace of mind
  • Stainless steel front, sides and 6" adjustable legs – built for commercial abuse
  • Porcelainized oven interior wipes clean in seconds
  • One chrome rack included; two rack positions
  • Range-match façade sits flush with American Range cook-tops & hot plates
  • Zero clearance to non-combustible walls (12" sides / 4" rear to combustibles)
  • cETLus & ETL-Sanitation certified for gas safety and hygiene

Technical Specifications

Model / Type ARLB-36  |  Low-Boy Standard Oven
Total Heat Input 35,000 BTU/hr (10.0 kW)
Oven Interior (WxDxH) 26-1/2" × 22-1/2" × 15-1/4" (673 × 572 × 387 mm)
Overall Dimensions (WxDxH) 36" × 26-3/4" × 24" (914 × 679 × 610 mm)
Gas Connection 3/4" NPT, 5.0" W.C. Natural | 10.0" W.C. LP
Leg Height 6" adjustable stainless legs
Shipping Weight Approx. 300 lb (136 kg)
Construction Heavy-gauge welded frame, stainless exterior, porcelain interior
Certifications cETLus, ETL-Sanitation

Gas Requirements

  • 3/4" rear gas inlet
  • Specify Natural or LP gas when ordering
  • For installations above 2,000 ft (610 m), advise factory for proper orifice sizing

Perfect For

  • Restaurants and cafés needing an extra bake or roast cavity without sacrificing line space
  • Under-counter placement beneath a chef base or worktop
  • Finishing prime rib, roasting poultry, baking gratins, sheet pans and more

Warranty & Support

One-year limited warranty, parts & labor, backed by American Range’s nationwide service network. Register your unit within 90 days of shipment for extended coverage.

Installation Notice: This appliance is designed for use on non-combustible floors only and must be installed by a qualified technician in accordance with all local codes. Legs or casters are required unless the unit overhangs a curb by at least 2" (51 mm).

Overall Dimensions:

36.0"W x 26.75"D x 30.0"H

Product Weight:

300.0 lb
Manufacturer American Range
Certifications ["cETLus", "ETL-Sanitation", "Made in USA"]
Height 30.0in
Width 36.0in
Depth 26.75in
Shipping Weight 300.0lbs
Oven Type standard oven
Deck Qty 1 deck
Interior Finish porcelain interior
Exterior Finish all stainless steel exterior
Design range match
Specifications Restaurant Range Low Boy Oven, gas, 26-1/2" wide standard oven, range-match design, stainless steel front and sides, 6" high legs, 10.0kW, 35,000 BTU, cETLus, ETL-Sanitation, Made in USA

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Warranty sheet PDF Download
