American Range ARGF-24G-8B Gas Ranges
Description

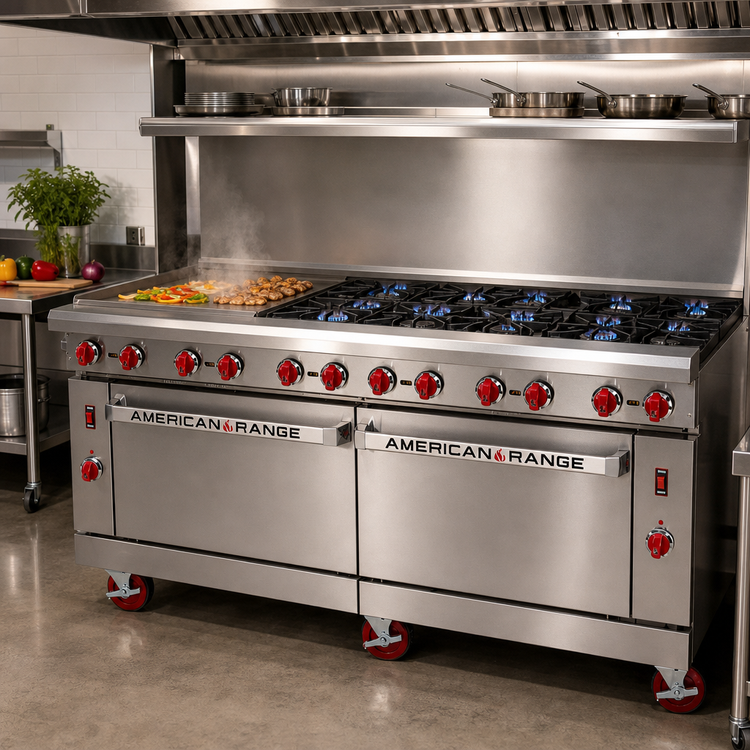

American Range 72" Green Flame™ Gas Range w/ 24" Manual Griddle & 8 Open Burners
Model ARGF-24G-8B | 310,000 BTU (91.0 kW) | Made in USATurn a single footprint into a full production line. The Green Flame™ 72" range combines heavy-duty open-top cooking, a 1" thick steel griddle and two full-size ovens—each engineered with electronic, pilot-free ignition to cut energy waste and maintenance. From breakfast rush to banquet service, this American-built workhorse keeps pace without compromise.
Performance Highlights
- 8 open burners • 25,000 BTU each with electronic ignition (no standing pilots) and 12"×12" cast-iron grates.

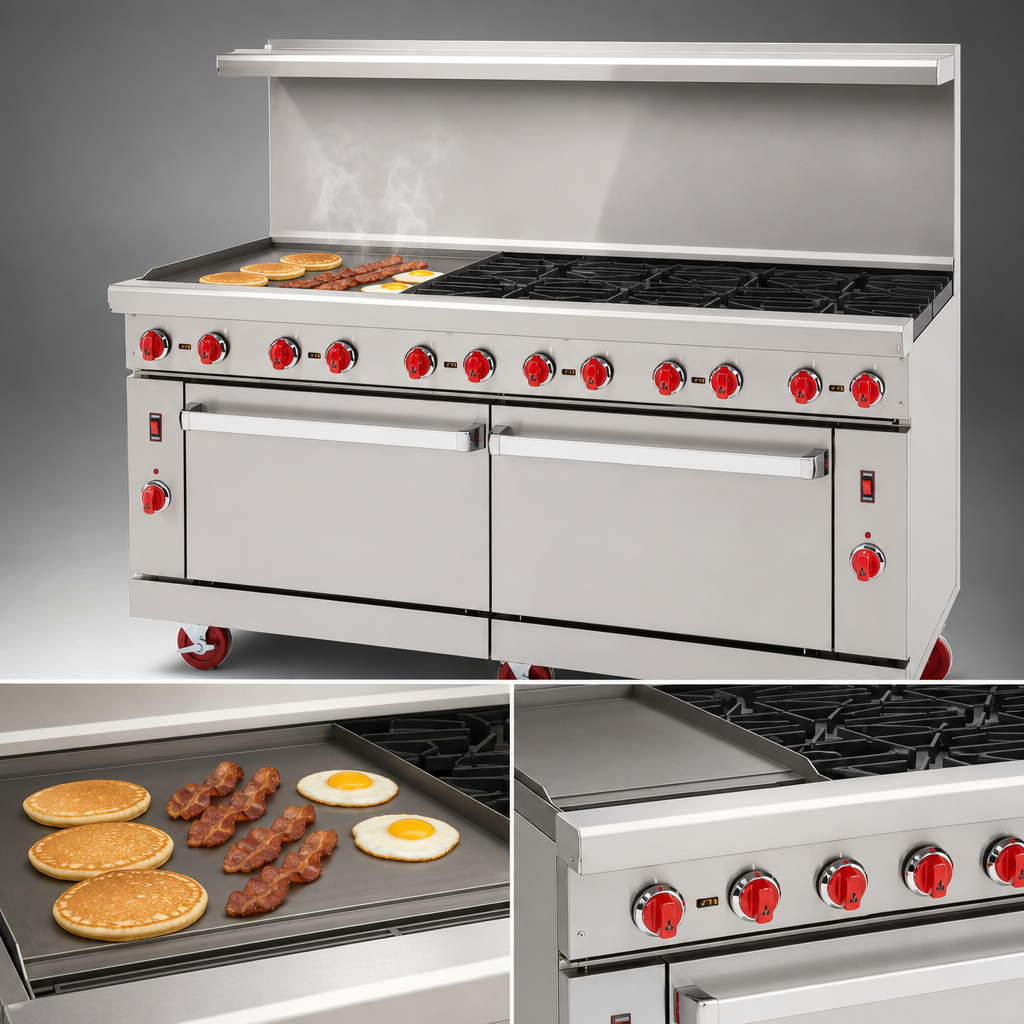

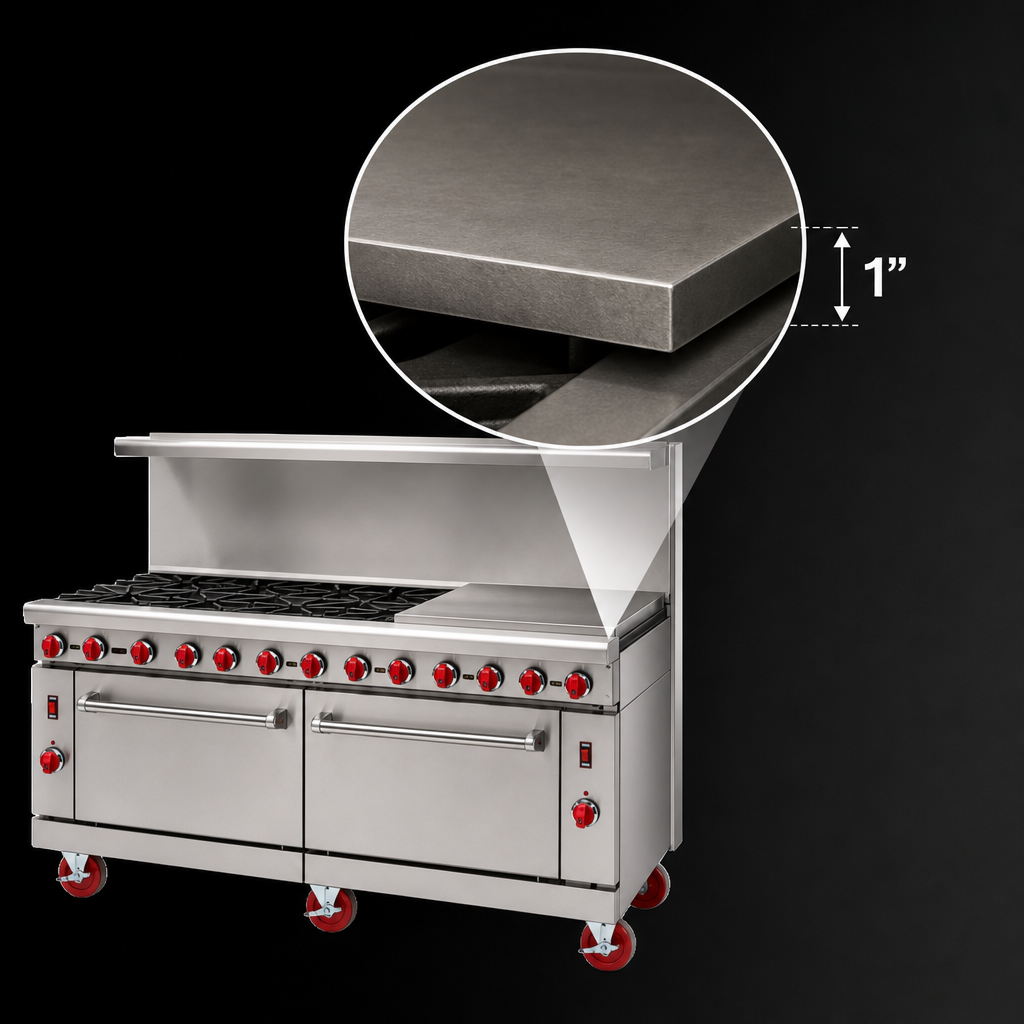

- 24" manual griddle with 1" thick polished steel plate and one 20,000 BTU burner every 12" for even heat.
- Dual 26-1/2" standard ovens • 35,000 BTU each, thermostatically controlled 250 - 500 °F, supplied with 2 chrome racks per cavity.
- Stainless-steel front, sides, 6" deep landing ledge and full-width drip pan for quick clean-ups.
- Adjustable 6" chrome-plated legs; optional casters available.
- Choice of backguard • 6" stub back or 20" high riser (with or without shelf) at no extra charge.
- Certified cETLus & ETL-Sanitation for commercial kitchens.
- Backed by a factory 2-year parts & labor warranty.
Technical Specifications
| Overall width | 72" (1829 mm) |
|---|---|
| Depth (to front of landing ledge) | 32-1/2" (826 mm) |
| Work-surface height | 36" (914 mm) |
| Backguard options | 6" stub back | 20" riser (with or without high shelf) |
| Open burners | 8 × 25,000 BTU (cast iron grates, pilotless ignition) |
| Griddle section | 24" W × 27" D | 1" plate | 40,000 BTU total |
| Ovens | 2 × 35,000 BTU standard ovens • 26-1/2" W × 22-1/2" D × 13-1/2" H interior |
| Total input | 310,000 BTU (91.0 kW) |
| Gas connection | 3/4" NPT rear manifold • Natural Gas 5.0" W.C. • LP 10.0" W.C. |
| Clearances* | 0" sides/rear to non-combustible surfaces • 12" sides & 4" rear to combustibles |
| Shipping weight † | 1,075 lb (488 kg) |
* Commercial ventilation in accordance with NFPA 96 required.
† Shipping weight includes packaging and is approximate.
Peace-of-Mind Warranty
American Range warrants this product to be free from defects in material and workmanship under normal use for two (2) years. Full terms, registration instructions and exclusions are available at americanrange.com.
Because we are committed to ongoing product improvement, specifications and/or design may change without notice.
