American Range

American Range 36-Inch Commercial Gas Range with 12-Inch Left Griddle, 4 Open Burners, and Convection Oven

SKU: ARGF-12G-4B-C
$10,480.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

American Range Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges New Arrivals Ranges Restaurant Equipment

American Range 36-Inch Commercial Gas Range with 12-Inch Left Griddle, 4 Open Burners, and Convection Oven

Stainless Steel, Backriser With Shelf, 6-Inch Adjustable Legs

Built for flexible high-volume cooking, this 36-inch range combines a left-side griddle, four open burners, and a convection oven in one durable stainless steel platform.

  • 12-inch left-side griddle with a 1-inch thick plate for versatile searing and breakfast service.
  • Four 22,000 BTU/hr open burners with electronic ignition and no standing pilot.
  • 26 1/2-inch convection oven with fan-assisted heat transfer, two racks, and 5-position rack guides.
  • Stainless steel construction with a 20-inch backriser and shelf for a professional cooking line.
  • 115V power connection with plug and cord provided for the convection oven blower.
  • Backed by a 2-year limited warranty on parts and labor.

Overall Dimensions:

36.0"W x 32.5"D x 36.0"H

Product Weight:

498.0 lb

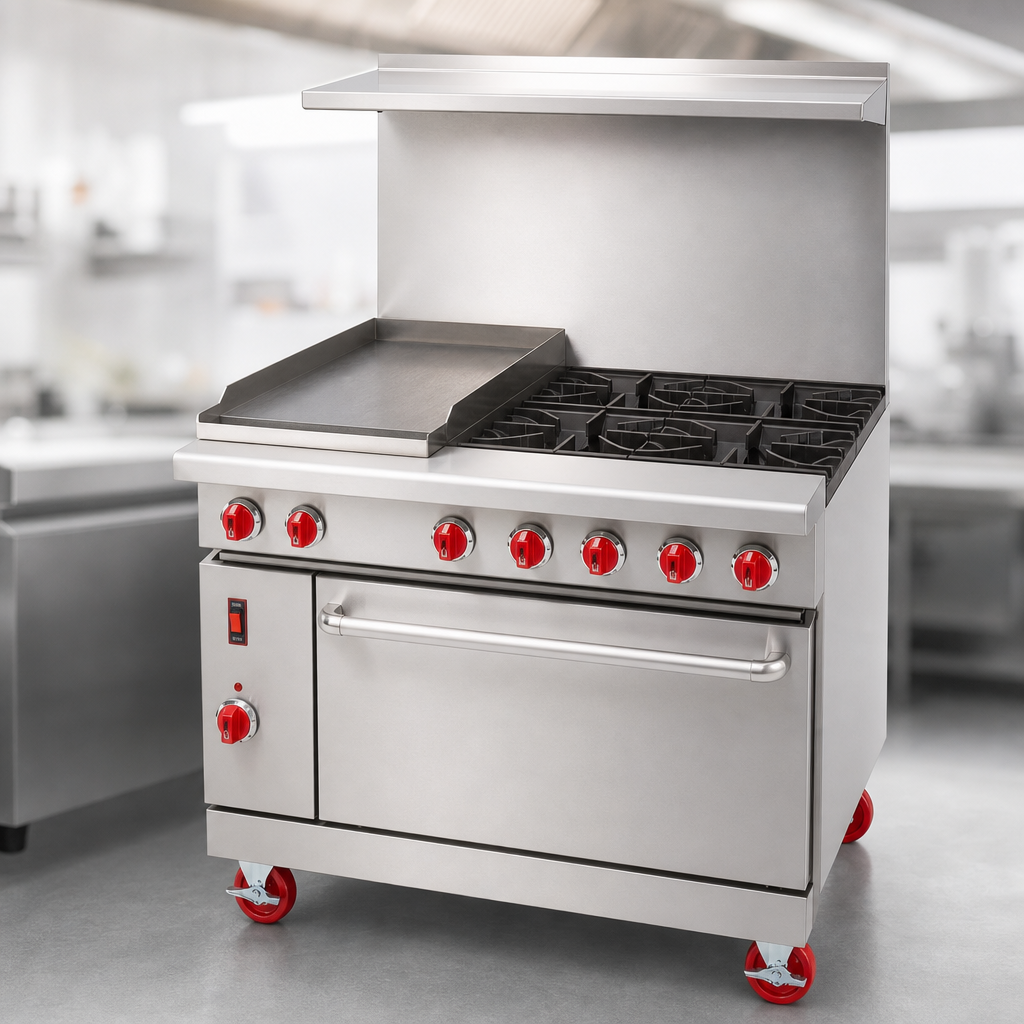

Left-Side Manual Griddle

Includes a 12-inch griddle plate on the left side with a 1-inch thick steel surface and manual control valves for flexible flat-top cooking.

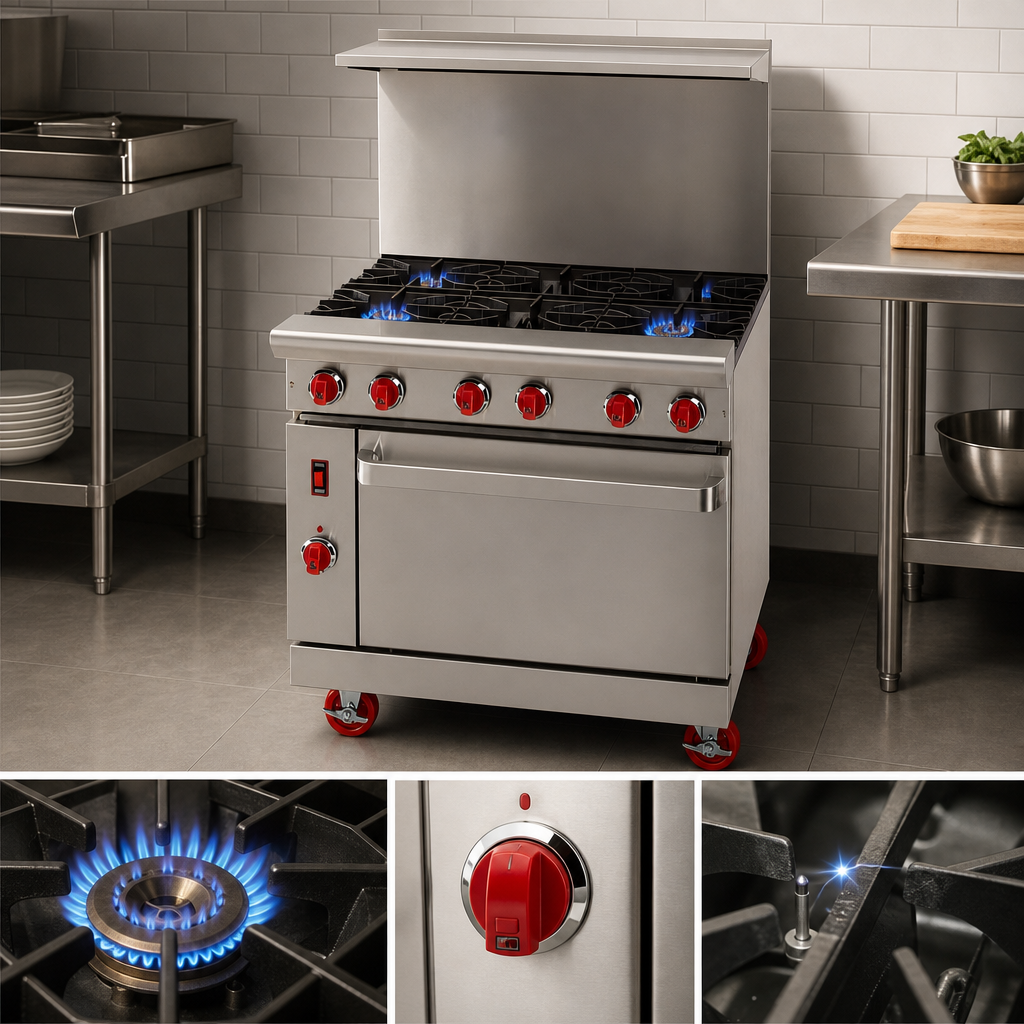

Open Burners With Electronic Ignition

Four 22,000 BTU/hr burners feature electronic ignition and no standing pilot for reliable top-side cooking.

Convection Oven Base

The convection oven replaces the standard oven and uses a 30,000 BTU/hr burner, fan-assisted heat transfer, two racks, and chrome rack guides with 5 tray positions.

Stainless Steel Construction

Stainless steel front, sides, backriser, shelf, and deep landing ledge provide durability and a clean professional appearance.

Easy-Clean Design

A removable full-width drip pan and lift-off burners help simplify routine cleanup and maintenance.

Utility Connections Included

Rear gas connection with pressure regulator is included, along with a 115V power connection and cord for the convection system.

Type Gas Range
Style Range With Left Griddle
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel
Interior Finish Porcelain Enamel
BTU 138,000 BTU/hr
Voltage 115 Volts
Amps 4 Amps
Hertz 60 Hz
Phase 1-Phase
Gas Connection Size 3/4 Inch NPT
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

2-year limited warranty, parts and labor

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Yes. This model includes a 12-inch griddle installed on the left side.
Yes. The C model uses a convection oven in place of the standard oven and includes a 30,000 BTU/hr burner.
The convection oven requires a 115V power connection. Plug and cord are provided.
It can be ordered for natural gas or propane. Specify the gas type when ordering.
The oven cavity measures 26 1/2"W x 22 1/2"D x 13 1/2"H.
Clearance from non-combustible walls is 0". If placed next to combustible walls, maintain at least 12" from the sides and 4" from the rear.
