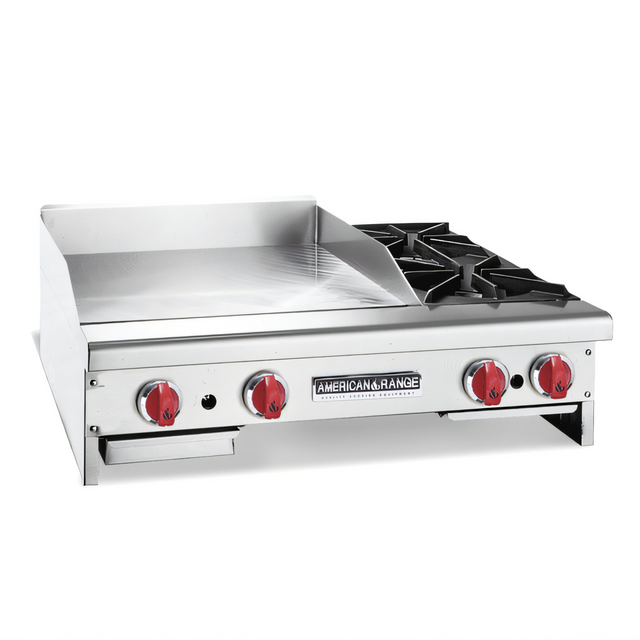

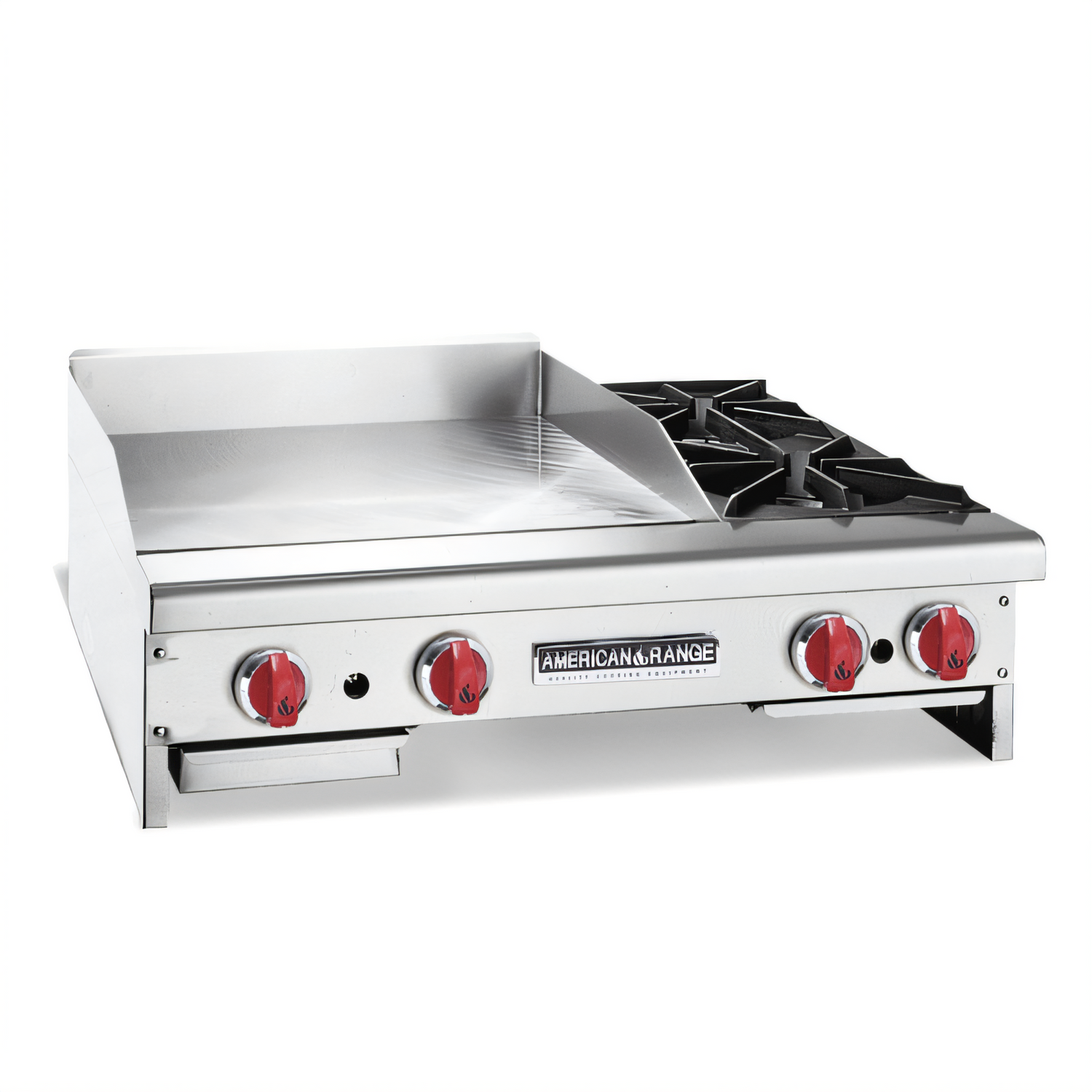

American Range AR60-48G2OB 60" Griddle / 2-Burner Gas Combo
Countertop – 184,000 BTU - Made in USAGive your kitchen the versatility of a full-size 48" griddle and the on-demand firepower of two high-efficiency open burners in one heavy-duty unit. Engineered and manufactured in California, the AR60-48G2OB delivers even heat, fast recovery, and the durability food-service pros rely on.
Key Features
- 48" polished steel griddle, 1" thick for superior heat retention & recovery
- (4) U-shaped 30,000 BTU burners—one every 12"—for consistent surface temps
- (2) 32,000 BTU no-clog open burners for sauté, stock pots & finishing
- Manual, infinite-adjust valves with easy-grip knobs
- 3" wide stainless grease trough plus large removable grease pan
- Stainless steel front, sides & splash guards resist dents and corrosion
- 4" adjustable stainless legs steady the unit on any counter
- ETL Listed & ETL-Sanitation certified for commercial use
- Designed & built in the USA with a 2-year parts & labor warranty
Performance at a Glance
| Total input | 184,000 BTU (54.0 kW) |
|---|---|
| Griddle burners | 4 × 30,000 BTU U-burners |
| Open burners | 2 × 32,000 BTU cast-iron burners |
| Cooking surface | 48" W × 21" D griddle + 12" W open burner section |
| Controls | Manual valves (no electrical connection required) |
| Gas type | Natural or Propane (field convertible), 3/4" NPT rear manifold |
| Manifold pressure | 5.0" W.C. Natural | 10.0" W.C. Propane |
Dimensions & Shipping
| Overall width | 60" (1524 mm) |
|---|---|
| Depth | 32" (813 mm) |
| Height (with legs) | 13" (330 mm) |
| Approx. shipping weight | 787 lb (357 kg) |
Clearance to non-combustible surfaces: 0". When installed next to combustible walls, maintain 12" (305 mm) at sides and 4" (102 mm) at rear. A compliant commercial ventilation system is required.
Perfect For
- Diners & short-order counters
- Food trucks & concession trailers
- Breakfast, brunch & all-day cafés
- Steakhouses, pubs & taprooms needing extra griddle space
Need mobility? Add the optional ESS-60 stainless steel stand with locking casters (sold separately).
