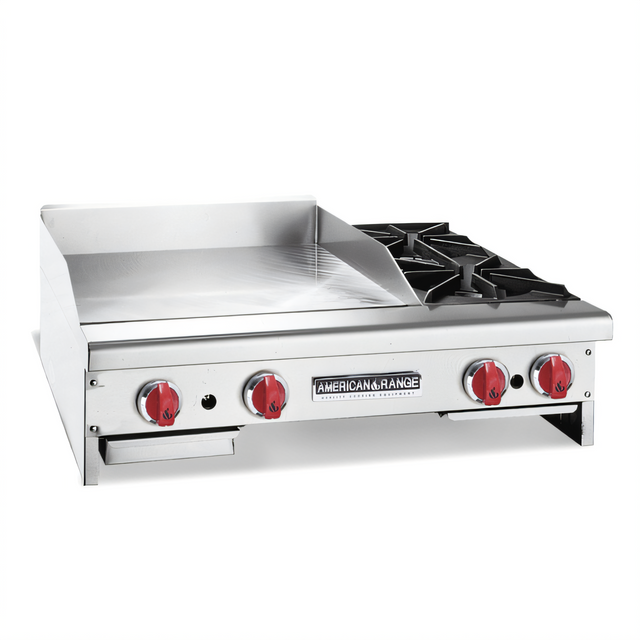

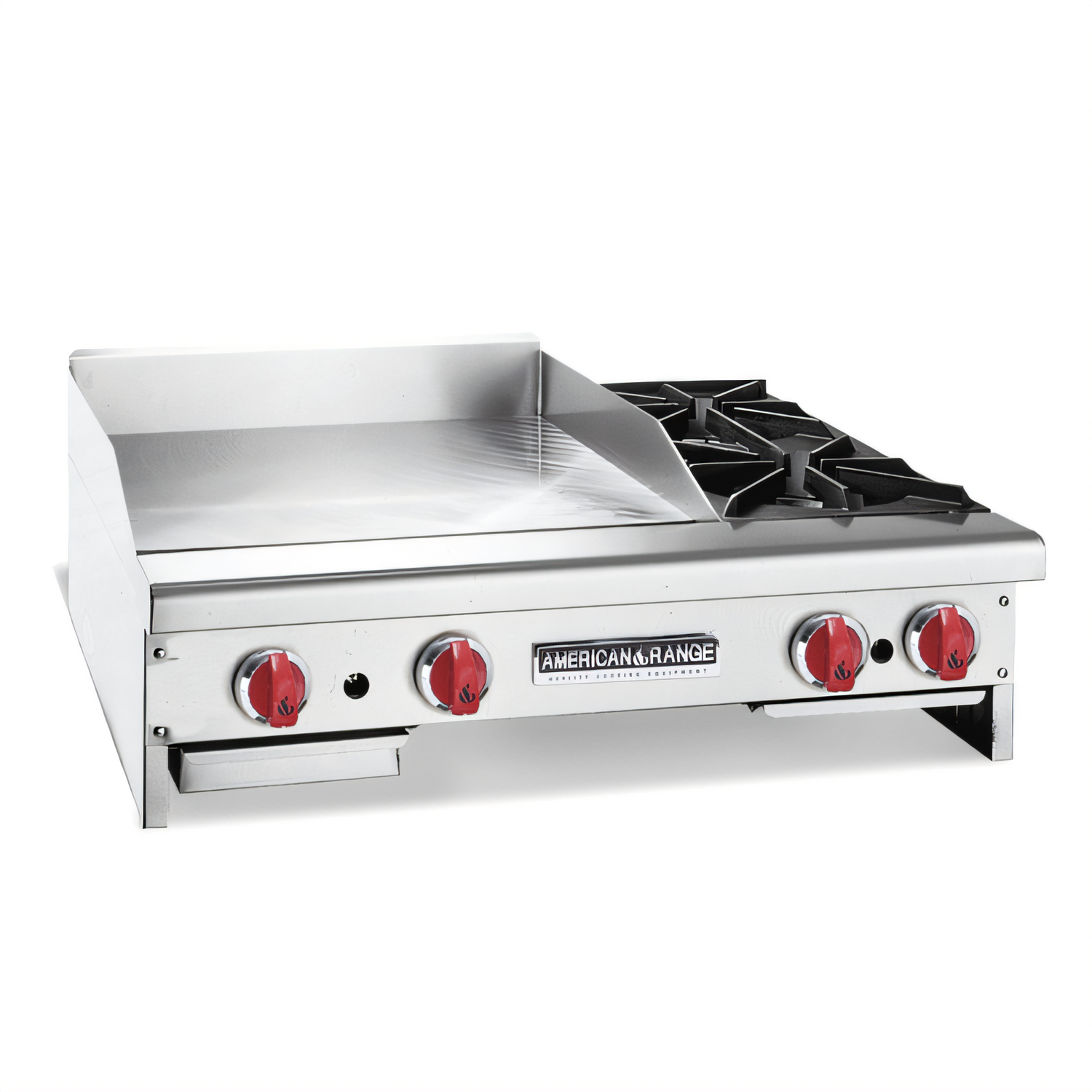

American Range AR48-36G2OB 48" Griddle / 2-Burner Gas Countertop
154,000 BTU • 45.0 kW • ETL-Sanitation • Made in USAStreamline breakfast rushes, lunch lines, and late-night service with one heavy-duty station. The American Range AR48-36G2OB combines a high-performance 36" griddle and two 32,000 BTU open burners in a compact 48" footprint—delivering a total of 154,000 BTU of cooking power for nonstop productivity.
Why You’ll Love It
- 1" thick polished steel plate retains heat and recovers fast for consistent sears and even browning.
- Three U-shaped 30,000 BTU burners (one every 12") blanket the entire 36" griddle surface for uniform heating.
- Two no-clog 32,000 BTU open burners handle sauté pans, stock pots, or a quick re-heat without interrupting griddle production.
- 3" wide stainless grease trough & large drip pan keep the cooking surface clear and make clean-up fast.
- All-stainless front & sides stand up to daily commercial abuse and wipe down easily.
- 4" adjustable stainless legs level the unit on any countertop and provide airflow underneath.
- Manual, individual gas valves give cooks instant flame control without complicated electronics.
- Field-convertible for Natural or LP gas (3/4" NPT connection).
- ETL Listed & ETL-Sanitation certified for food-service compliance.
- Two-year limited parts & labor warranty backed by American Range’s nationwide service network.
Technical Specs
| Model | AR48-36G2OB |
|---|---|
| Overall width | 48" / 1219 mm |
| Overall depth | 32" / 813 mm |
| Overall height | 13" / 330 mm (to cooking surface) |
| Cooking depth | 21" |
| Griddle surface | 36" W × 21" D, 1" thick polished steel |
| Open burners | 2 × 32,000 BTU (no-clog) |
| Griddle burners | 3 × 30,000 BTU U-shaped |
| Total input | 154,000 BTU /h (45.0 kW) |
| Gas connection | 3/4" NPT rear manifold |
| Manifold pressure | Natural 5.0" W.C. | LP 10.0" W.C. |
| Shipping weight | 527 lb / 239 kg (approx.) |
| Included | 4" adjustable legs, grease trough & pan |
| Origin | Designed & built in USA |
Popular Accessories (sold separately)
- ESS-48 stainless steel backsplash/shelf
- Heavy-duty equipment stand with or without locking casters
- Gas hose & quick-disconnect kit
Installation Notice:
For use on non-combustible floors or a 2" (51 mm) curb.
Maintain 12" (305 mm) side and 4" (102 mm) rear clearances from combustible surfaces.
A properly balanced ventilation/exhaust system is required.
Specify gas type and altitude (if above 2,000 ft) when ordering.
Two-year limited parts & labor warranty. See American Range terms for full details and exclusions.
$3,730.83
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
American Range AR48-36G2OB 48" gas charbroiler with 36" 1" griddle, two 32k BTU burners, stainless steel, 154k BTU total, durable countertop design.
Manufacturer
American Range
Certifications
ETL-Sanitation, Made in USA
Height
13.0in
Width
48.0in
Depth
32.0in
Shipping Weight
527.0lbs
Plate Thickness
3/4"
Griddle Controls
manual controls
Width (side - side) OA
48"
Griddle Area
36"W x 20"D
Open Burners
2
Griddle Plate Finish
smooth steel
Specifications
Griddle/Open Burner Combination, gas, 48", countertop, (1) 36" griddle with 1" thick plate, 4" legs, manual controls, (2) 32,000 BTU open burners, 4" legs, 3" wide grease trough & pan, stainless steel front & sides, 45.0kW, 154,000 BTU, ETL-Sanitation, Made in USA
