American Range AR24-12G2OB Gas Charbroilers
Description

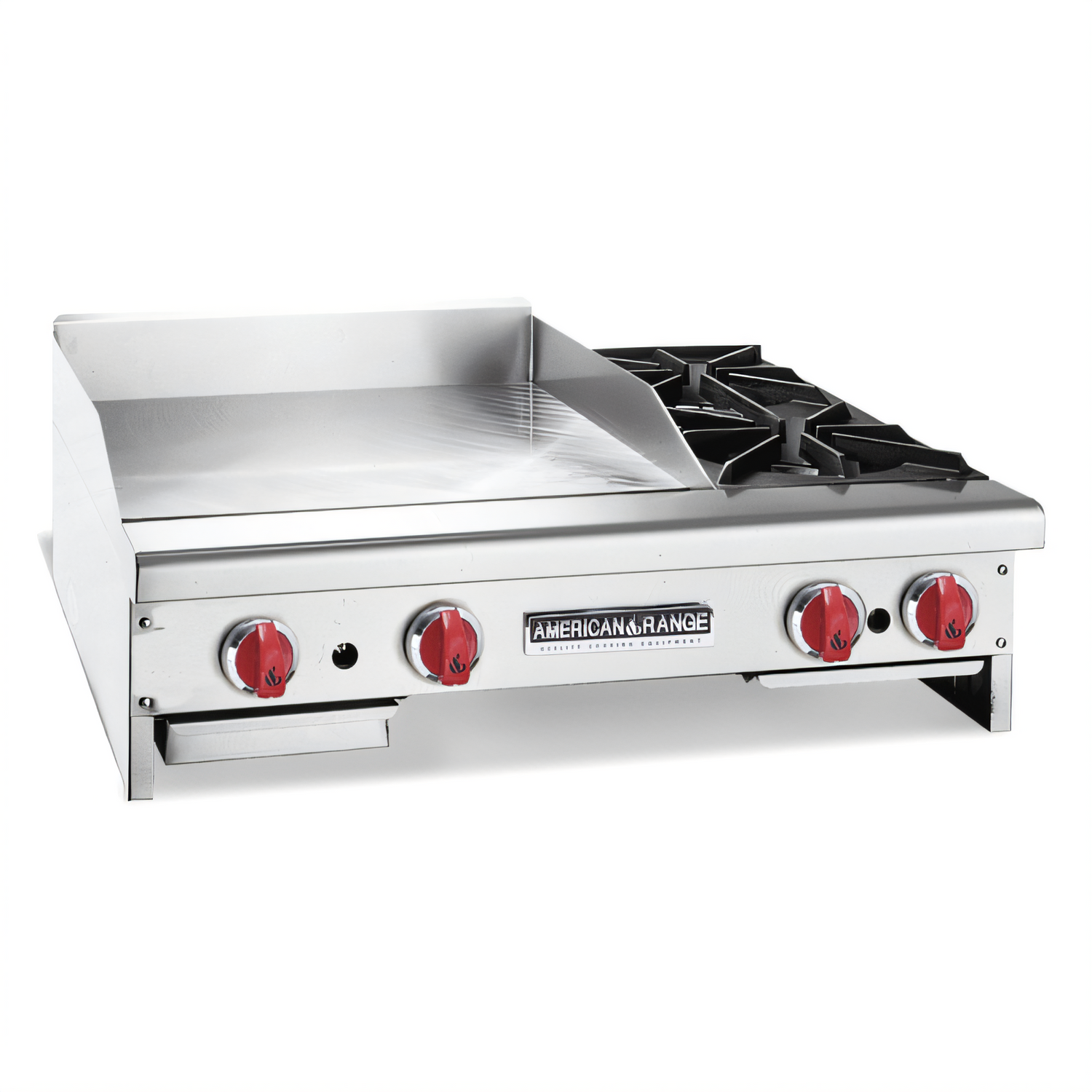

American Range AR24-12G2OB 24" Countertop Gas Griddle & 2-Burner Range
94,000 BTU • 12" x 21" Griddle Plate • Made in USAPack maximum versatility into minimal space. The AR24-12G2OB combines a 1" thick steel griddle with two high-performance open burners—delivering true restaurant power, fast cleanup and legendary American Range durability in just 24" of counter width.
Key features
- Two 32,000 BTU no-clog open burners for sautéing, boiling or searing.
- 12" griddle heated by a 30,000 BTU “U” burner for even edge-to-edge heat.
- 1" polished steel plate retains heat and seasons for a natural non-stick surface.
- 21" cooking depth provides generous working area without enlarging your footprint.
- 3" stainless grease trough & oversized pan slide out for quick, mess-free service.
- Manual, front-mounted gas valves give cooks instant, precise flame control.
- All-stainless front & sides resist corrosion and wipe down in seconds.
- Includes 4" adjustable legs for secure, level countertop placement.
- ETL Listed & ETL Sanitation approved for commercial kitchens.
- Designed, engineered & built in the USA; backed by a 2-year parts & labor warranty.
Specifications
| Model | AR24-12G2OB |
|---|---|
| Overall width | 24" / 610 mm |
| Overall depth | 32" / 813 mm |
| Overall height | 13" / 330 mm (≈17" with legs) |
| Configuration | (1) 12" griddle + (2) open burners |
| Total output | 94,000 BTU (28.0 kW) |
| Open-burner output | 2 × 32,000 BTU |
| Griddle burner output | 30,000 BTU “U” burner |
| Griddle plate | 1" thick polished steel, 12" W × 21" D |
| Gas connection | 3/4" NPT rear manifold |
| Manifold pressure | Natural 5" W.C. | LP 10" W.C. |
| Shipping weight | Approx. 289 lb / 131 kg |
| Certifications | ETL Listed, ETL Sanitation |
Perfect for
- Breakfast & short-order diners
- Food trucks and concession trailers
- Line stations needing extra griddle or sauté capacity
- C-stores, delis & bars with limited hood space
• Clearance from combustible walls: 12" (305 mm) sides, 4" (102 mm) rear.
• Follow NFPA 96 and local codes for ventilation.
Optional 24" stainless equipment stand (model ESS-24) with or without casters sold separately.
Two-year limited parts & labor warranty. Full warranty details.
