American Range  |  SKU: AR-GCF-15

American Range AR-GCF-15 Gas Fryers

$2,276.68
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Manual Warranty sheet
Related Searches
Fryers Gas Fryers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

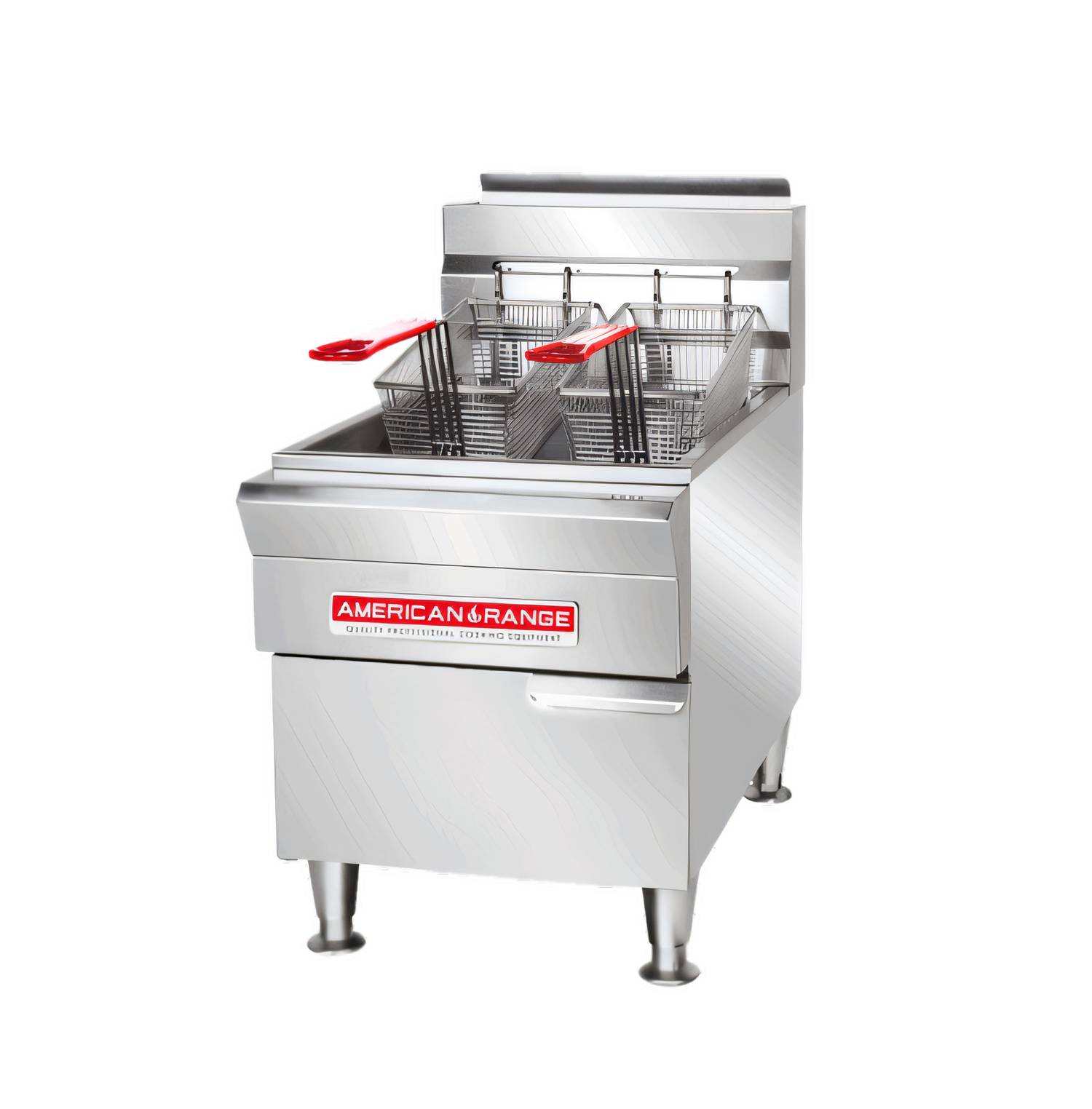

American Range AR-GCF-15 Countertop Gas Fryer

15 lb oil capacity • 20–22 lb/hr production • 30,000 BTU

Built in the USA for demanding commercial kitchens, the American Range AR-GCF-15 delivers full-size frying performance in a compact countertop footprint. With a fast-recovering 30,000 BTU infrared burner and a precision snap-acting thermostat, this 15-pound fryer turns out up to 22 pounds of crispy, golden product every hour—no electrical hookup required.

Key Features
  • Produces 20–22 lb of fries (or equivalent product) per hour

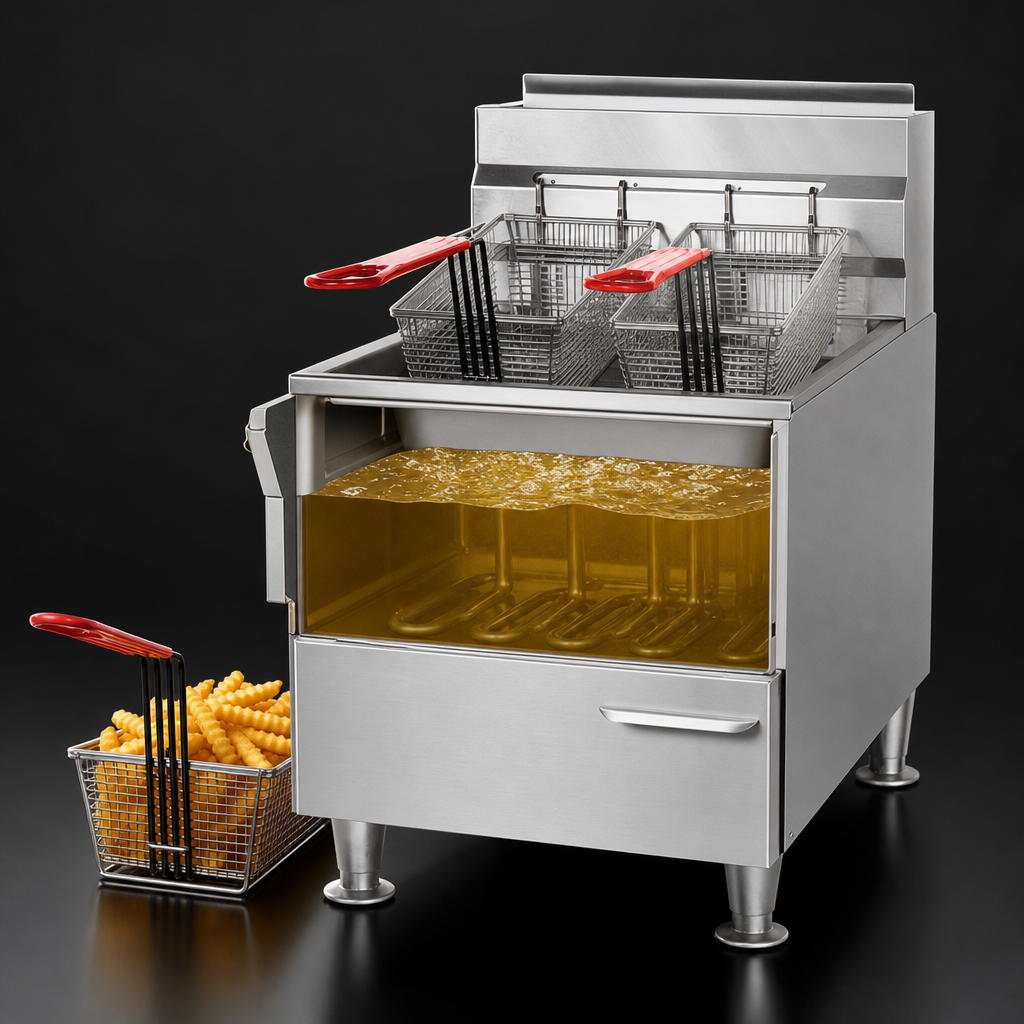

  • 15 lb stainless-steel tank with large “cool zone” to extend oil life
  • Snap-acting mechanical thermostat, 200 °F – 400 °F (93 °C – 204 °C)

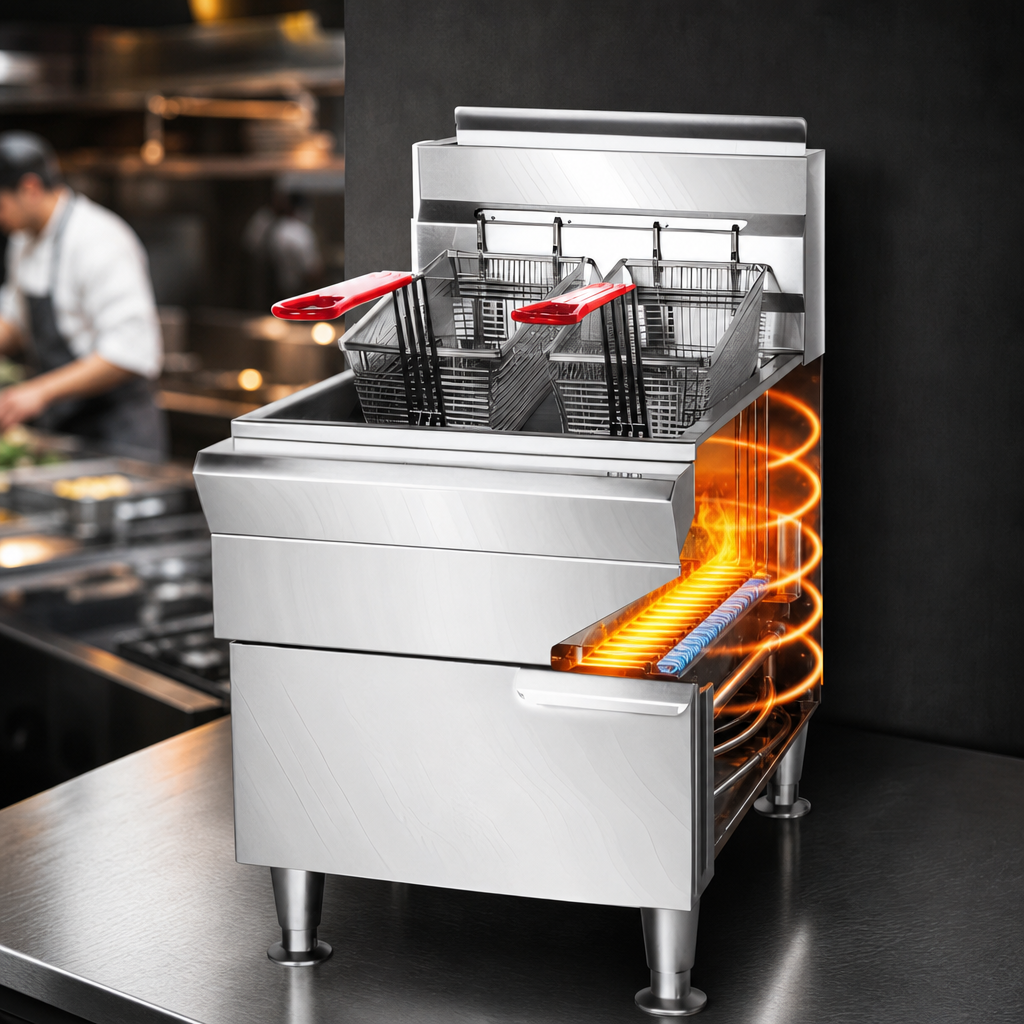

  • 30,000 BTU/hr infrared burner for rapid heat recovery
  • Millivolt control system—no electricity needed
  • (2) fryer baskets included
  • 1/2" full-port drain valve for safe, fast oil removal
  • High-limit safety switch with manual reset
  • 16-gauge stainless tank; all stainless front & sides
  • 4" adjustable stainless legs for stable countertop positioning
  • cETLus & ETL Sanitation listed
  • Made & engineered in the USA
  • Two-year limited parts & labor warranty
Specifications
Model AR-GCF-15
Oil Capacity 15 lb (6.8 kg)
Production Rate 20–22 lb/hr (9.1 – 10 kg/hr)
Heat Source Natural or Propane Gas, 30,000 BTU/hr (≈ 9 kW)
Cooking Area 8 ¾" W × 14" D (222 mm × 356 mm)
Thermostat Range 200 °F – 400 °F (93 °C – 204 °C)
Exterior Dimensions 14" W × 25 ¾" D × 26" H (356 mm × 654 mm × 660 mm)
Shipping Weight 95 lb (43 kg)
Gas Inlet ½" NPT (manifold pressure: NG 5" WC | LP 10" WC)
Baskets Supplied (2) nickel-plated wire baskets
Certifications cETLus, ETL Sanitation
Warranty 2-year limited parts & labor
Important: For use on non-combustible surfaces only. Maintain 6" (152 mm) clearance from combustible walls and provide adequate ventilation per NFPA96 or local code. Professional gas installation is required.

Looking for a matching equipment stand? Ask us about the American Range ETSTS-15 stand with optional casters.

Features & Specs

Manufacturer

American Range

Certifications

cETLus, ETL-Sanitation

Height

26.0in

Width

14.0in

Depth

25.75in

Shipping Weight

95.0lbs

Controls

manual controls

Fat Capacity (approximate)

20 - 29 lbs

Fry Pot Construction

stainless steel

Specifications

Countertop Fryer, gas, cooks 20-22 lb. food per hour, 15-pound oil capacity, (2) baskets, Snap-acting mechanical thermostat, stainless construction, 4" adjustable legs, 8.0kW, 30,000 BTU, cETLus, ETL-Sanitation, Made in USA
