American Range | SKU:
AR-72G
American Range AR-72G Gas Ranges
$13,117.60
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
American Range AR-72G Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
American Range AR-72G Gas Ranges
$13,117.60
Unit price
/
Unavailable
Description
72" Gas Restaurant Range with Full Griddle & Double Standard Ovens
American Range AR-72G | 190,000 BTU | Made in USAEngineered for high-volume kitchens, the American Range AR-72G combines a massive 6-foot griddle with two independent standard ovens, packing 190,000 BTU of dependable, even heat into a single, stainless-steel workhorse.
Why You’ll Love It

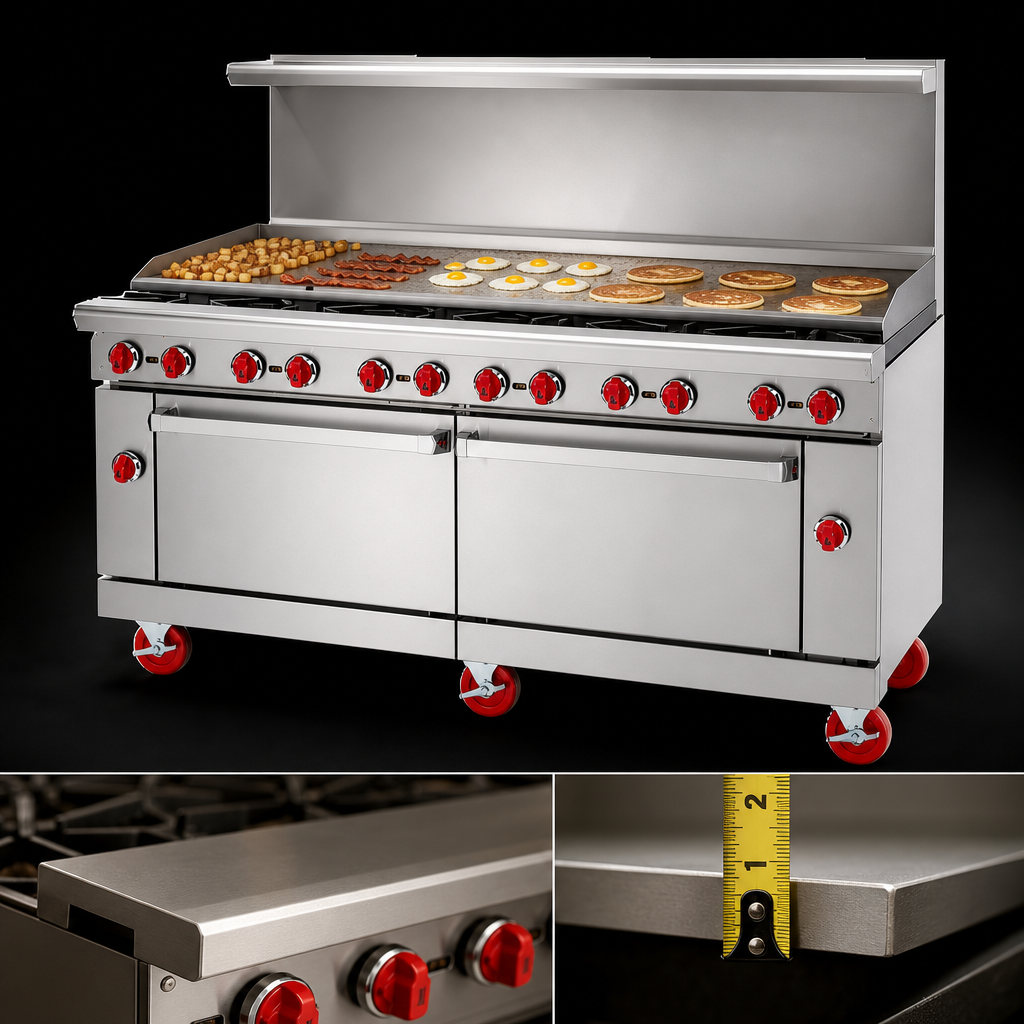

- Full 72" x 24" griddle with 1" thick steel plate for superior heat retention & recovery.
- Six 20,000 BTU/hr griddle burners (one every 12") with individual manual control valves.

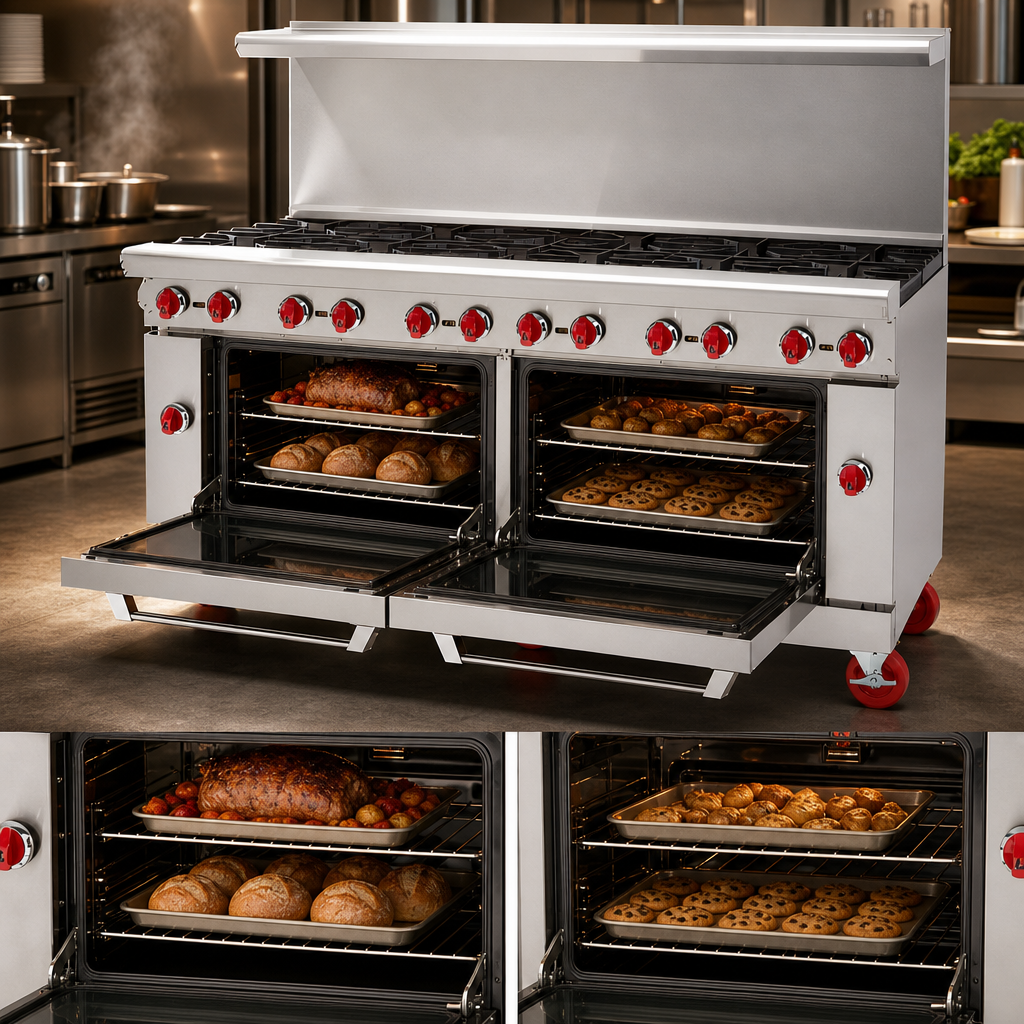

- Two 26-1/2" standard ovens (35,000 BTU/hr each) with 250 °F–500 °F thermostats.
- Includes four chrome-plated racks – two in each oven.
- Porcelain-enameled oven cavities for fast, easy clean-up.
- Stainless steel front, sides & landing ledge endure daily commercial abuse.
- Choice of 6" stub back, 20" riser, or high shelf riser — no up-charge.
- 6" adjustable chrome-plated legs level the unit on uneven floors.
- 100 % safety gas shut-off plus cETLus & ETL-Sanitation approvals.
- Backed by a 2-year parts & labor warranty.
Built for Pro-Level Performance
- Total input: 190,000 BTU / 56.0 kW for relentless cooking power.
- Polished plate distributes heat evenly edge-to-edge—perfect for breakfast, burgers & searing proteins.
- Spring-assisted, counter-weighted oven doors stay open at any angle for safe loading.
Technical Specs
| Exterior Dimensions | 72" W × 32-1/2" D × 36" H (to cook surface) Up to 56" H with high shelf |
|---|---|
| Griddle Plate | 72" W × 24" D × 1" thick, polished steel |
| Griddle Burners | 6 × 20,000 BTU/hr (manual control) |
| Oven Interior (each) | 26-1/2" W × 22-1/2" D × 13-1/2" H |
| Oven BTU (each) | 35,000 BTU/hr |
| Thermostat Range | 250 °F – 500 °F (121 °C – 260 °C) |
| Total Gas Input | 190,000 BTU/hr (56.0 kW) |
| Gas Connection | 3/4" NPT rear manifold 5.0" W.C. Natural | 10.0" W.C. Propane |
| Shipping Weight | ≈ 900 lb (408 kg) |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | 2-year parts & labor • 90-day griddle components |
Optional thermostatic griddle control and alternative base configurations (convection or storage) available by special order.
Installation Required: All commercial gas equipment must be installed, calibrated and tested by a qualified technician under
adequate ventilation in accordance with local codes.
Features & Specs
Features & Specs
Manufacturer
American Range
Certifications
cETLus, ETL-Sanitation, Made in USA
Height
36.0in
Width
72.0in
Depth
32.5in
Shipping Weight
900.0lbs
Top
(1) griddle
Base
(2) standard ovens
Plate Thickness
1.000" = 1"
Exterior Finish
all stainless steel exterior
Specifications
Restaurant Range, gas, 72", (1) 72" griddle, 1" thick plate, manual controls, (2) 26-1/2" standard ovens, (2) racks each oven, stainless steel front, sides, choice of high shelf and riser, 20" riser or 6" stub back, 6" adjustable chrome plated legs, 56.0kW, 190,000 BTU, cETLus, ETL-Sanitation, Made in USA
