American Range AR-6B-36RG-DSB Gas Ranges
Description

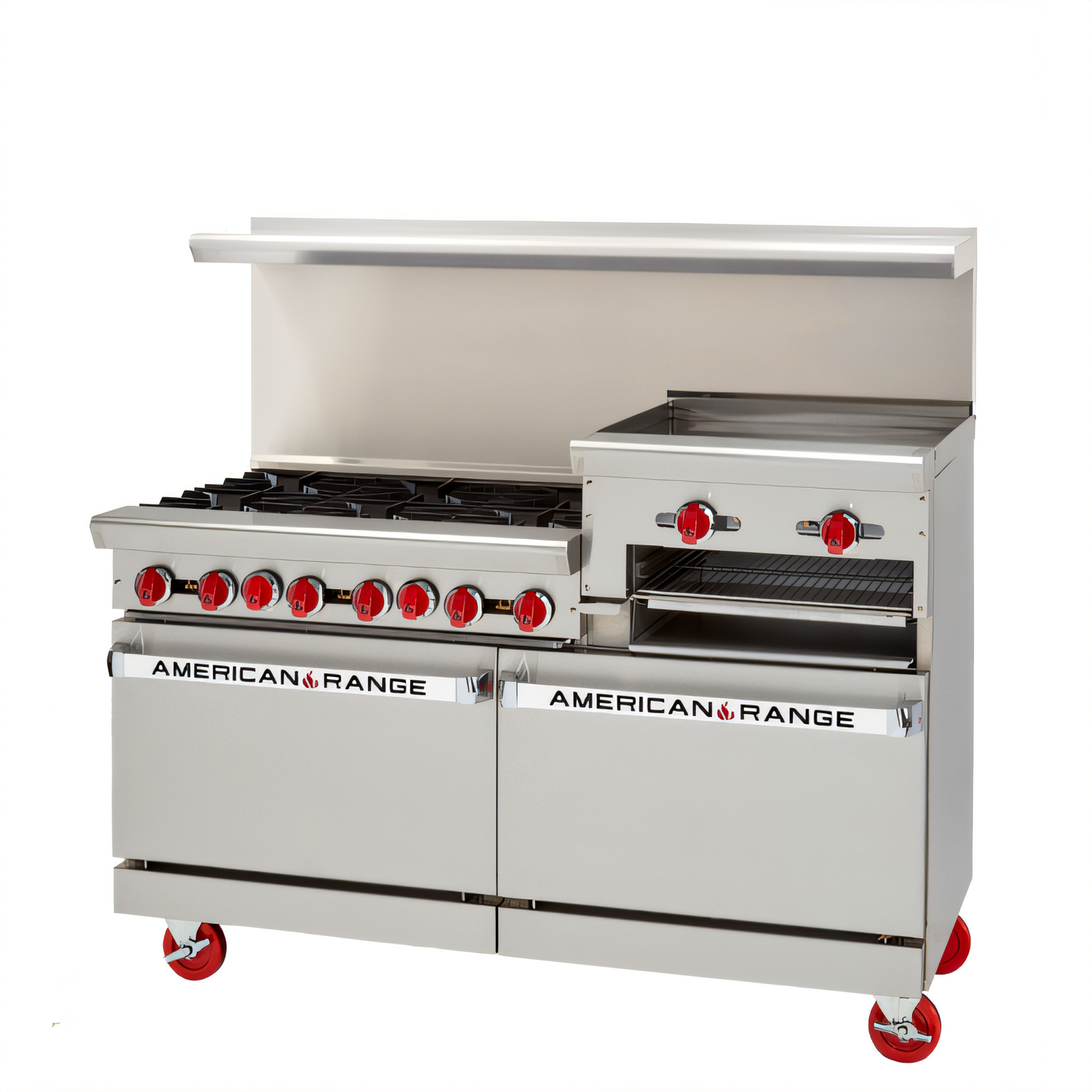

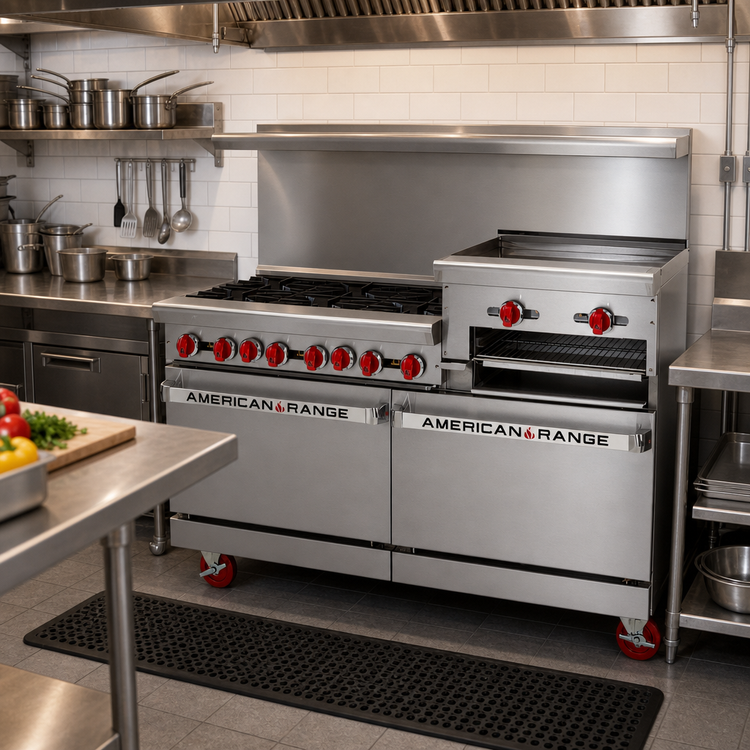

American Range 72" Gas Raised Griddle Range – 6 Burners & 36" Raised Griddle/Broiler, Storage Base (Model AR-6B-36RG-DSB)
252,000 BTU | Natural or Propane | Made in USAPurpose-built for high-volume kitchens, this American Range powerhouse pairs six 32,000 BTU open burners with a 36 inch raised griddle/broiler and two spacious storage bases. From rapid boil to perfect sear, the AR-6B-36RG-DSB delivers uncompromising performance, rugged durability and the flexibility chefs need to keep orders flying.
Key Features

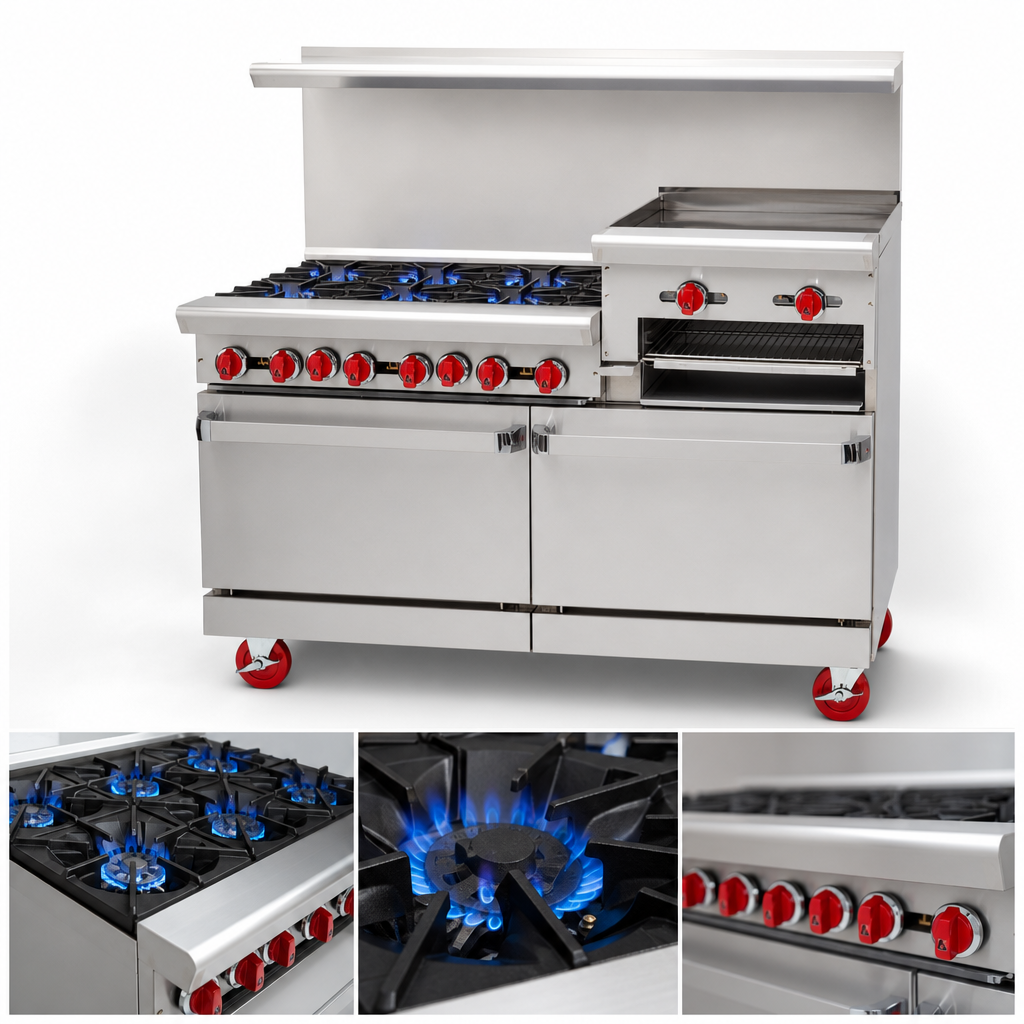

- Six 32,000 BTU open burners (left side) with 12" × 12" cast-iron grates and lift-off heads for fast cleanup.

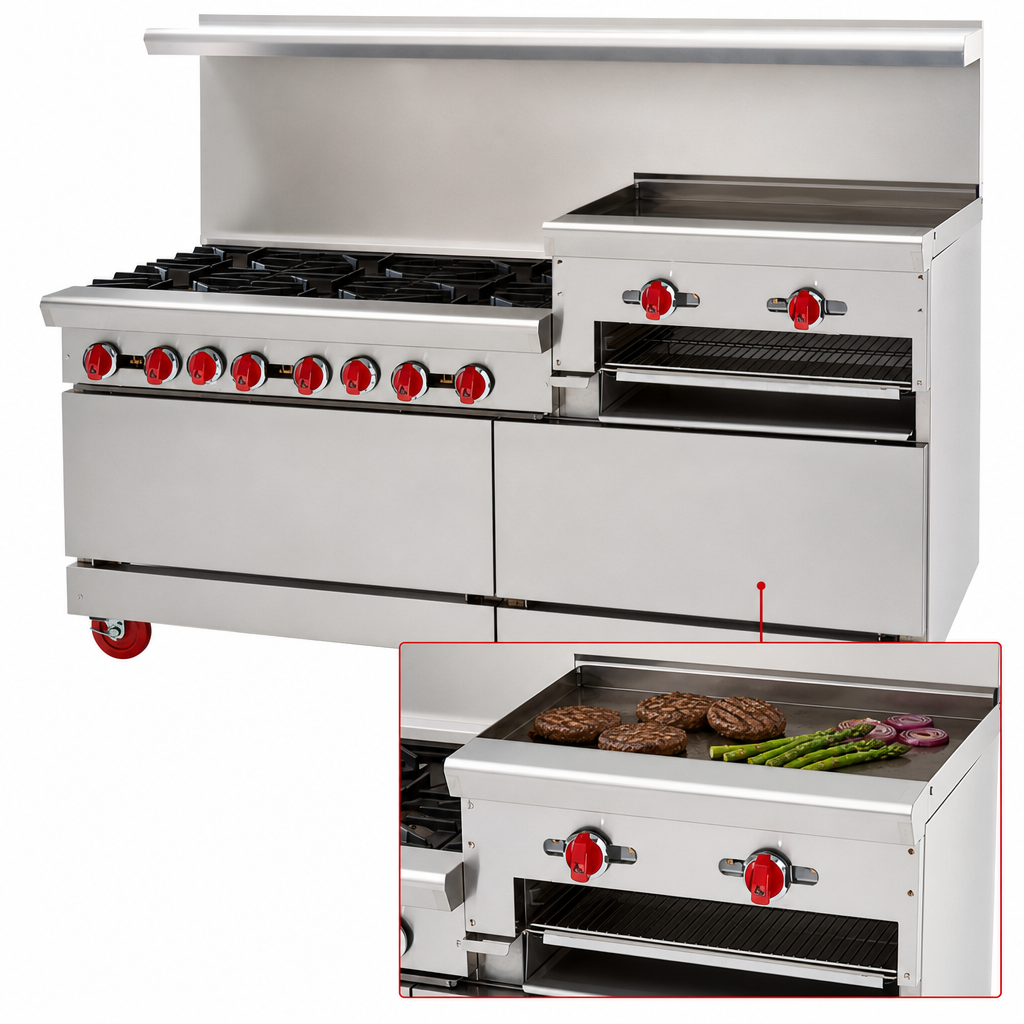

- 36" raised griddle/broiler (right side) – 3/4" thick steel plate, three 20,000 BTU burners and a 3" grease trough.
- Manual, cool-touch knobs and individual stainless-steel pilots for dependable ignition.
- Full-width, removable drip pan keeps the cookline clean and safe.
- Two 26 1/2" storage bases – ideal for sheet pans, hotel pans and smallwares.
- Stainless steel front, sides, and backriser plus 6" adjustable chrome-plated legs.
- Choose your backsplash: 6" stub back, 20" riser, or high riser with shelf – no extra charge.
- Field convertible for Natural Gas or LP; 3/4" NPT rear connection.
- cETLus & ETL-Sanitation listed for commercial operation.
- Designed and built in Las Vegas, NV – backed by a 2-year parts & labor warranty.
Performance & Capacity
- Total input: 252,000 BTU (74.0 kW)
- Open burners: 192,000 BTU (6 × 32,000)
- Raised griddle/broiler: 60,000 BTU (3 × 20,000)
- Cooking surface height: 36"
- Overall height with 20" riser: 56"
Specifications
| Model | AR-6B-36RG-DSB |
|---|---|
| Width | 72" (1829 mm) |
| Depth | 32 1/2" (825 mm) |
| Height | 36" to cook surface | 56" with 20" riser |
| Cooking equipment | 6 open burners & 36" raised griddle/broiler |
| Griddle plate | 3/4" thick steel, manual controls |
| Base configuration | Two 26 1/2" storage cabinets |
| Total BTU input | 252,000 BTU/hr |
| Gas connection | 3/4" NPT rear – 5.0" W.C. NG / 10.0" W.C. LP |
| Shipping weight | ≈ 760 lb (345 kg) |
| Certifications | cETLus, ETL-Sanitation |
| Origin | USA |
What’s Included
- Factory-installed 6" chrome-plated legs (adjustable).
- Customer-selected stub back or riser/high shelf.
- Installation & operation manual.
- Two-year limited parts & labor warranty (broiler burners, grates & radiants: 90-day coverage).
Need locking casters, a thermostatic griddle, or oven bases? Let us know — the American Range factory offers extensive customization.
