American Range  |  SKU: AR-6B-24RG-DSB

American Range AR-6B-24RG-DSB Gas Ranges

$10,773.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

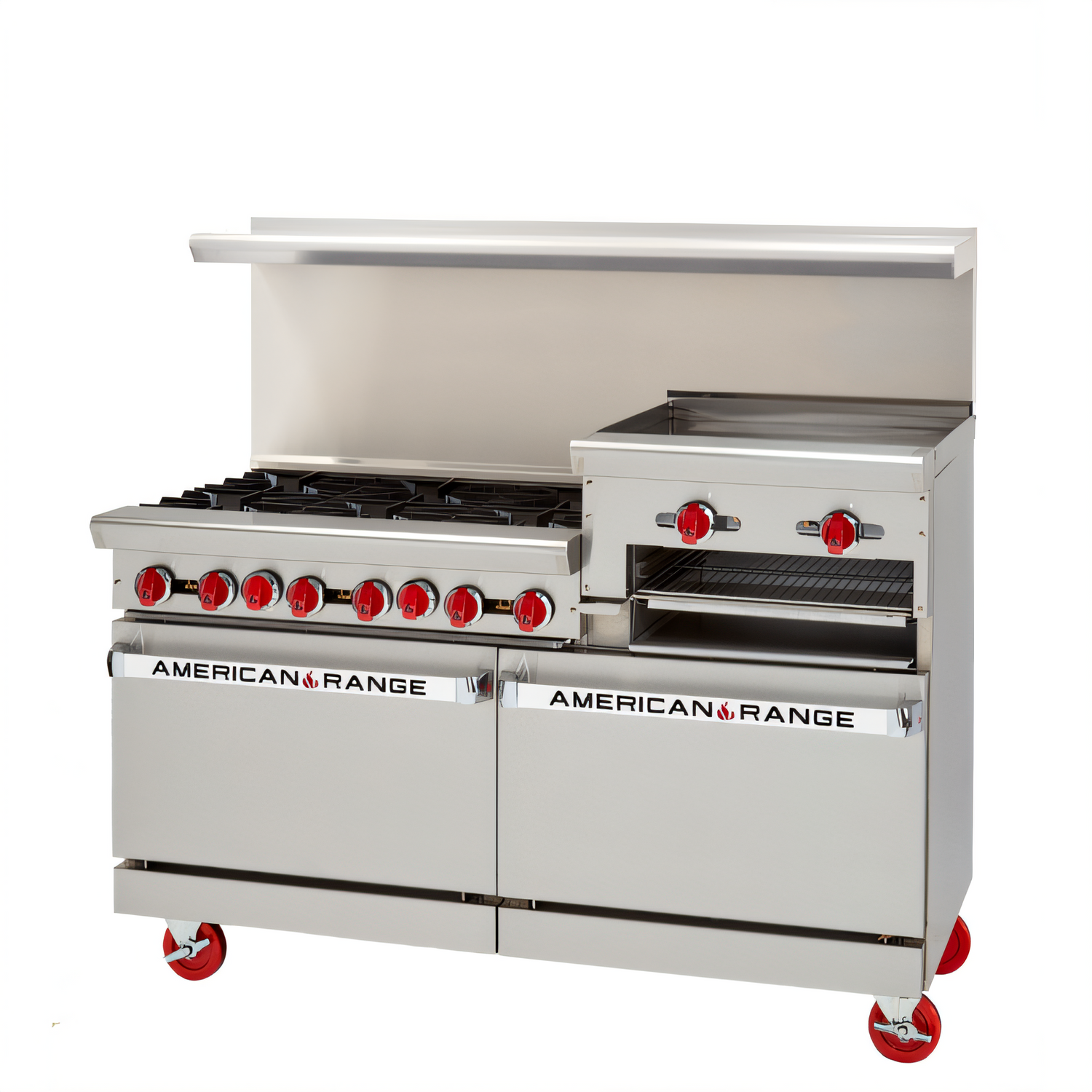

60" Gas Restaurant Range – 6 Burners & 24" Raised Griddle/Broiler

American Range AR-6B-24RG-DSB | Made in the USA

Built in California for the pace of a truly busy kitchen, the American Range AR-6B-24RG-DSB combines high-powered open-top cooking, a raised griddle/broiler and two full-size storage bases in one 60-inch footprint. It’s the rugged, easy-to-clean workhorse that line cooks, chefs and kitchen managers rely on for breakfast, lunch and dinner service.

Why this range belongs on your line

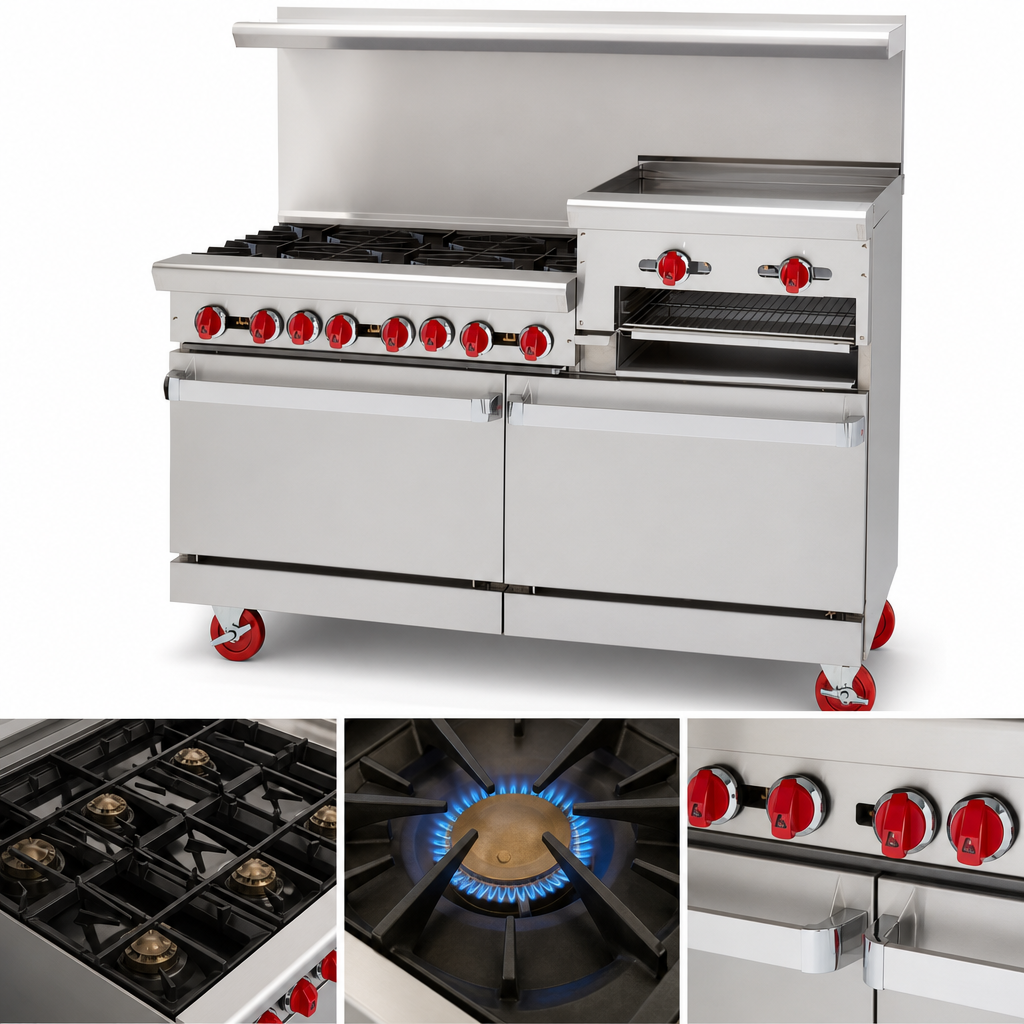

  • Serious fire-power: six 32,000 BTU/hr lift-off open burners deliver instant, even heat for sauté, stock or sauté work.

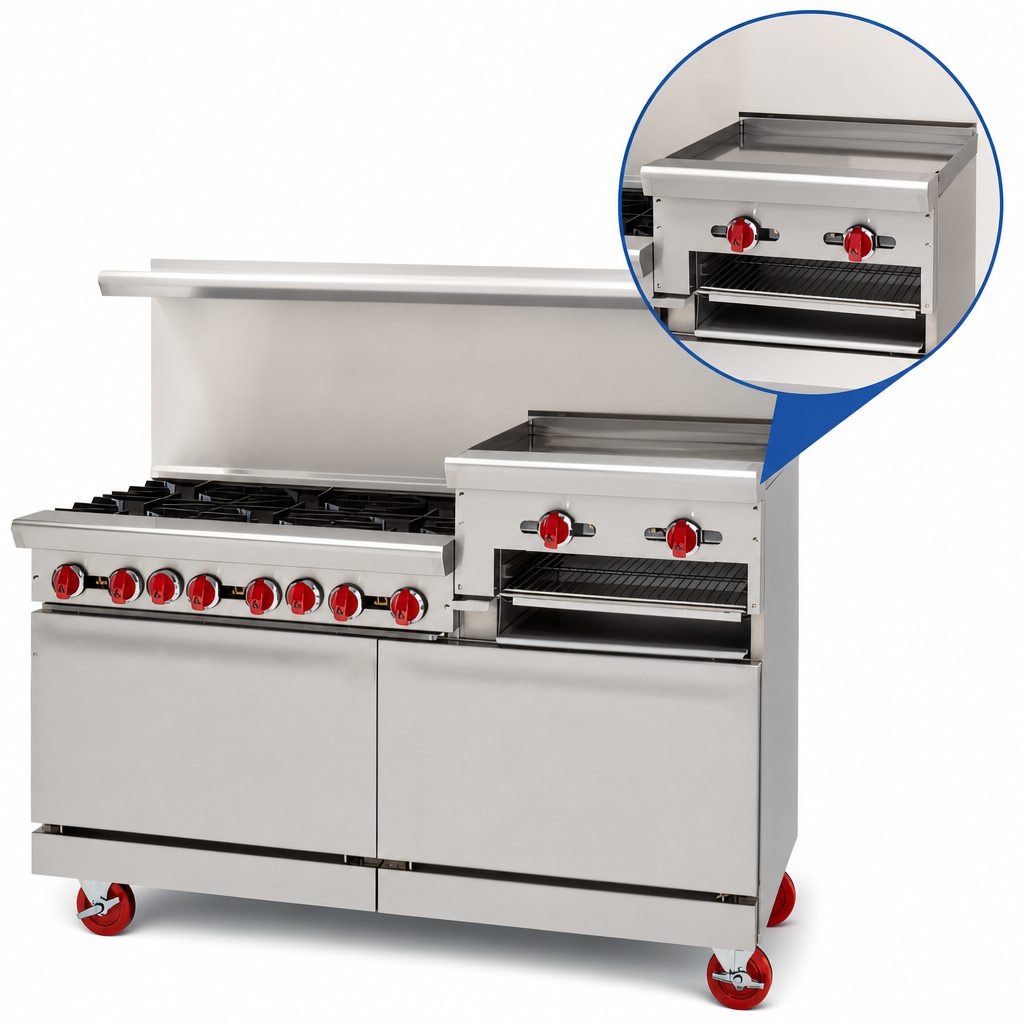

  • Raised 24" griddle/broiler: 3/4" steel plate with manual controls, 20,000 BTU/hr per 12" section for a total of 40,000 BTU – perfect for smash burgers, tortillas or finishing steaks under the broiler rack.
  • Dual storage bases: two 26 1/2" cabinets (no ovens) keep sheet pans, hotel pans or smallwares right at the cook’s knees for rapid access.
  • All-stainless exterior: front, sides and landing ledge stand up to daily scrubbing and harsh chemicals.
  • Customizable back: choose the included 20" high riser, 6" stub back or high shelf & riser at no additional charge.
  • Field-adjustable 6" chrome-plated legs level the unit on uneven floors or let you drop it onto optional casters.
  • Made & serviced in the USA with a 2-year parts & labor warranty and nationwide support network.

Technical Specifications

Model AR-6B-24RG-DSB
Overall width 60" (1524 mm)
Depth × Cooking height 32 1/2" (826 mm) × 36"
Total input 232,000 BTU/hr (68.0 kW)
Open burners 6 × 32,000 BTU/hr cast-iron, 12" × 12" grates
Raised griddle/broiler 24" W, 3/4" plate, 2 burners @ 20,000 BTU/hr each
Bases (2) 26 1/2" storage cabinets with doors
Gas connection 3/4" NPT (rear), regulator included
Manifold pressure Natural: 5.0" W.C. | LP: 10.0" W.C.
Clearances – combustible 12" sides | 4" rear
Certifications cETLus, ETL Sanitation
Warranty 2-year limited, parts & labor
Important: This appliance is intended for commercial kitchens only. Install under an approved hood and follow all local codes for gas and ventilation. Legs or casters are required, or provide a 2" curb-mount overhang on a non-combustible floor.

What’s included

  • Range with 6 burners, 24" raised griddle/broiler & dual storage bases
  • Choice of 20" riser, high shelf & riser, or 6" stub back
  • 3/4" pressure regulator & manual gas shut-off
  • User & installation manual
Need casters, extra griddle plates or spare parts? Contact our team and we’ll configure the perfect American Range solution for your kitchen.

Features & Specs

Manufacturer

American Range

Certifications

cETLus, ETL-Sanitation, Made in USA

Height

56.0in

Width

60.0in

Depth

32.25in

Shipping Weight

625.0lbs

Exterior Finish

stainless steel front & sides

Base

(2) cabinets

Plate Thickness

.750" = 3/4"

Vent

backriser with hi-shelf

Control Type

manual controls

Top

(6) open burners, (1) 24" griddle/broiler

Specifications

Restaurant Range, gas, 60", (6) 32,000 BTU open burners, (1) 24" raised griddle/broiler on right, 3/4" thick plate, manual controls, (2) 26 1/2" storage bases, stainless steel front, sides, choice of high shelf and riser, 20" riser or 6" stub back, 6" adjustable chrome plated legs, 68.0kW, 232,000 BTU, cETLus, ETL-Sanitation, Made in USA
