American Range AR-6-SB Gas Ranges
Description

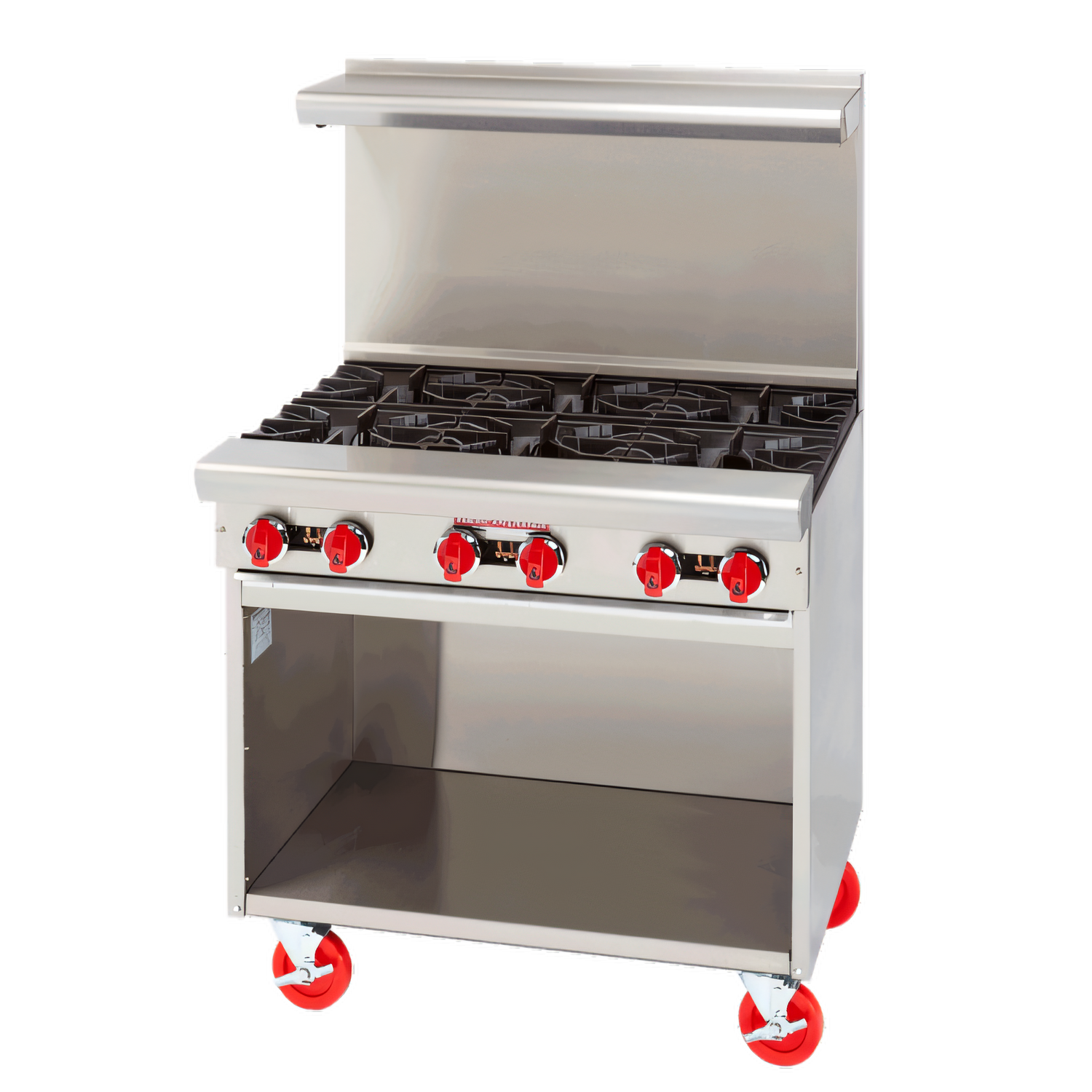

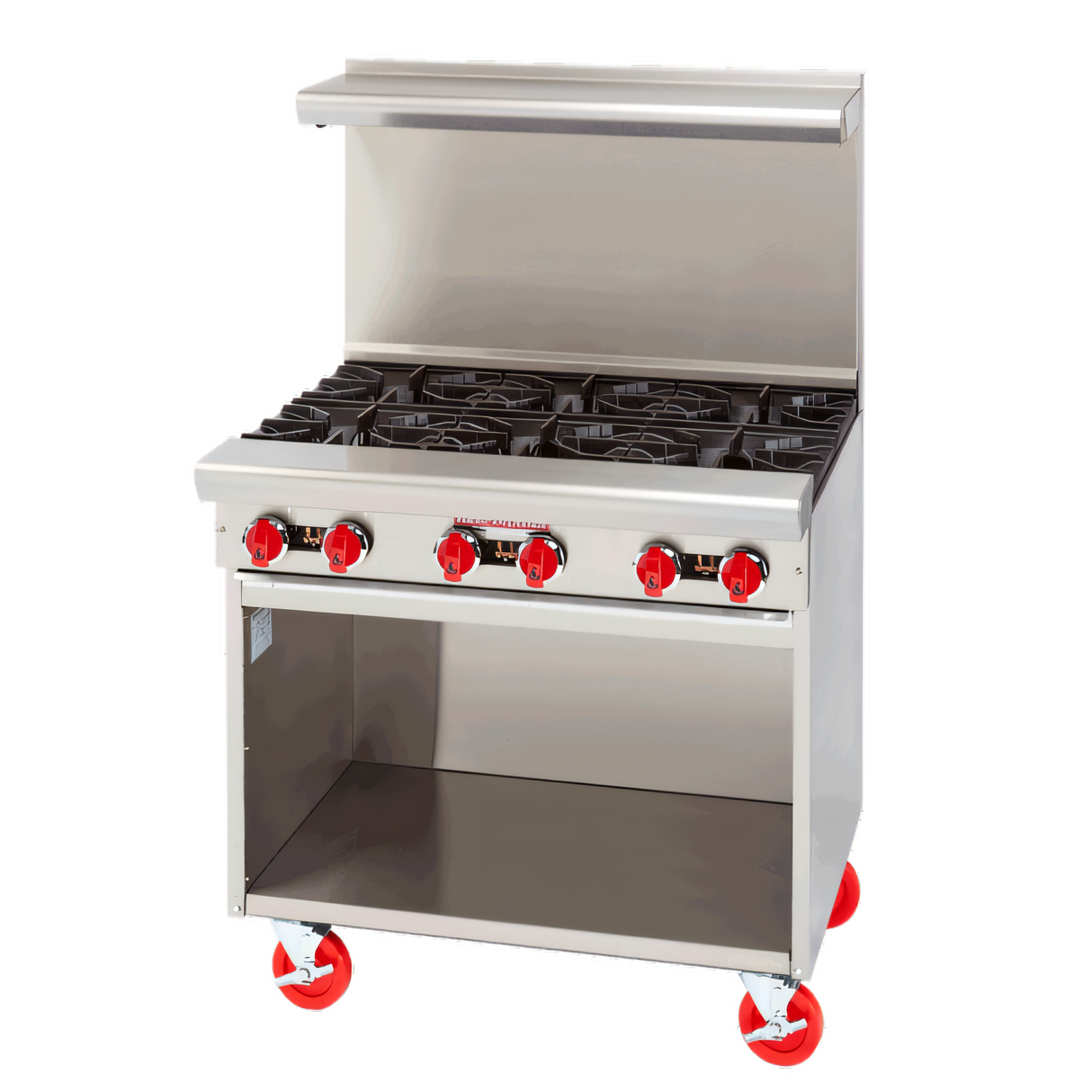

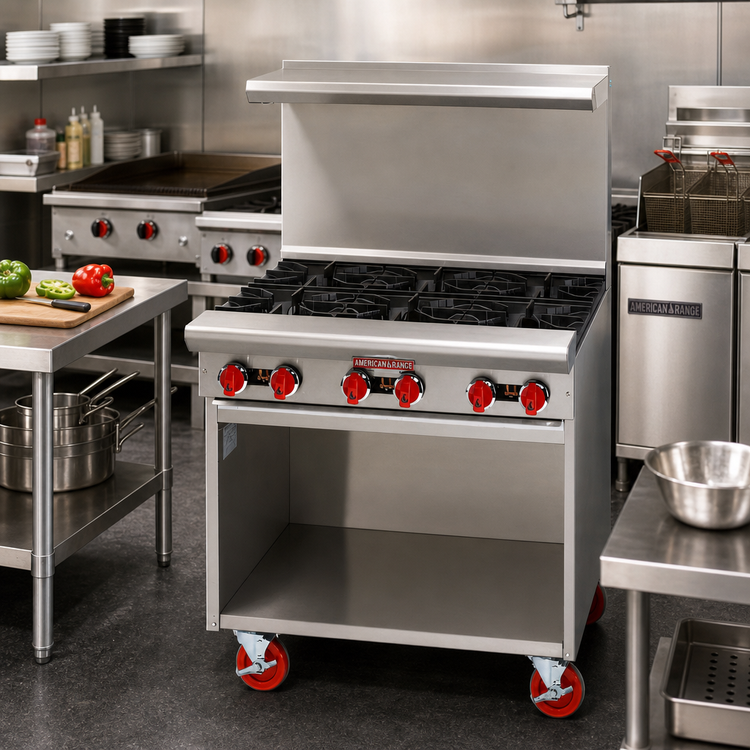

American Range AR-6-SB 36" Gas Restaurant Range with Storage Base
Six 32,000 BTU open burners | 192,000 BTU total | Made in USABuilt for high-volume kitchens that need extra storage rather than an oven, the American Range AR-6-SB packs uncompromising power and durability into a 36 inch footprint. Six 32,000 BTU lift-off open burners sit atop heavy-duty 12" × 12" cast-iron grates, while a full 26 ½" cabinet base keeps sheet pans, stock pots and supplies right where you need them. Stainless-steel construction, removable drip pan and your choice of backsplash options make this “Made in USA” workhorse a smart, flexible addition to any professional line-up.
Key Features

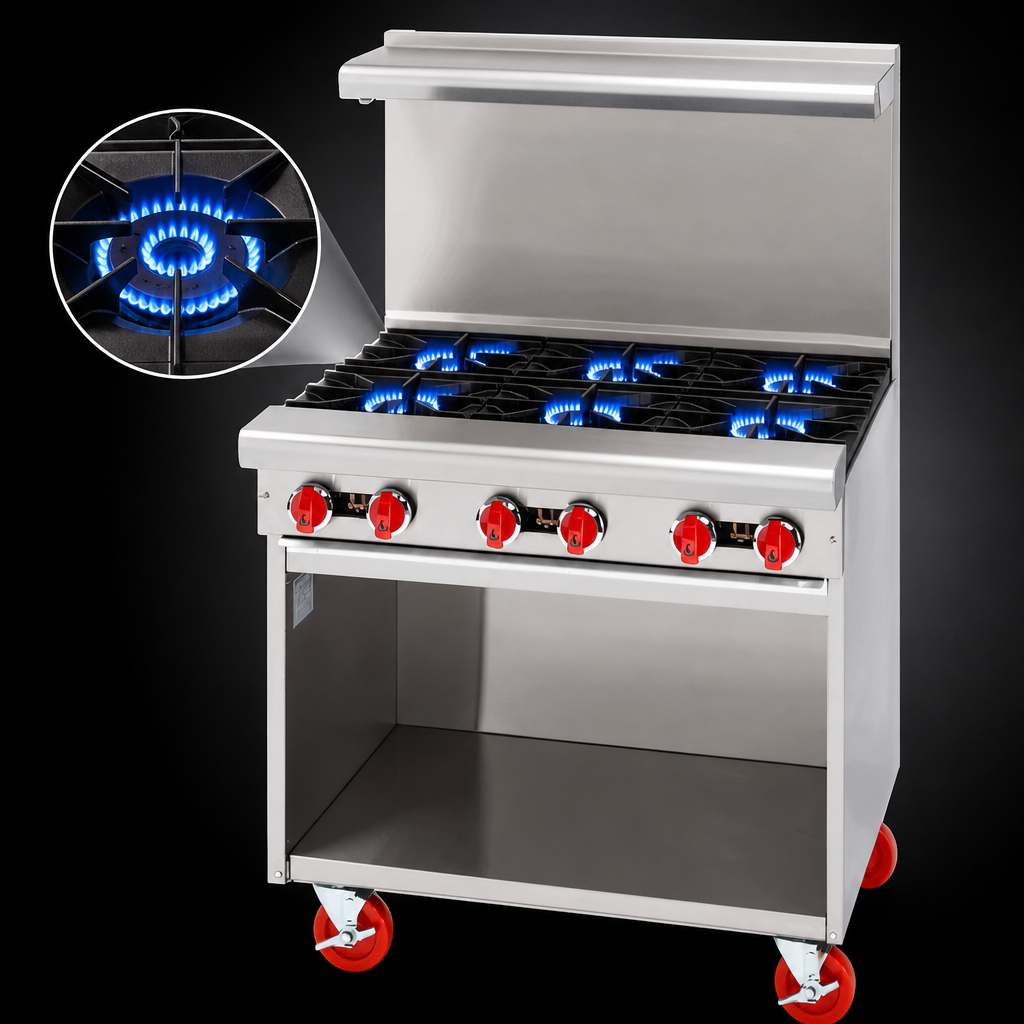

- Six 32,000 BTU open burners (192,000 BTU / 56 kW total)
- Durable 12" × 12" cast-iron top grates – easy to lift for cleaning

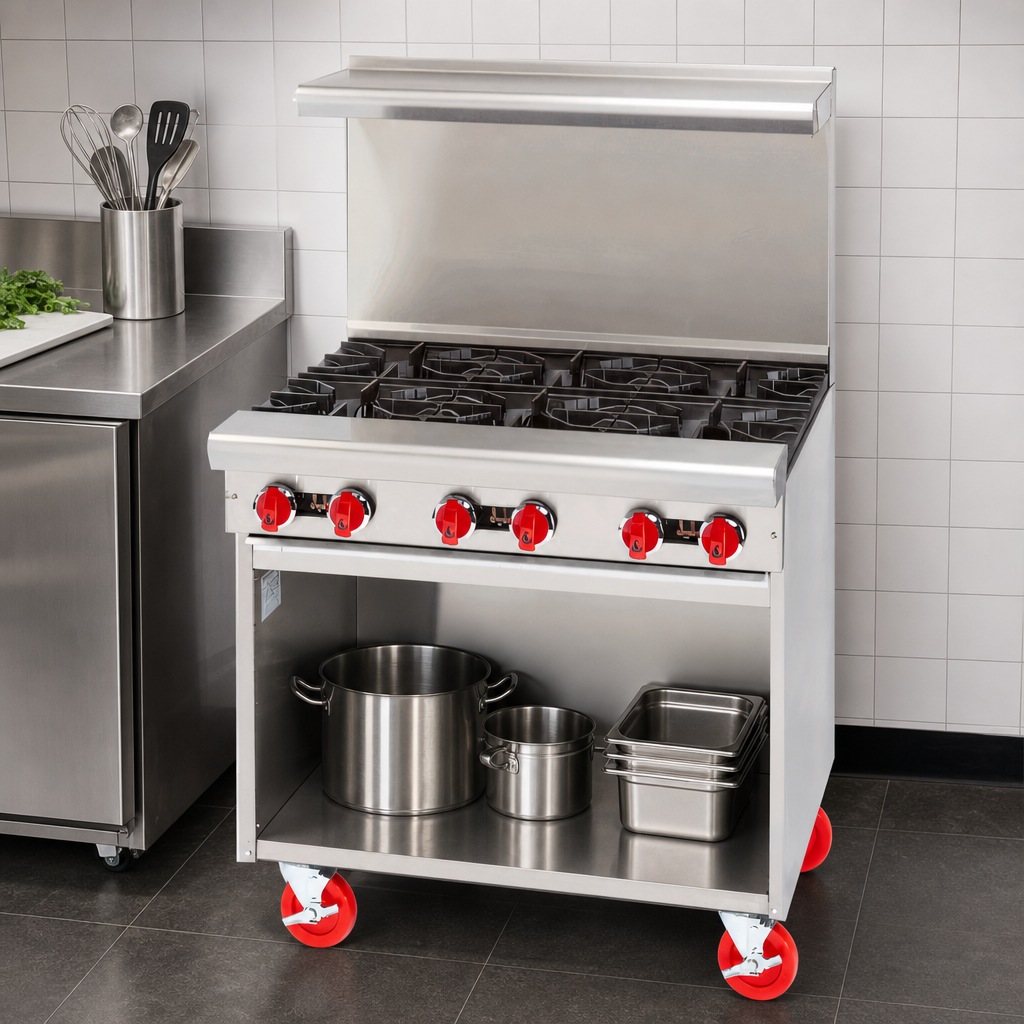

- 26 ½" storage base replaces the oven for convenient under-counter organization
- Full-width, removable drip pan simplifies end-of-shift clean-ups
- Stainless-steel front, sides, landing ledge & control panel resist corrosion and splashes
- Choice of backsplash: 6" stub back, 20" riser, or 20" riser with high shelf (no up-charge)
- 6" chrome-plated, adjustable legs for a level, sanitary installation
- Rear ¾" NPT gas connection with pressure regulator included
- Certified cETLus & ETL Sanitation for gas safety and food-service hygiene
- Two-year limited parts & labor warranty with nationwide service network
- Proudly designed, engineered & built in the United States
Specifications
| Model | AR-6-SB |
|---|---|
| Overall Dimensions | 36" W × 32 ½" D × 56" H * (914 × 826 × 1422 mm) |
| Cooking Surface Height | 36" (914 mm) |
| Open Burners | 6 × 32,000 BTU lift-off heads, cast-iron grates (12" × 12") |
| Base Type | 26 ½" storage cabinet with hinged door |
| Total Input | 192,000 BTU/hr (56.0 kW) |
| Gas Connection | ¾" NPT, rear manifold Manifold Pressure: 5.0" W.C. NAT / 10.0" W.C. LP |
| Backsplash Options | 6" stub back | 20" riser | 20" riser with high shelf |
| Shipping Weight | Approx. 340 lb (154 kg) |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | 2-year limited parts & labor (registration within 90 days recommended) |
*Height shown with 20" riser. Stub-back and shelf options adjust overall height.
Register your range within 90 days to activate full warranty coverage. Full terms available at americanrange.com/terms-of-sale.
