American Range AR-4B-12RG-SB Gas Ranges
Description
36" Raised-Griddle Restaurant Range
with 4 Open Burners & Storage Base
American Range Model AR-4B-12RG-SB | 148,000 BTU | Made in USA
Built in the USA for the busiest commercial kitchens, this 36" gas range pairs four powerful open burners with a raised 12" griddle-broiler and a full-width storage base. Heavy-duty construction, easy-clean details, and flexible backsplash options make it a reliable, space-saving workhorse on any cook line.
Why You’ll Love It

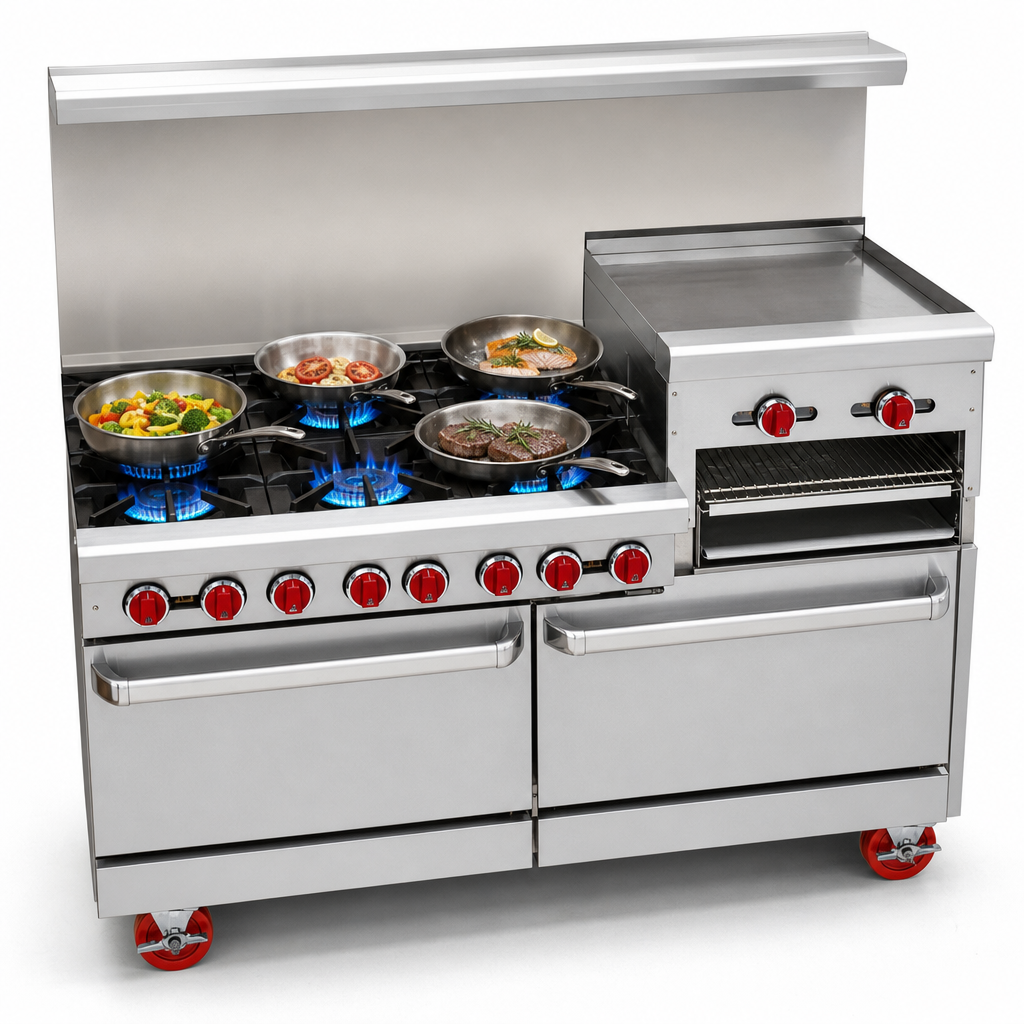

- 4 lift-off open burners on the left, each delivering 32,000 BTU for fast, even heat.

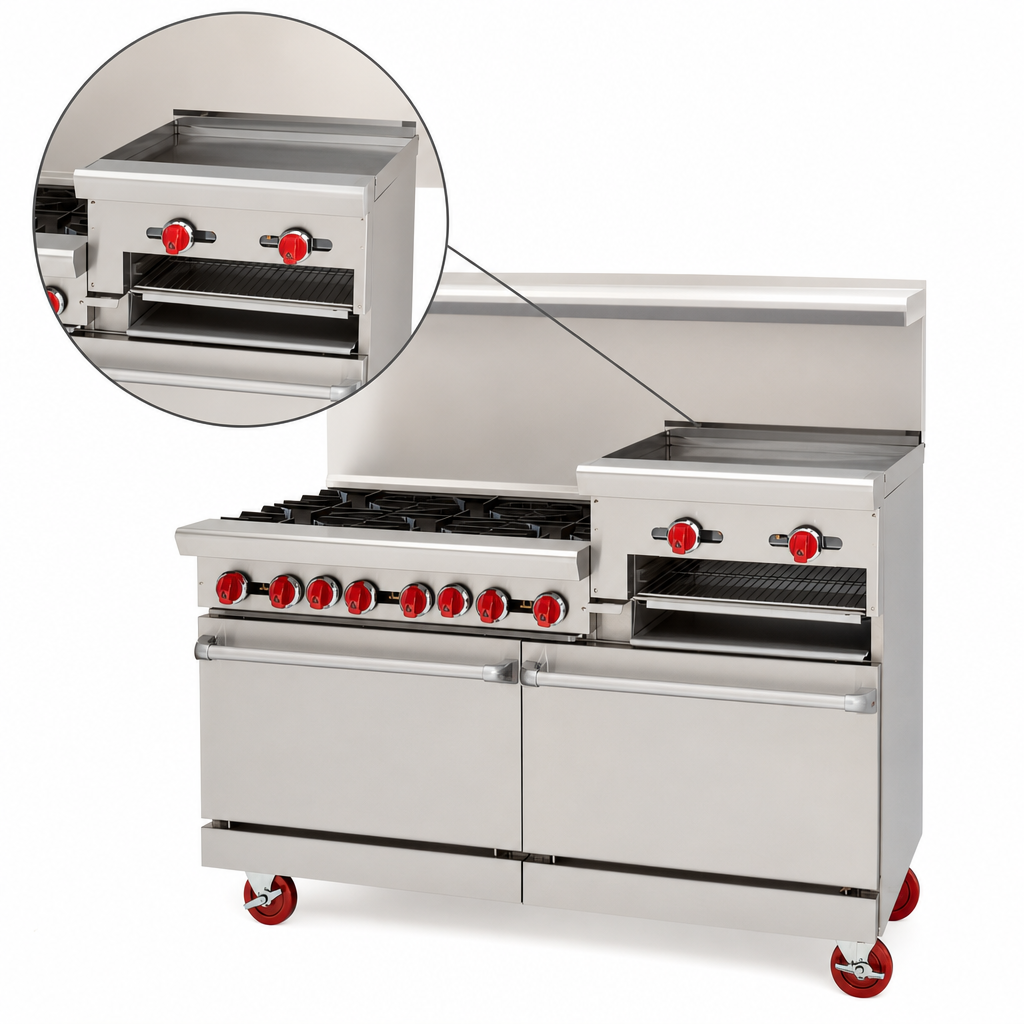

- 12" raised griddle / broiler section on the right with a ¾" thick steel plate and dedicated 20,000 BTU burner—ideal for breakfast items, sandwiches, searing, or finishing under the broiler.
- Manual, front-panel gas valves give chefs instant flame control without electronics.
- Removable full-width drip pan beneath the burners and a 3" wide grease trough on the griddle speed up end-of-shift clean-ups.
- 26 ½" storage base replaces the standard oven—perfect for sheet pans, stock pots, or smallwares that need to stay close at hand.
- 12" × 12" heavy-duty, anti-clog cast-iron grates withstand constant use and slide smoothly for large-pot maneuverability.
- Durable stainless steel front, sides, 6" deep landing ledge, and bull-nose control panel stand up to daily wear.
- 6" chrome-plated adjustable legs level the unit on uneven floors; optional locking casters are available.
- Choose your backsplash at no extra charge: 6" stub back, 20" riser, or 20" riser with high shelf.
- Field convertible for Natural Gas or LP (3/4" NPT rear connection; regulator included).
- Certified cETLus & ETL Sanitation to meet ANSI/NSF standards.
- Backed by American Range’s 2-year parts & labor limited warranty.
Technical Specifications
| Overall width | 36" (914 mm) |
|---|---|
| Overall depth | 32 ½" (826 mm) |
| Cooking height | 36" (914 mm) |
| Height with 20" riser | 56" (1422 mm) |
| Open burners | 4 × 32,000 BTU lift-off (128,000 BTU total) |
| Raised griddle/broiler | 12" section, ¾" plate, 20,000 BTU |
| Total input | 148,000 BTU / h (44 kW) |
| Gas connection | ¾" NPT, rear manifold |
| Manifold pressure | Nat Gas 5.0" W.C. | LP 10.0" W.C. |
| Shipping weight | ≈ 355 lb (161 kg) |
| Certifications | cETLus, ETL-Sanitation |
Included
- 6" chrome-plated adjustable legs
- Removable drip pan & grease drawer
- Choice of 6" stub back, 20" riser, or 20" high-shelf riser
- Pressure regulator & ¾" NPT rear gas connection
Popular Options (sold separately)
- Swivel caster kit (set of 4, two locking)
- Thermostatic griddle control
- Additional chrome broiler rack
Two-year limited parts & labor warranty. Broiler components & replacement parts are covered for 90 days. See full terms at AmericanRange.com.
