Description

American Range AR-48G-2B-DSB 60" Gas Restaurant Range

48" Manual Griddle • 2 Open Burners • Dual Storage Base • Made in USA

Big-volume versatility in a single footprint. The AR-48G-2B-DSB pairs a full-width 1" thick griddle with two 32,000 BTU open burners and swaps ovens for roomy cabinet bases—ideal for kitchens that need extra dry storage without sacrificing cook-top muscle.

Key features

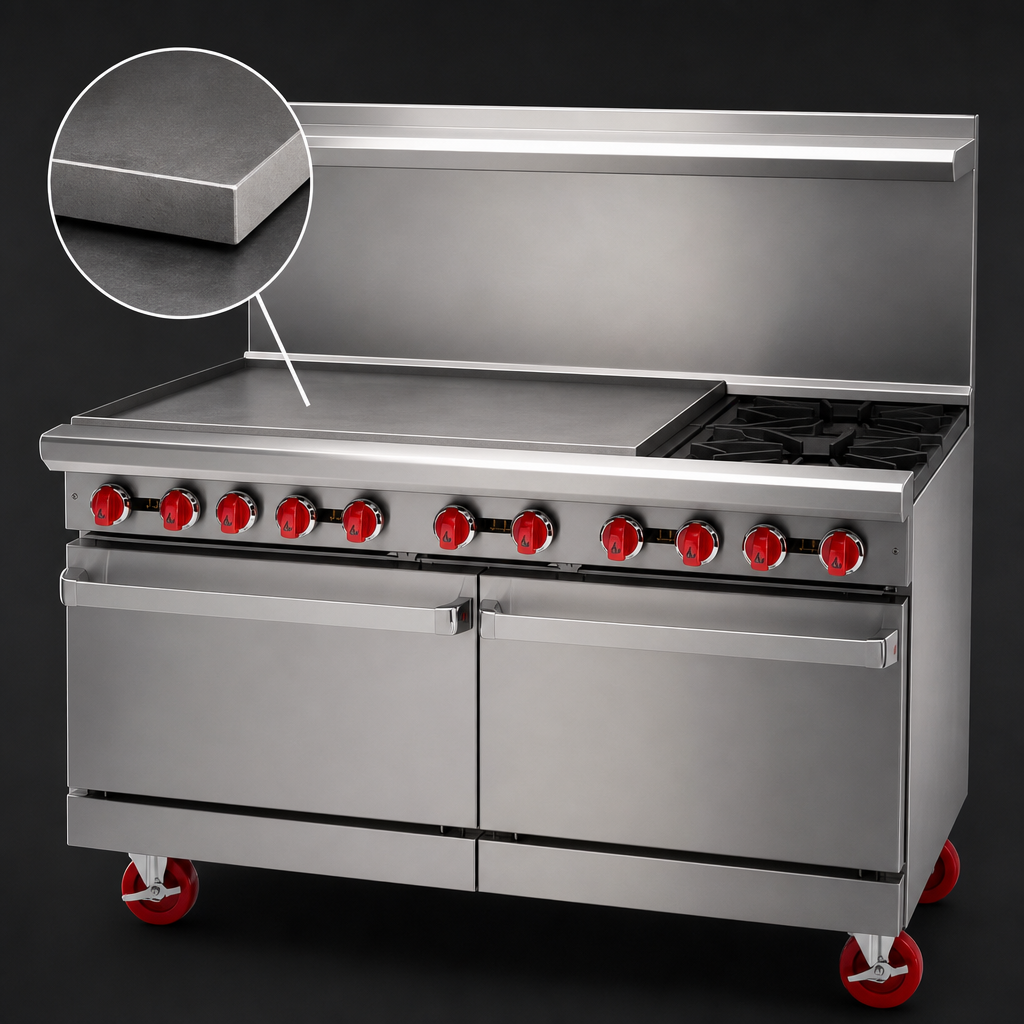

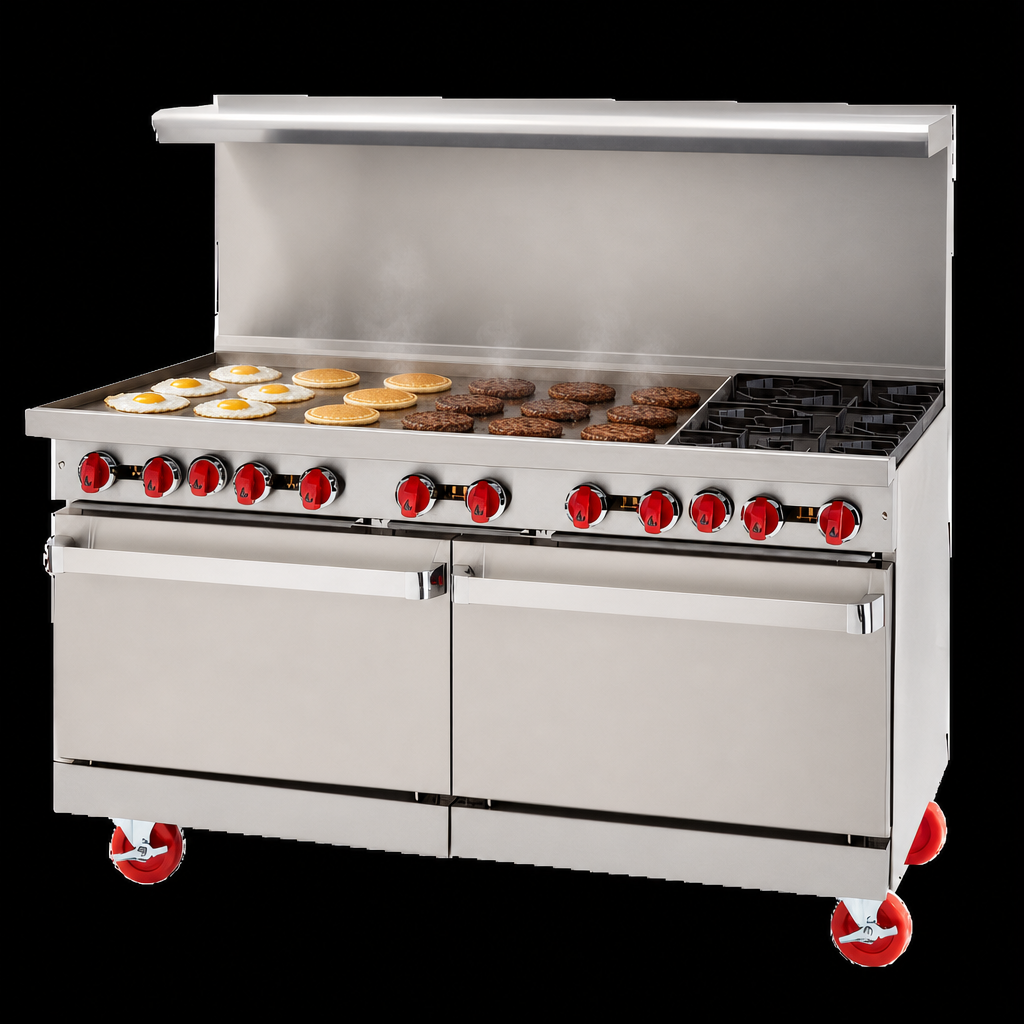

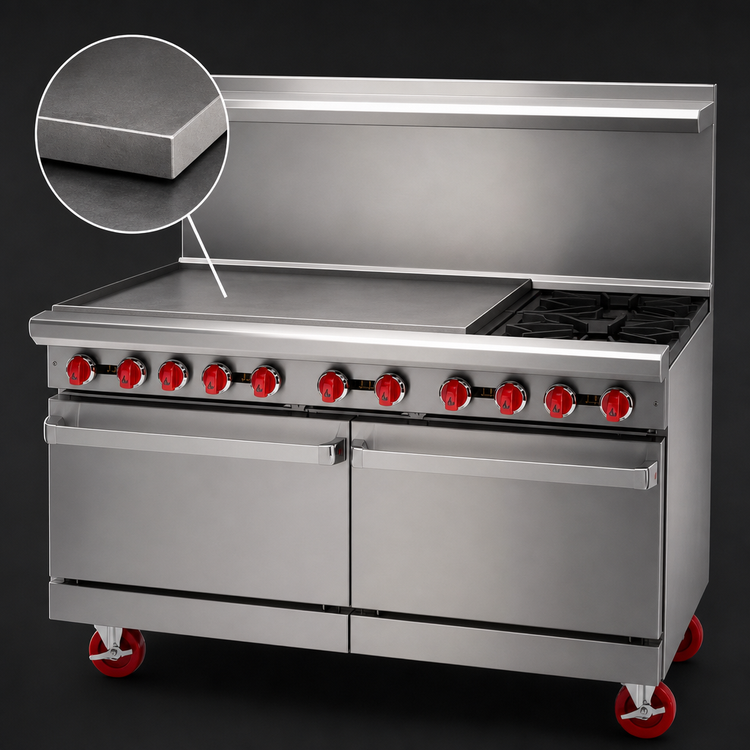

  • 48" wide, 1" thick polished steel griddle on the left for unbeatable heat retention & recovery
  • (2) 12" × 12" lift-off cast-iron burners on the right, each at 32,000 BTU
  • Individual manual control valves for every burner & griddle zone
  • (2) 26-1/2" stainless storage cabinets keep pans, utensils, and dry goods within arm’s reach
  • 3" grease trough & large slide-out grease drawer speed daily cleanup
  • Stainless steel front, sides, landing ledge, & control panel for long-term durability
  • Choice of 6" stub back, 20" low riser, or 24" high riser with removable shelf (select at checkout)
  • 6" adjustable chrome-plated legs for a level, easy-to-clean installation
  • cETLus & ETL-Sanitation listed for safety and hygiene compliance
  • Designed, engineered, and built in the USA; backed by a 2-year parts & labor warranty

Specifications

Model AR-48G-2B-DSB
Gas type Natural or LP (field convertible)
Total input 144,000 BTU/hr • 43.0 kW
Open burners 2 × 32,000 BTU cast-iron with 12" × 12" grates
Griddle plate 48" W × 24" D, 1" thick steel, manual controls
Base configuration (2) 26-1/2" stainless cabinet storage bases
Cooking surface height 36" (914 mm)
Overall size (W × D × H) 60" × 32-1/2" × 56"*
*Height shown with 20" riser.
Gas connection 3/4" NPT rear; 5" W.C. Natural / 10" W.C. LP
Certifications cETLus, ETL-Sanitation
Warranty 2-year limited parts & labor
Country of origin United States of America
Installation notice: This appliance must be installed under an appropriate exhaust hood and connected by a licensed gas professional in accordance with all local codes and NFPA-96.

Product images may show optional accessories such as caster kits, which are sold separately.

Features & Specs

Manufacturer

American Range

Certifications

cETLus, ETL-Sanitation, Made in USA

Height

56.0in

Width

60.0in

Depth

32.25in

Shipping Weight

595.0lbs

Base

(2) cabinets

Plate Thickness

1.000" = 1"

Control Type

manual controls

Exterior Finish

stainless steel front & sides

Top

(2) open burners, (1) 48" griddle

Specifications

Restaurant Range, gas, 60", (1) 48" griddle on left, 1" thick plate, manual controls, (2) 32,000 BTU open burners, (2) 26-1/2" storage bases, stainless steel front, sides, choice of high shelf and riser, 20" riser or 6" stub back, 6" adjustable chrome plated legs, 43.0kW, 144,000 BTU, cETLus, ETL-Sanitation, Made in USA
