American Range AR-36G-C Gas Ranges
Description

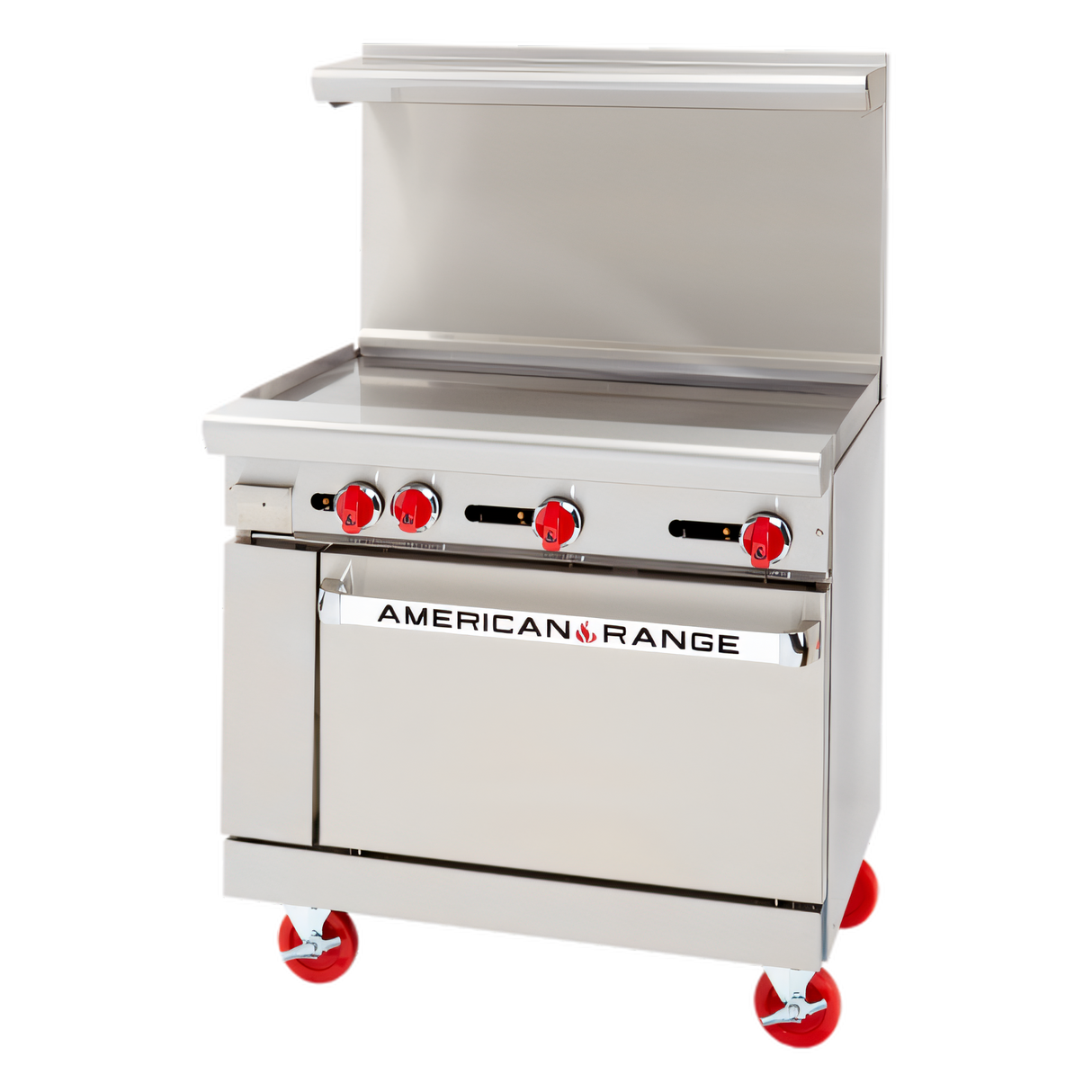

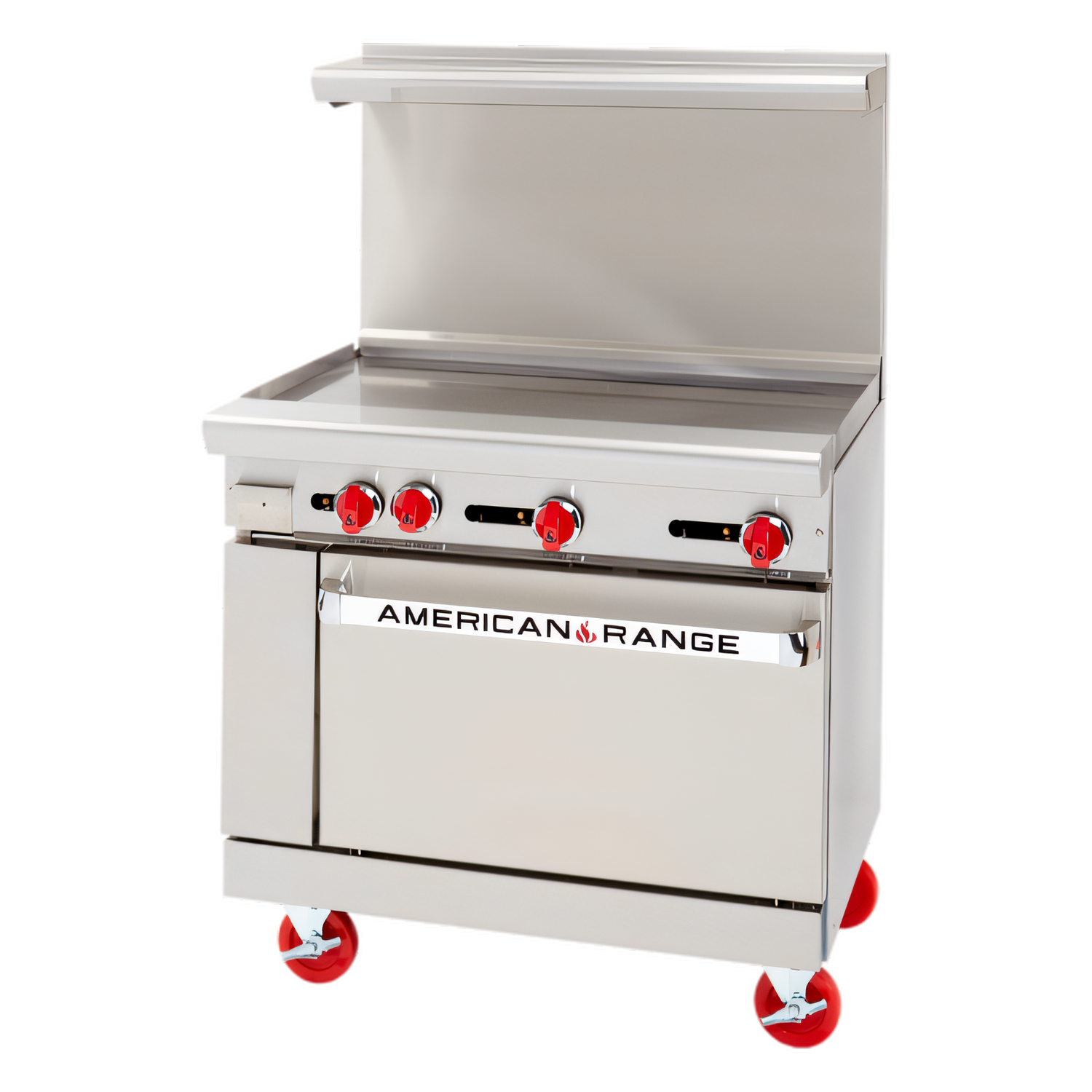

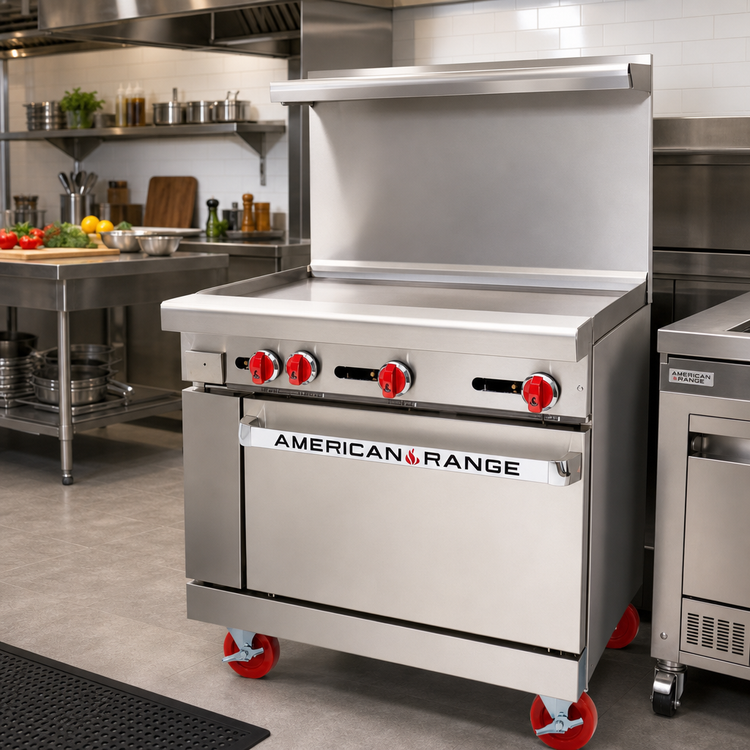

American Range 36" Gas Restaurant Range w/ 36" Manual Griddle & Convection Oven
Model AR-36G-C • 90,000 BTU • Made in USABuilt for serious commercial kitchens, the American Range AR-36G-C combines a full-width 1" thick steel griddle with a high-performance convection oven in a 36-inch footprint. Durable stainless construction, powerful BTU output and flexible back-guard options make this range a dependable workhorse for restaurants, cafés and catering operations.
Key Features

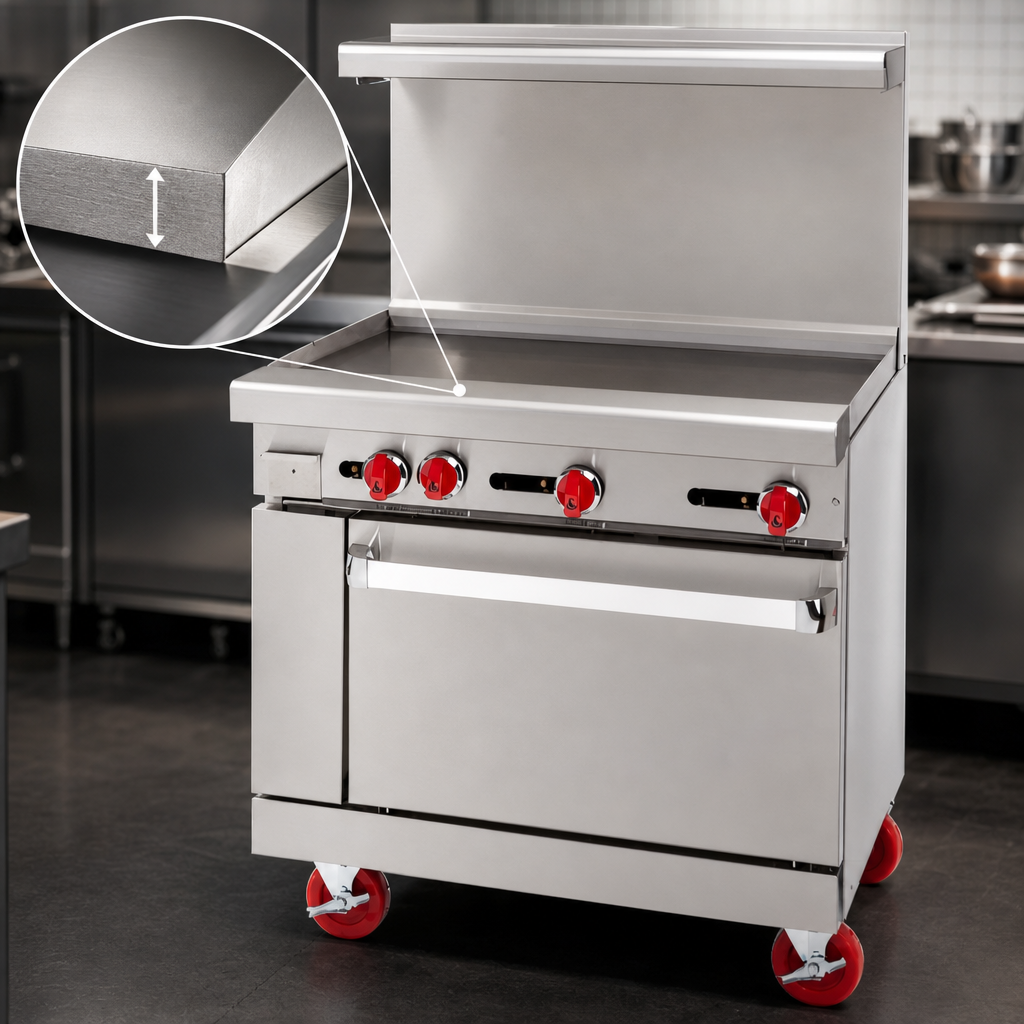

- Heavy-duty 1" polished steel griddle plate spans the entire 36" cooktop.
- Manual gas valves every 12" create up to three independent heat zones.
- 3" grease trough & large removable grease drawer for quick clean-ups.

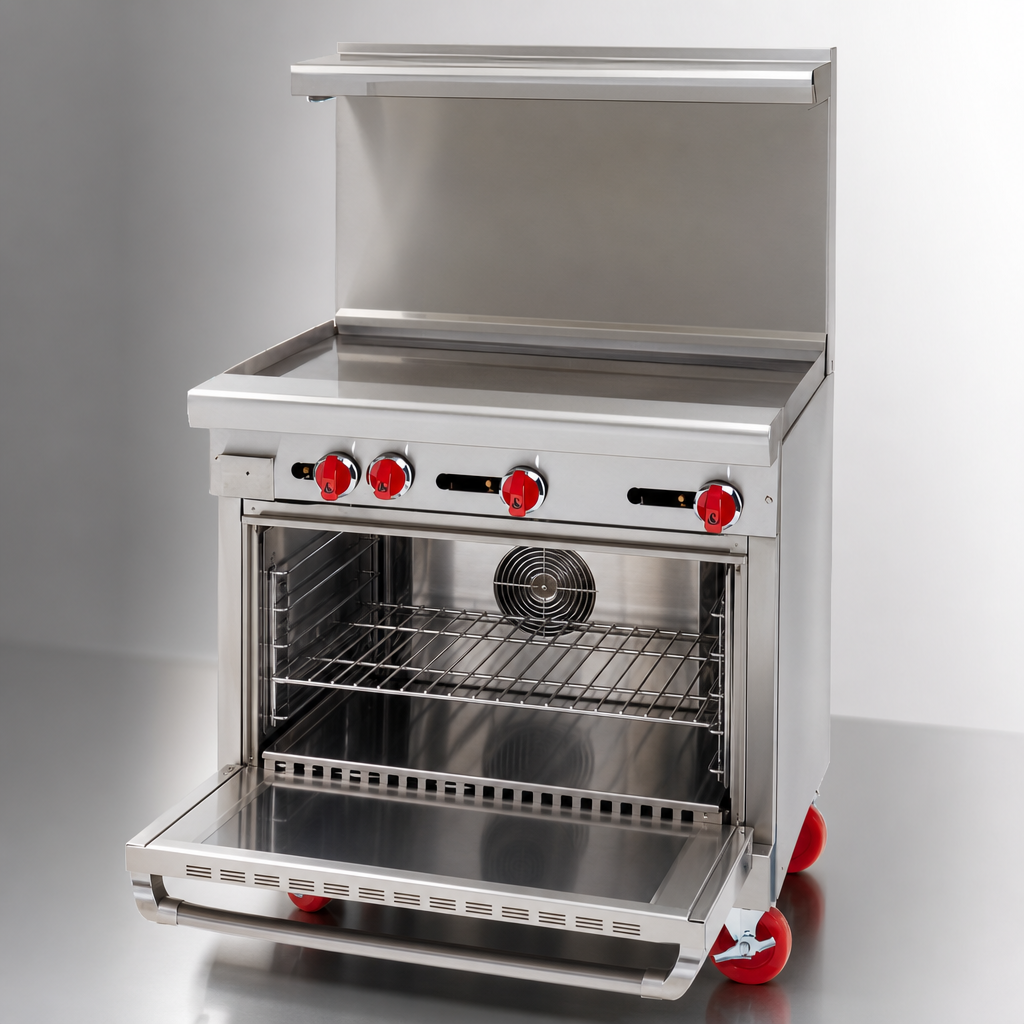

- 26 ½" convection oven (30,000 BTU) with porcelain-enamel interior for easy maintenance.
- Five rack positions; ships with two chrome oven racks.
- Oven thermostat range: 250 °F – 500 °F (121 °C – 260 °C).
- Stainless steel front, sides, landing ledge & kick plate resist corrosion and dents.
- 6" chrome-plated adjustable legs level the unit on any non-combustible floor.
- No-charge choice of back: 6" stub back, 20" riser, or high shelf with riser.
- Rear ¾" NPT gas connection with pressure regulator included.
- cETLus & ETL-Sanitation listed for gas safety and hygiene compliance.
- Backed by a 2-year limited parts & labor warranty.
Why Choose a Convection Base?
A rear-mounted fan circulates hot air throughout the oven cavity, reducing cook times and delivering even browning from corner to corner—ideal for baked goods, roasts, sheet-pan entrées and more.
Specifications
| Overall width | 36" / 914 mm |
|---|---|
| Overall depth | 39 ½" / 1,003 mm (convection base) |
| Overall height | 56" / 1,422 mm (with 6" legs & 20" riser) |
| Total gas input | 90,000 BTU/hr • 27.0 kW |
| Griddle surface | 36" W × 24" D, 1" thick polished steel |
| Oven interior (W × D × H) | 26 ½" × 22 ½" × 13 ½" (673 × 572 × 343 mm) |
| Rack positions / racks supplied | 5 / 2 chrome racks |
| Oven burner rating | 30,000 BTU/hr |
| Gas connection | ¾" NPT rear manifold • 5.0" W.C. NG or 10.0" W.C. LP |
| Electrical (fan) | 120 V, 1 ph, 4 A – 15 amp cord & plug included |
| Shipping weight | Approx. 355 lb / 161 kg |
What’s in the Box
- (2) Chrome oven racks
- Full-width removable drip pan
- 3" grease trough & drawer
- ¾" NPT pressure regulator
- Your selected back-guard option (stub, riser, or high shelf)
Specify natural gas or propane at time of order. For installations above 2,000 ft (610 m), consult the factory for proper orifice sizing.
Certifications & Warranty
Proudly designed and built in the USA, this range carries cETLus and ETL-Sanitation approvals. A two-year limited parts & labor warranty is standard (certain components carry a 90-day warranty). Refer to the full warranty statement for complete terms and exclusions.
Notice: A dedicated 120 V outlet is required to power the convection fan.
