American Range  |  SKU: AR-36G-2B-DSB

American Range AR-36G-2B-DSB Gas Ranges

$6,428.18
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

American Range AR-36G-2B-DSB 48" Gas Restaurant Range

36" Manual Griddle • 2 x 32,000 BTU Open Burners • Dual 20" Storage Bases

Power, versatility, and rugged American construction come together in the AR-36G-2B-DSB. With a full-size 36" griddle, high-performance open burners, and built-in storage, this 48-inch range is purpose-built to keep busy kitchens moving.

Highlights

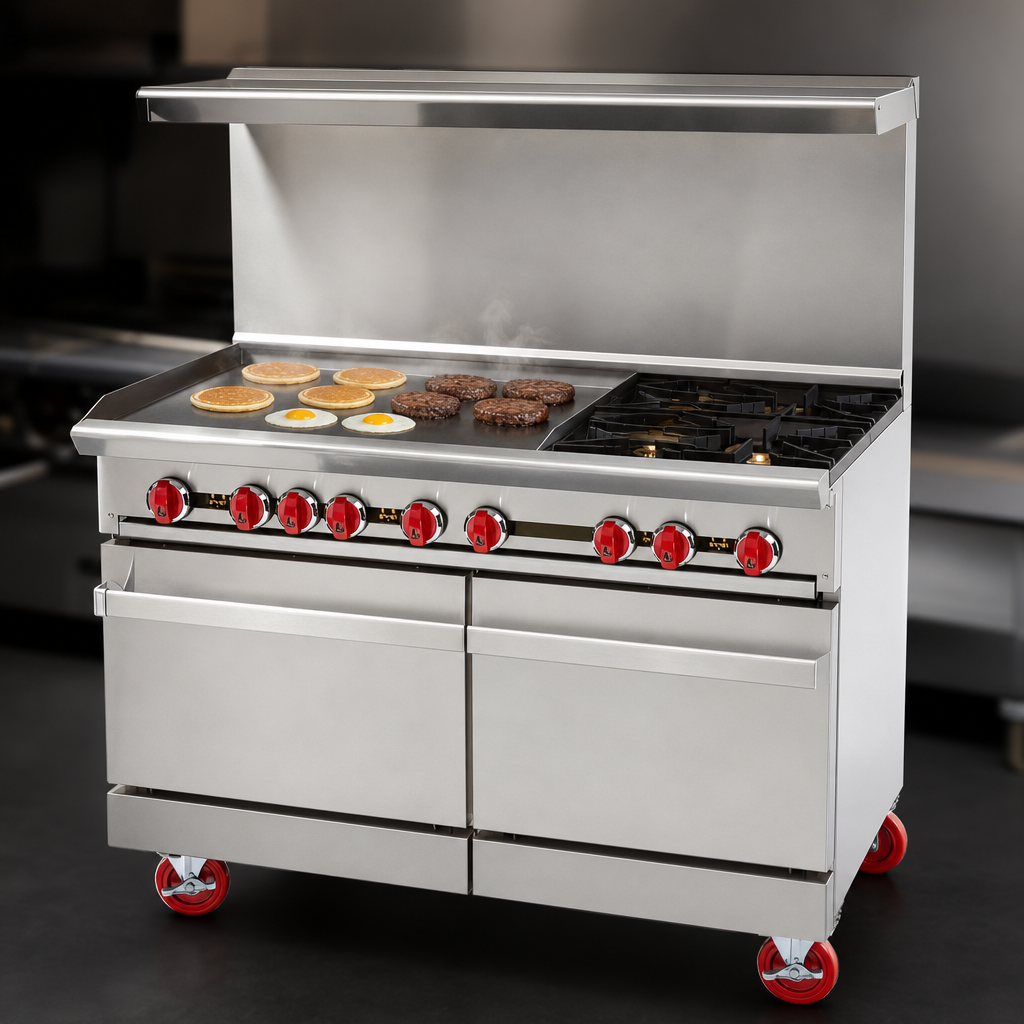

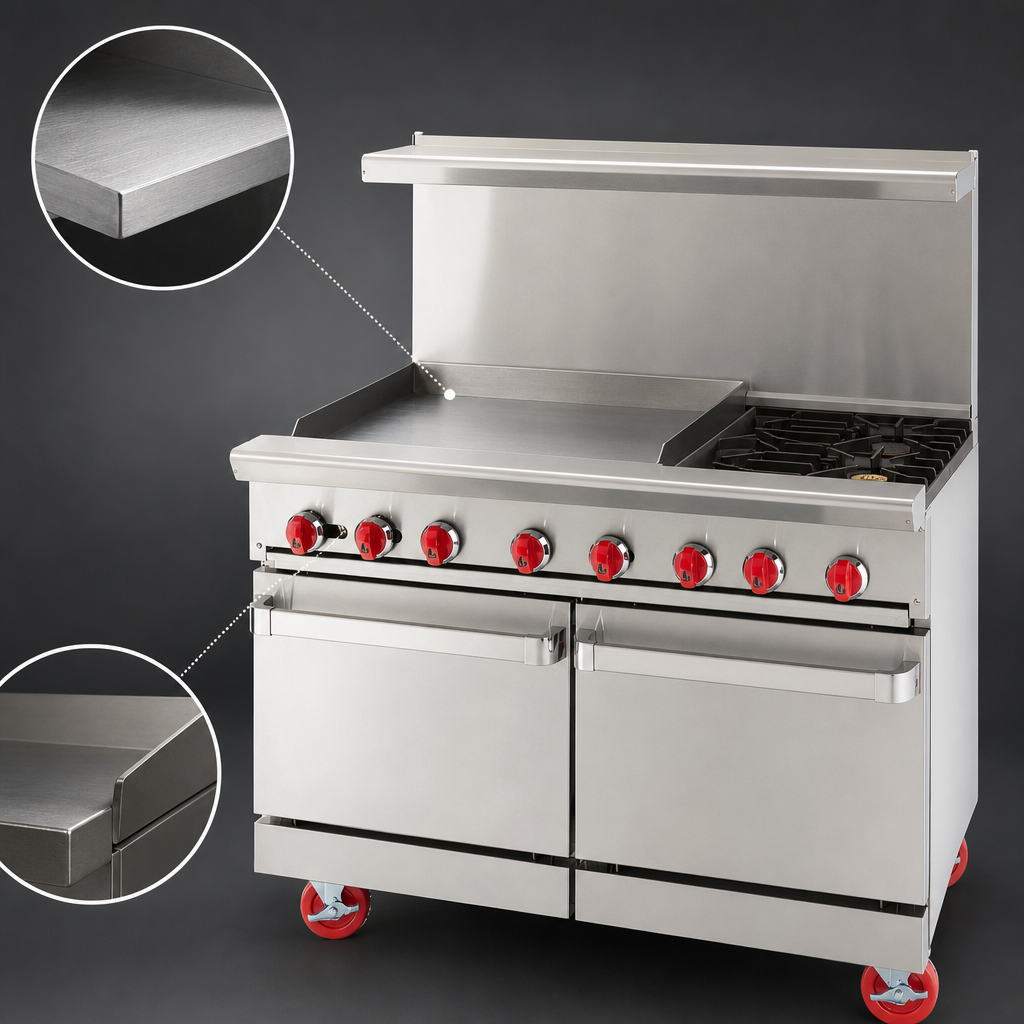

  • 36" wide, 1" thick polished steel griddle plate on the left with individual manual controls.
  • (2) 32,000 BTU lift-off open burners with 12" x 12" cast-iron grates on the right.
  • One 20,000 BTU straight-tube burner every 12" under the griddle for even heat (3 total).
  • Dual 20" stainless steel storage bases—perfect for sheet pans, smallwares, or dry stock.
  • Full-width removable drip pan and 3" grease trough for quick clean-up.
  • Stainless steel front, sides, landing ledge, and 6" adjustable chrome-plated legs.
  • Choose your backsplash at no extra charge: 6" stub back, 20" riser, or high-shelf riser.
  • Two-year limited parts & labor warranty—serviceable nationwide.
  • cETLus & ETL-Sanitation listed; proudly Made in the USA.

Performance

  • Total input: 124,000 BTU/hr (37.0 kW).
  • Manifold pressure: 5.0" W.C. Natural Gas | 10.0" W.C. Propane.
  • 3/4" NPT rear gas connection with factory regulator.

Specifications

Model AR-36G-2B-DSB
Overall width 48" (1219 mm)
Overall depth 32 1/2" (826 mm)
Cooking height 36" (914 mm)
Griddle size 36" W x 24" D (914 mm x 610 mm)
Open burners (2) 32,000 BTU lift-off heads
Griddle burners (3) 20,000 BTU straight tube
Total BTU 124,000 BTU/hr (37.0 kW)
Base configuration (2) 20" storage cabinets
Electrical None required
Shipping weight ≈ 505 lb (229 kg)
Certifications cETLus, ETL-Sanitation

Gas Type

Select Natural Gas or Propane in the options above. Specify if installation altitude exceeds 2,000 ft (610 m).

Professional installation required. Maintain minimum clearances of 12" from combustible sides and 4" from combustible rear, and provide adequate ventilation in accordance with NFPA 96.

Need casters, a thermostatic griddle, or other custom options? Contact us for a fast quote.

Features & Specs

Manufacturer

American Range

Height

56.0in

Width

48.0in

Depth

32.25in

Shipping Weight

505.0lbs

Exterior Finish

stainless steel front & sides

Plate Thickness

1.000" = 1"

Top

(2) open burners, (1) 36" griddle

Base

(2) cabinets

Specifications

Restaurant Range, gas, 48", (1) 36" griddle on left, 1" thick plate, manual controls, (2) 32,000 BTU open burners, (2) 20" storage bases, stainless steel front, sides, choice of high shelf and riser, 20" riser or 6" stub back, 6" adjustable chrome plated legs, 37.0kW, 124,000 BTU, cETLus, ETL-Sanitation, Made in USA
