American Range AR-10-DSB Gas Ranges
Description

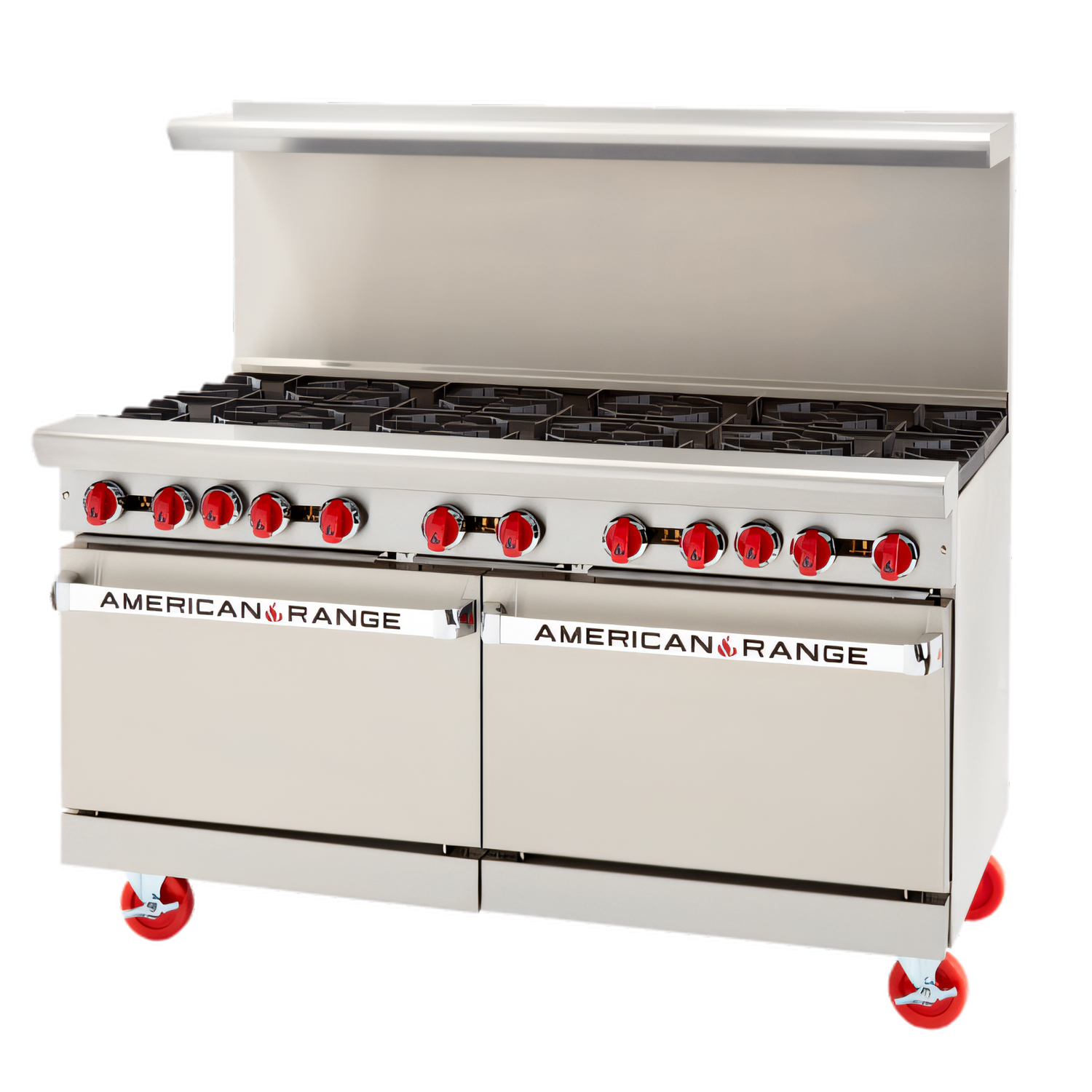

American Range 60" Gas Restaurant Range – 10 Open Burners with Dual Storage Base
Model AR-10-DSB or equivalent configurationBuilt for the relentless pace of a commercial kitchen, this 60-inch American Range unit combines heavy-duty cooking power with two cavernous 26 ½" storage bases—ideal for keeping sheet pans, stock pots and utensils right where you need them.
Key Features
- Ten lift-off open burners rated at 32,000 BTU each (total 350,000 BTU / 103 kW).
- 12" × 12" cast-iron top grates stand up to continuous high-heat cooking.
- Full-width removable drip pan speeds cleanup.
- Dual 26 ½" extra-deep storage bases in lieu of ovens—perfect for cookware and dry-goods.
- Stainless steel front, sides, landing ledge and optional back riser for long-term durability.
- Choice of back configuration (no upcharge):
- 6" stub back
- 20" back riser
- High riser with shelf
- Cool-to-the-touch burner knobs enhance operator safety.
- 6" chrome-plated adjustable legs level the range on uneven floors.
- Field-convertible for Natural or LP gas (factory regulator included).
Specifications
| Width | 60" / 1524 mm |
|---|---|
| Depth | 32 ½" / 826 mm |
| Cooking Height | 36" / 914 mm |
| Total Input | 350,000 BTU/hr (103 kW) |
| Open Burners | 10 × 32,000 BTU lift-off heads |
| Storage Bases | 2 × 26 ½" W compartments |
| Gas Connection | ¾" NPT rear manifold |
| Manifold Pressure | NG 5.0" W.C. | LP 10.0" W.C. |
| Clearances (Combustible) | Rear 0" | Sides 2" (51 mm) with legs or casters |
| Shipping Weight | Approx. 565 lb / 256 kg |
| Origin | Designed & built in the USA |
Certifications
- cETLus Listed (gas safety & performance)
- ETL Sanitation (NSF-equivalent)
- Made in USA
Warranty
Includes American Range’s two-year limited parts & labor warranty. Register the equipment within 90 days of shipment to activate the full coverage.
Looking for a convection or standard oven base instead of storage? Contact us for quick-ship custom combinations direct from American Range’s Las Vegas facility.
