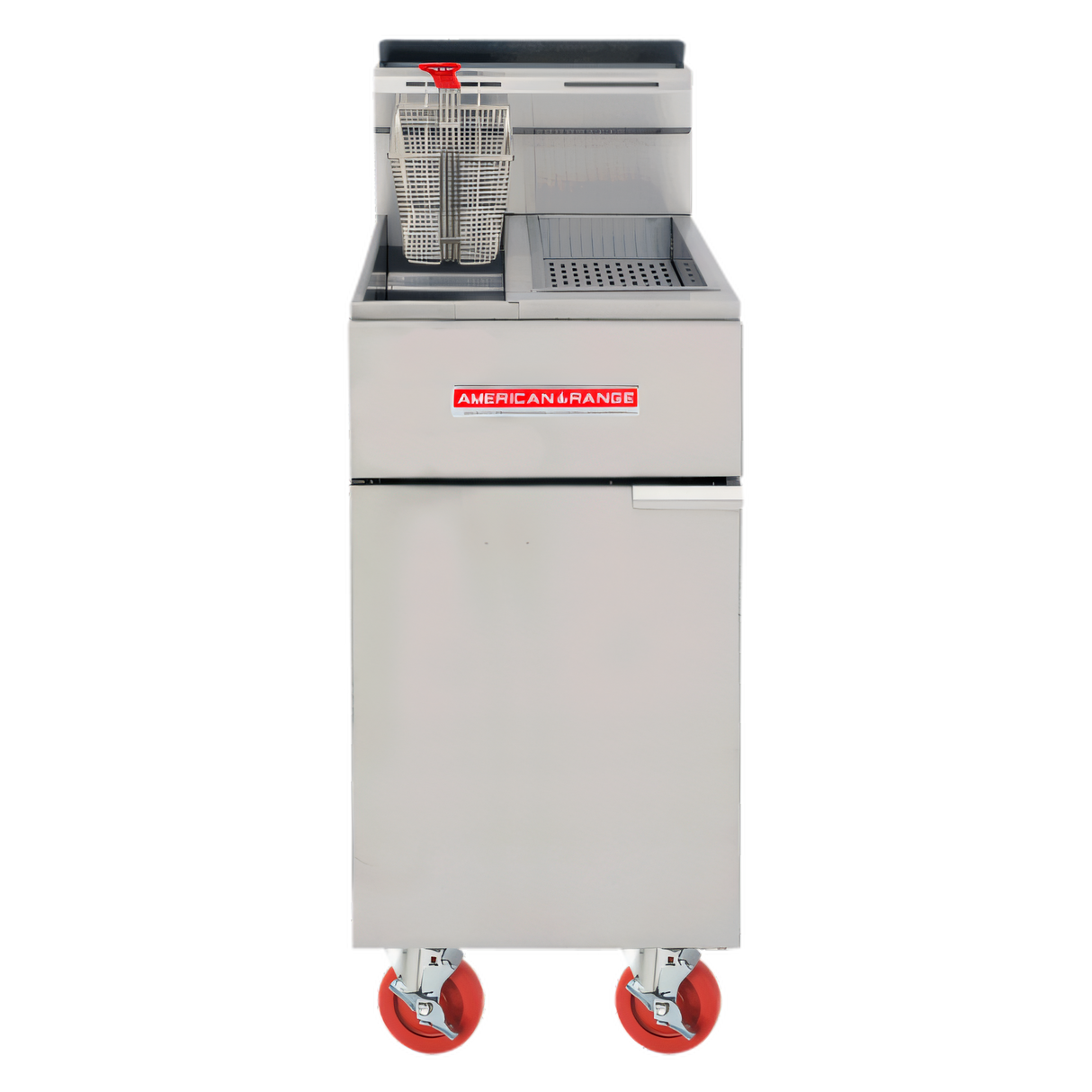

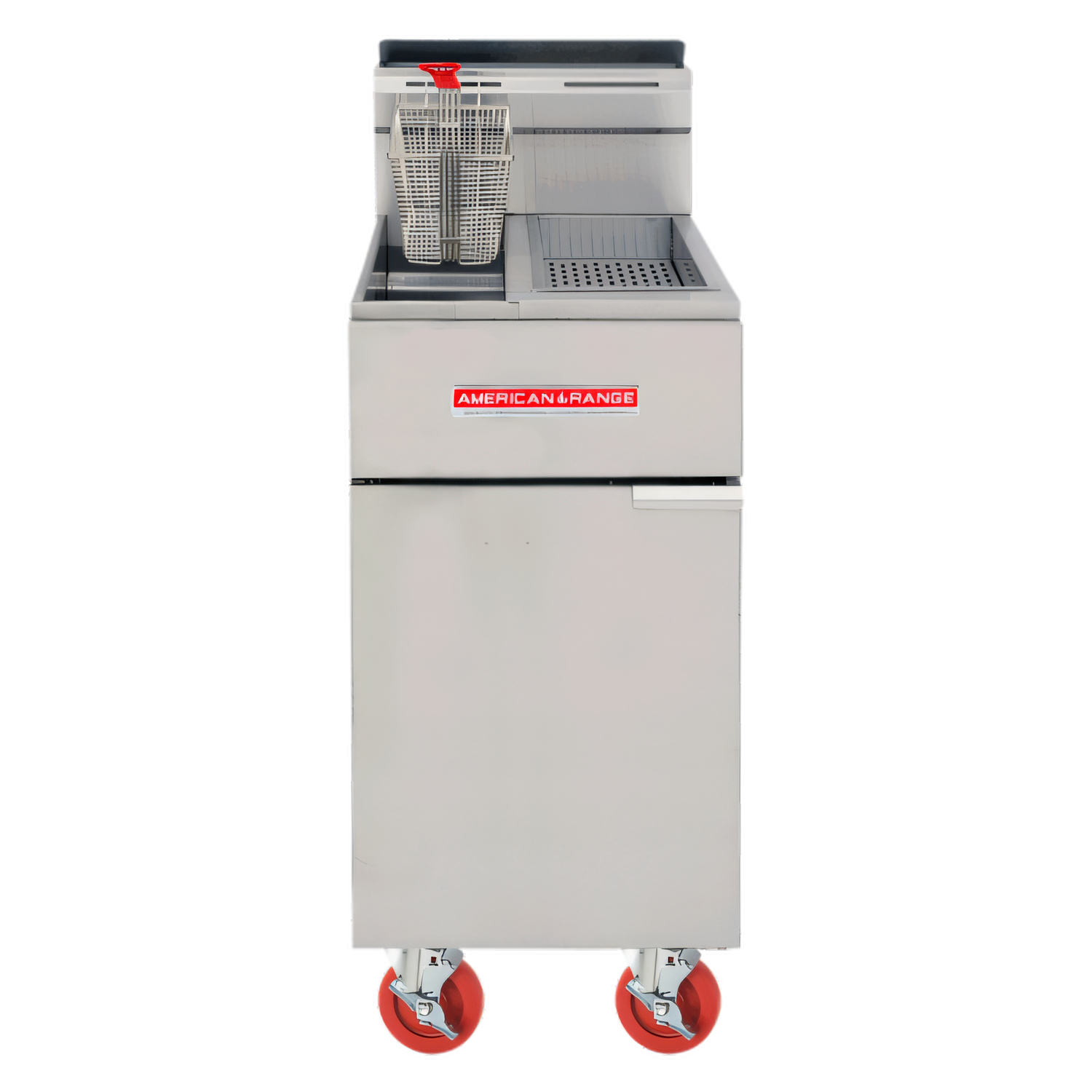

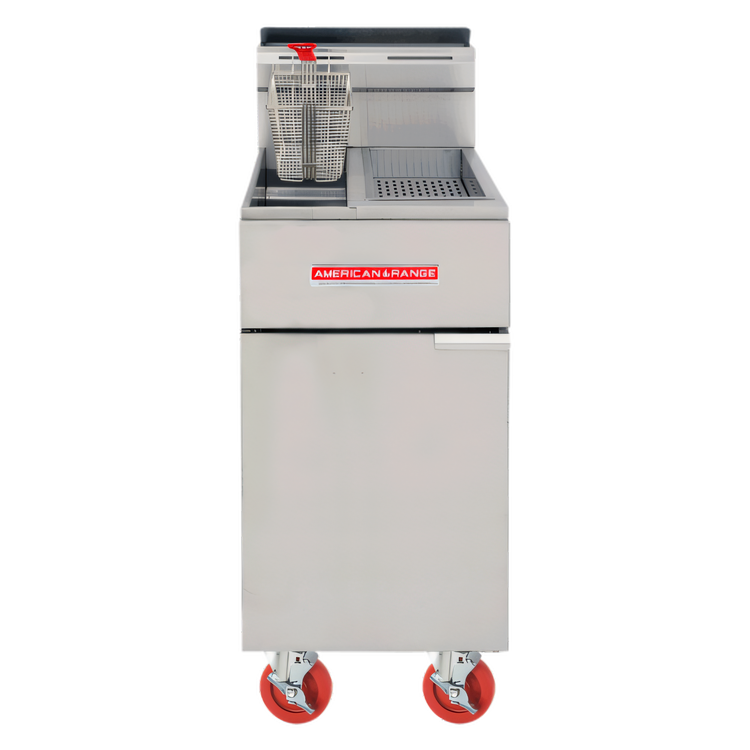

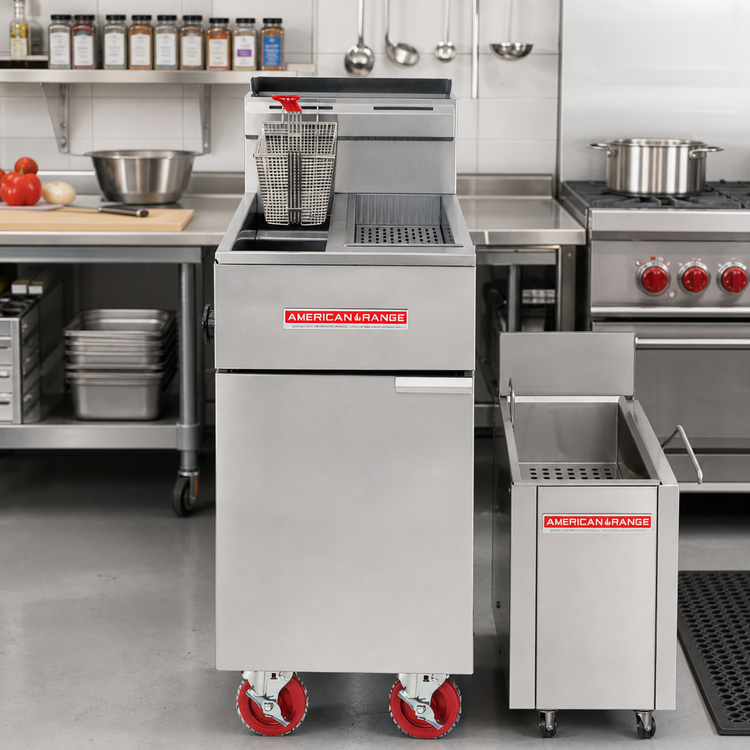

American Range AF-25/DS Floor Model Gas Tube Fryer with Dump Station, 25 lb Capacity

Stainless Steel Construction, Millivolt Pilot, 200°F to 400°F Range

A compact 25 lb floor fryer with a built-in dump station, fast heat recovery, and durable stainless steel construction for busy fry stations.

  • 25 lb floor fryer with a single basket dump station for compact fry stations.
  • 80,000 BTU tube burner delivers fast heat-up and even heat distribution.
  • Thermostatic control covers a 200°F to 400°F range for consistent results.
  • Millivolt pilot system includes 100% safety shutoff.
  • All stainless steel front, sides, and fry pot with a 1-1/4" full-port drain valve.
  • Includes one fryer basket and 6" adjustable chrome-plated legs.

Overall Dimensions:

19.0"W x 32.0"D x 44.0"H

Product Weight:

220.0 lb

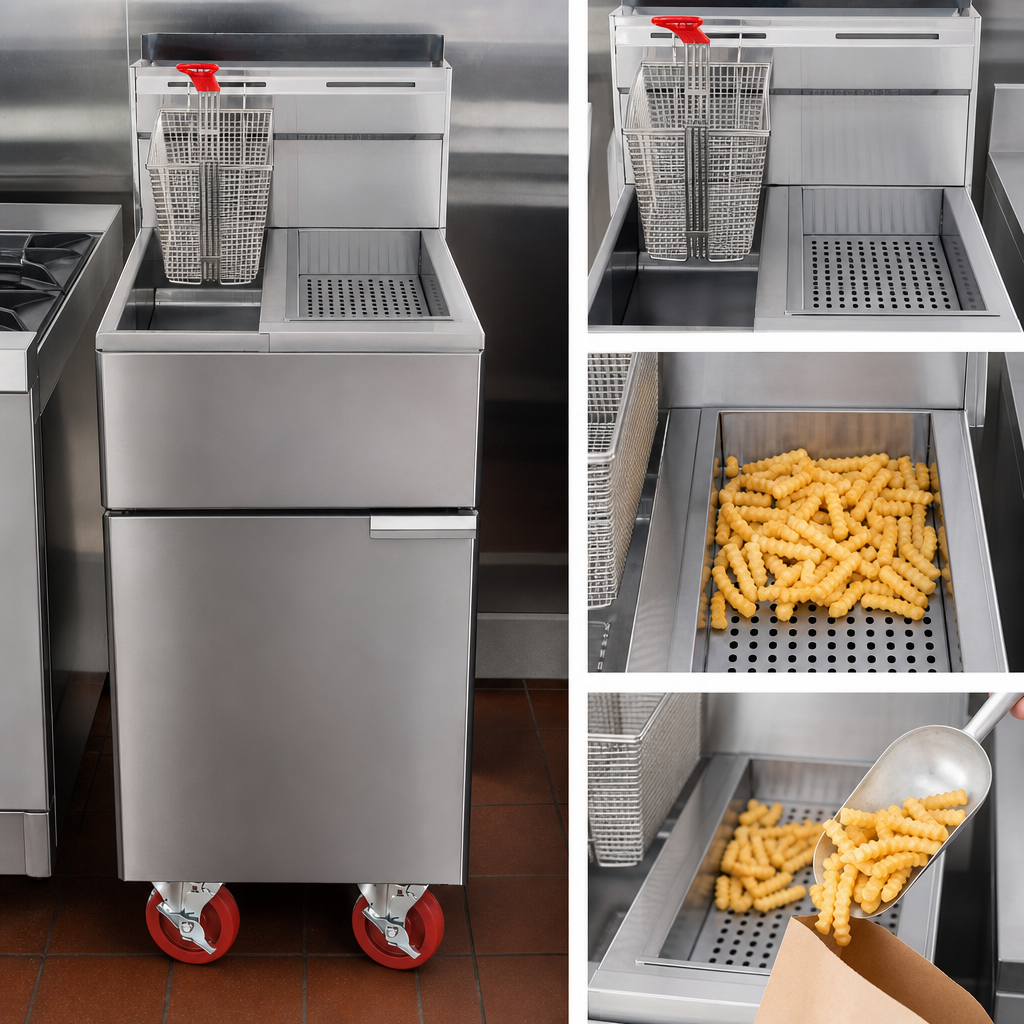

Single Basket Dump Station

Built-in dump station makes it easier to hold and portion food on a compact fry line.

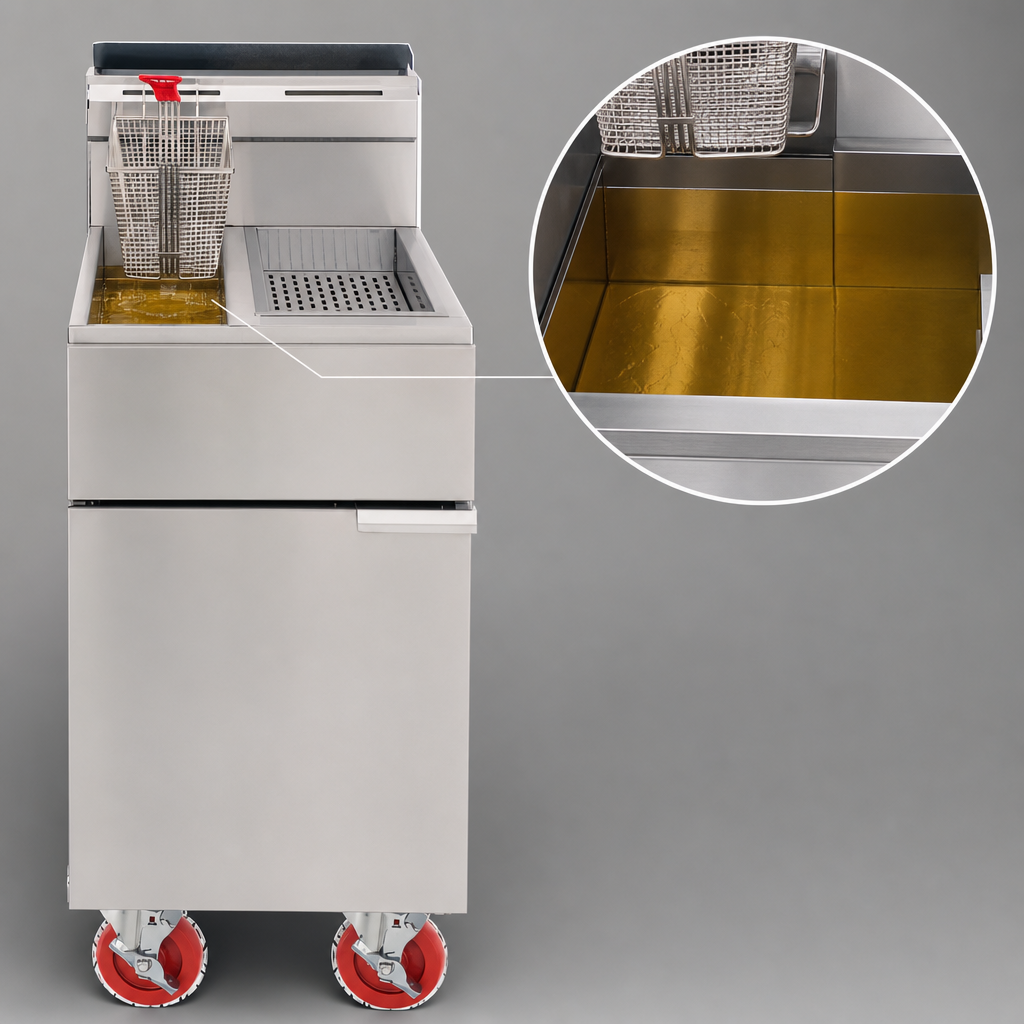

25 lb Oil Capacity

Heavy-gauge stainless steel fry pot holds approximately 25 pounds of oil.

Thermostatic Control

Adjustable 200°F to 400°F temperature range supports consistent frying.

Millivolt Pilot Safety System

Millivolt control system includes 100% safety shutoff and does not require external power for basic operation.

80,000 BTU Tube Burner

High-output burner provides quick heat-up and even heating for improved recovery time.

Stainless Steel Construction

All stainless steel front and sides with a stainless steel tank for durability.

Full-Port Drain Valve

1-1/4" drain valve helps speed draining and cleanup.

Adjustable Legs

6" chrome-plated adjustable legs help with leveling and installation.

Included Fryer Basket

One fryer basket is included with the unit.

Type Fryer
Style Tube
Installation Type Floor Model
Capacity 25 lb
Controls Thermostatic
BTU 80,000 BTU/hr.
Gas Connection Size 3/4 Inch
Material Stainless Steel
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 19 Inches
Shipping Depth 32 Inches
Shipping Height 44 Inches
Shipping Weight 220 lb.

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

1-year limited parts and labor; 5-year tank warranty.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has an approximate 25 lb oil capacity.
Yes. The AF-25/DS includes a single basket dump station.
The thermostatic control ranges from 200°F to 400°F.
The cutsheet lists natural gas and LP gas; specify the gas type when ordering.
The burner is rated at 80,000 BTU/hr.
The cutsheet lists a one-year limited parts and labor warranty and a five-year tank warranty.
