American Range  |  SKU: AF-75

American Range AF-75 Gas Fryers

$3,035.25
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Wiring diagram Millivolt check Manual Warranty sheet
Related Searches
Fryers Gas Fryers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

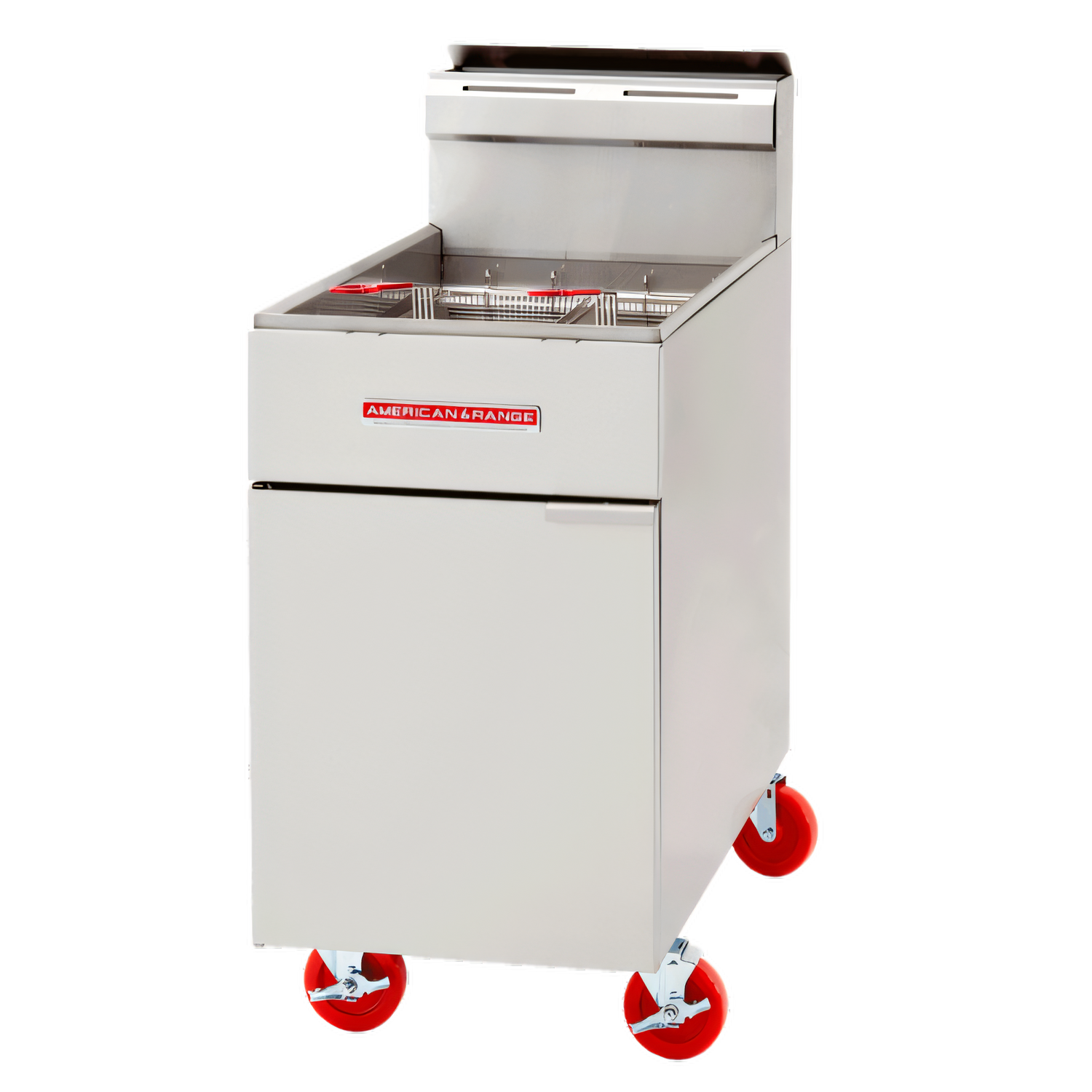

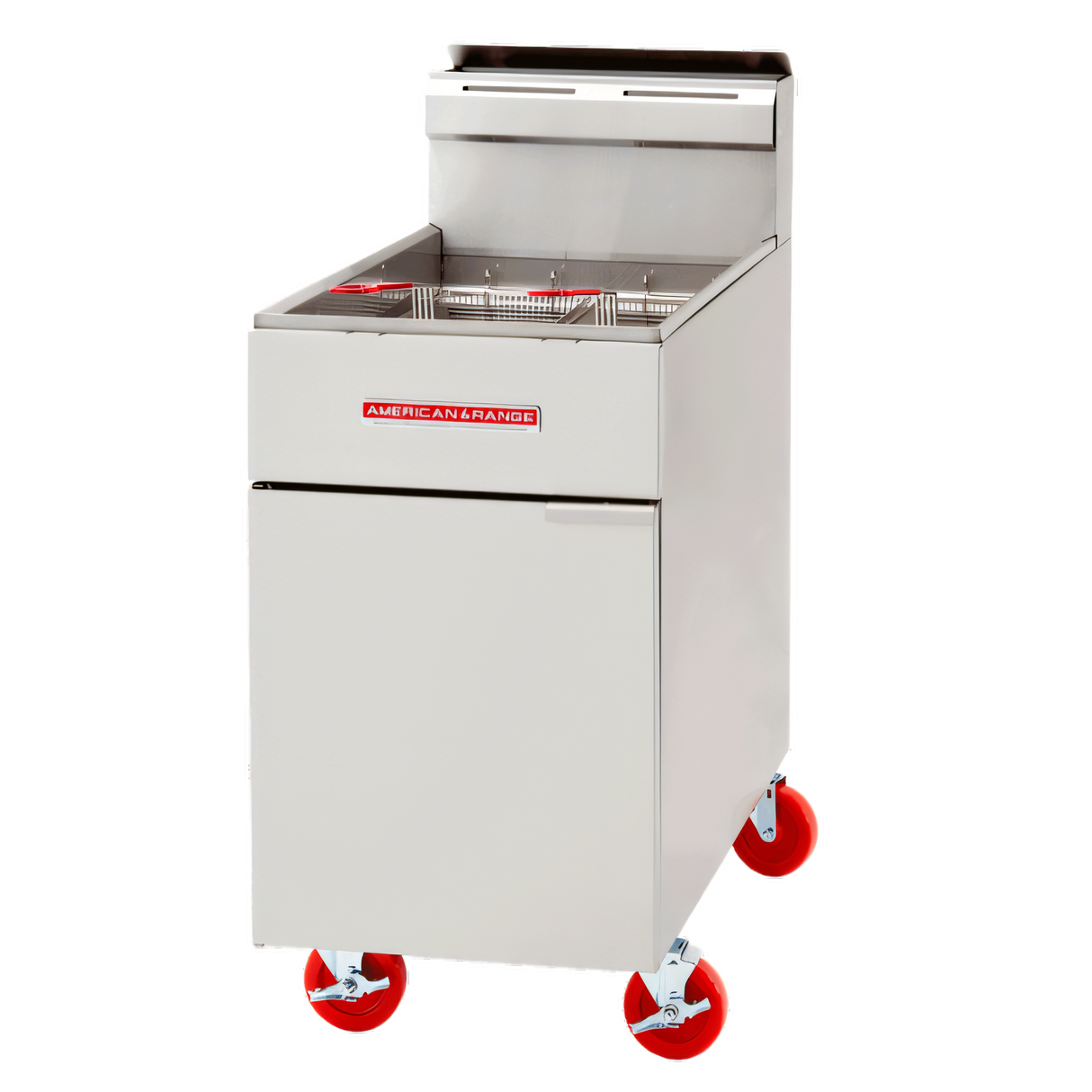

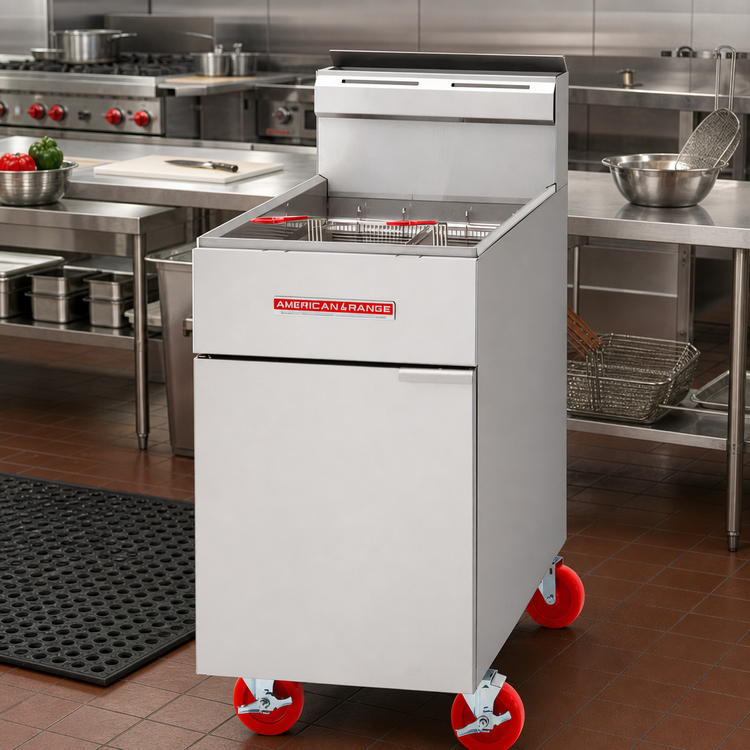

American Range AF-75 Gas Floor Fryer

75-lb Oil Capacity  |  160,000 BTU  |  Made in USA

Built for high-volume kitchens that demand rock-solid reliability, the American Range AF-75 delivers consistent, fast recovery with four powerful tube burners and a heavy-gauge 304 stainless steel fry pot. A millivolt pilot system means no external electricity is required, making this floor fryer as simple to install as it is to operate.

Standard Features

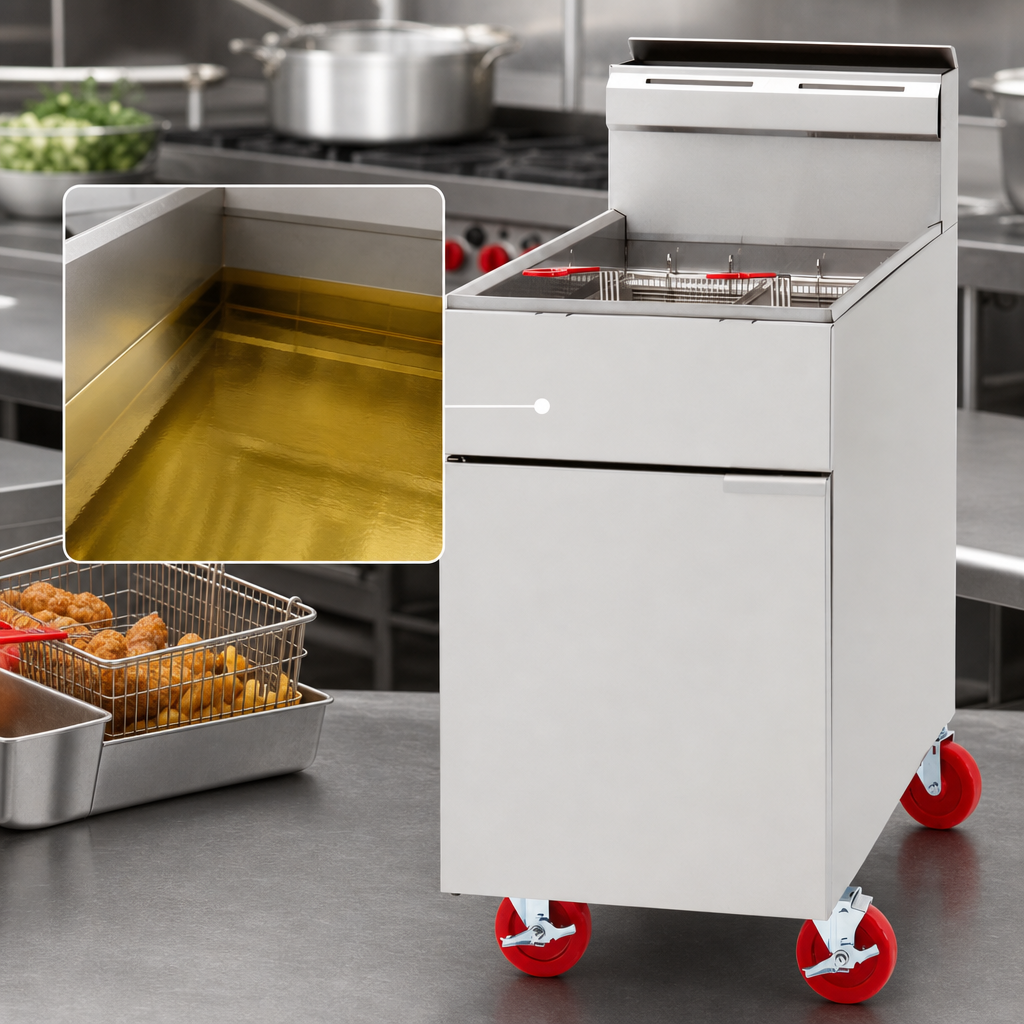

  • 65–80 lb (75 lb nominal) oil capacity with 18" × 18" frying area
  • 304 SS TIG-welded tank for superior corrosion resistance & easy cleaning
  • 4 tube burners rated at 160,000 BTU/hr (47 kW) for rapid heat recovery
  • Thermostatic control from 200 °F – 400 °F (93 °C – 204 °C)

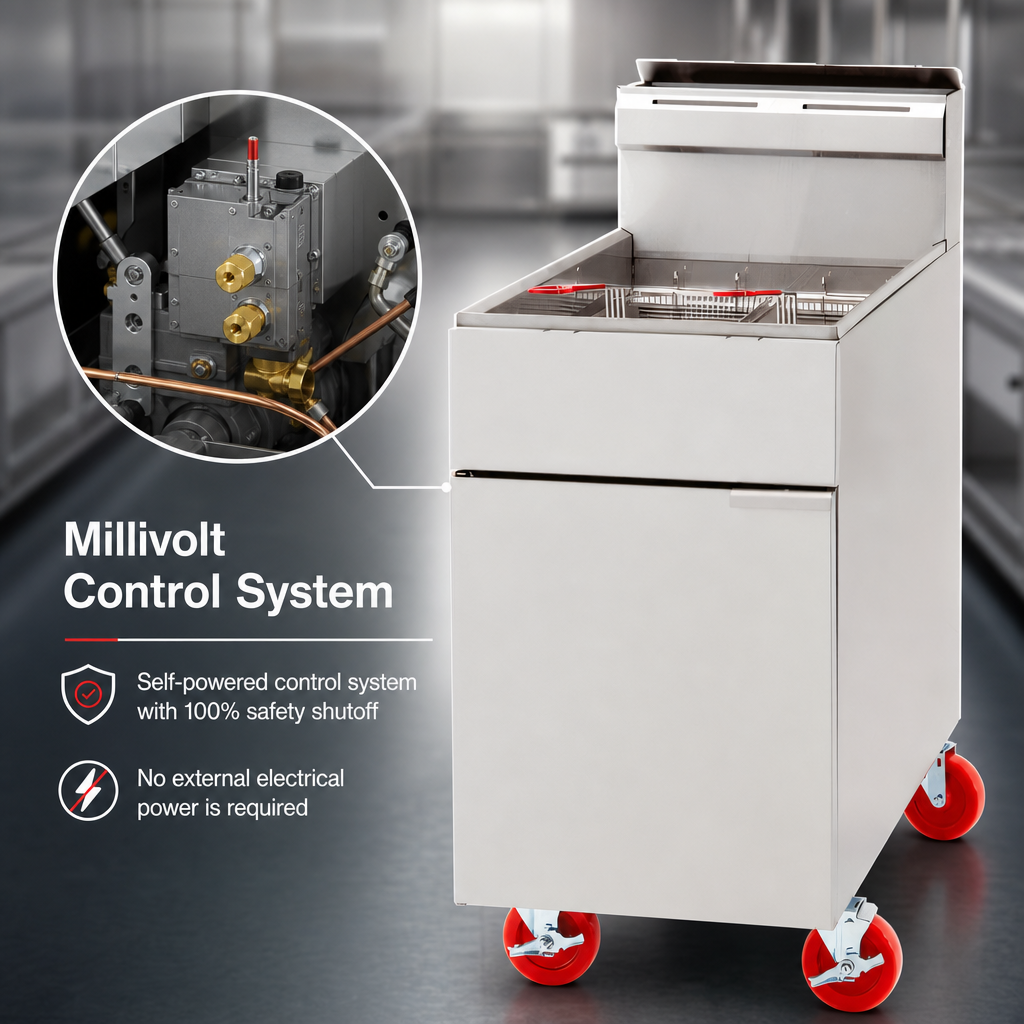

  • Millivolt pilot with 100 % gas shut-off and hi-limit safety—no electrical hook-up required
  • 1 ¼" full-port drain valve (rear) speeds oil disposal
  • (2) chrome-plated fry baskets included
  • All-stainless front & sides with 6" chrome-plated adjustable legs
  • cETLus & ETL-Sanitation listed; designed & built in the USA
Specifications
Model AF-75
Oil capacity 75 lb (34 kg)
Fry pot 304 stainless steel, TIG-welded & polished
Fuel Natural or LP gas (specify when ordering)
Input rating 160,000 BTU/hr (47 kW)
Burners (4) tube-type with alloy diffusers
Thermostat range 200 °F – 400 °F (93 °C – 204 °C)
Controls Millivolt pilot, hi-limit thermostat, 100 % safety shut-off
Drain valve 1 ¼" full-port (rear)
Gas connection ¾" NPT rear inlet
Dimensions (W × D × H) 19 ½" × 34 ½" × 46 ½" (495 × 876 × 1181 mm)
Work height 30 ¾" (781 mm)
Shipping weight 198 lb (90 kg)
Certifications cETLus, ETL-Sanitation
Warranty Two-year limited parts & labor
Popular Options & Accessories
  • Tank cover
  • Left or right stainless steel splash guard
  • Joiner strip for twin-fryer installations
  • Locking swivel casters (replaces 6" legs)
Clearances: 12" (305 mm) from combustible sides, 4" (102 mm) from rear. Unit must be installed on non-combustible floors or curb mounted with a 2" (51 mm) overhang.

Product improvements may cause specifications to change without notice. Always consult the installation manual before setting final rough-ins.

American Range Advantage
  • Engineered & manufactured in the USA for over 40 years
  • Nationwide parts & service support network
  • Heavy-duty construction built for the rigors of commercial kitchens

Features & Specs

Manufacturer

American Range

Certifications

cETLus, ETL-Sanitation, Made in USA

Height

45.75in

Width

19.5in

Depth

34.25in

Shipping Weight

198.0lbs

Controls

millivolt controls

Fat Capacity (approximate)

80 lb

Exterior Finish

all stainless steel exterior

Type

restaurant

Fry pot

stainless steel fry pot

Basket Lifts

without basket lifts

Filter

no filter

Specifications

Fryer, gas, full size, 65-80 lb.,floor model fat capacity, 304 stainless steel TIG welded tank, thermostat control, millivolt pilot system, 1" drain valve, (2) baskets, stainless construction, 6" chrome plated adjustable legs, 47.0kW, 160,000 BTU, cETLus, ETL-Sanitation, Made in USA
