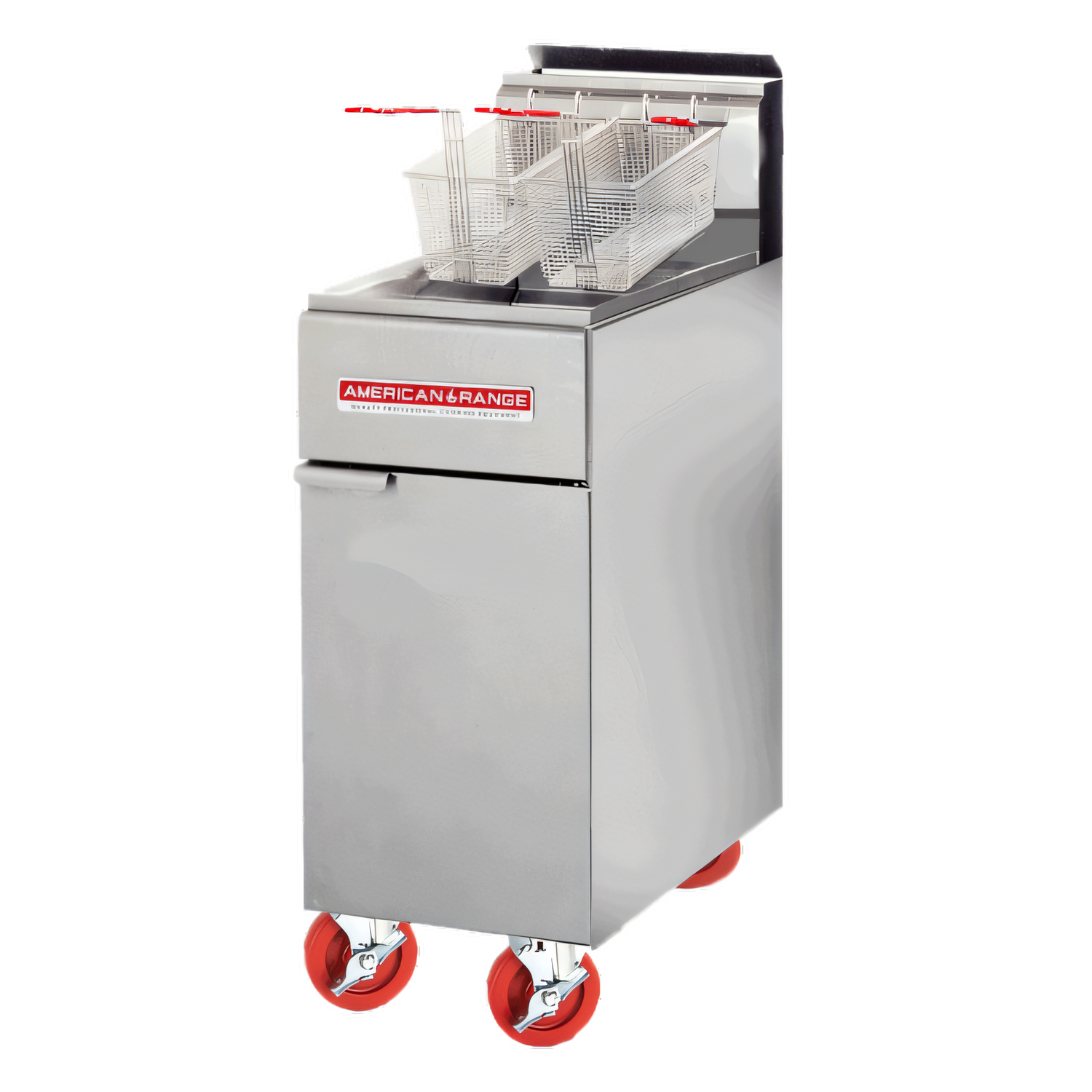

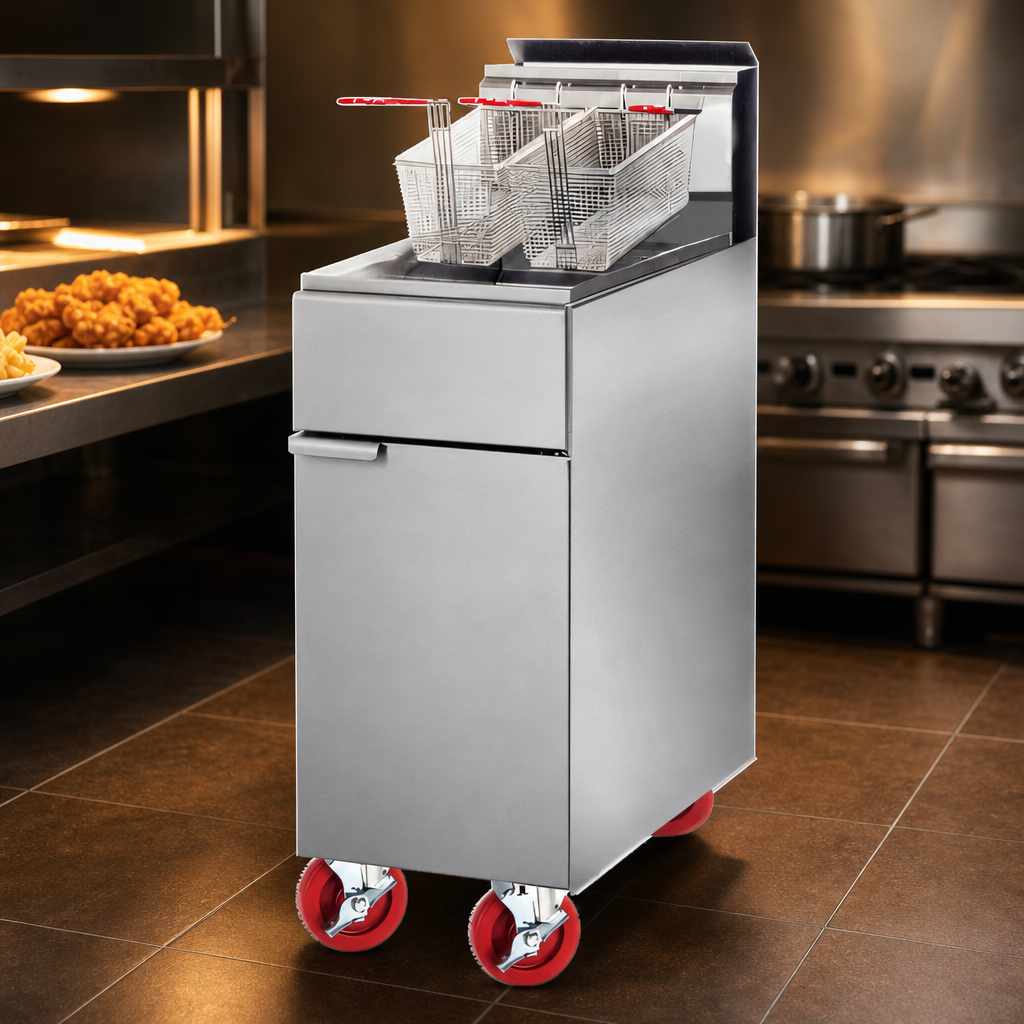

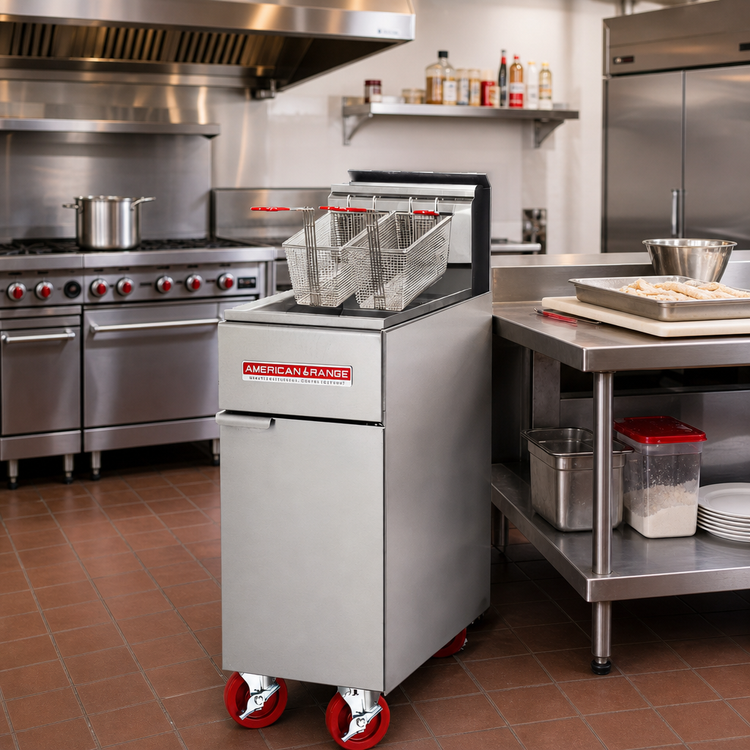

American Range High-Efficiency 50 lb Gas Fryer
Model AF-50HE | ENERGY STAR® Certified | Made in USABuilt for serious volume and razor-sharp energy savings, the American Range AF-50HE delivers a sizzling 75,000 BTU/hr of cooking power while using up to 35 % less gas than standard fryers. A seamless 304 stainless-steel tank, tool-free clean-out features, and rock-solid U.S. craftsmanship keep this fryer working as hard as you do.
Key Benefits

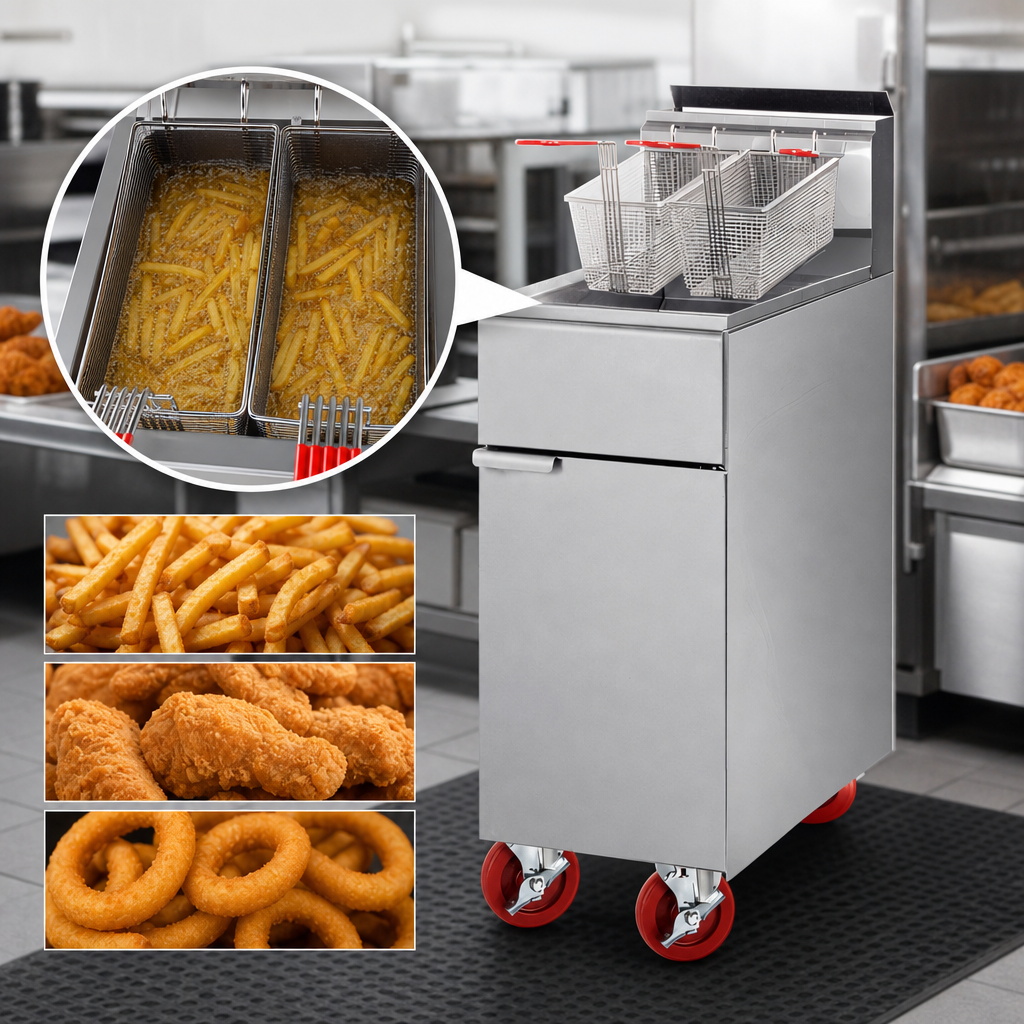

- 50 lb (25 L) oil capacity handles high-volume orders with ease.
- ENERGY STAR® qualified for lower utility bills and a faster ROI.
- Triple-tube heat exchanger with alloy diffuser maximises heat transfer and recovery.
- 304 stainless-steel, TIG-welded tank—corrosion resistant and backed by a 5-year warranty.
- Millivolt control requires no external electricity and offers 100 % safety shut-off.
- Snap-action thermostat maintains 200 °F–400 °F (93 °C–204 °C) for perfect, repeatable results.
- 1-1/4″ full-port drain valve and removable crumb screen speed end-of-shift clean-up.
- Heavy-gauge stainless front & sides wipe clean in seconds.
- 4″ adjustable legs standard; optional locking swivel casters available.
What’s Included
- Two nickel-plated fry baskets with plastic-coated handles
- Removable stainless-steel crumb screen
- Operator’s manual & quick-start guide
Technical Specifications
| Model | AF-50HE |
|---|---|
| Oil Capacity | 50 lb / 25 L (approx.) |
| Heat Output | 75,000 BTU/hr (22 kW) |
| Energy Rating | ENERGY STAR® certified |
| Gas Connection | 3/4″ NPT – Natural or LP (specify at order) |
| Thermostat Range | 200 °F – 400 °F (93 °C – 204 °C) |
| Control Type | Millivolt mechanical; no electrical hookup required |
| Tank Construction | 304 stainless steel, seamless TIG welds |
| Overall Dimensions | 15 1/2″ W × 30 1/2″ D × 45 3/4″ H (394 × 788 × 1162 mm) |
| Cooking Area | 14″ × 14″ (356 × 356 mm) |
| Shipping Weight | 150 lb (68 kg) |
| Certifications | cETLus, ETL-Sanitation, ENERGY STAR® |
| Origin | Designed & built in the USA |
Warranty
2-year limited parts & labor • 5-year fry tank warranty. Register within 90 days of shipment for full coverage.
Installation Note: Unit must be installed on non-combustible floors.
Maintain 12″ (305 mm) clearance from combustible side walls and 4″ (102 mm) from the rear.
A commercial ventilation system meeting NFPA-96 is required.
$1,770.56
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
High-efficiency American Range AF-50HE gas fryer: 50 lb capacity, 304 stainless tank, thermostat control, ENERGY STAR, durable commercial performance.
Manufacturer
American Range
Certifications
cETLus, ETL-Sanitation, Made in USA, ENERGY STAR
Height
45.75in
Width
15.5in
Depth
30.5in
Shipping Weight
150.0lbs
Filter
no filter
Exterior Finish
all stainless steel exterior
Basket Lifts
without basket lifts
Controls
millivolt controls
Fry pot
stainless steel fry pot
Energy Efficiency
ENERGY STAR®
Fat Capacity (approximate)
50 lb
Specifications
High efficiency gas fryer, floor model, 50 lb. capacity fryers, 304 stainless steel TIG welded tank, thermostat control, millivolt pilot system, (2) baskets, removable crumb screen, stainless construction, 6" adjustable chrome plated legs, 22.0kW, 75,000 BTU, cETLus, ETL-Sanitation, Made in USA, ENERGY STAR
