American Range  |  SKU: AF-50/25

American Range AF-50/25 Gas Fryers

$6,510.62
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Wiring diagram Manual Millivolt check Warranty sheet
Related Searches
Fryers Gas Fryers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

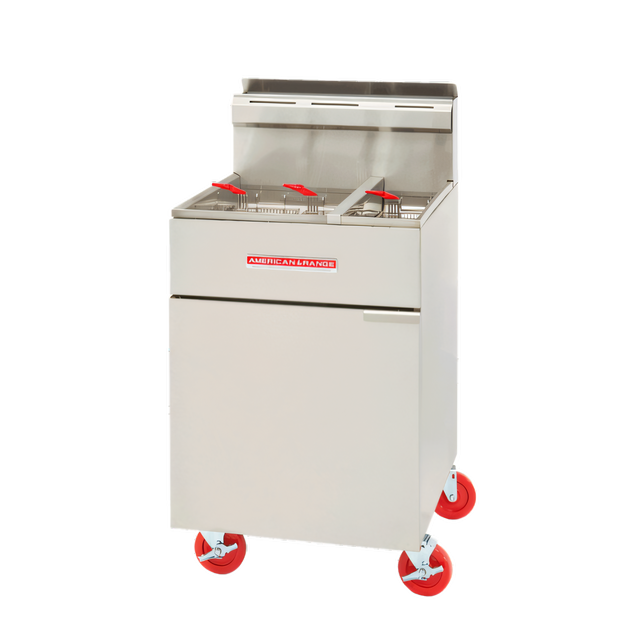

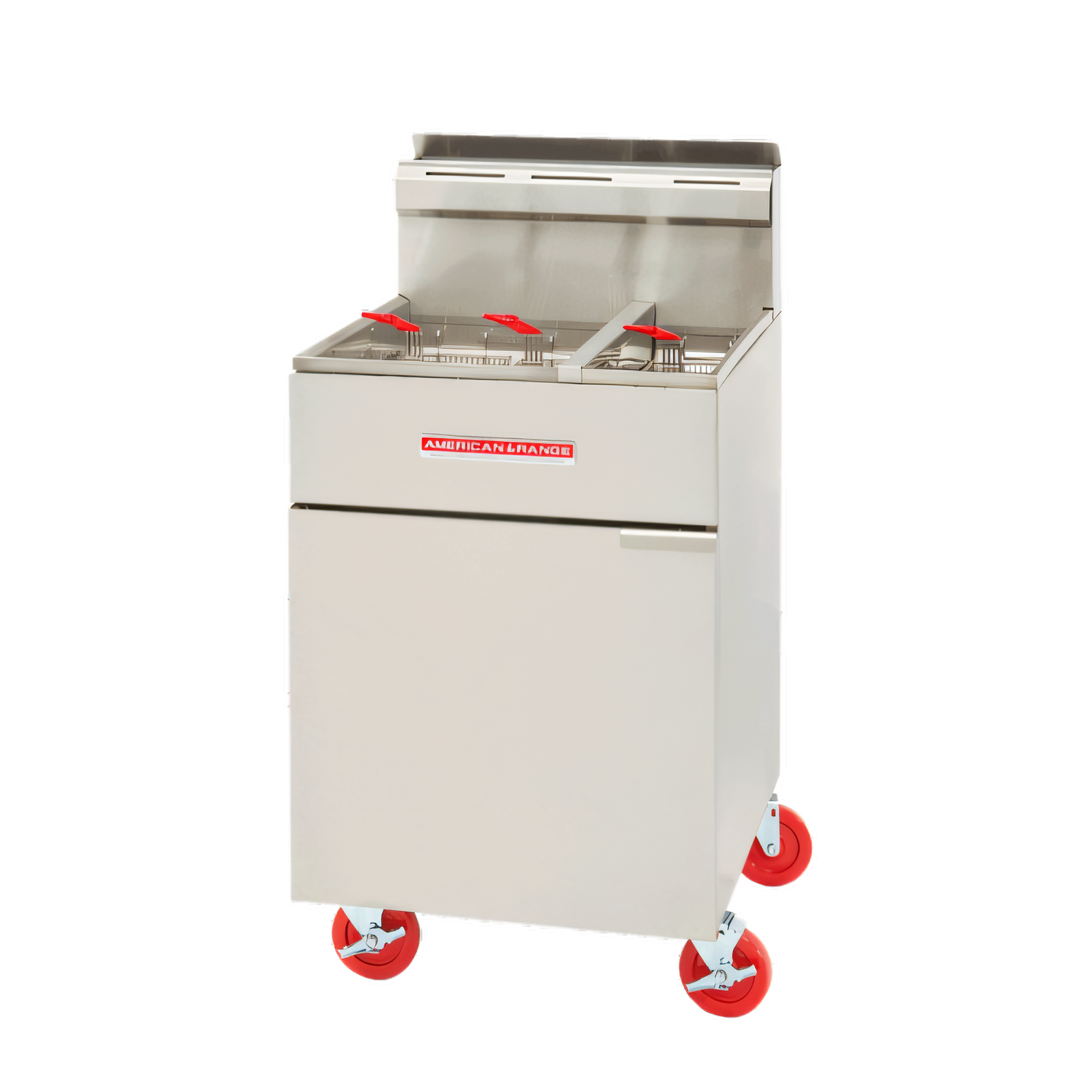

American Range AF-50/25 Twin-Tank Tube Fryer

50 lb / 25 lb • 200,000 BTU • Natural or LP Gas

Keep flavors separate, speed up ticket times, and squeeze more profit out of every square inch of floor space. The American Range AF-50/25 pairs a full-size 50-pound vat with a handy 25-pound companion tank—giving you the throughput of two fryers in one rugged, stainless-steel cabinet.

Key Performance Features

  • Independent 50 lb & 25 lb heavy-gauge stainless tanks for menu flexibility and flavor management.
  • Five tube burners (3 large / 2 small) — each 40,000 BTU/hr — deliver a blazing 200,000 BTU total.
  • Millivolt control system with 100 % safety shut-off requires no electrical connection.
  • Snap-action thermostat maintains oil between 200 °F – 400 °F (93 °C – 204 °C).
  • Special alloy diffusers in each burner tube maximize heat transfer and prolong oil life.
  • 1-1/4" full-port drain valve with clean-out rod for fast, clog-free draining.
  • All-stainless front & sides built to withstand the toughest commercial kitchens.
  • Made in the USA and ETL listed for gas & sanitation.

What’s Included

  • AF-50/25 floor model fryer (Natural or LP configuration)
  • (3) nickel-plated fry baskets with stay-cool, plastic-coated handles
  • 6" adjustable stainless legs
  • Owner’s manual & warranty registration

Popular Options (sold separately)

  • Four-caster kit (front two locking)
  • Stainless steel tank covers
  • Stainless steel splash guard
  • Quick-disconnect & flexible gas hose
  • Joiner strip for connecting multiple fryers or dump stations

Specifications

Model AF-50/25
Oil Capacity 50 lb & 25 lb (dual tanks)
Cooking Area 14" × 14" (large)  •  8-3/4" × 14" (small)
Burners 5 tube burners (3 + 2)
Total Input 200,000 BTU/hr (59 kW)
Thermostat Range 200 °F – 400 °F
Exterior Dimensions 23-1/4" W × 30-1/4" D × 45-3/4" H (591 × 768 × 1162 mm)
Gas Connection 3/4" NPT rear manifold
Manifold Pressure Natural 5.0" W.C. • LP 10.0" W.C.
Shipping Weight 225 lb (102 kg)
Certifications ETL, ETL-Sanitation, Made in USA

Certifications & Warranty

  • ETL & ETL-Sanitation listed for use in the U.S. and Canada
  • Two-year limited parts & labor warranty
  • Five-year limited (prorated) warranty on stainless tanks
Installation Notice: Unit must sit on non-combustible floors. Provide 0" clearance to non-combustible walls or maintain 12" (305 mm) side and 4" (102 mm) rear clearance from combustible materials. Adequate Type I ventilation per NFPA-96 is required. Always install according to local codes and the supplied manual.

Specifications subject to change without notice. Photos may show optional accessories.

Features & Specs

Manufacturer

American Range

Certifications

ETL, Made in USA

Height

45.75in

Width

22.75in

Depth

30.5in

Shipping Weight

225.0lbs

Fry pot

stainless steel

Filter

no filter

Exterior Finish

all stainless steel exterior

Fryer Quantity

(2) tanks

With or without basket lifts

without basket(s)

Controls

millivolt controls

Fat Capacity (approximate)

(1) 25 & (1) 50 lb

Specifications

Floor model fryer, All stainless steel front and sides, with heavy gauge stainless steel tanks and rated at 40,000BTU/hr. AF-50 fryer tube fryer equipped with 3 burners and a AF-25 fryers equipped with two burners. Unit has one 50 pound capacity tank and one 25 pound capacity tank. Includes three fry baskets with plastic coated handles. Standard Millivolt control system with100% safety shut off and Thermostatic control with a temperature range of 200°F to 400°F. 1-1/4" full port drain valve for easy cleaning. ETL certified. Made in the USA
