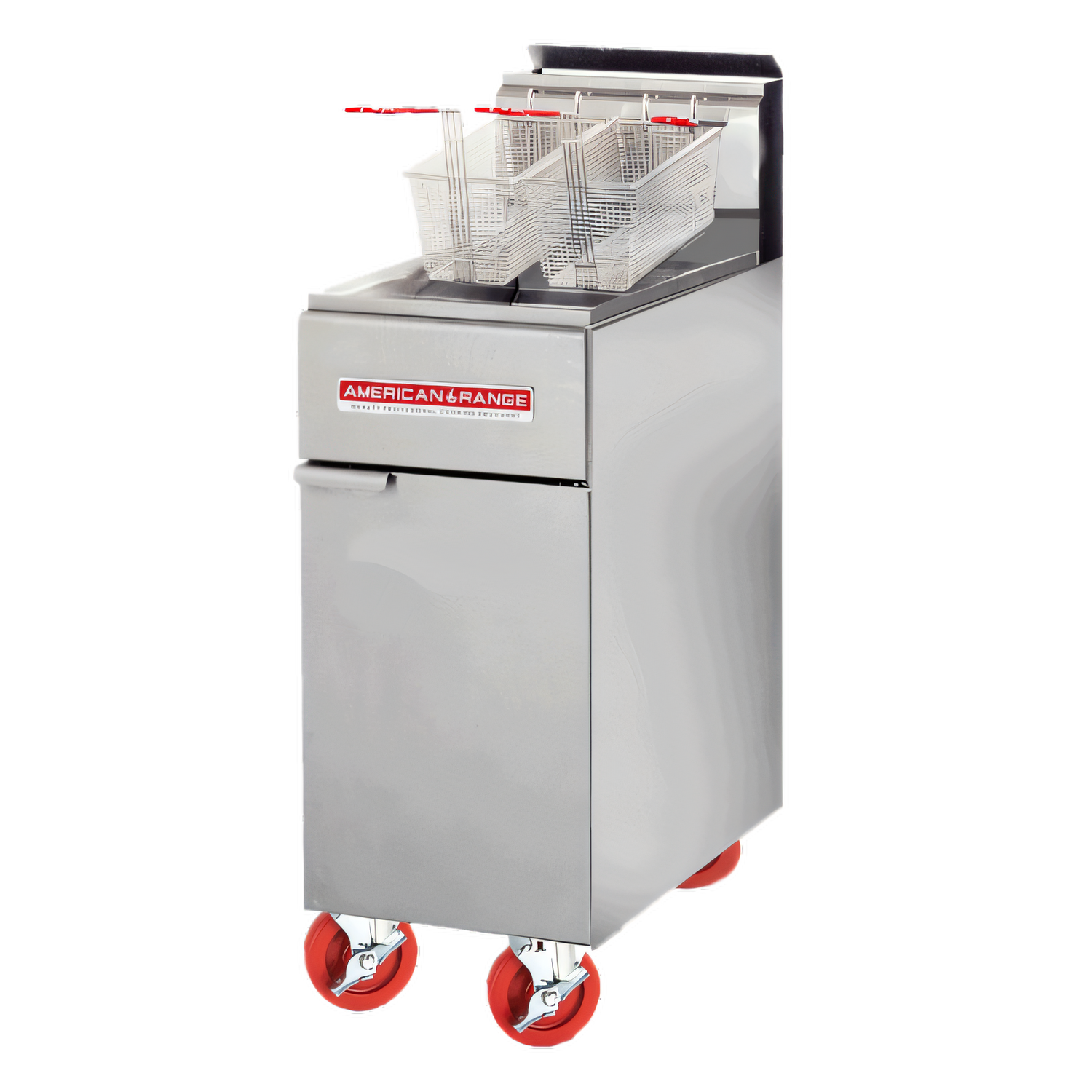

American Range AF-35/50 Gas Tube Fryer
50 lb oil capacity • 120,000 BTU (≈35 kW) • Made in USABuilt for busy commercial kitchens, the American Range AF-35/50 floor fryer combines a rugged 304 stainless-steel, TIG-welded tank with three high-efficiency burner tubes to deliver rapid heat-up, fast recovery, and years of dependable service. Whether you’re frying chicken, seafood, or signature sides, this compact powerhouse keeps up with the rush while preserving oil quality—and your bottom line.
Key features
- 50 lb (23 kg) oil capacity handles high-volume output without temperature drop-off.
- Three-tube burner system pumps out a combined 120,000 BTU/h for lightning-fast recovery.

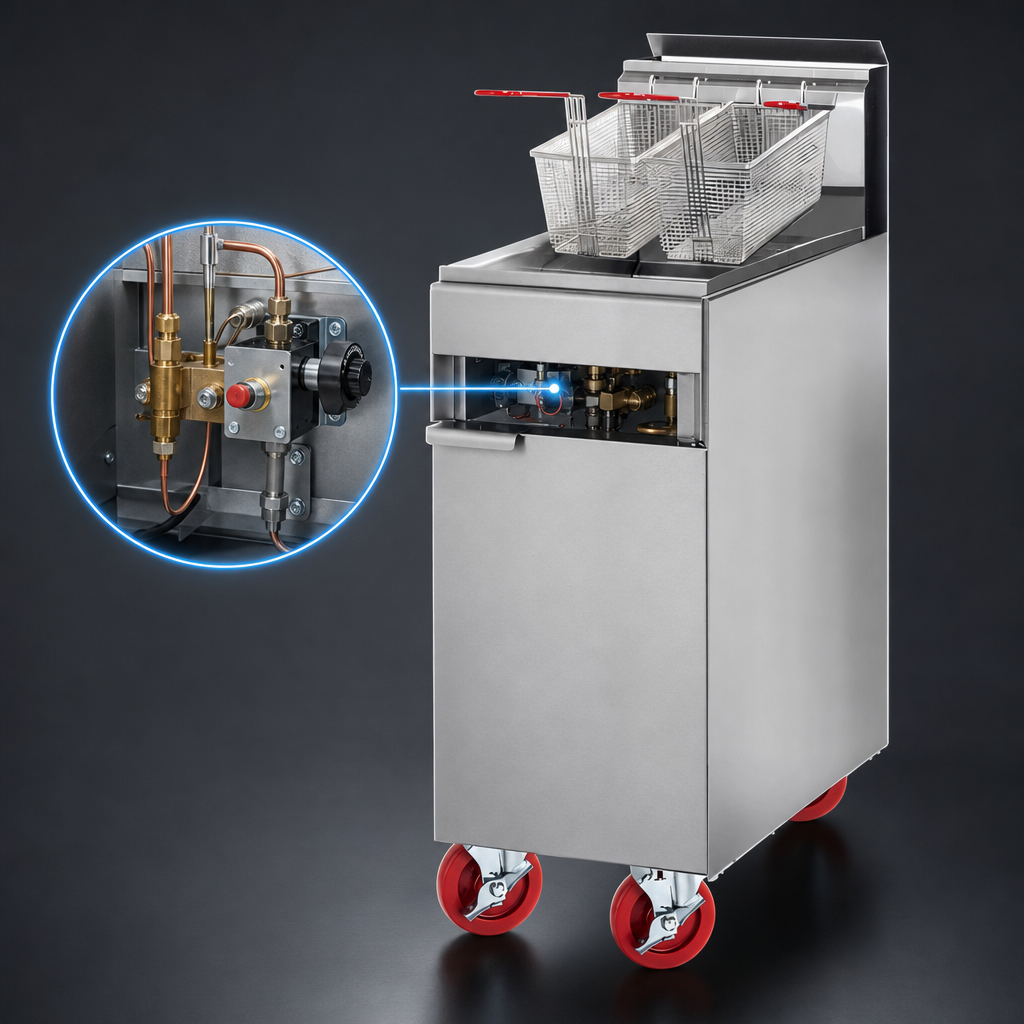

- Millivolt pilot ignition—no external power required, perfect for trailers and food trucks.

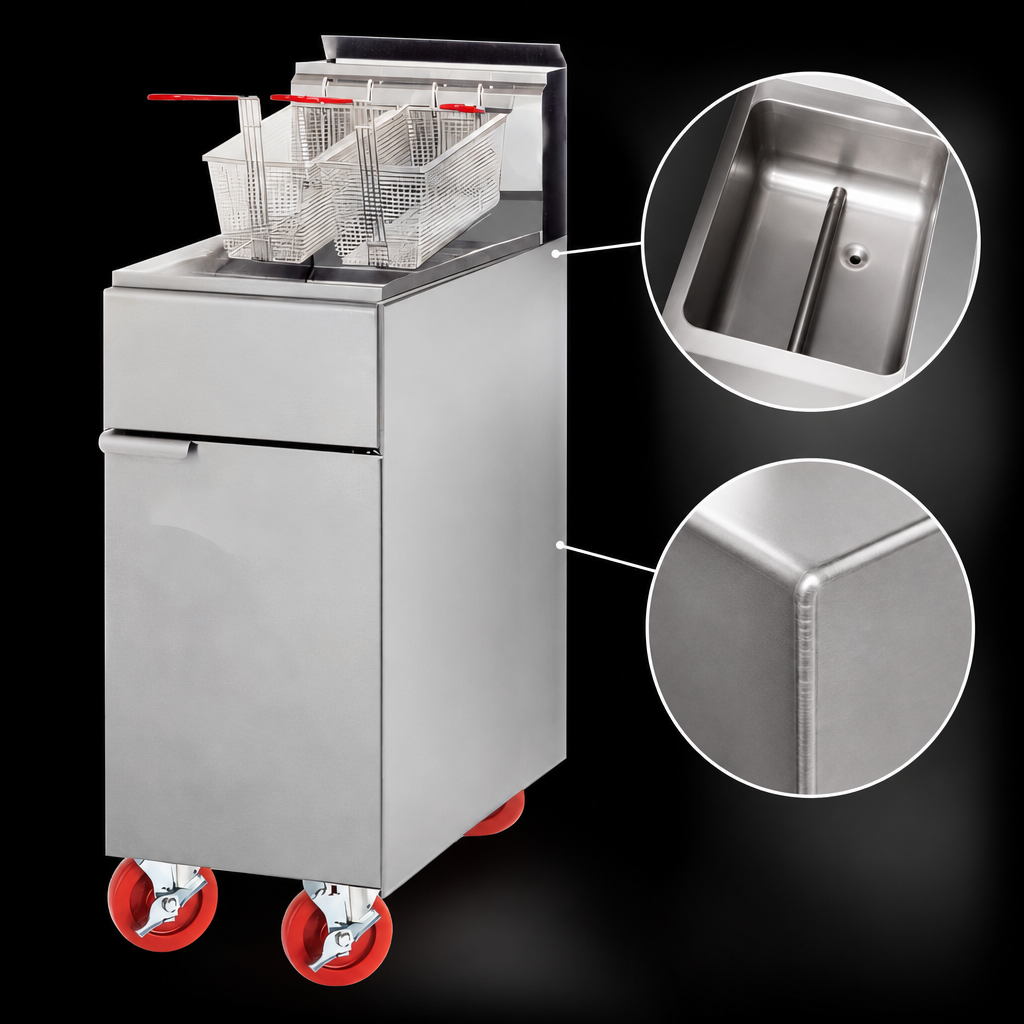

- 304 stainless-steel fry tank is TIG-welded for superior corrosion resistance and easy cleaning.
- Removable crumb screen and generous cool zone keep sediment away from food, extending oil life.
- 1-1/4" full-port drain valve allows safe, quick oil disposal.
- Precise thermostat (200 °F–400 °F) with 100 % safety shut-off ensures consistent results.
- Includes two nickel-plated fry baskets with stay-cool, coated handles.
- Durable stainless front, sides, door, and backsplash withstand daily commercial abuse.
- Ships on 6" adjustable legs; optional locking casters, tank cover, and splash guards available.
Technical specifications
| Model | AF-35/50 |
|---|---|
| Oil capacity | 50 lb (23 kg) |
| Heat input | 120,000 BTU/h (≈35 kW) |
| Gas type | Natural or Propane (field convertible) |
| Manifold pressure | NG: 5.0" W.C. • LP: 10.0" W.C. |
| Gas inlet size | 3/4" NPT |
| Temperature range | 200 °F – 400 °F (93 °C – 204 °C) |
| Exterior dimensions (W × D × H) | 15.5" × 30.5" × 45.75" (394 × 788 × 1162 mm) |
| Shipping weight | 150 lb (68 kg) |
| Certifications | cETLus, ETL-Sanitation |
| Origin | Designed & built in the USA |
Installation clearances
- Non-combustible surfaces: 0" sides & rear.
- Combustible surfaces: 12" sides, 4" rear.
- Legs or casters must be used; 2" (51 mm) overhang required if curb-mounted.
Gas connection notice: Installation must be completed by a qualified technician in accordance with local codes to maintain safety and warranty coverage.
Warranty: 2-year parts & labor, plus a 5-year pro-rated fry tank warranty. Full terms available at AmericanRange.com.
$1,496.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
American Range AF-35/50 gas fryer: heavy-duty 50 lb capacity, 304 SS tank, thermostat control, 120,000 BTU, cETLus, durable commercial performance.
Manufacturer
American Range
Certifications
cETLus, ETL-Sanitation, Made in USA
Height
45.75in
Width
15.5in
Depth
30.5in
Shipping Weight
150.0lbs
Filter
no filter
Exterior Finish
all stainless steel exterior
Basket Lifts
without basket lifts
Controls
millivolt controls
Fat Capacity (approximate)
50 lb
Fry pot
stainless steel fry pot
Specifications
Gas tube fryer, floor model, 50 lb. capacity fryer, 304 stainless steel TIG welded tank, thermostat control, millivolt pilot system, (2) baskets, removable crumb screen, stainless construction, 6" adjustable chrome plated legs, 33.0kW, 120,000 BTU, cETLus, ETL-Sanitation, Made in USA
