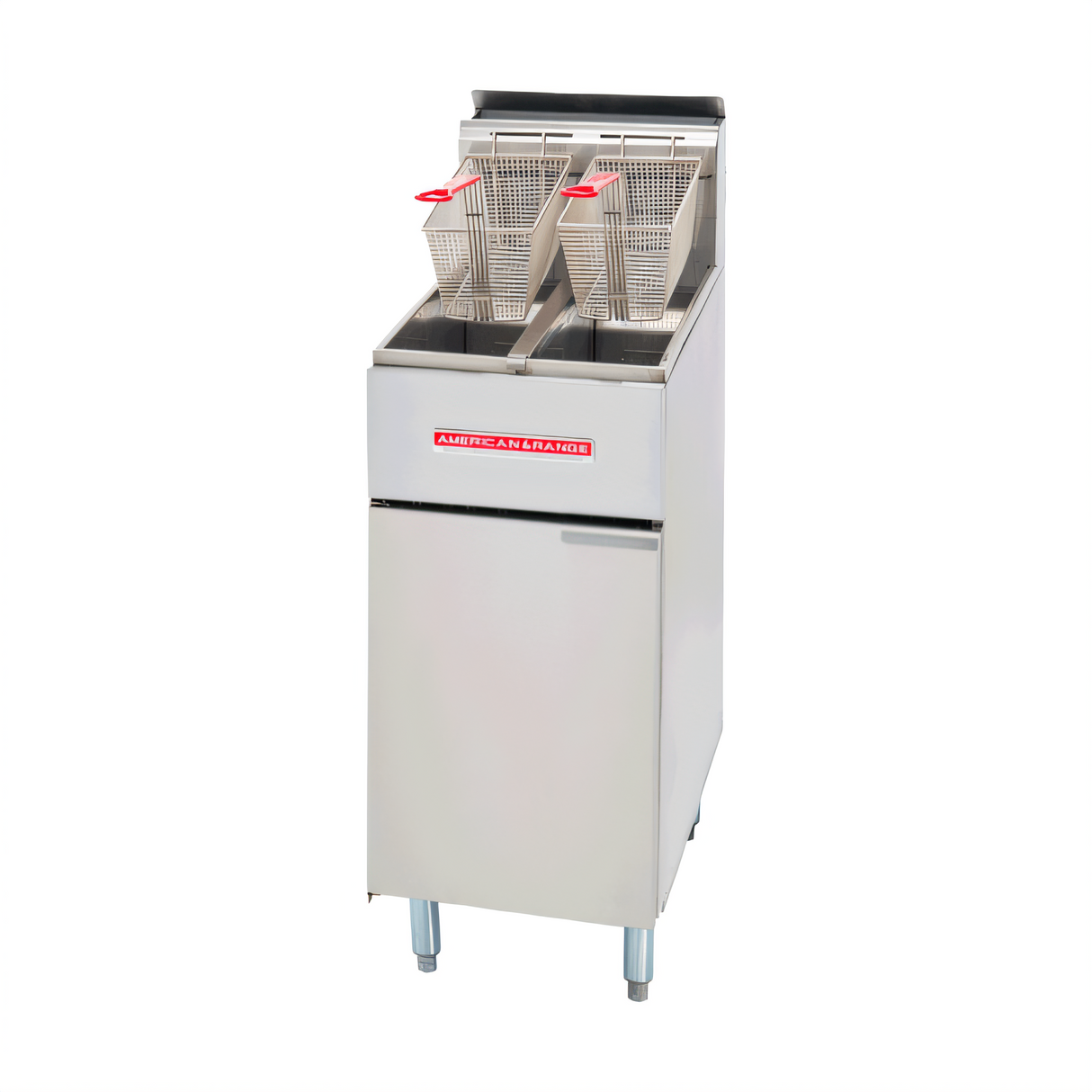

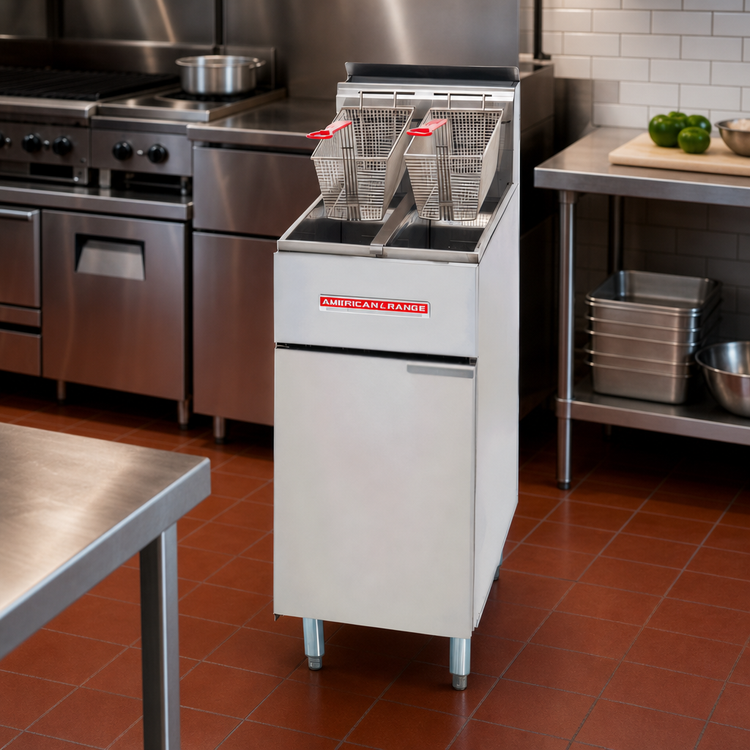

American Range AF-25/25 Twin 25 lb Gas Floor Fryer
Compact 15-1/2" Cabinet • 160,000 BTU • Made in USADouble your output—not your footprint. The American Range AF-25/25 packs two independent 25-lb tube-style fry pots into a slim 15-1/2" wide cabinet, giving you faster ticket times, flavor separation, and unbeatable durability for high-volume commercial kitchens.
Performance & Construction
- 160,000 BTU (47 kW) total output – two 80,000 BTU burners heat oil fast and recover quicker during peak periods.
- Heavy-gauge, precision-welded stainless steel tanks resist warping and leaks; backed by a 5-year tank warranty.
- Millivolt pilot system with 100 % safety shut-off—no external power required.
- Thermostatic control from 200 °F to 400 °F (93 °C–204 °C) for consistent, crispy results.

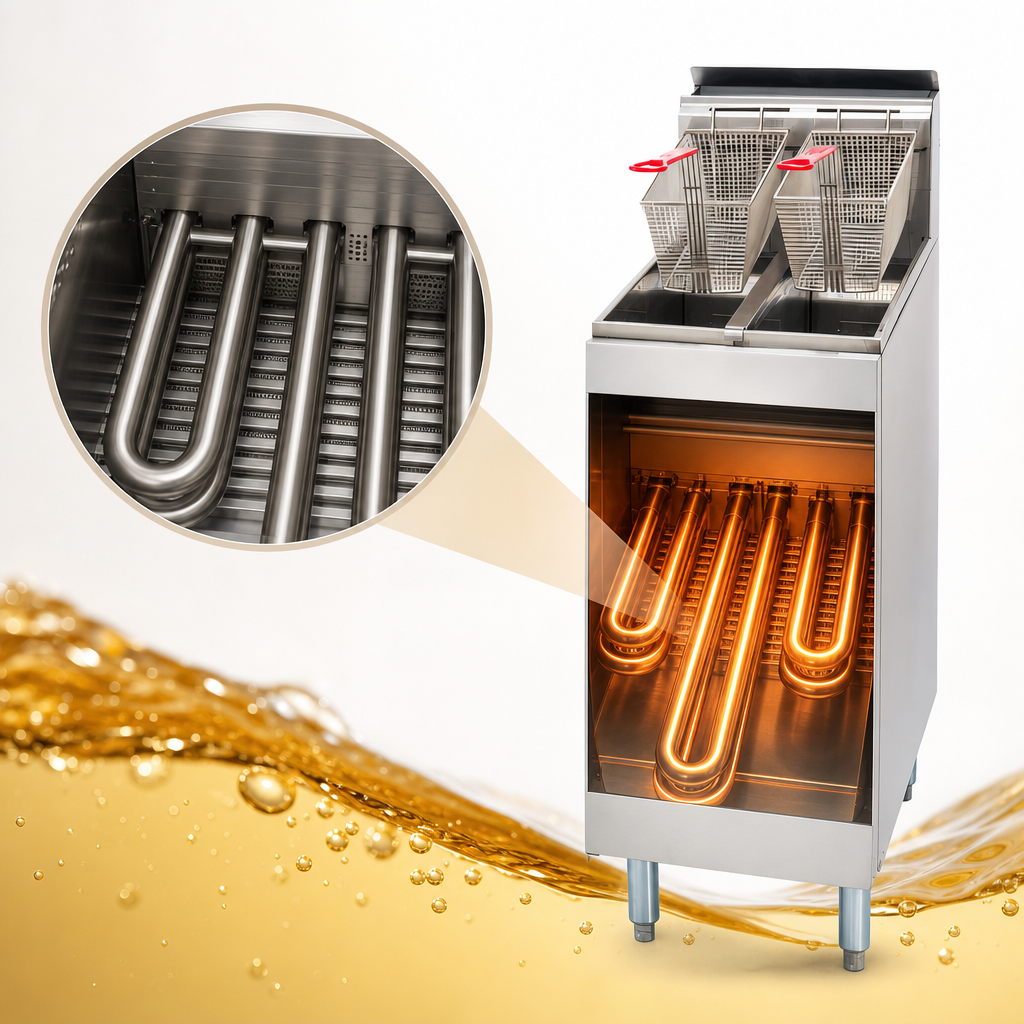

- Tube-style heat exchangers deliver even heating, reducing oil absorption for better-tasting food.
- Two separate full-port 1-1/4" drain valves speed up filtering and help prevent flavor transfer.
- All-stainless front & sides with 6" chrome-plated adjustable legs (casters optional).
- 8-3/4" × 14" frying area per tank; includes two rugged wire fry baskets.
Why Choose a Twin-Tank Fryer?

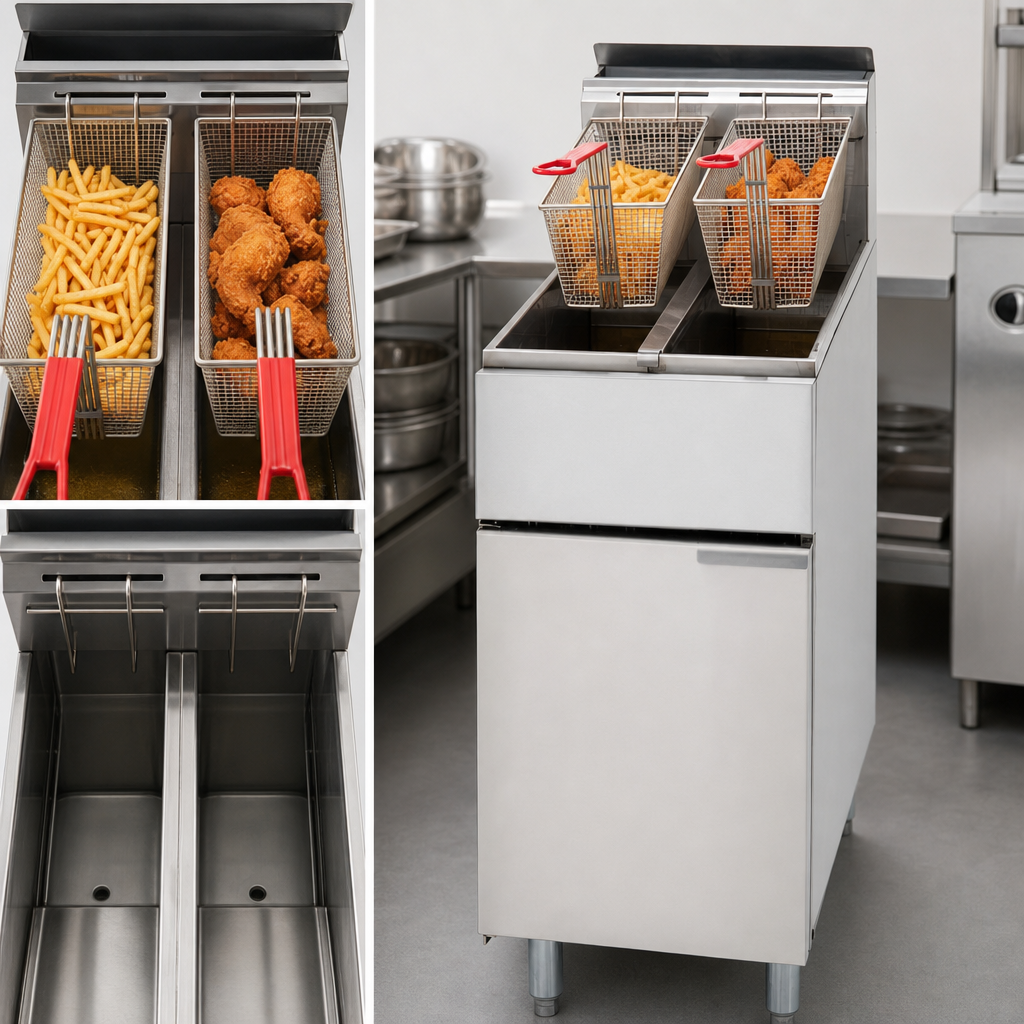

- Run different oils or menu items side by side—perfect for separating allergens, proteins, or flavors.
- Stage product in one vat while finishing in the other to handle rushes with ease.
- Redundancy keeps you cooking even if one tank is down for cleaning or filtering.
Technical Specifications
| Model | AF-25/25 |
|---|---|
| Total Oil Capacity | 25 lb + 25 lb (11.3 kg each) |
| Cooking Area (per tank) | 8-3/4" × 14" (222 mm × 356 mm) |
| Cabinet Width | 15-1/2" (394 mm) |
| Depth | 30-1/4" (768 mm) |
| Height (to flue) | 45-3/4" (1,162 mm) |
| Gas Input | 160,000 BTU/hr (47 kW) |
| Manifold Pressure | Natural Gas 5.0" W.C. / Propane 10.0" W.C. |
| Gas Connection | 3/4" NPT, rear |
| Shipping Weight | 198 lb (90 kg) |
| Certifications | cETLus, ETL-Sanitation, NSF compliant |
| Country of Origin | Designed & Built in the USA |
Popular Options (sold separately)
- Stainless steel tank covers
- 4" locking rear & front casters
- Stainless steel splash guards (left, right, or both)
- Joiner strip – seals the gap between twin fryers or a fryer & dump station
- Heat lamp with 120 V cord set (1 amp)
Industry-Leading Warranty
• 2-year parts & labor • 5-year fry tank • Backed by nationwide factory-authorized service network
Installation Reminder: Clearance from combustible surfaces must be at least 12" (305 mm) on the sides and 4" (102 mm) at the rear. A commercial ventilation system is required.
$5,058.75
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Commercial American Range AF-25/25 gas fryer: two half-size vats, 25 lb fat capacity each, thermostat control, stainless steel, 160k BTU, cETLus, USA-made.
Manufacturer
American Range
Height
45.75in
Width
15.5in
Depth
30.5in
Shipping Weight
240.0lbs
Type
Restaurant
Filter
no filter
Controls
thermostatic controls
Fry pot
stainless steel
With or without basket lifts
without basket(s)
Exterior Finish
all stainless steel exterior
Fat Capacity (approximate)
25 lbs each
Specifications
Fryer floor model, gas, (2) half size, 25/25 lb. fat capacity, (2) baskets, thermostat control, millivolt pilot system, stainless construction, 6" chrome plated adjustable legs, 47.0kW, 160,000 BTU, cETLus, ETL-Sanitation, Made in USA
Contact Us
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
