Key specifications

BTU
240,000 BTU
Dimensions
72.0"W × 28.5"D × 36.0"H
Type
Charbroiler
Style
Underfired
Installation Type
Floor Model
Material
Stainless Steel
Spec sheet
American Range SKU: ADJF-72

American Range ADJF-72 72-Inch Gas Charbroiler

$15,176.25
/each
Estimated to ship in 11–14 business days Free Shipping
Width
Gas typeRequired
Gas Connector
Included: American Range warranty Two-year limited warranty for parts and labor; broiler burners, lower and upper grates, and radiants have 90-day coverage

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $1,404/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Charbroiler
Style Underfired
Installation Type Floor Model
Material Stainless Steel
Country of Origin USA
Finish Stainless Steel
Base Open Cabinet Base
Fuel Type Gas
Heat Type Radiant
Radiant Material Steel
Width 72 Inches
Depth 28.5 Inches
Height 36 Inches
Burner Count 12
BTU 240,000 BTU
Heat Input 70.0 kW
Grate Material Cast Iron
Grate Type Adjustable Tilt
Grate Positions 3 Positions
Rack Count 2
Rack Type Independent Adjustable
Top Adjustment Adjustable
Controls Individual Burner Controls with Pilots
Leg Height 6 Inches

Description

The American Range ADJF-72 is a 72-inch gas underfired charbroiler designed as a floor model with an open cabinet base.

It has 12 individually controlled burners with pilots, radiant heat, cast-iron grates, and an adjustable top with three position settings. Two independent adjustable racks provide additional cooking-surface flexibility.

  • Construction: Stainless steel
  • Burners: 12 individually controlled burners with pilots
  • Adjustment: Three-position adjustable top and grates
  • Support: 6-inch legs

Overall Dimensions:

72.0"W x 28.5"D x 36.0"H

Product Weight:

775.0 lb

Radiant Cooking

Uses a radiant heat design beneath the cooking grates.

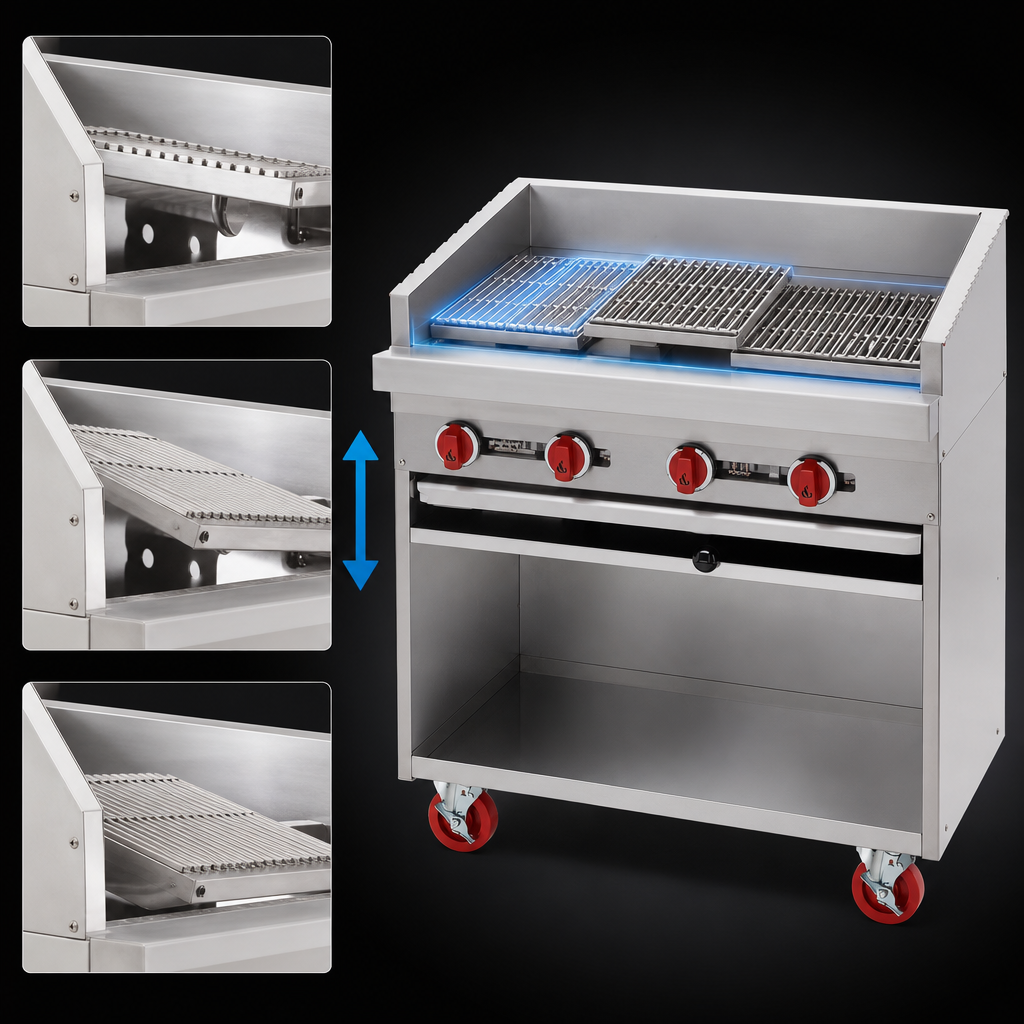

Three-Position Adjustment

The adjustable top and grates have three position settings.

Two Adjustable Racks

Includes two separate independent adjustable racks.

Individual Burner Controls

The 12 burners are individually controlled and equipped with pilots.

Stainless Steel Construction

Built with stainless steel construction and an all-stainless steel exterior.

Open Cabinet Base

Configured with an open cabinet base.

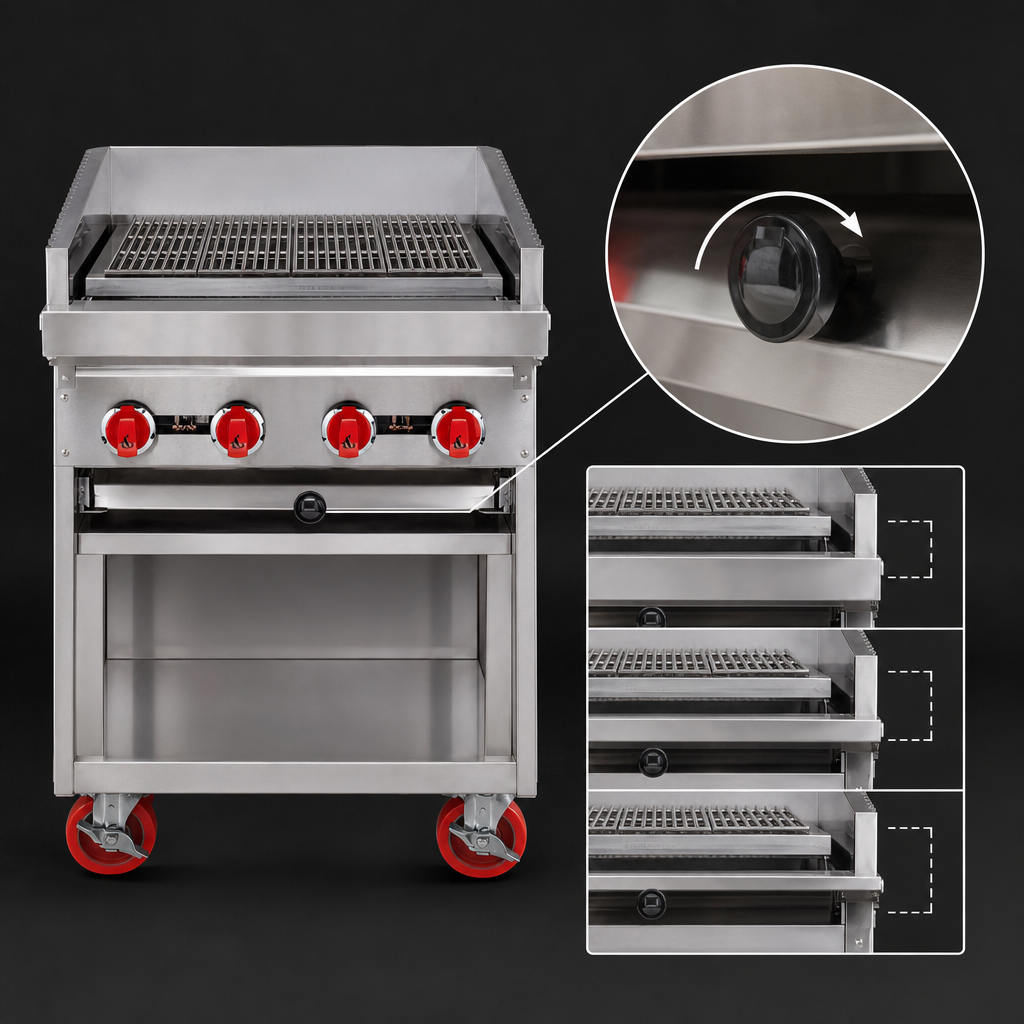

Adjustable Easy-Lift Handle

The handle has three separate position settings.

Cast-Iron Grates

Equipped with heavy-duty cast-iron top grates.

Frequently Asked Questions

It has 12 individually controlled burners with pilots.
Yes. The adjustable top and grates have three position settings.
The ADJF-72 has two separate independent adjustable racks.
The product is 72 inches wide, 28.5 inches deep, and 36 inches high, with a listed weight of 775 pounds.
The cutsheet states a two-year limited warranty for parts and labor. The warranty document specifies 90-day coverage for broiler burners, lower and upper grates, and radiants.
