American Range ACB-7 Rotisserie Ovens
Description

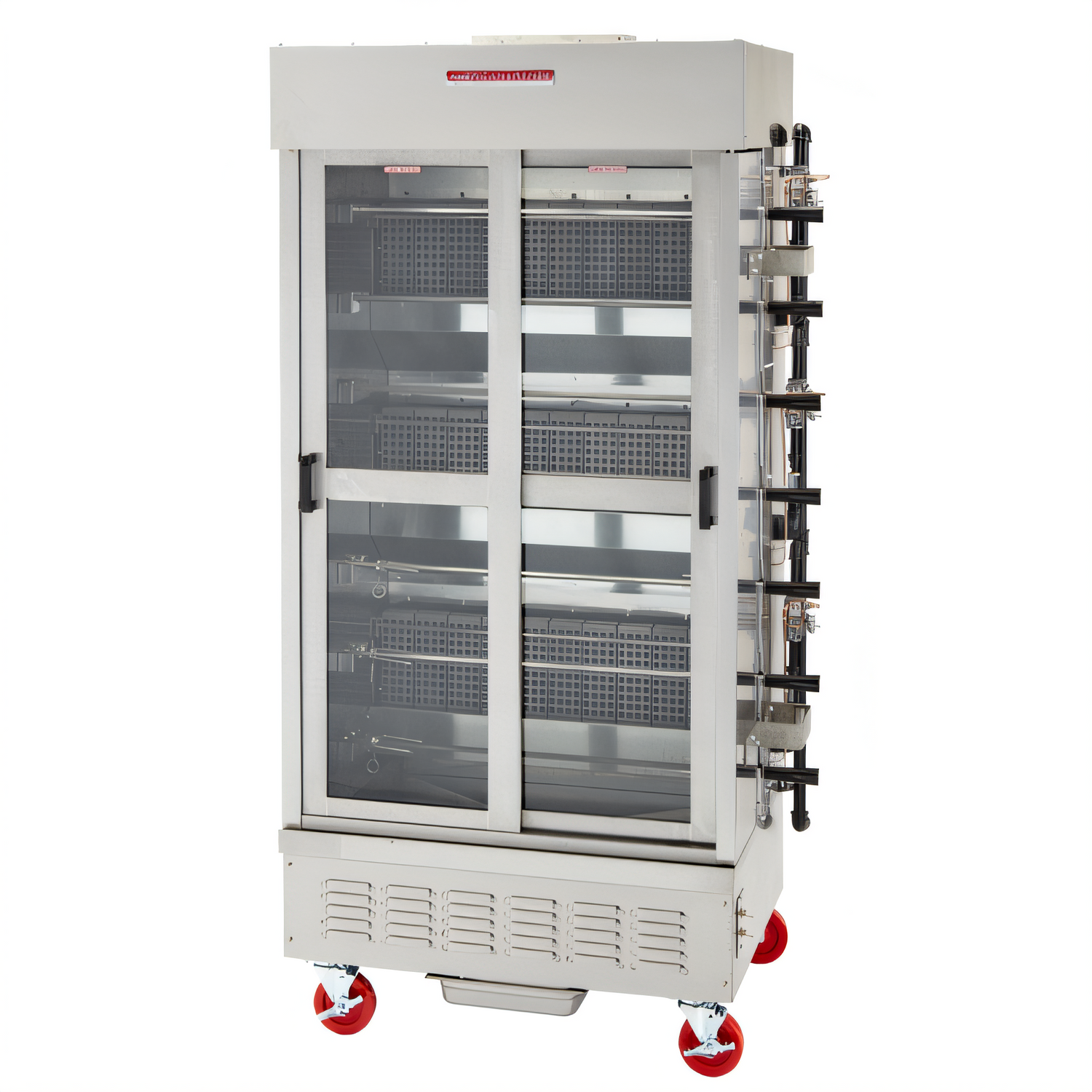

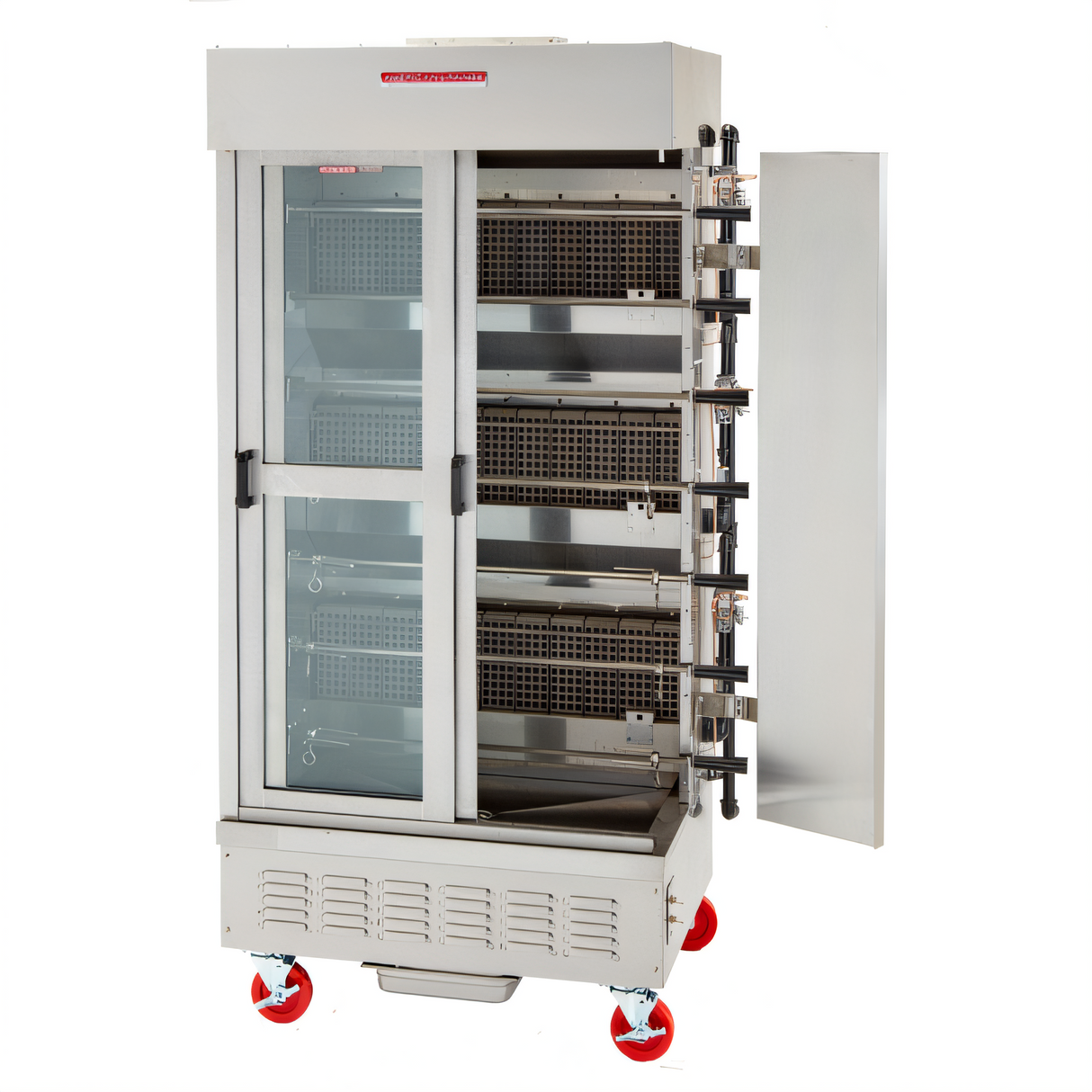

American Range ACB-7 Gas Chicken Rotisserie Oven
7-Spit • 3-Burner • 105,000 BTU • Made in USAPut show-stopping rotisserie chicken on full display while keeping up with high-volume demand. The American Range ACB-7 rotates up to 35 birds per load, delivering even browning and mouth-watering flavor from its trio of high-output burners and ceramic radiants—all behind crystal-clear tempered glass doors your customers can’t ignore.
Key Features
- Seven chrome-plated rotisserie spits driven by individual heavy-duty gears
- Three 35,000 BTU/hr double-row port burners (total 105,000 BTU)
- Ceramic brick radiants for consistent, even heat
- Multi-prong spit forks—up to 5 chickens per spit
- Tempered sliding glass doors & bright interior light for irresistible merchandising
- 2-½" deep built-in drip pan with 1-¼" brass drain for mess-free cleanup
- All-stainless interior & exterior for durability and fast wipe-downs
- Simple manual gas controls—no complicated electronics
- Factory-installed 6" casters (4 total, 2 locking) for easy mobility
- cETLus & ETL-Sanitation listed; qualifies for most local codes
At-a-Glance Specs
| Model | ACB-7 |
|---|---|
| Spits / Capacity | 7 spits · up to 35 chickens (≈3 lb each) |
| Burners | 3 × 35,000 BTU/hr ceramic-heated |
| Total Heat Input | 105,000 BTU /hr (31 kW) |
| Gas Type | Natural Gas or Propane (specify when ordering) |
| Gas Connection | ¾" NPT rear |
| Manifold Pressure | Natural 5" W.C. · Propane 10" W.C. |
| Electrical | 120 V / 1-Ph / 15 A, 3-prong cord included (for motor & lights) |
| Exterior Dimensions | 45-1/2" W × 25-1/2" D × 81" H (1156 × 648 × 2057 mm) |
| Shipping Weight | ≈ 750 lb (341 kg) |
| Certifications | cETLus, ETL-Sanitation |
| Origin | Designed & Built in the USA |
Included With Your Oven
- (7) chrome rotisserie spits with two multi-prong forks each
- Stainless 2½" deep drip pan & drain assembly
- Pre-installed 6" locking & swivel casters
- 15-amp power cord
- Owner’s manual & quick-start guide
Options & Accessories
- Additional spit forks or complete spit assemblies
- 6" chrome stationary legs (in lieu of casters)
- “V” channel welded spit assemblies for ribs, roasts & more
American Range Limited Warranty
The ACB-7 is backed by a 2-year limited parts & labor warranty (90 days on replacement parts). See full warranty terms at americanrange.com or inside the owner’s manual.
