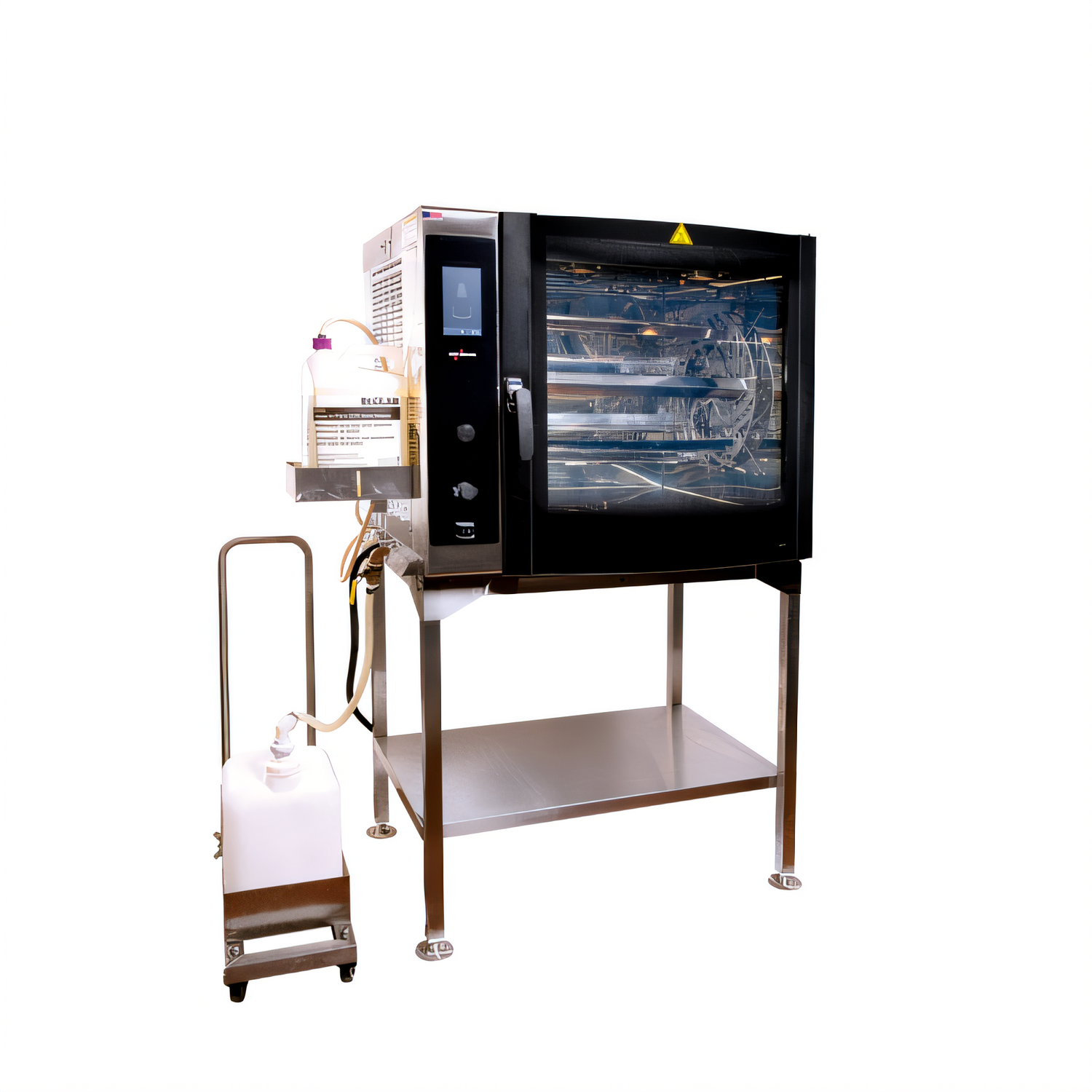

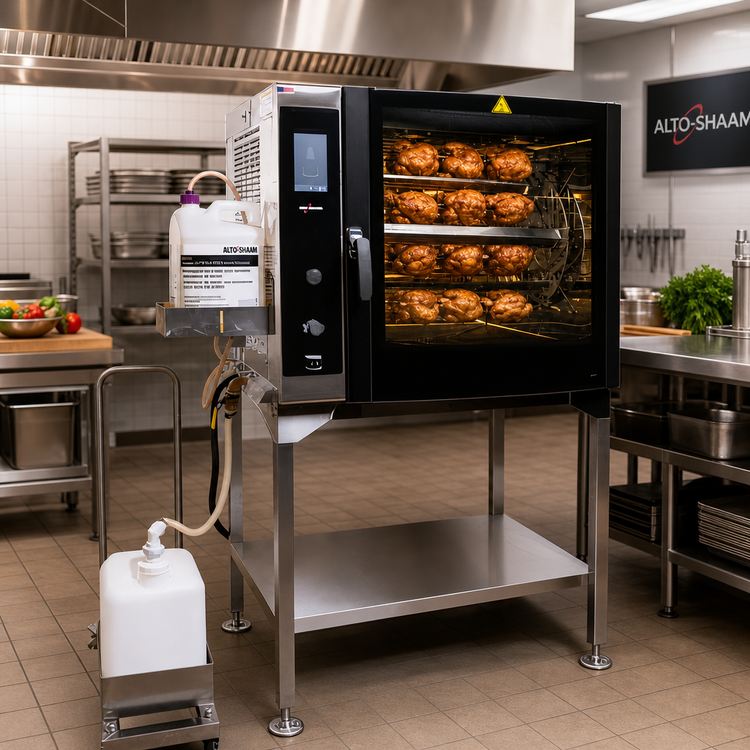

AR-7T Self-Cleaning Electric Rotisserie Oven
By Alto-Shaam • Made in the USAGive guests the irresistible sight and aroma of perfectly roasted chicken—while your team enjoys a rotisserie that practically runs (and cleans) itself. The Alto-Shaam AR-7T combines convection & radiant heat, a built-in automatic grease collection system, and a hands-free self-cleaning cycle that uses 35% less water than traditional models. Seven removable angled spits churn out up to 28 beautifully browned birds per load, and the intuitive touchscreen lets you pre-program every stage from preheat to hold.
Why You’ll Love It

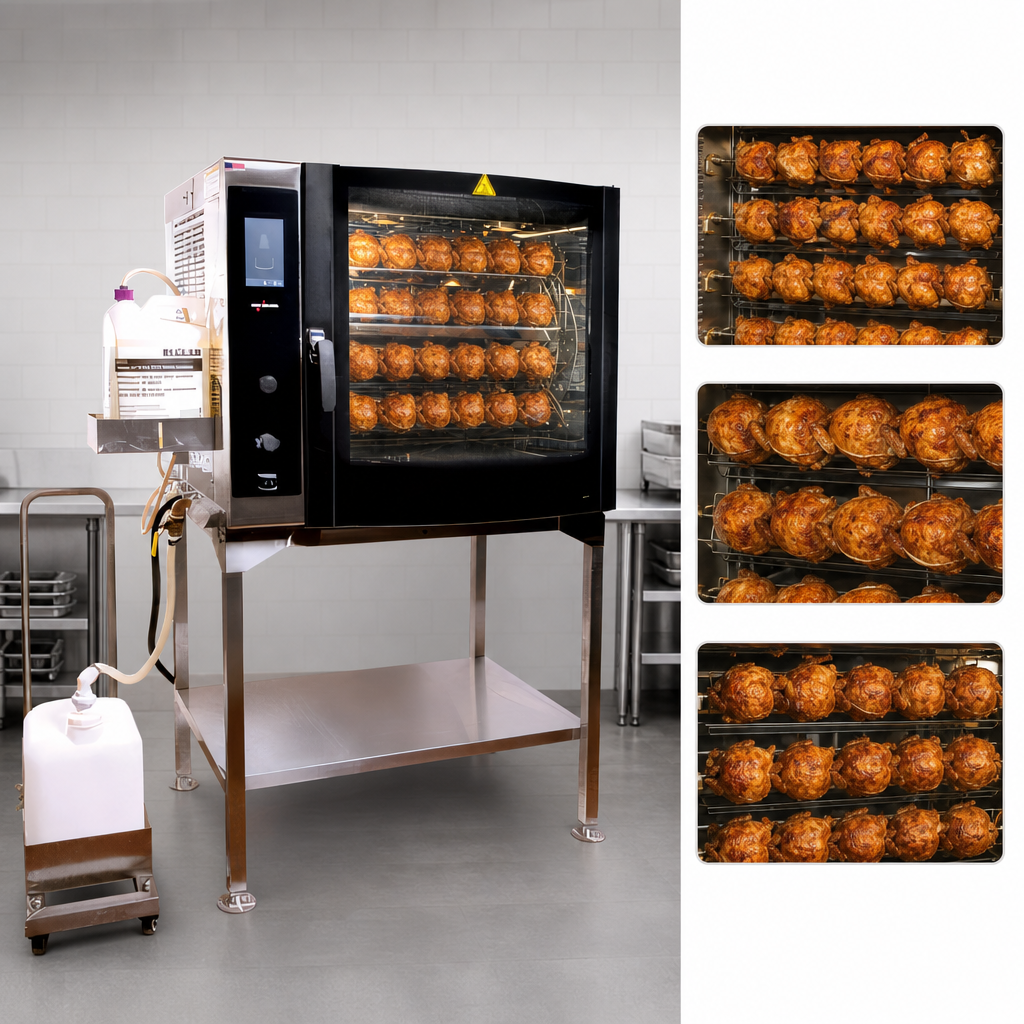

- 21–28 chicken capacity (up to 98 lb / 44 kg per load) keeps service lines moving.
- Programmable touchscreen with multi-level cooking for preheat, two cook stages, hold and cool-down.
- Hands-free self-cleaning wash & sanitizing cycle plus 30-minute rinse—no disassembly, no scrubbing.
- Automatic grease collection pumps hot grease to a sealed 5-gal container for safe, mess-free disposal.
- Seven browning levels ensure consistent, crispy finish on every spit.
- Illuminated interior & double-pane glass door turn your product into a sales-boosting display.
- USB port for fast recipe uploads & HACCP data downloads.
- Rugged stainless-steel construction built for years of high-volume service.
- Certified & compliant: cULus, UL EPH, CE IPX4, TÜV Nord, EAC.
Loading Options

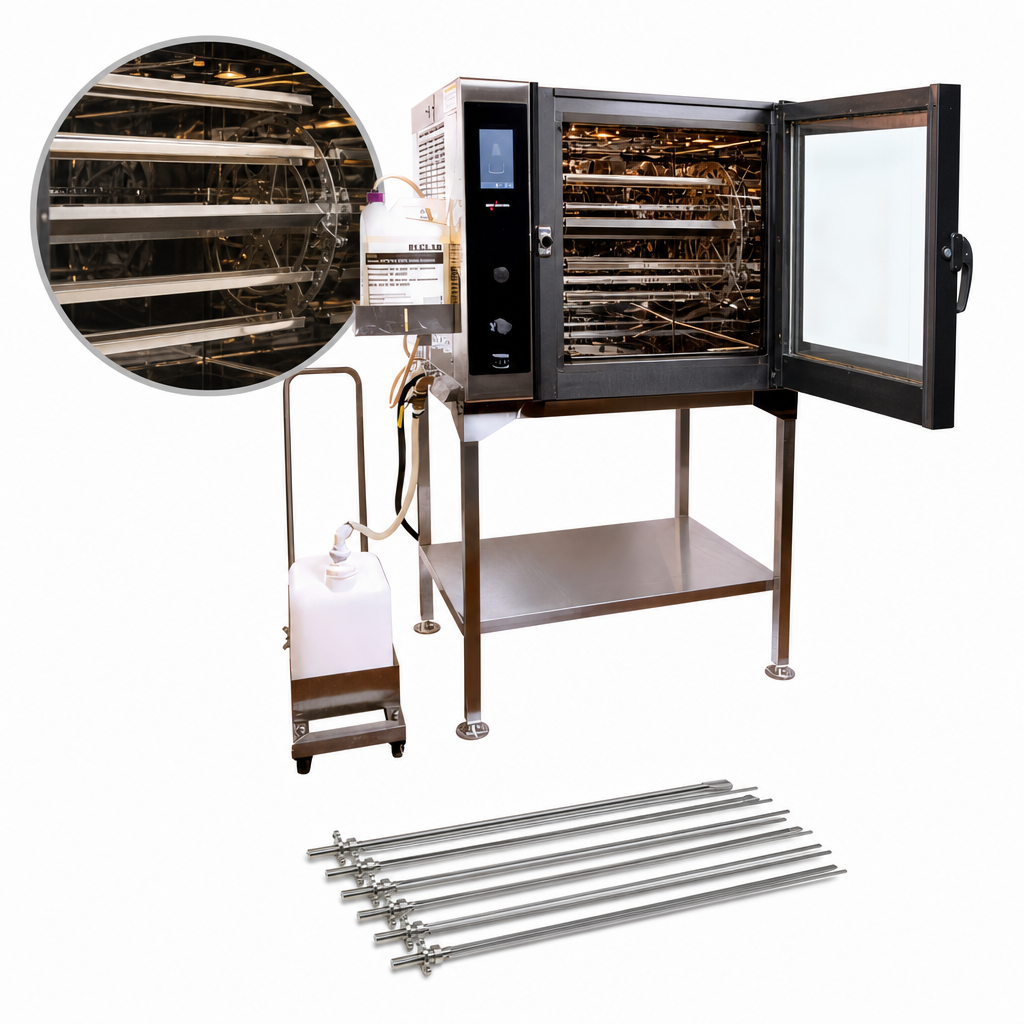

- 7 × V-spits (standard, included) – 21 chickens up to 3½ lb (1.6 kg) each.
- Optional piercing spits – 28 chickens 2½–3 lb (1.1–1.4 kg) each.
- Optional turkey spit – 1 turkey up to 25 lb (11 kg) per spit.
Technical Specifications
| Exterior Dimensions* | 40-5/8 H × 43-3/4 W × 32-1/2 D in (1032 × 1113 × 825 mm) – flat glass, reach-in |
|---|---|
| Net Weight | 361 lb (164 kg) |
| Electrical | 9.4 kW – 208 V / 240 V 1- or 3-phase, 380-415 V 3-phase (50/60 Hz) |
| Water Connection | 3/4 in NPT, 2 gpm, 30–90 psi, 50°–140 °F (10°–60 °C) |
| Grease Management | Automatic pump to 5-gal (18.9 L) container (included) |
| Cleaning Cycle | Automatic wash & sanitize + 30-min rinse (tablet or liquid systems) |
| Certifications | cULus, UL EPH Classified, CE (IPX4), TÜV Nord, EAC |
| Warranty | 1-year parts & labor (extended options available) |
*Door style, pass-through models, legs, and optional bases may affect overall dimensions.
Included with Your Oven
- (7) stainless-steel V-spits with multi-hole disks
- Grease collection container
- Self-cleaning tablet starter pack
- USB drive with starter recipes & manual
Popular Factory Options
- Curved or pass-through glass doors for front-of-house merchandising
- Liquid cleaning & grease collection system
- Stainless-steel stand or mobile base
- Piercing or basket spit assemblies
- Stacking kit (AR-7T over AR-7T or AR-7HT) to double production in the same footprint
Looking for spec sheets, CAD blocks or replacement parts? Contact us and our equipment specialists will be happy to help.
