Alto-Shaam AR-7EVH-DBLPANE Rotisserie Ovens
Description
Alto-Shaam AR-7EVH Ventless Electric Rotisserie Oven
EcoSmart® cook-and-hold technology | Up to 28 birds per loadRoast, hold, and showcase mouth-watering rotisserie chickens anywhere—no dedicated hood required. The Alto-Shaam AR-7EVH couples an energy-saving electric rotisserie with a self-contained ventless hood, giving you theatre-style merchandising and perfectly browned product in one countertop footprint.
Key Benefits

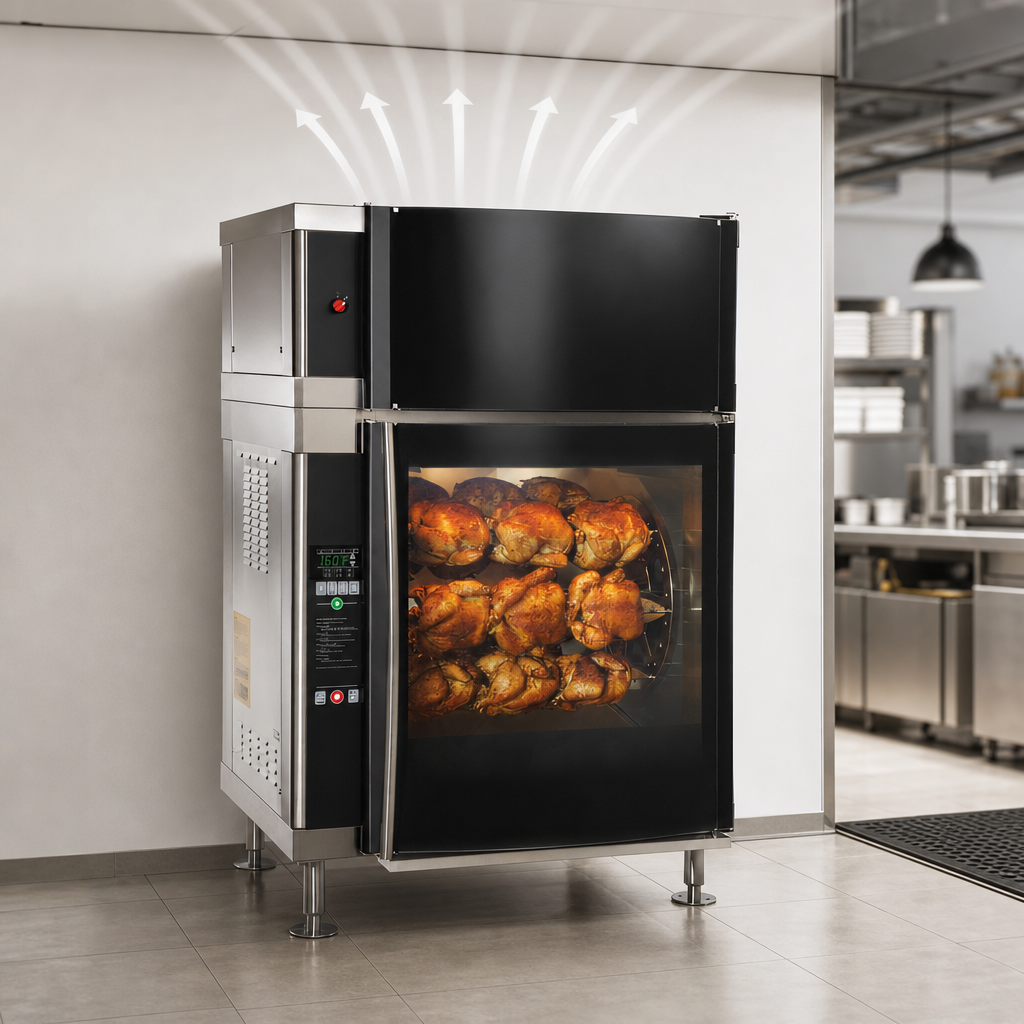

- Ventless hood (530 cfm) with integrated grease & charcoal filtration eliminates costly Type-I ventilation*

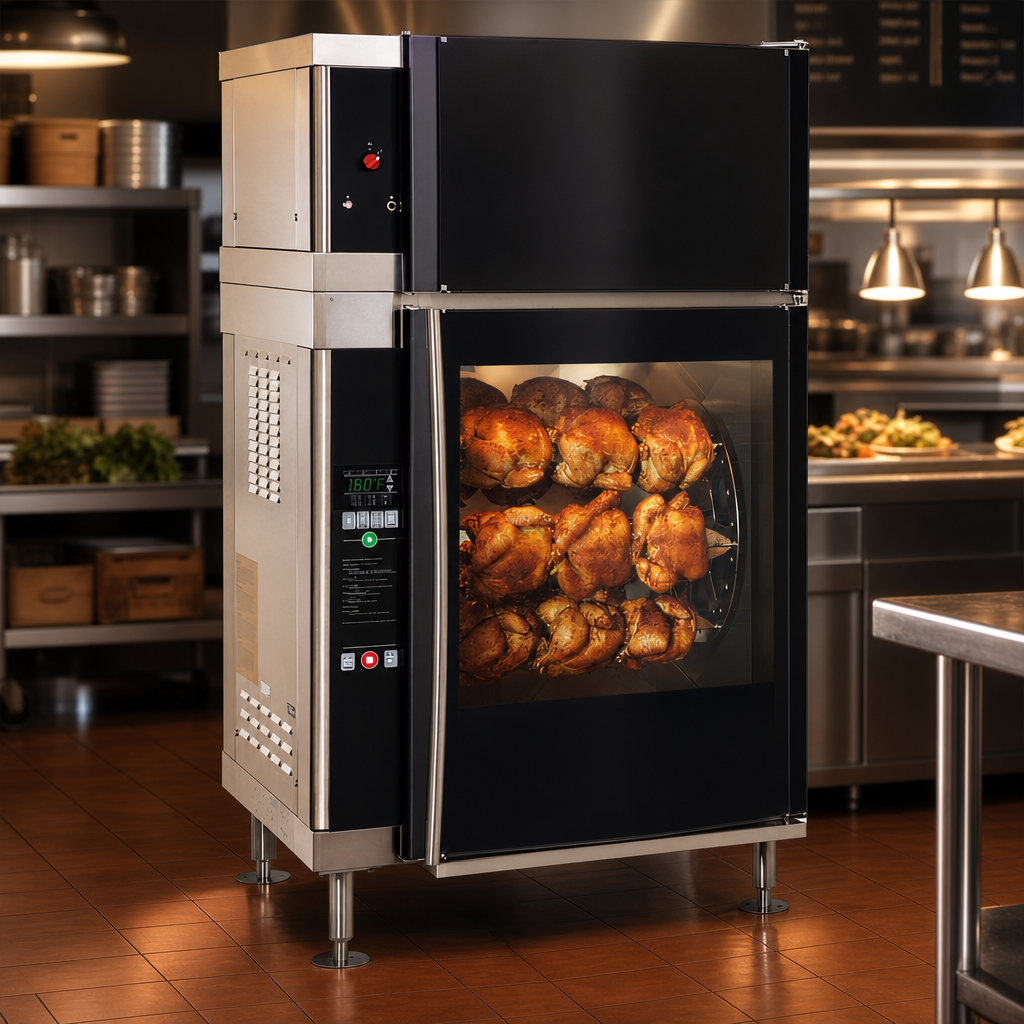

- EcoSmart® design draws only 8.3 kW, then automatically drops to a low-energy hold mode
- Convection + radiant heat and continuous disk rotation ensure even browning and self-basting
- Electronic LED controller: time, temperature, automatic hold, °F/°C display & emergency stop
- Seven removable stainless steel angled spits handle up to 98 lb (44 kg) per load – 21 × 3.5 lb or 28 × 2.5–3 lb chickens
- Double-pane curved glass door and bright recessed lighting maximize impulse sales and heat retention
- Solid stainless steel back, fully welded chamber and 4" adjustable legs meet NSF countertop standards
- Removable drip strips & 2" deep drip pan with rear drain keep cleanup fast and sanitary
- Stackable with matching Alto-Shaam rotisserie or holding cabinet for future expansion
*Always confirm ventless installations with your local authority having jurisdiction.
Specifications
| Model | AR-7EVH (solid back) |
|---|---|
| Capacity | 21 × 3.5 lb (1.6 kg) or 28 × 2.5–3 lb (1.1–1.4 kg) chickens • 98 lb (44 kg) max |
| Heat Type | Electric – convection & radiant, rotating disk (½ hp motor) |
| Cook Temperature | 250 – 425 °F (121 – 218 °C) |
| Hold Temperature | 140 – 210 °F (60 – 99 °C) |
| Electrical | 208 V 1 ph 40 A / 240 V 1 ph 38 A • 208 V 3 ph 33 A / 240 V 3 ph 32 A • 8.3 – 8.8 kW |
| Exterior (H × W × D) | 54" × 39-1/16" × 32" (1371 × 992 × 813 mm) |
| Net Weight | 481 lb (218 kg) |
| Clearances | 6" (152 mm) top, back & both sides |
| Certifications | cULus, UL EPH (ANSI/NSF 4), CE, IPX3, TUV NORD, PCT |
Included Accessories
- (7) stainless steel angled spits
- (2) stainless steel angled drip strips
- (1) 2" deep stainless steel drip pan with drain
- (6) 20 W recessed halogen bulbs
Energy Insight
Compared with traditional gas or electric rotisseries, the AR-7EVH can trim utility costs by up to 30 %. Its automatic hold mode maintains food-safe temperatures without over-cooking—so you’re always ready for the rush while keeping operating costs in check.
Warranty
Alto-Shaam backs every AR-7EVH with a 1-year parts & labor warranty (15 months from ship date). Register your unit after purchase for seamless support.
