Alto-Shaam  |  SKU: AR-7E

Alto-Shaam AR-7E-DBLPANE Rotisserie Ovens

$14,438.40
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Spec sheet - spanish Terms & conditions Spec sheet - french canadian Owner's manual Spec sheet - ul & ce Warranty sheet Warranty sheet
Related Searches
Alto-Shaam Commercial Ovens Ovens Restaurant Equipment Rotisserie Ovens Rotisserie Ovens

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

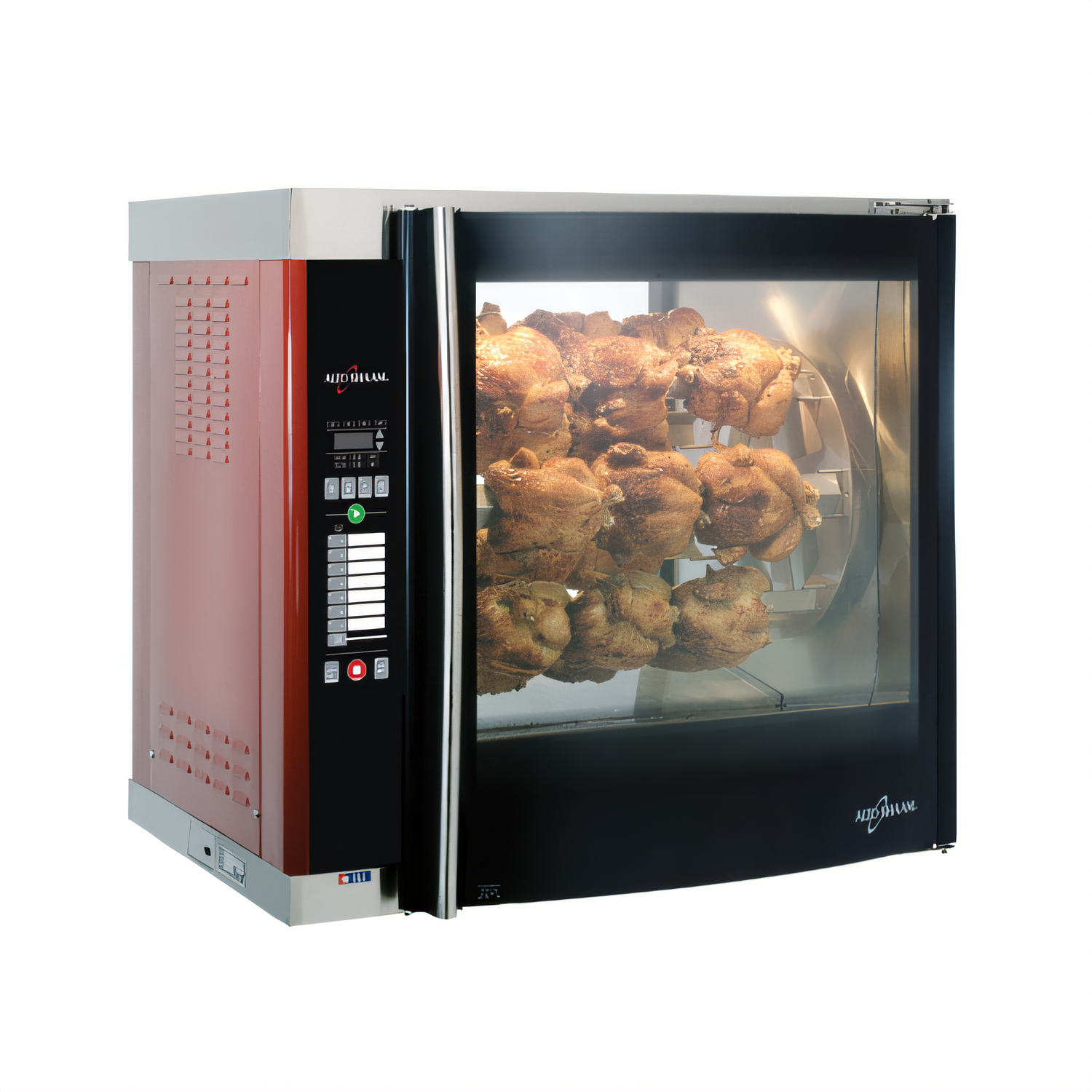

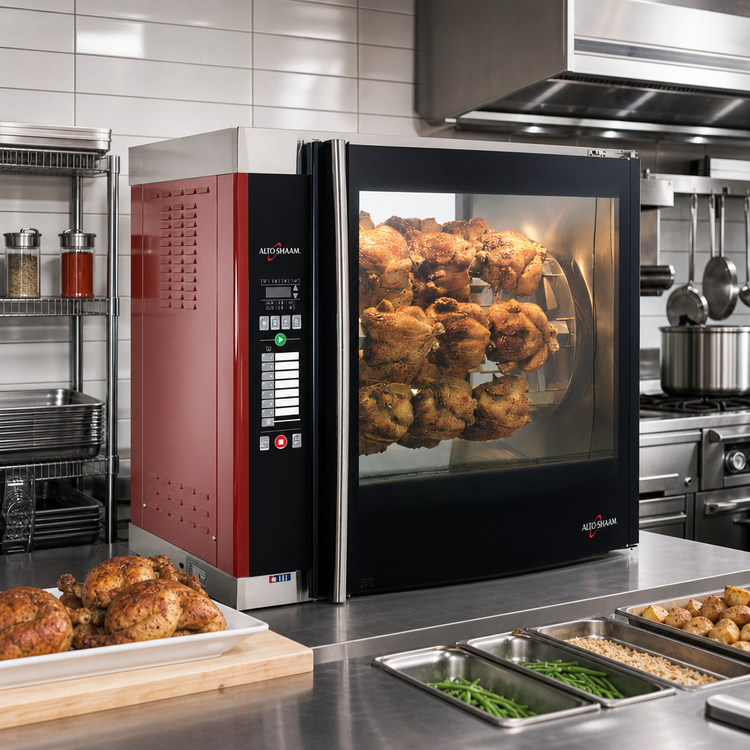

Alto-Shaam AR-7E EcoSmart® Electric Rotisserie Oven

Countertop | 7 spits | 21–28 chicken capacity | Cook-&-Hold

Deliver mouth-watering, theatre-style rotisserie chicken while slashing energy costs. The Alto-Shaam AR-7E combines convection and radiant heat with a smart cook-and-hold controller, letting you roast, display and serve from one compact, countertop footprint.

Performance & Profit Drivers

  • EcoSmart® technology draws just 8.3 kW, lowering utility bills without sacrificing throughput.

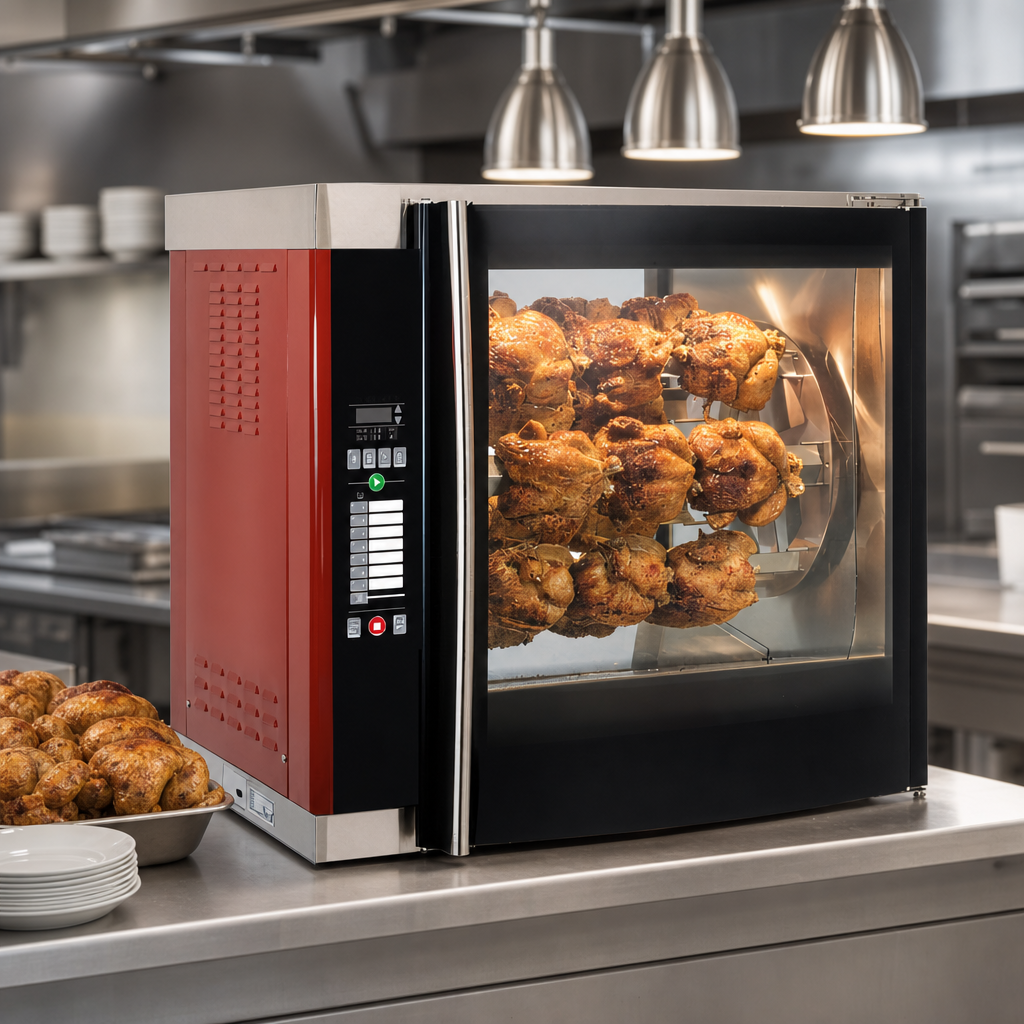

  • Automatic hold mode (140–210 °F / 60–99 °C) keeps product at perfect serving temperature until you need it — no additional hot case required.
  • Solid-state LED controller cooks by time, then drops to hold automatically; emergency stop and °F/°C selection included.
  • Curved, double-pane Low-E glass door and recessed lighting create an irresistible merchandising window while retaining heat.
  • 98 lb / 44 kg maximum load - up to 28 chickens per batch (2.5–3 lb each).

Built for Busy Kitchens

  • Heavy-gauge, non-magnetic stainless steel cabinet with sealed cooking chamber.

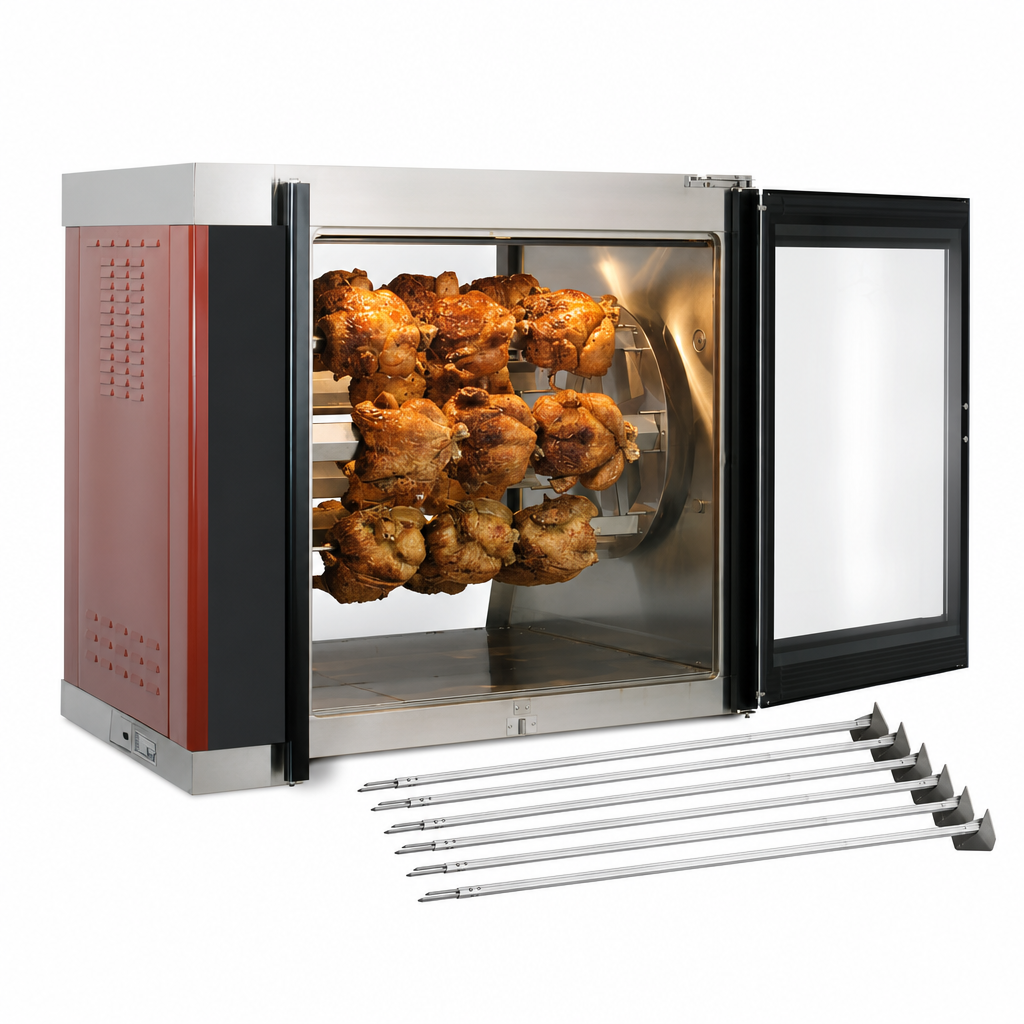

  • Seven (7) removable angled stainless steel spits driven by a ½ hp motor for smooth, even rotation.
  • Interior drip strips channel juices into a 2" deep stainless steel drip pan with drain—both are removable for quick cleanup.
  • Solid stainless steel back minimizes radiant heat loss to your line.
  • 4" (102 mm) adjustable stainless steel legs meet NSF counter-sealing requirements.

Technical Specifications

Model AR-7E (countertop, solid back, curved glass door)
Capacity 21 chickens @ 3.5 lb (1.6 kg)
28 chickens @ 2.5-3 lb (1.1-1.4 kg)
Included Spits Seven (7) angled stainless steel spits
Cook Temp Range 250–425 °F (121–218 °C)
Hold Temp Range 140–210 °F (60–99 °C)
Exterior Dimensions (H × W × D) 40-1/4" × 39-1/16" × 32"
(1022 × 992 × 813 mm)
Electrical 208 or 240 V / 1 ph, 40–38 A, 8.3–8.8 kW
208 or 240 V / 3 ph, 33–32 A/ph, 8.3–8.8 kW
Net Weight 361 lb (164 kg)
Construction Stainless steel cabinet, double-pane Low-E glass, 4" legs
Included Accessories 7 spits, 2 drip strips, 1 drip pan with drain, 6 recessed bulbs
Certifications cULus, UL EPH (ANSI/NSF 4), CE, IPX3, TUV NORD, PCT

Compliance & Peace of Mind

  • Meets ANSI/NSF 4 sanitation standards for open foodservice equipment.
  • IPX3 splash-proof rating for worry-free cleaning.
  • Backed by Alto-Shaam’s 1-year parts & labor warranty (15 months from ship date).

Need more capacity? The AR-7E can be field-stacked with an additional rotisserie or holding cabinet—contact us for details.

Features & Specs

Manufacturer

Alto-Shaam

Certifications

CE, cULus, UL EPH, IPX3

Height

40.25in

Width

39.06in

Depth

32.0in

Shipping Weight

451.0lbs

Capacity per Compartment

(28) chickens max.

Construction

stainless steel

Specifications

Rotisserie Oven, countertop, electric, (7) removable stainless steel angled spits, 21-28 chicken capacity, cook-n-hold, electronic LED controller with display, drip pan with drain, double pane curved glass door, solid back, stainless steel construction, 4" adjustable legs, EcoSmart®, cULus UL EPH ANSI/NSF 4, CE, IPX3, TUV NORD, PCT
