Alto-Shaam 750-TH/II Halo Heat Specialty Ovens
Description
Alto-Shaam 750-TH-II Halo Heat® Low-Temp Cook & Hold Oven

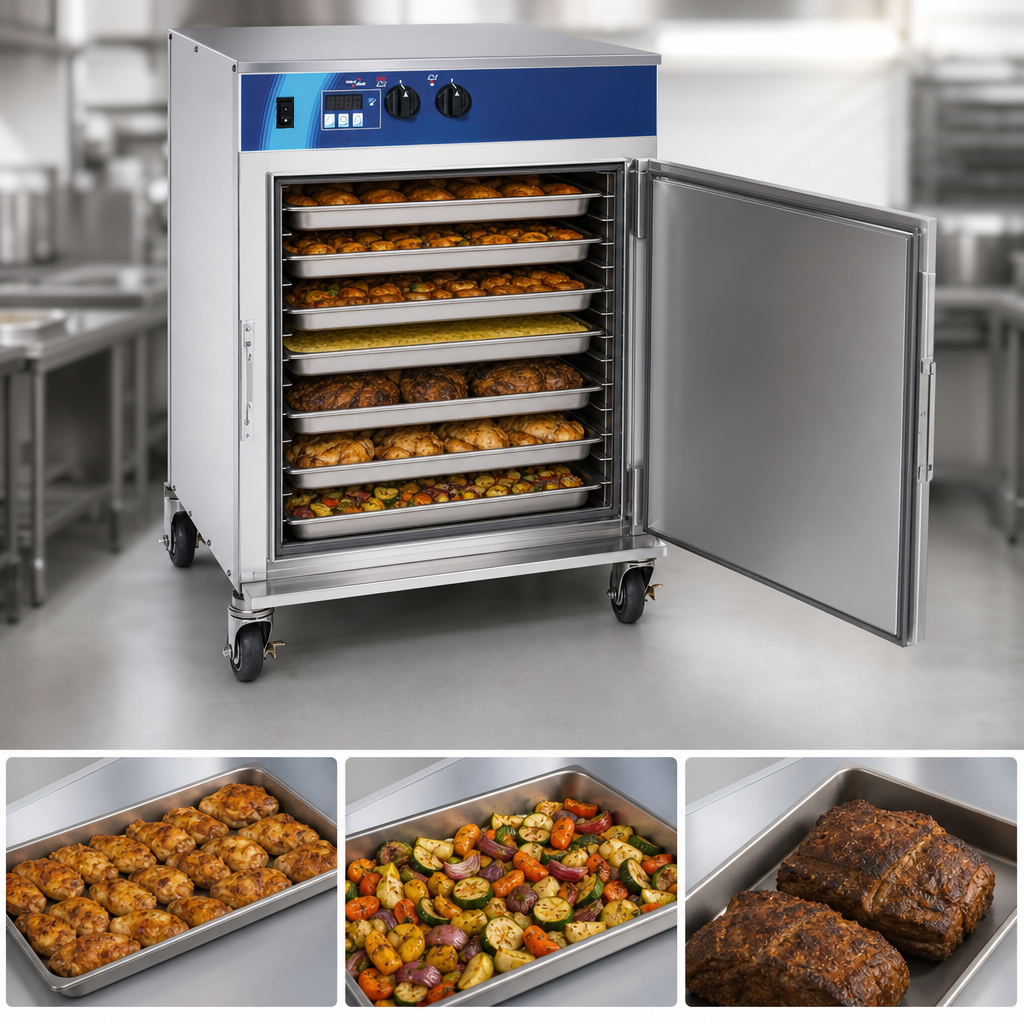

100 lb capacity • up to (10) full-size pans • Simple controllerGive every roast, brisket or casserole the gentle touch of Halo Heat®. The 750-TH-II cooks overnight or during the day, then automatically switches to holding mode so your food stays tender, juicy and service-ready—without babysitting, hoods or vents.*
Why you’ll love it

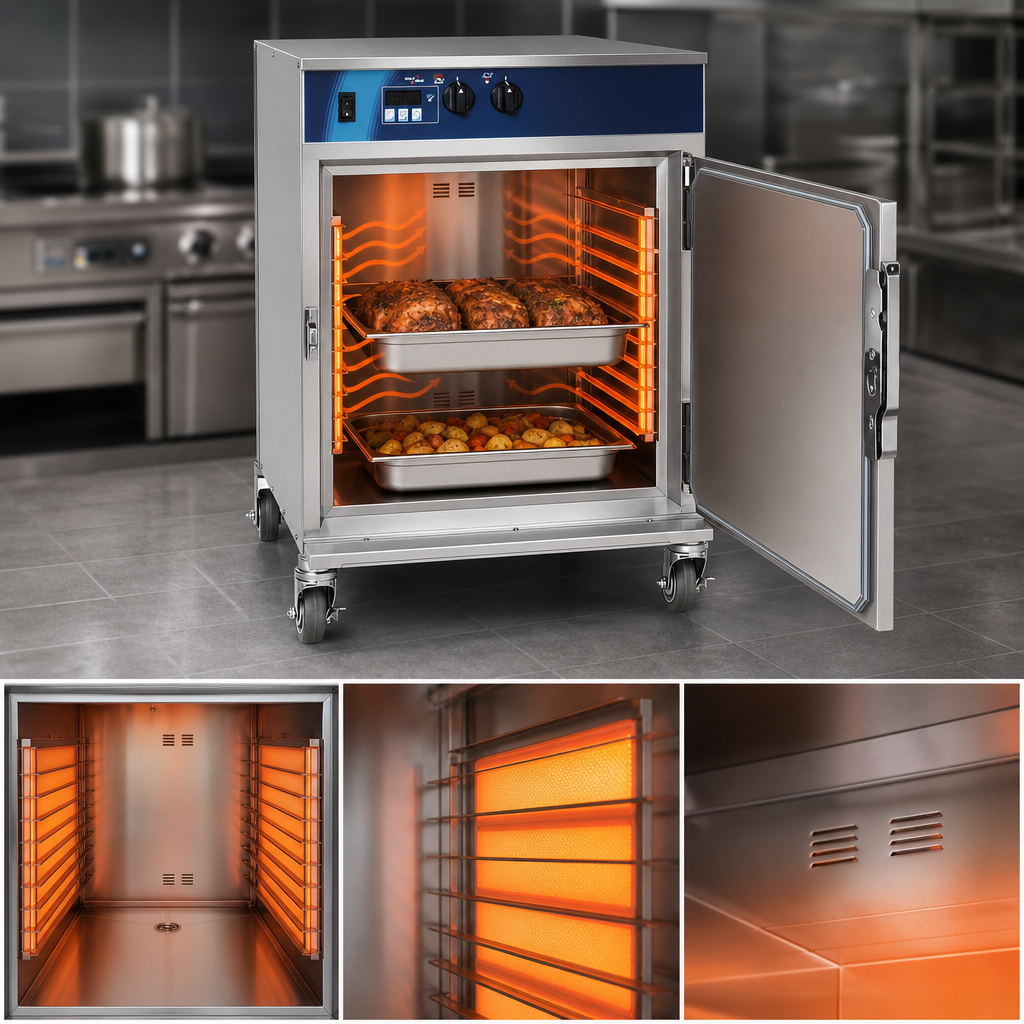

- Halo Heat® technology surrounds food with uniform, radiant heat—cutting shrinkage and locking in moisture.
- Set-and-forget Simple control: dial-in cook 200-325 °F and hold 60-205 °F, then walk away.
- Cooks, roasts, re-heats and holds in one cabinet to even out kitchen workloads.
- No hood or outside vent required in most jurisdictions; grease-laden air emissions < U.L. limits.
- Stackable design: double your capacity without using more floor space.
- Antimicrobial door handle helps reduce cross-contamination.
- EcoSmart® efficiency keeps energy use—and utility bills—low.
- Lifetime warranty on Halo Heat heating elements (parts) for the original owner.
- cULus, UL EPH ANSI/NSF 4, CE, IPX3, TÜV NORD, EAC, N11942 listed for worry-free compliance.
What’s included
- (2) stainless steel side racks with 11 positions
- (3) stainless steel wire shelves
- (1) exterior drip tray with removable pan
- 2-1/2″ casters – 2 rigid, 2 swivel with brakes
Key specifications
| Capacity | 100 lb / 75 qt (45 kg / 95 L) maximum |
|---|---|
| Pan configuration |
Up to (10) 20 ″ × 12 ″ × 2½ ″ Up to (6) 18 ″ × 26 ″ sheet pans (additional shelves required) |
| Cook temperature | 200 – 325 °F (94 – 160 °C) |
| Hold temperature | 60 – 205 °F (16 – 96 °C) |
| Exterior dimensions (H × W × D) | 31 ⅞ ″ × 26 ⅝ ″ × 31 ⅝ ″ (809 × 676 × 802 mm) |
| Interior dimensions | 20 ⅛ ″ × 22 ″ × 26 ½ ″ (510 × 559 × 673 mm) |
| Electrical |
120 V / 1 ph / 60 Hz – 14.2 A, 1.7 kW (NEMA 5-20P plug) 208 V / 1 ph / 60 Hz – 14.5 A, 3.0 kW (field-wired) 240 V / 1 ph / 60 Hz – 11.2 A, 2.7 kW (field-wired) 230 V / 1 ph / 50-60 Hz – 10.5 A, 2.4 kW (CEE 7/7, CH2-16P, BS 1363, AS/NZS 3112) |
| Net weight / Shipping | 194 lb / 264 lb (88 kg / 120 kg) |
| Clearances | Rear 3″ • Top 2″ • Sides 1″ • 18″ from heat sources |
Popular accessories (sold separately)
- Full-perimeter bumper
- 6″ flanged legs
- Rib racks or prime-rib carving holders
- Security panel with key lock
- Stacking hardware for 750, 767, SK or CTX4-10 series units
Installation note: Appliances supplied without a cord or plug must be secured to the building structure with a flexible connector. Oven must be installed level and away from steam, dripping water or extreme heat.
*Always verify local code requirements regarding ventilation.
