Alto-Shaam  |  Halo Heat  |  SKU: 500-HW/D4

Alto-Shaam 500-HW/D4 Halo Heat Steam Tables & Food Wells

$3,161.60
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Spec sheet - ul Spec sheet - ce Spec sheet - spanish Spec sheet - french canadian Terms & conditions Owner's manual Warranty sheet Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

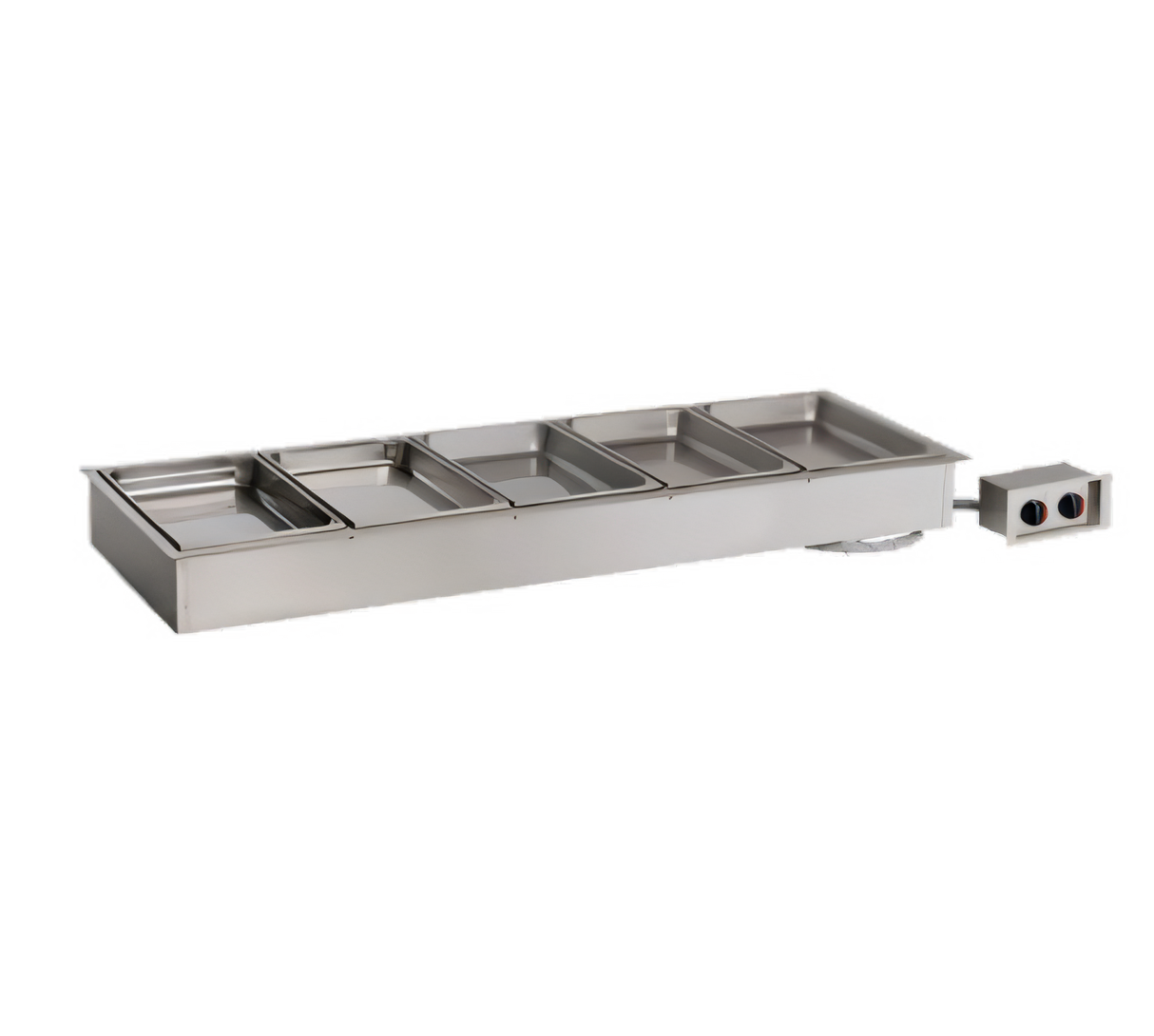

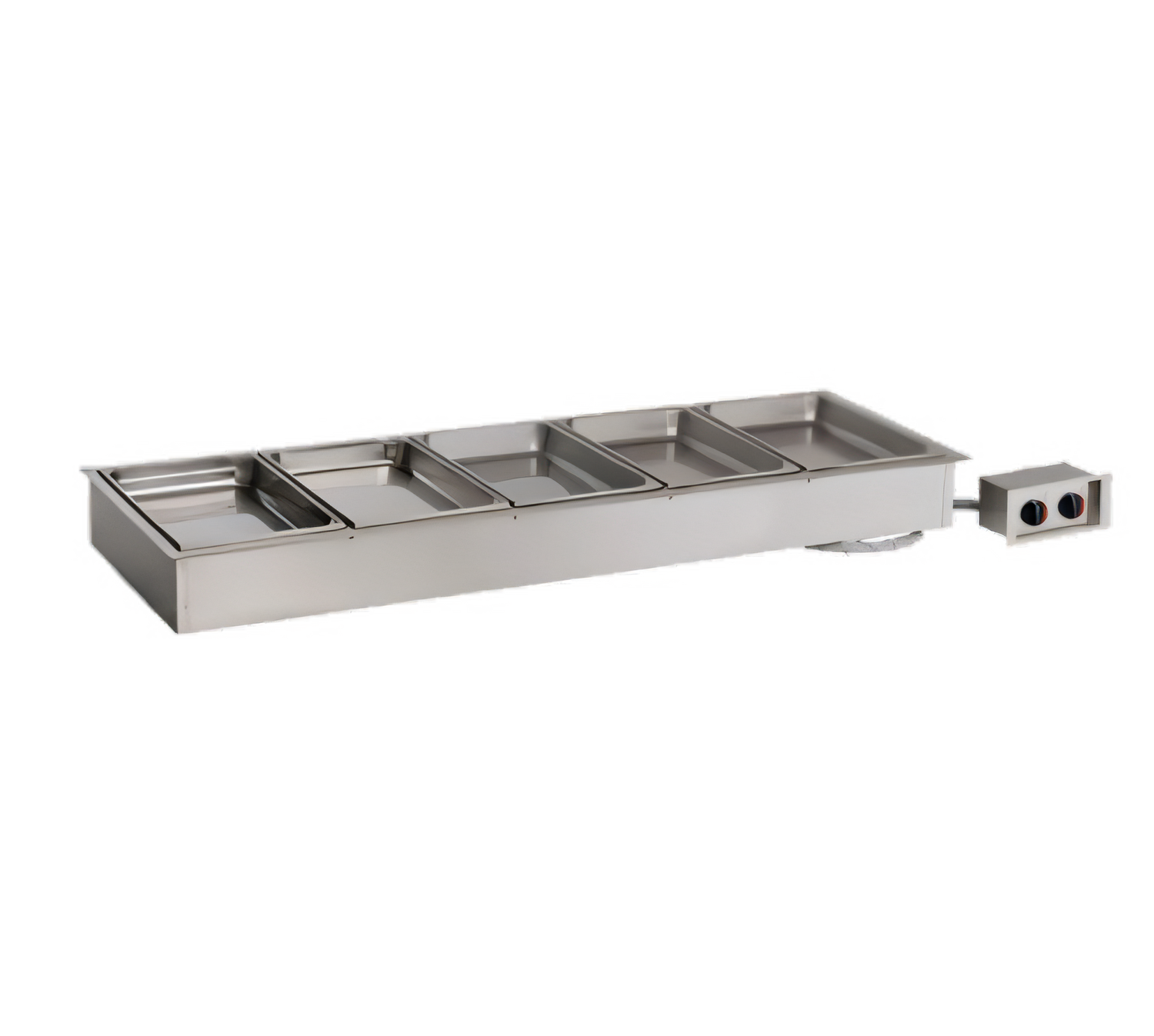

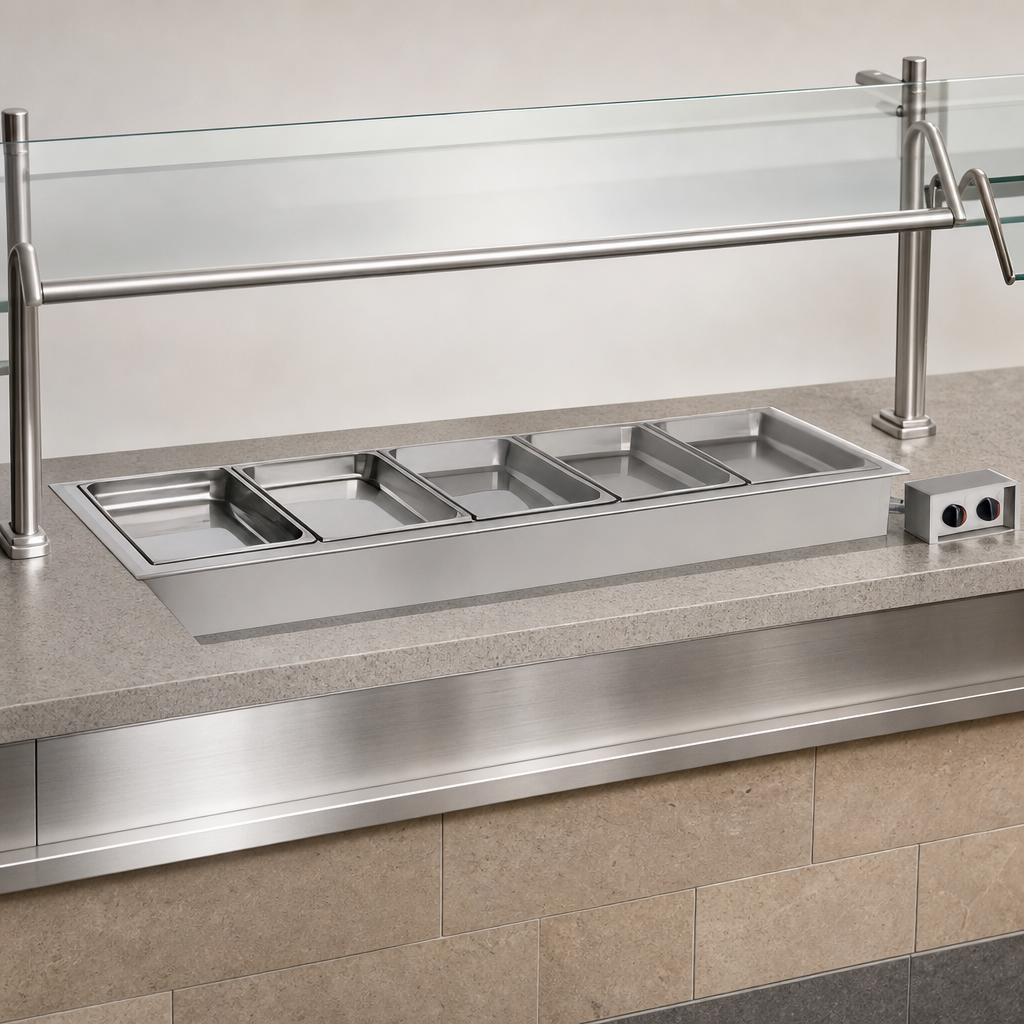

Alto-Shaam 500-HW/D4 Halo Heat® Drop-In Hot Food Well

Waterless • 5-pan capacity • EcoSmart® energy savings

Serve every dish at its flavorful peak—without steam, plumbing or constant refills. Alto-Shaam’s patented Halo Heat® technology blankets food in gentle, even radiant heat to preserve moisture, texture and appearance while dramatically reducing utility and maintenance costs.

Key Benefits
  • Holds five full-size 12" × 20" (4" deep) pans or up to fifteen 1/3 GN pans.
  • True waterless design eliminates lime/scale buildup and daily draining.
  • Remote/flush-mount adjustable thermostat for precise, menu-specific holding.
  • Includes ten half/third-size and four large divider bars to create custom pan layouts.
  • EcoSmart® performance draws just 3 kW, slashing energy consumption vs. steam tables.
  • Cool-to-touch exterior and no hot steam improve employee and guest safety.
  • Heavy-duty stainless steel construction built for the busiest service lines.
  • Certified cULus, UL EPH Classified, CE, IPX3 & TÜV NORD for global code compliance.
Specifications
Model 500-HW/D4
Capacity 5 full-size / 10 half-size / 15 third-size pans
120 lb (54 kg) product • 72.5 qt (70 L)
Well Depth 4-3/8" (111 mm)
Exterior (H × W × D) 7-5/16" × 67-1/16" × 23-1/8"
(185 × 1702 × 586 mm)
Interior (H × W × D) 4-3/8" × 63-15/16" × 20-3/16"
(111 × 1625 × 512 mm)
Net Weight 85 lb (39 kg)
Electrical 120 V / 1-ph / 50-60 Hz • 25 A • 3 kW
6 ft cord with NEMA L5-30P
208-240 V & 230 V connections available
Included Accessories (10) half/third-size & (4) large divider bars
Certifications cULus • UL EPH • CE • IPX3 • TÜV NORD • EcoSmart®
Warranty 1-year parts & labor (original owner)
Perfect For
  • Buffet, self-serve and grab-and-go counters needing consistent hot food quality.
  • Kitchens without water lines or looking to reduce plumbing and descaling costs.
  • Restaurants, hotels, schools & healthcare facilities focused on energy savings.
Important: Pans are not included. Install only in a level counter surface rated to 200 °F (93 °C) and allow 6" (152 mm) clearance beneath the control box for conduit routing.

Need a deeper 6" well or large-flange option? Check out Alto-Shaam models 500-HW/D6 and 500-HWLF.

Features & Specs

Manufacturer

Alto-Shaam

Brand_name

Halo Heat

Certifications

CE, cULus, UL EPH Classified, IPX3

Height

7.31in

Width

67.06in

Depth

23.13in

Shipping Weight

125.0lbs

Drain

without drain

Insulated or Non-Insulated

insulated

Style

individual pans

Controls

thermostatic controls

Pan Capacity

(5) full size (12" x 20")

Wet or Dry operation

dry

Construction

stainless steel construction

Specifications

Halo Heat® Hot Food Well Unit, Drop-In, Electric, (5) 12" x 20" full-size pan capacity (pans NOT included), 4-3/8" deep well, holds 4" deep pans, includes (10) half/third-size & (4) large pan divider bars, adjustable thermostatic controller, stainless steel construction, EcoSmart®, cULus, UL EPH Classified, CE, IPX3, TUV NORD
