Alto-Shaam 100-HW/D643 Halo Heat Steam Tables & Food Wells
Description

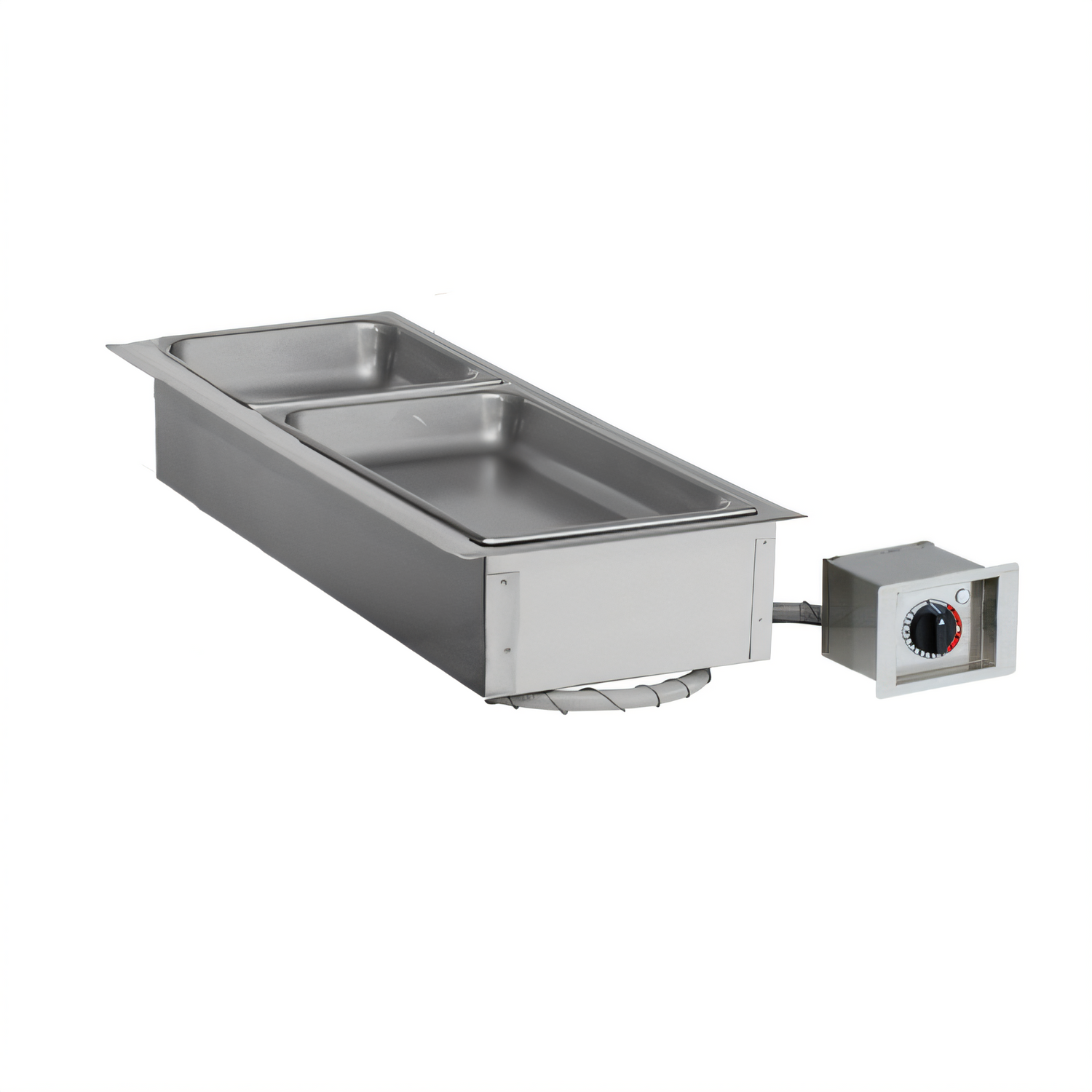

Alto-Shaam 100-HW/D6 Halo Heat® Drop-In Hot Food Well
Waterless, EcoSmart® performance for 1 full-size & 1 third-size panUpgrade any serving line with the unmatched holding power of Alto-Shaam’s patented Halo Heat® technology. The 100-HW/D6 delivers gentle, even heat—without water, steam or fans—so your menu stays fresh, colorful and ready to serve while you cut utility, installation and maintenance costs.
Key benefits
- Waterless design eliminates plumbing, scale build-up and the safety hazards of hot steam.

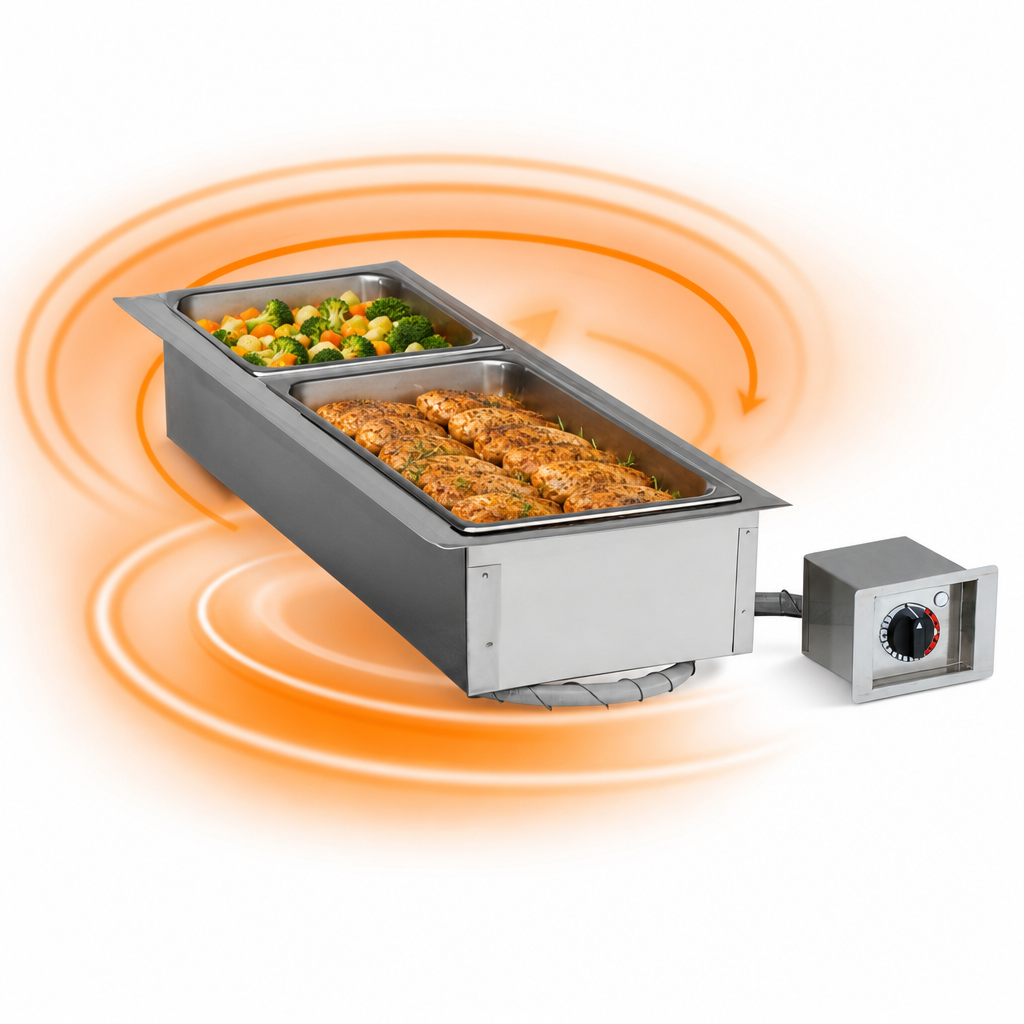

- Halo Heat® surrounds food with precise radiant heat to extend hold times and preserve moisture.
- 6-3/8 in (162 mm) deep well accepts 6 in deep pans for maximum capacity and flexibility.
- Independent, flush-mountable thermostatic control lets you fine-tune temperatures for any dish.
- EcoSmart® efficiency draws as little as 0.45 kW, slashing daily operating costs.
- All-stainless-steel construction built for busy commercial kitchens—cULus, UL EPH, CE, IPX3 & TÜV NORD listed.
Pan capacity
- (1) 12 in × 20 in full-size pan and (1) 12 in × 6 in third-size pan (pans not included).
- Two half/third-size pan divider bars are included for flexible layouts.
Ideal applications
- Cafeterias & self-serve buffets
- Supermarket hot bars & deli counters
- Concessions & kiosks with limited water access
- C-stores and grab-and-go programs
Specifications
| Model | 100-HW/D6 |
|---|---|
| Exterior dimensions | 8-7/8 in H × 15 in W × 23-1/8 in D (225 × 380 × 586 mm) |
| Interior (well) size | 6-3/8 in H × 12 in W × 20-3/16 in D (162 × 304 × 512 mm) |
| Surface cutout | 13-13/16 in × 22-1/8 in (351 × 562 mm) |
| Capacity | One full-size pan + one third-size pan 24 lb (11 kg) / 14.5 qt (14 L) max* |
| Net weight | 29 lb (13 kg) |
| Electrical |
120 V | 1 ph | 5.0 A | 0.6 kW (NEMA 5-15P) 208 V | 1 ph | 2.2 A | 0.45 kW (NEMA 6-15P) 240 V | 1 ph | 2.5 A | 0.6 kW (NEMA 6-15P) 230 V | 1 ph | 2.6 A | 0.6 kW (CEE 7/7) |
| Heat of rejection | 61 BTU/hr (0.02 kW) |
| Certifications | cULus, UL EPH Classified, CE, IPX3, TÜV NORD, EcoSmart® |
*Based on a 4 in (100 mm) deep pan. Unit will also accept 2.5 in (65 mm) and 6 in (150 mm) deep pans.
What’s included
- 100-HW/D6 waterless hot food well with attached control box (6 ft/9 ft cord, plug as ordered).
- (2) Divider bars for half- and third-size pan configuration.
- 1-year parts & labor warranty from Alto-Shaam.
Popular accessories
- Additional pan divider bars (PN 11318)
- Locking kit (PN 5020849) for secure mounting
- Undermount kit (PN 5020793) for concealed installations
• Countertop material must withstand 200 °F (93 °C).
• Allow 6 in (152 mm) clearance from control box to conduit bend.
• Maintain 1 in (25 mm) clearance from combustible surfaces.
• Some foods may require supplemental overhead heat; always verify safe holding temperatures.

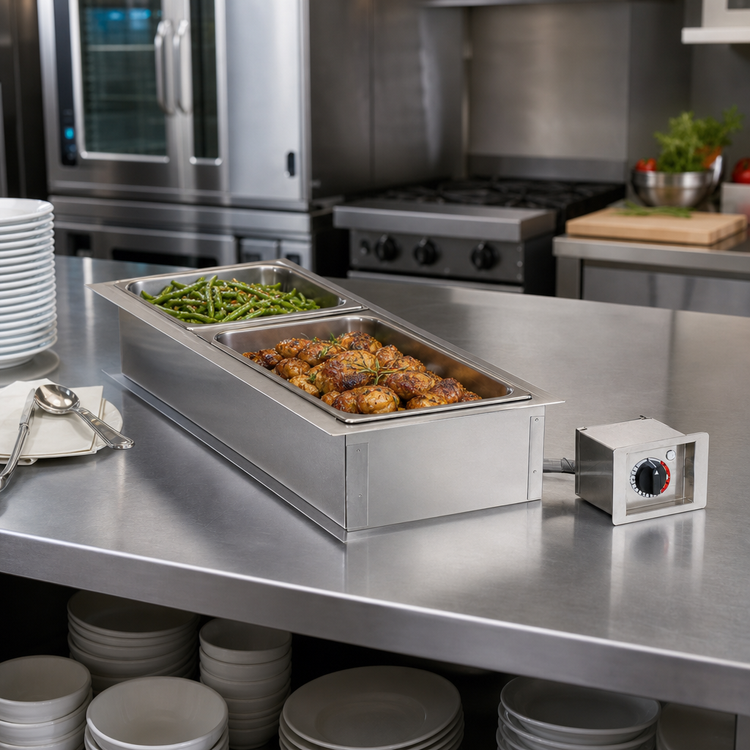

Pans shown in images are for illustration only and are not included with purchase.
