Alto-Shaam  |  Halo Heat  |  SKU: 100-HW/D4

Alto-Shaam 100-HW/D4 Halo Heat Steam Tables & Food Wells

$1,912.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Terms & conditions Spec sheet - french canadian Spec sheet - ul Spec sheet - spanish Owner's manual Spec sheet - ce Warranty sheet Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

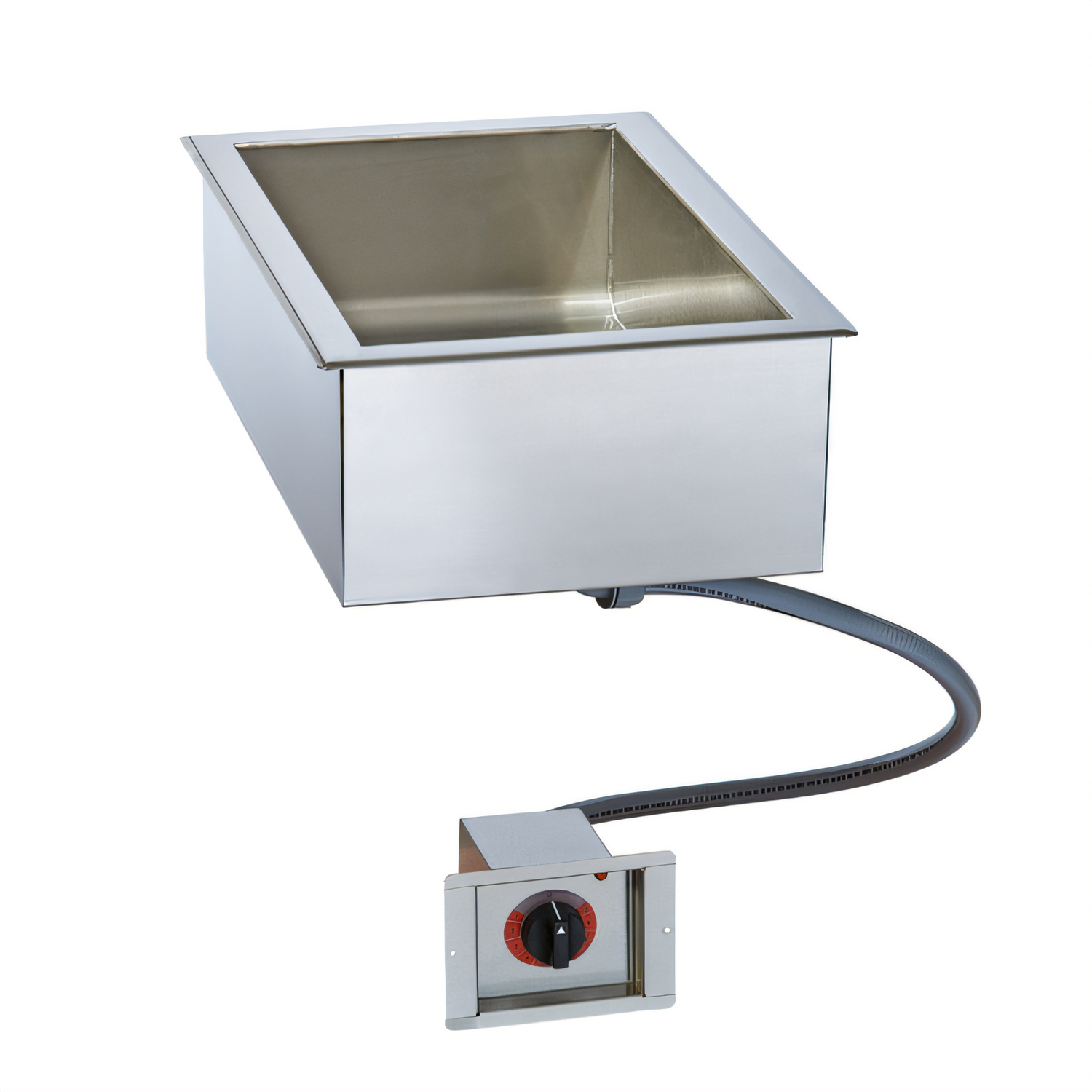

Alto-Shaam 100-HW/D4 Halo Heat® Waterless Drop-In Hot Food Well

1 x 12" × 20" Full-Size Pan Capacity • EcoSmart® • Stainless Steel

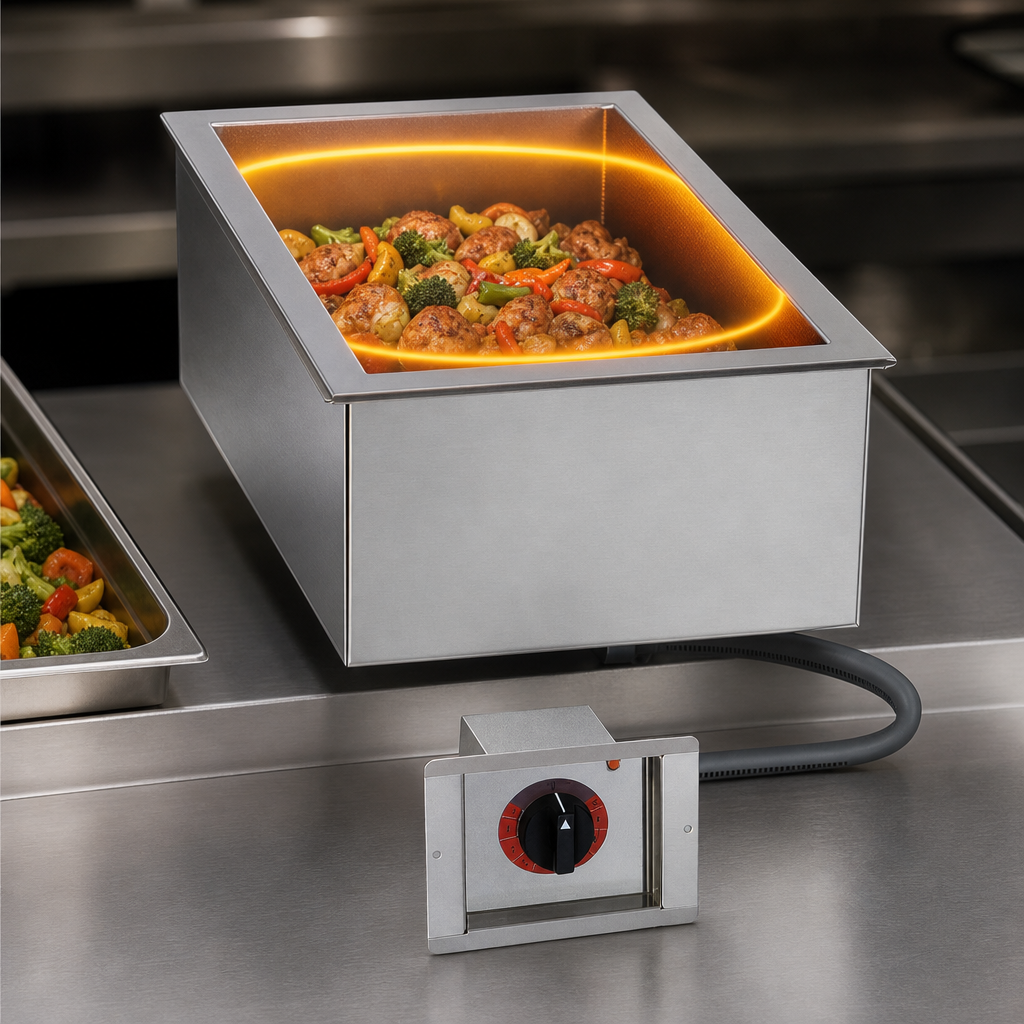

Give your buffet, cafeteria line or grab-and-go station a competitive edge with Alto-Shaam’s waterless Halo Heat® technology. The 100-HW/D4 gently surrounds food with uniform radiant heat—no steam, fans or added humidity—so your entrées stay fresh and appetizing for hours while you save on water, energy and maintenance.

Key Benefits

  • Waterless Halo Heat® system eliminates the need for plumbing, drains or steam, slashing installation and operating costs.
  • Even, gentle radiant heat extends holding times without over-drying or over-cooking.
  • 4-3/8" deep well perfectly fits 4" deep pans (accepts 2-1/2" pans as well) for a versatile service lineup.
  • Adjustable thermostatic control (flush-mount or hidden) lets you dial in the ideal temperature for any menu item.
  • Durable 304 stainless steel construction with IPX3 splash-proof rating—built for busy commercial kitchens.
  • EcoSmart® design draws as little as 0.6 kW, reducing utility costs without sacrificing performance.
  • Certified safe & sanitary: cULus, UL EPH Classified, CE, TUV NORD.

Product Specifications

Model 100-HW/D4 (drop-in)
Pan Capacity One full-size 12" × 20" pan
or two 1/2-size pans | Maximum product load 24 lb (11 kg)
Interior Well Size 4-3/8" H × 12" W × 20-3/16" D (111 × 304 × 512 mm)
Exterior Dimensions 7" H × 15" W × 23-1/8" D (177 × 380 × 586 mm)
Construction All stainless steel; insulated, waterless radiant heat well
Electrical (selectable) 120 V, 1 Ph, 50/60 Hz, 5.0 A, 0.6 kW, NEMA 5-15P
208 V, 1 Ph, 50/60 Hz, 2.2 A, 0.45 kW, NEMA 6-15P
240 V, 1 Ph, 50/60 Hz, 2.5 A, 0.6 kW, NEMA 6-15P
230 V, 1 Ph, 50/60 Hz, 2.6 A, 0.6 kW, CEE 7/7
Net Weight 25 lb (11 kg)
Certifications cULus Listed, UL EPH Classified, CE, IPX3, TUV NORD, EcoSmart®
Warranty 1-year parts & labor (original purchaser)

Ideal Applications

  • Buffet or cafeteria serving lines
  • Convenience-store hot grab-and-go
  • Banquet holding stations
  • Back-of-house staging for à-la-carte service

Optional Accessories

  • Half-/third-size pan divider bar (part 11318)
  • Locking kit for countertop security (part 5020849)
  • Undermount kit for concealed installation (part 5020793)
Note: Food pans and divider bars are sold separately. Unit must be installed level in a countertop material rated for at least 200 °F (93 °C).

Need a deeper 6" well or multi-pan configuration? Explore additional Halo Heat® models in our store.

Features & Specs

Manufacturer

Alto-Shaam

Brand_name

Halo Heat

Certifications

CE, cULus, UL EPH Classified, IPX3

Height

7.0in

Width

15.0in

Depth

23.13in

Shipping Weight

75.0lbs

Pan Capacity

(1) full size (12" x 20")

Insulated or Non-Insulated

insulated

Drain

without drain

Controls

thermostatic controls

Style

individual pans

Wet or Dry operation

dry

Construction

stainless steel construction

Specifications

Halo Heat® Hot Food Well Unit, Drop-In, Electric, (1) 12" x 20" full-size pan capacity (pans NOT included), 4-3/8" deep well, hold 4" deep pans, adjustable thermostatic controller, stainless steel construction, EcoSmart®, cULus, UL EPH Classified, CE, IPX3, TUV NORD
